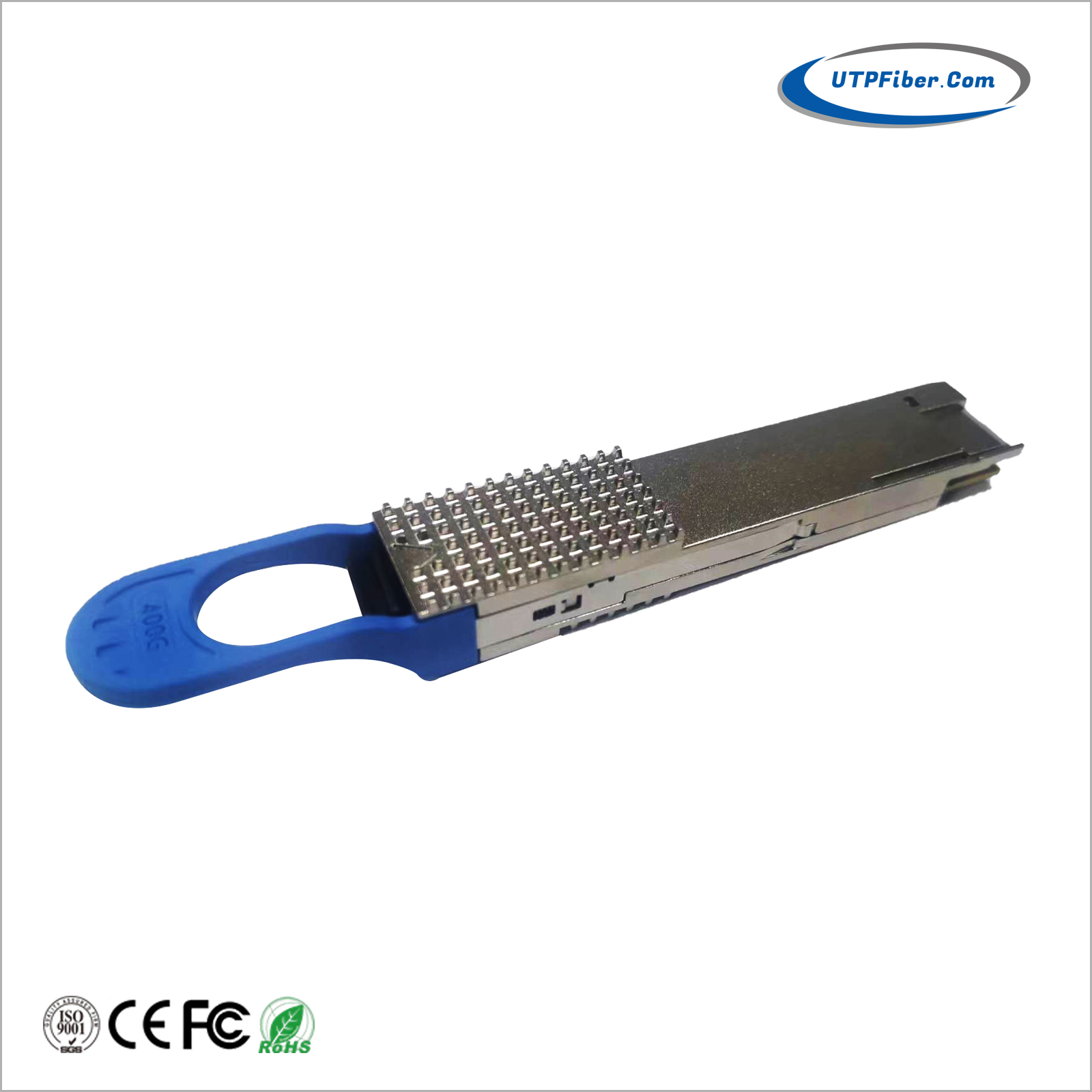

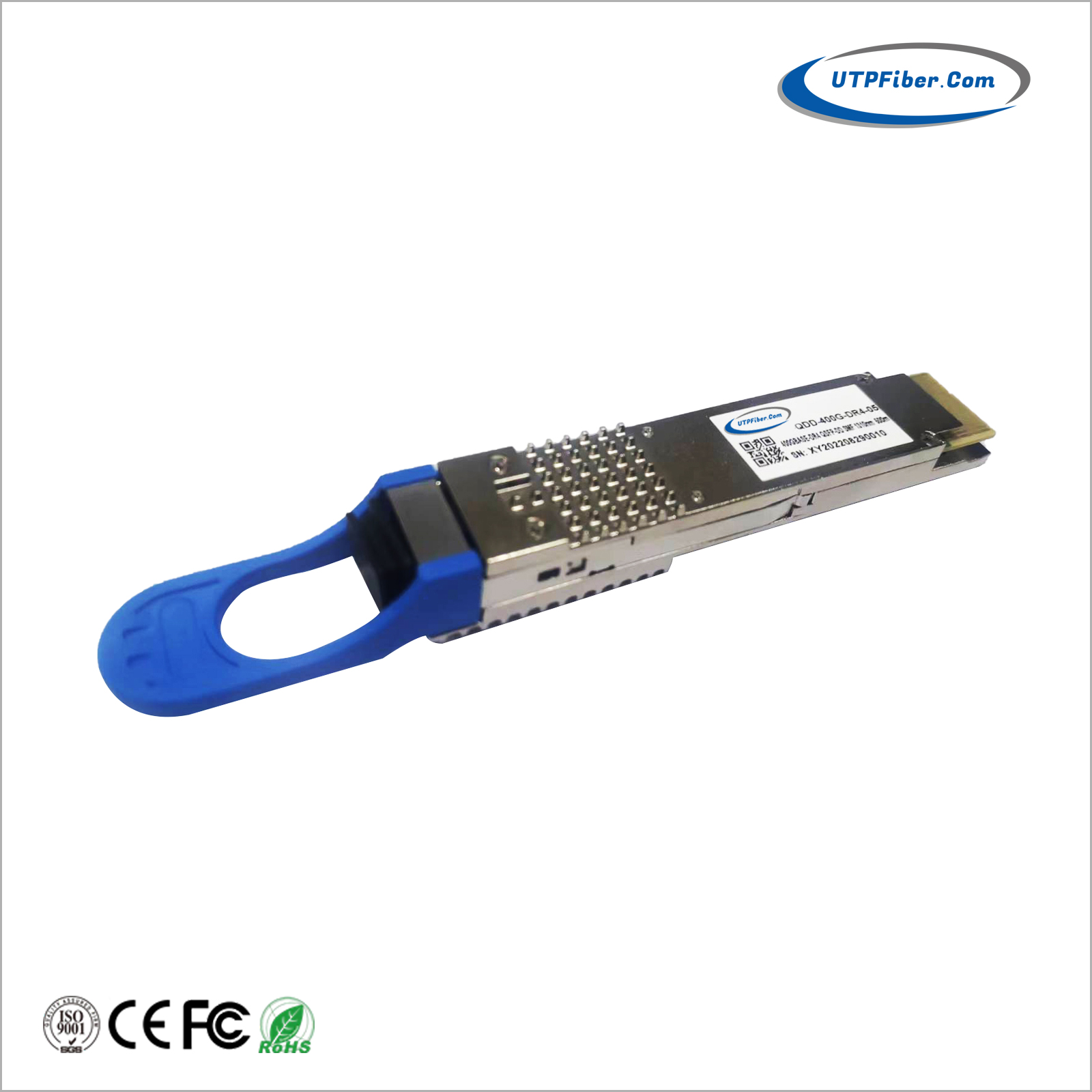

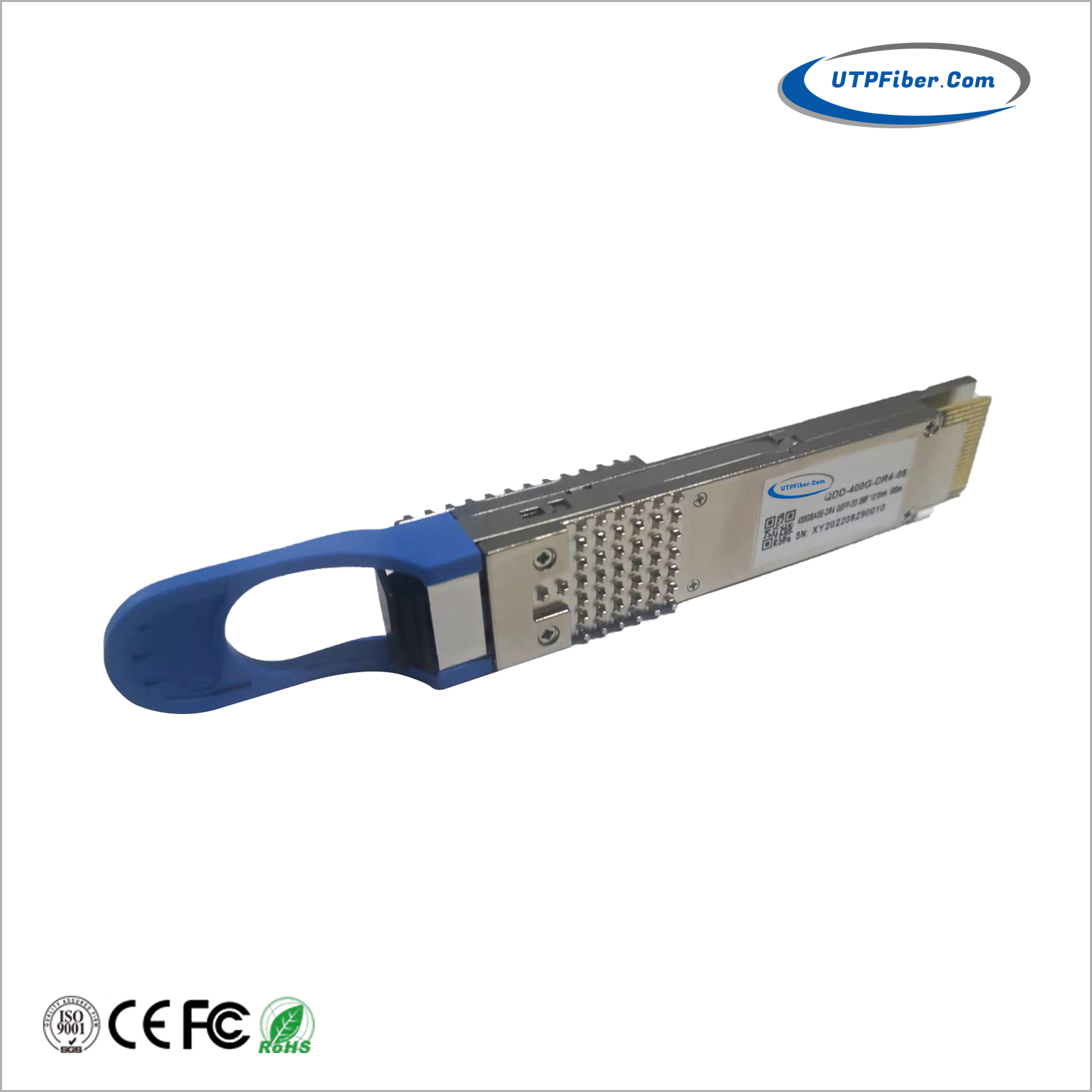

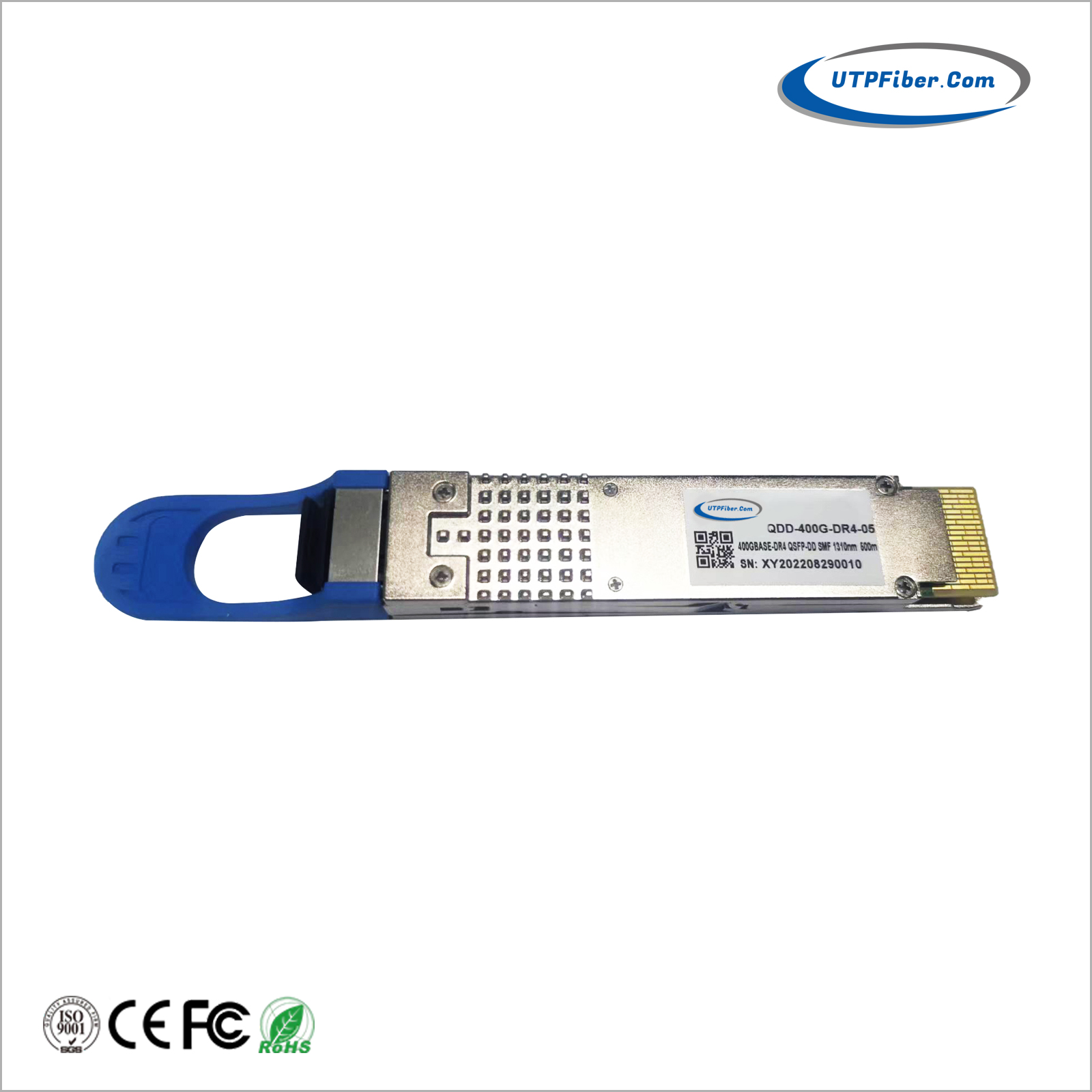

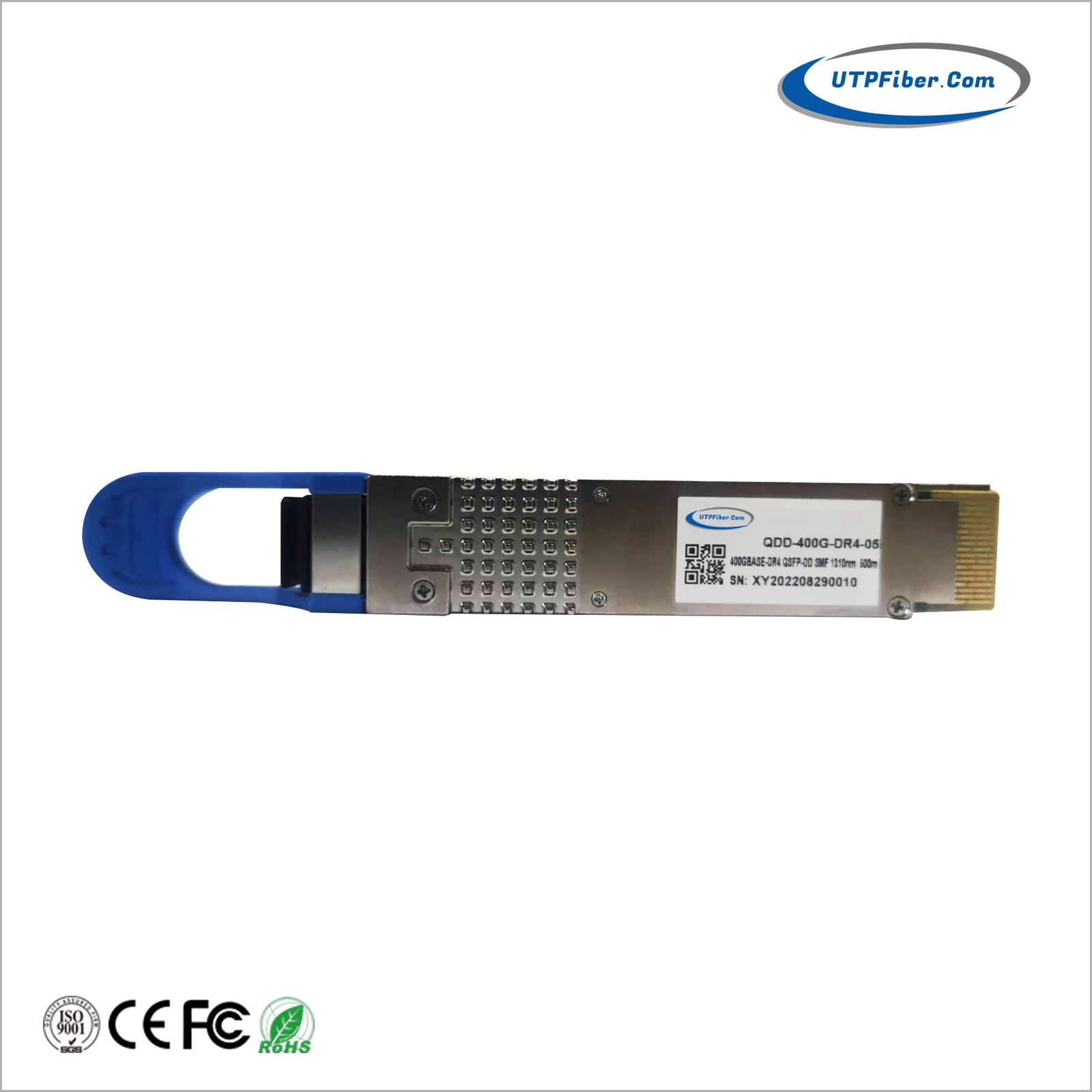

400G QSFP-DD DR4 PAM4 Optical Transceiver Module (1310nm MTP/MPO SMF 500m with FEC DDM)
400G QSFP-DD DR4 optical module uses a standard MPO-12 connector to transmit up to 500m over single-mode fiber. The Transceiver is compliant with QSFP-DD MSA, IEEE 802.3bs protocol, and 400GAUI-8 standard. 400 Gigabit Ethernet signals are transmitted over four parallel channels on one wavelength per channel. It can also be connected to 100G DR optical modules. It adopts a 1310nm EML transmitter type and PAM4 pulse amplitude modulation mode. It is used in data centers, high-performance computing networks, enterprise core, and distribution layers, and service provider applications.

• Compliant with IEEE802.3bs standard:
  - 400GAUI-8 electrical interface
• Compliant with IEEE 802.3bs standard:
  - 400GBASE-DR4 optical interface
• Compliant with QSFP-DD MSA HW Rev 5.1
• Type 2 housing with MPO-12 connector
• Compliant with QSFP-DD CMIS Rev 4.0
• Supports 3dB channel insertion loss
• Maximum power consumption 10W
• Case operating temperature 0°C to 70°C
• Two wire serial Interface with digital diagnostic monitoring
• Complies with EU Directive 2011/65/EU
• (RoHS compliant)
• Class 1 Laser

• Download FileName：UF-QDD-DR4-05 400G QSFP-DD DR4 1310nm 500m Transceiver Datasheet V1.0.pdf Size： 636KB
