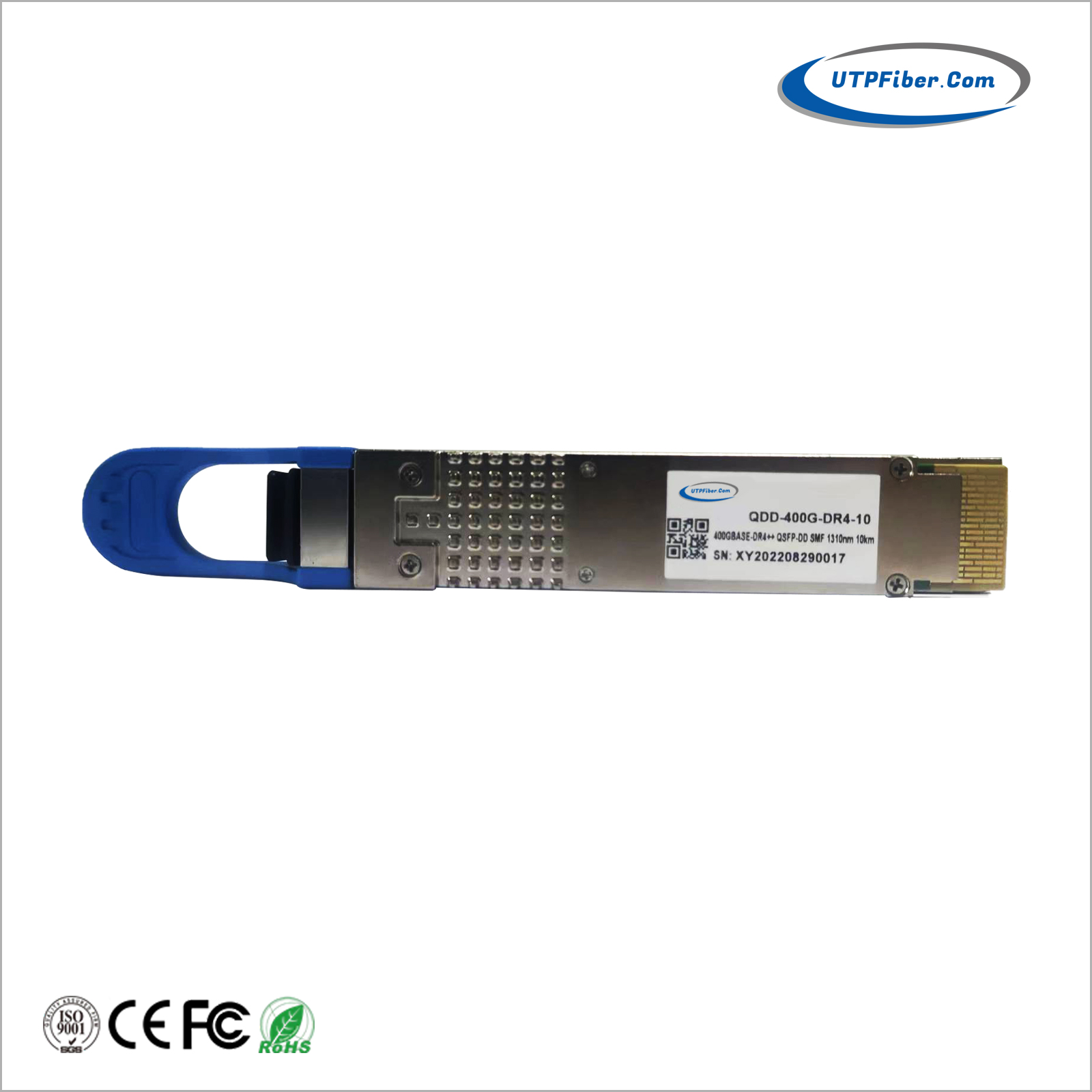

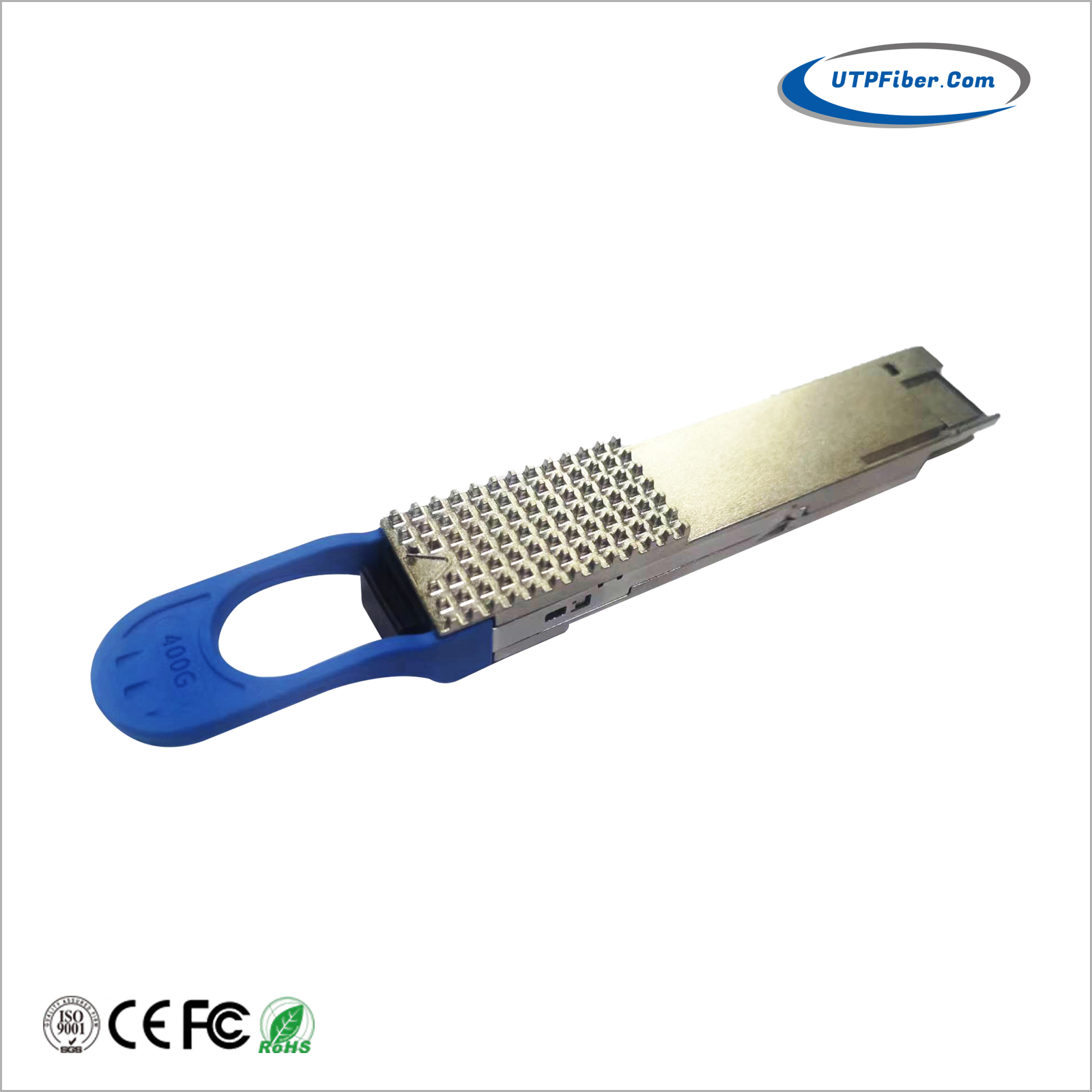

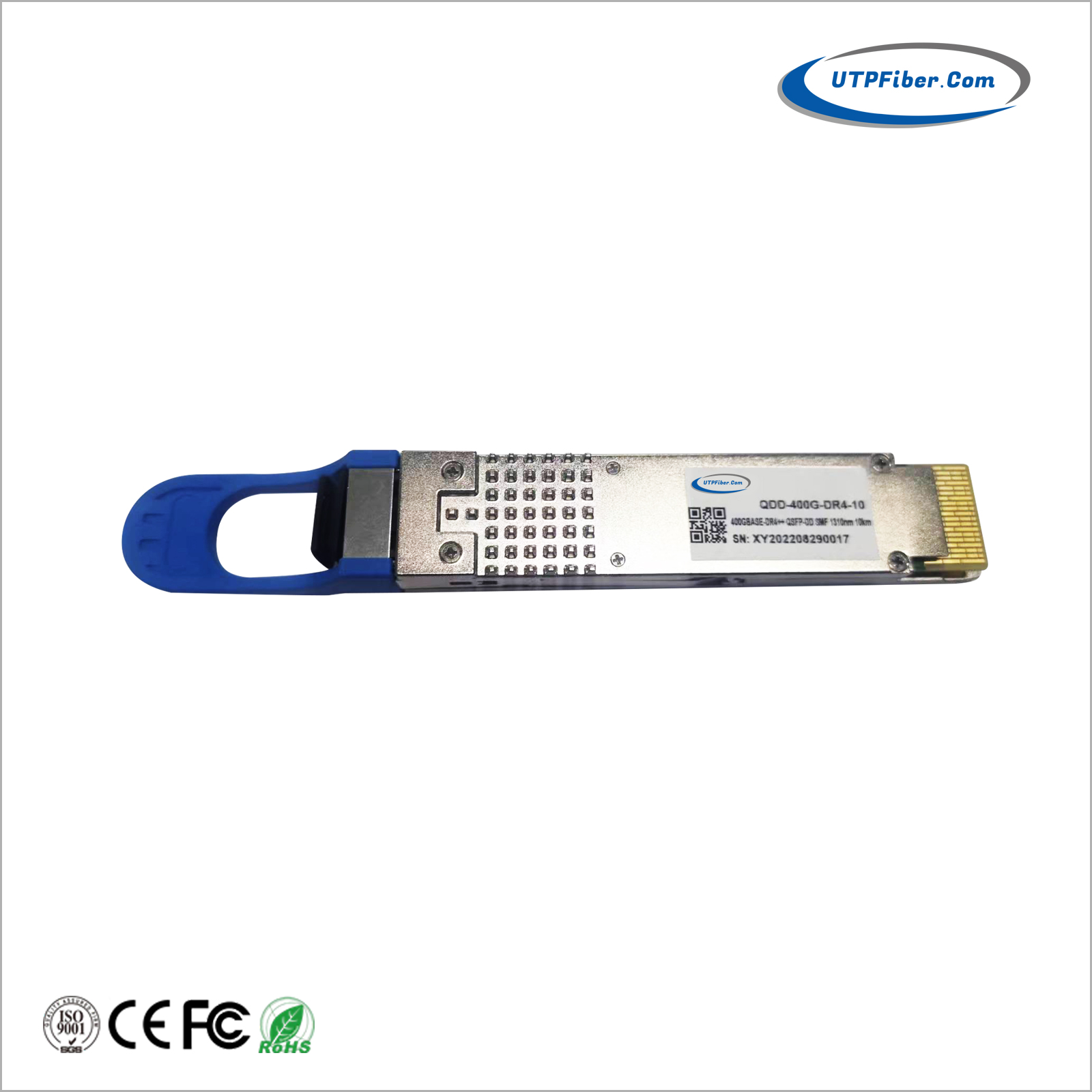

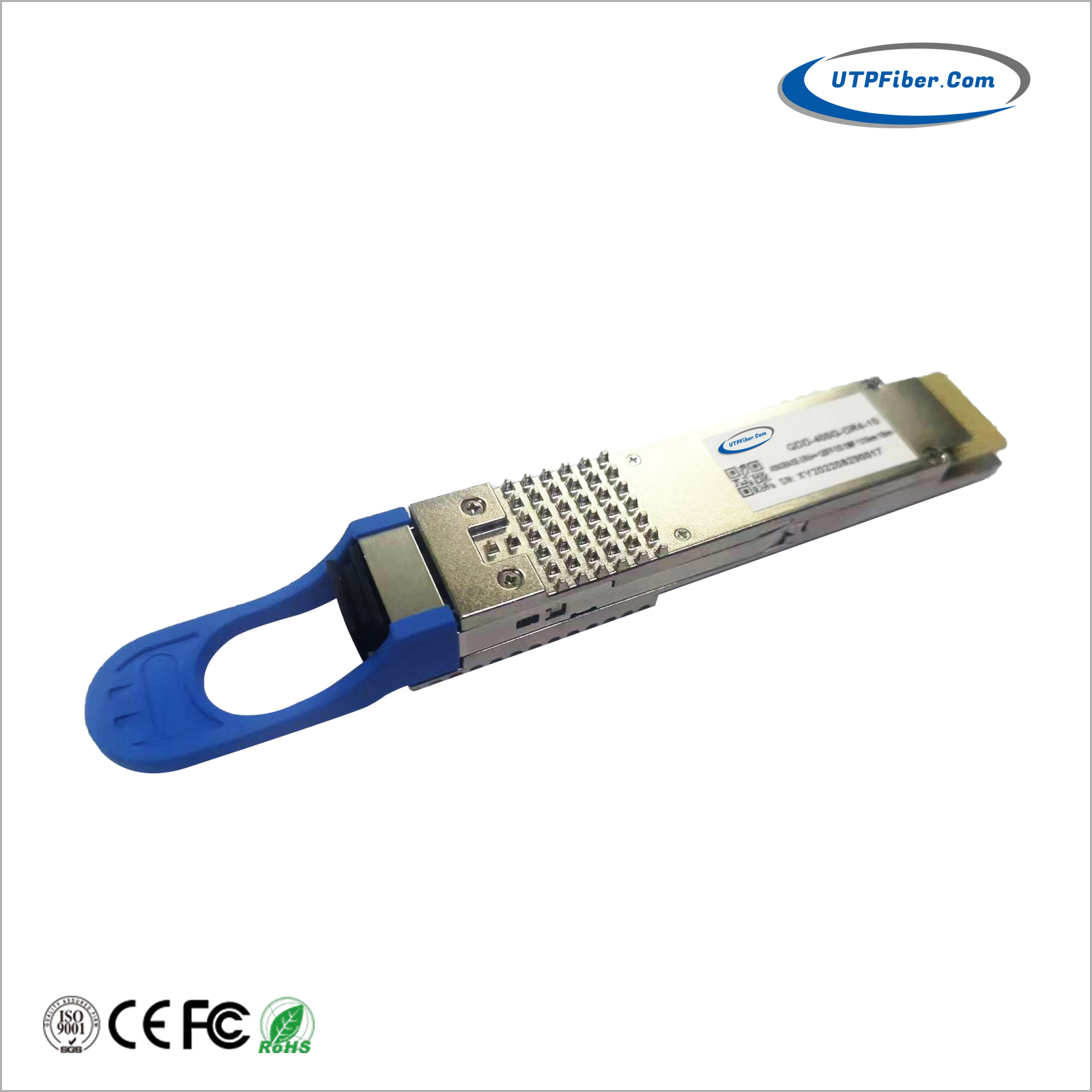

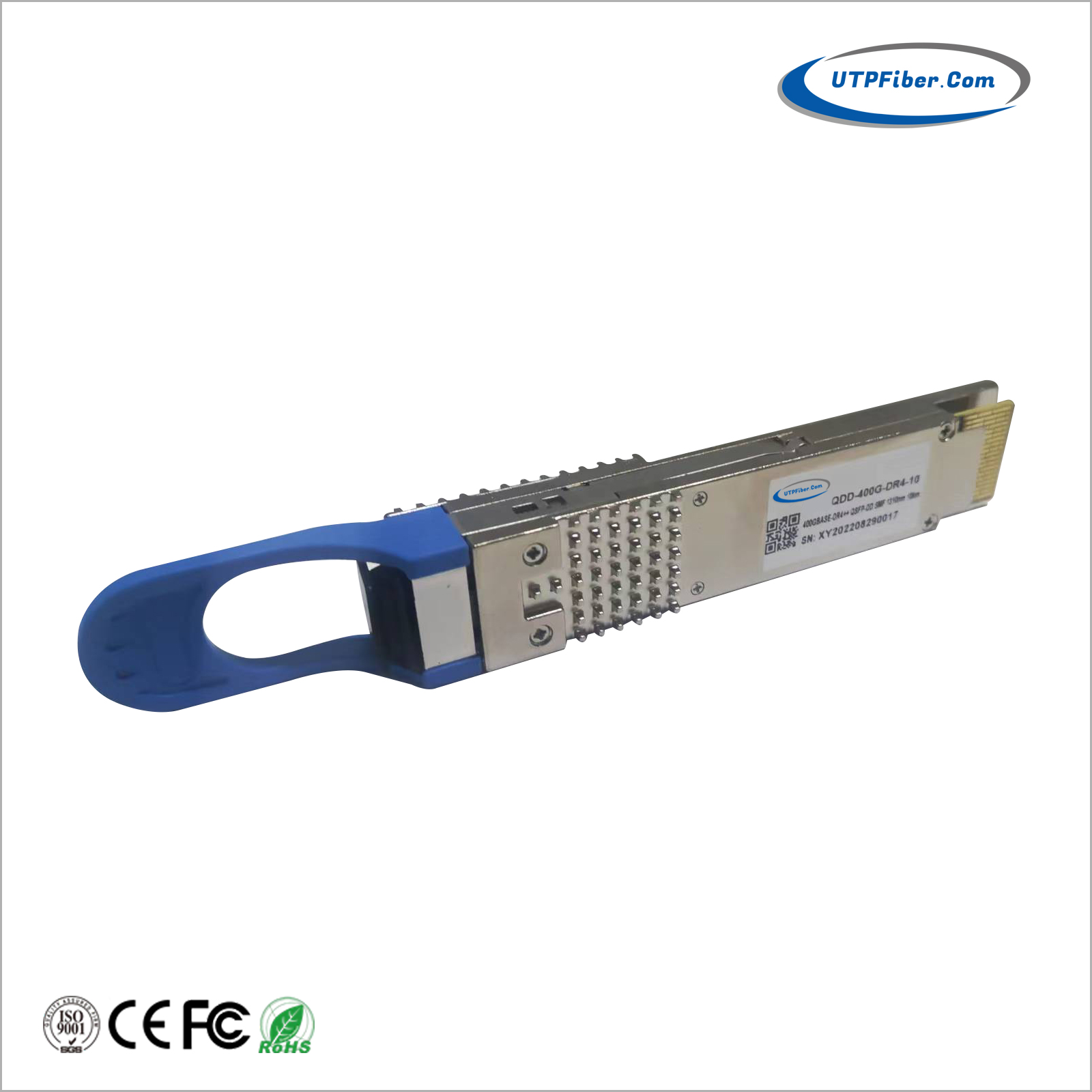

400GBASE-DR4++ QSFP-DD PAM4 1310nm 10km DOM MPO-12 SMF Optical Transceiver Module
The UFP Fiber UF-QDD-DR4-10 transceiver is designed for 10km optical communication applications, and it is compliant with QSFP-DD MSA, CMIS 4.0, IEEE 802.3bs, and 400GAUI-8 standards. The 425 Gigabit signal is carried over four parallel lanes at 1310nm. The module’s transmitter converts 8-channel 53.125 Gbps electrical data to 4 parallel optical output signals, each supporting 106.25 Gbps. The receiver converts 4-channel 106.25 Gbps optical input data to 8-channel electrical output data.

• Compliant with IEEE802.3bs standard:
  - 400GAUI-8 electrical interface
• Compliant with IEEE 802.3cu standards:
  - 4x 100GBASE-LR1 optical interface
• Compliant with QSFP-DD MSA HW Rev 5.1
• Type 2 housing with MPO-12 connector
• Compliant with QSFP-DD CMIS Rev 4.0
• Maximum power consumption 10W
• Case operating temperature 0°C to 70°C
• Two wire serial Interface with digital diagnostic monitoring
• Complies with EU Directive 2011/65/EU
• (RoHS compliant)
• Class 1 Laser

• Download FileName：UF-QDD-DR4-10 400G QSFP-DD DR4++ 1310nm 10KM Transceiver Datasheet V1.0.pdf Size： 652KB
