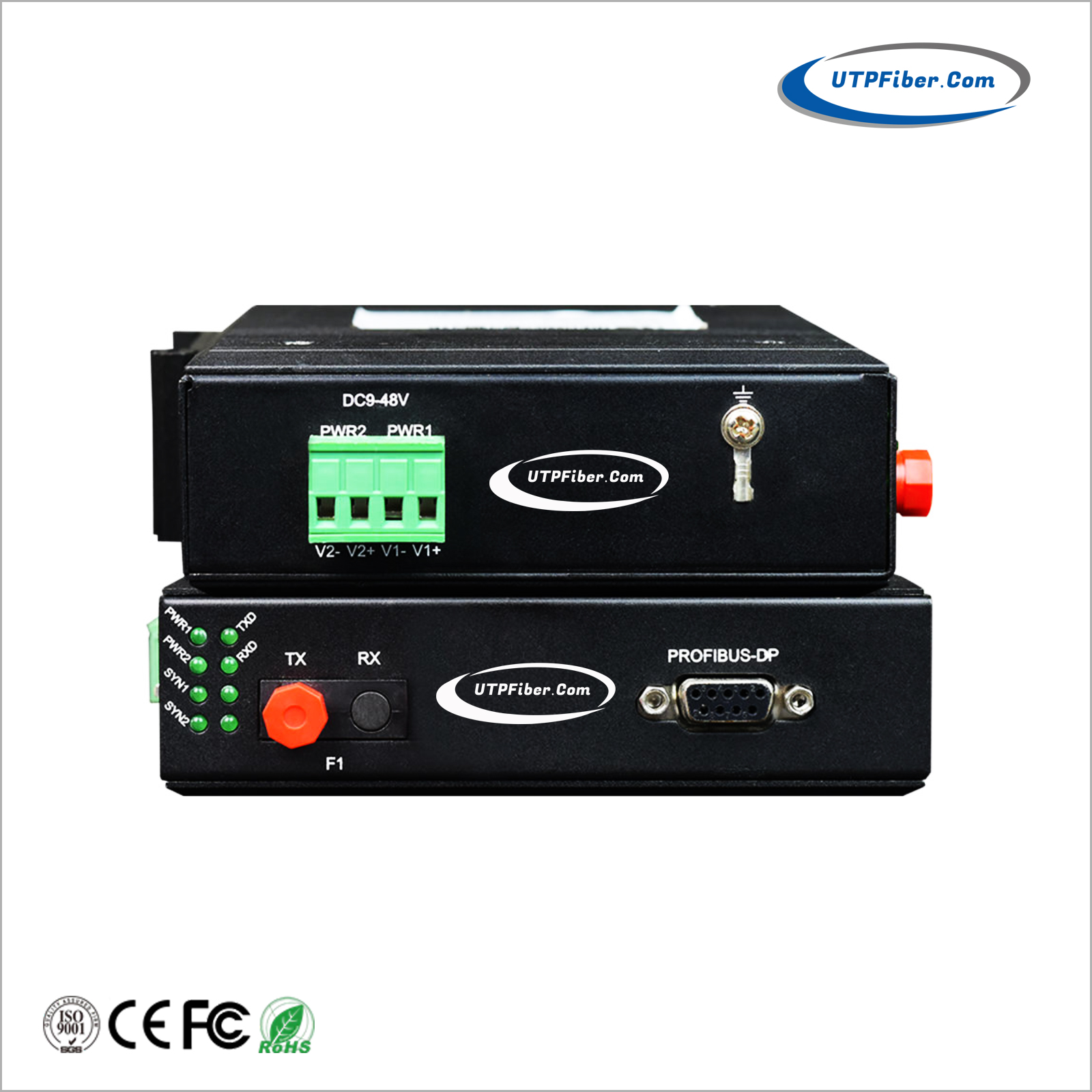

Industrial Profibus-DP Fiber Converter

Model:UF-PRO Series

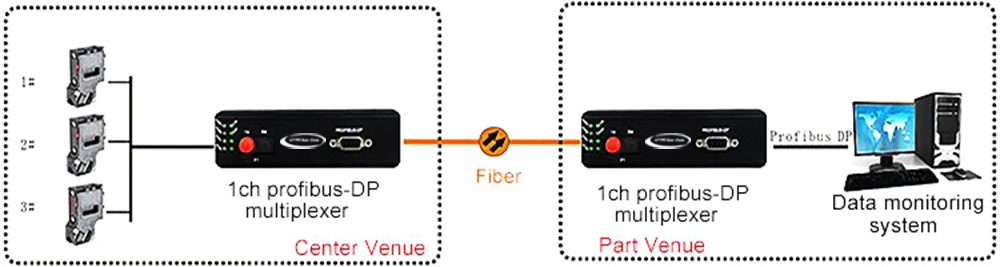

  • The device is used in pair, the signal input terminal, a signal output terminal;
  • Provide 1 Profibus DP field bus, communication baud rate adaptive 9600-12Mbps;
  • Multimode/single mode fiber optional, multimode can transmit 2KM, single mode can transmit 20-120KM, ST/SC/FC interface is optional;
  • Support wide range of 9-48V AC and DC input, support internal isolation, redundant dual power input, power supply overload protection, anti-reverse protection;
  • DIN 35mm rail or wall mount;

This series of equipment using large FPGA design, using the original technology, can support a channel Profibus-DP to fiber optic repeater, communication rate 0-12Mpbs, IP40 protection grade, wavy aluminum reinforced case, 35mm DIN rail mounting, AC & DC (9~48V) wide power input, power supply redundancy and isolation protection. -40~85°C operating temperature range, able to meet the requirements of various industrial sites, providing convenient fiber optic communication solutions.

Industrial Profibus-DP Fiber Converter, PROFIBUS DP to Fiber Optic Converter, PROFIBUS to Optical Fiber Converters, Profibus-DP Optical Transceiver, Profibus DP Serial Data to Fiber Optic Converter, Industrial PROFIBUS to Fiber Optic Converter, PROFIBUS to Fiber Converter, PROFIBUS DP/Fiber Coupler, Profibus-DP Fiber Repeater



  • The device is used in pair, the signal input terminal, a signal output terminal;
  • Provide 1 Profibus DP field bus, communication baud rate adaptive 9600-12Mbps;
  • Multimode/single mode fiber optional, multimode can transmit 2KM, single mode can transmit 20-120KM, ST/SC/FC interface is optional;
  • With signal fault protection function; omnidirectional display of electrical interfaces and fiber operating conditions
  • Profibus DP interface anti-radar to IEC61000-4-5 (8/20μS). Differential mode: 6KV, impedance (2Ω); Common mode: 6KV, impedance (2Ω) standard;
  • Support wide range of 9-48V AC and DC input, support internal isolation, redundant dual power input, power supply overload protection, anti-reverse protection;
  • Meet the industrial four-level electromagnetic compatibility requirements;
  • Super lightning protection function: lightning protection, anti-induction high voltage, anti-surge, etc;
  • Fanless efficient heat dissipation, reducing repair time;
  • IP40 enclosure protection level, can withstand the harsh environment;
  • DIN 35mm rail or wall mount;
  • Wide temperature type: working temperature -40 ° C ~ +85 ° C
  • All models are tested by 100% baking machine, warranty period: 5 years;



Standard:Support Profibus DP standard
Rate:9.6kBit/s,19.2 kBit/s,45.45kBit/s, 93.75kBit/s,187.5kBit/s,500kBit/s,1.5MBit/s,6MBit/s and 12MBit/s.
Physical interface: 9-pin D-Sub jack connector with pin definitions in accordance with Profibus DP protocol specifications
Rate setting: 9600-12Mbps/s automatic identification
Signal delay (electrical port): ≤11Bit
Terminal resistance: This unit does not have a terminating resistor, please connect as needed


Fiber Optic interfaceOptical port: 1
Optical fiber: single fiber and dual fiber
Fiber Interface: FC/SC/ST/LC (SFP)
Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single mode
No relay transmission distance: 20~120Km
Typical transmit power:
    Single mode 1310/1550nm: -9dBm
    Multimode 850nm: -18dBm
    Multimode 1310nm: -25dBm
Acceptable sensitivity range: -28dBm~- 40dBm



Working environment

Working temperature: -40ºC-+85ºC
Storage temperature: -40ºC-+85ºC
Working humidity: 0%-95%(no condensation)
MTBF: >100,000 hours
Product function description Transmit 1 port Profibus DP interface over fiber optic
Service port description 1 fiber optic interface; 1 Profibus DP interface
Power supply Redundant dual power input: AC & DC9-48V power consumption <5W overload protection: support; reverse connection protection: support; redundancy protection: support
Access terminal: 4-core 5.08mm pitch plug-in terminal
Housing: IP40 protection grade, aluminum alloy
Installation method: rail mounting, wall mounting
Product Size (Length × width × height)  133*120*40mm
Weight 0.45Kg/pcs
  • Download FileName:UF-PRO Series Industrial Profibus-DP Fiber Converter Datasheet V1.1.pdf Size: 441KB
Model Description
UF-PRO-FC Industrial Profibus-DP Fiber Converter, 1Ch Profibus DP field bus (baud rate 9600-12Mbps), Single Mode, Single Fiber, FC 20KM, 9-48VDC power input (not including power adapter), support DIN-Rail & Wallmount installation
UF-PRO-ST Industrial Profibus-DP Fiber Converter, 1Ch Profibus DP field bus (baud rate 9600-12Mbps), Single Mode, Single Fiber, ST 20KM, 9-48VDC power input (not including power adapter), support DIN-Rail & Wallmount installation
UF-PRO-LC Industrial Profibus-DP Fiber Converter, 1Ch Profibus DP field bus (baud rate 9600-12Mbps), Single Mode, Single Fiber, LC 20KM, 9-48VDC power input (not including power adapter), support DIN-Rail & Wallmount installation
UF-PRO-SFP Industrial Profibus-DP Fiber Converter, 1Ch Profibus DP field bus (baud rate 9600-12Mbps), Single Mode, Single Fiber, LC 20KM, 9-48VDC power input (not including power adapter), support DIN-Rail & Wallmount installation
