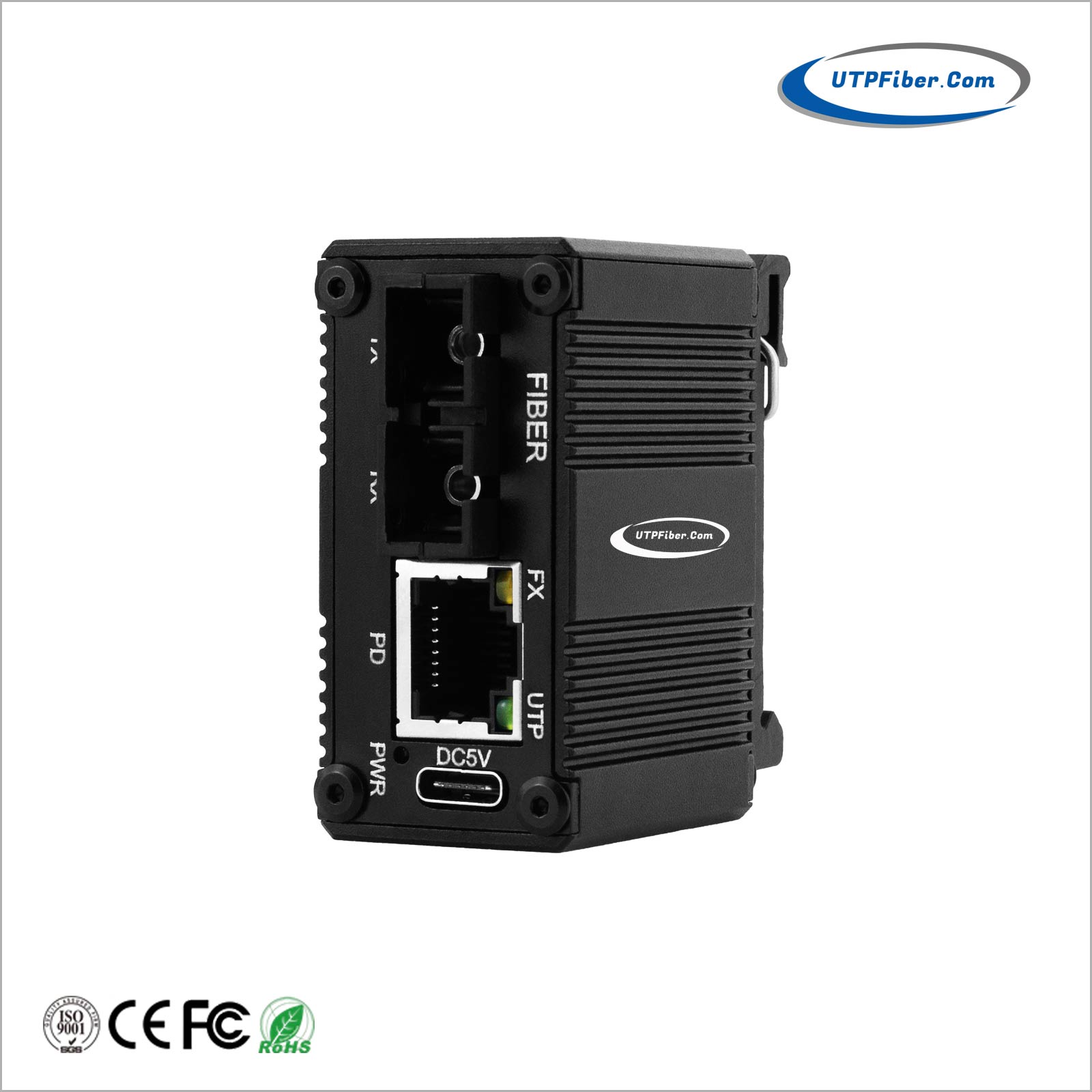

Physical Port

RJ45 port and speed

1 x 10/100/1000Base-TX

Fiber port and speed

1 x 1000Base-X SC

Parameters

Ethernet standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3x Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Packet buffer

1Mbits

Maximum packet length

Up to 9K Bytes

MAC address table

4K

Transmission mode

Store and Forward (full/half duplex mode)

Exchange property

Delay time: < 7μs

Backplane bandwidth: 2Gbps Packet

Forwarding rate: 2.976M

Network Cables:

Twisted-pair

  10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m

  100BASE-TX: 2-pair UTP Cat. 5, up to 100m

  1000BASE-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable

1000BASE-SX:

  50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.

1000BASE-LX:

  9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on optical module)

LED Indicator

Power

Connect-always ON

RJ45

Link/Act: connect-always; data exchange-blinking

Fiber

Link/Act: connect-always; data exchange-blinking

Power Information

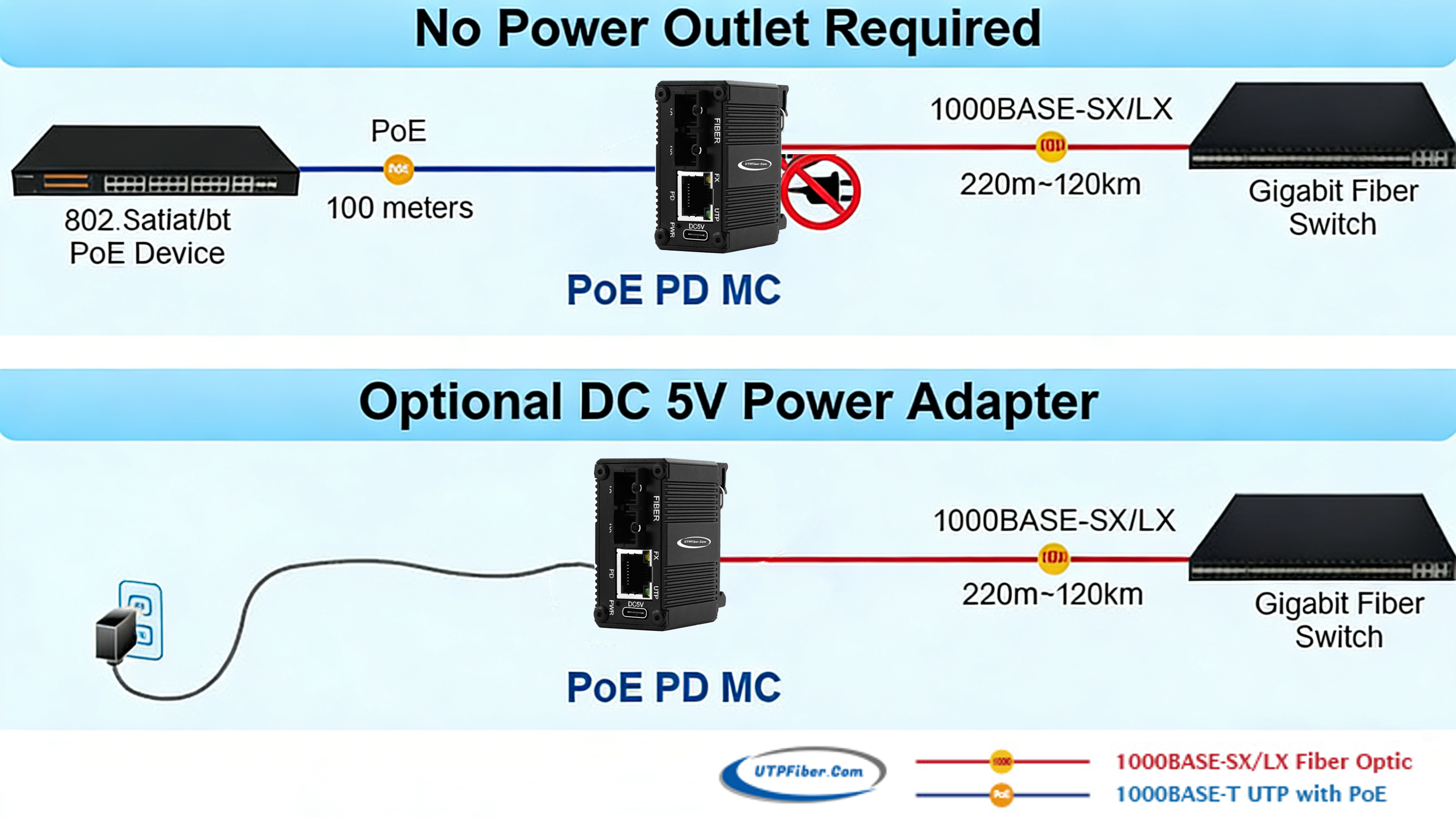

Dual power input

Option 1: IEEE 802.3af/at/bt PoE 48V-54V DC in-line power

Option 2: DC5V (USB Type-C) external power adapter

Power consumption

5W Max.

Physical Property

Protection grade

IP40 aluminum housing

Cooling mode

Natural cooling, no fan design

Dimensions (W x D x H)

27 x 47 x 55 mm

Installation mode

DIN Rail or Wall-Mount

Weight

86g (device only)

Working Environment

Operating Temperature

-40℃ ~ +80℃

Operating Humidity

5%~90% non-condensing

Storage Temperature

-40℃ ~ +85℃

Warranty

MTBF

500,000 hours

Standard Warranty

5 years and lifetime technical support

Certification Standard

EMI

FCC Part15 Subpart B Class A, EN 55022 Class A

EMS

EN61000-4-2(ESD),

EN61000-4-3(RS),

EN61000-4-4(EFT),

EN61000-4-5(Surge),

EN61000-4-6(CS),

EN61000-4-8,

EN61000-4-11

Collision

IEC60068-2-27

Drop

IEC60068-2-32

Vibration

IEC60068-2-6

Safety grade

EN60950-1
