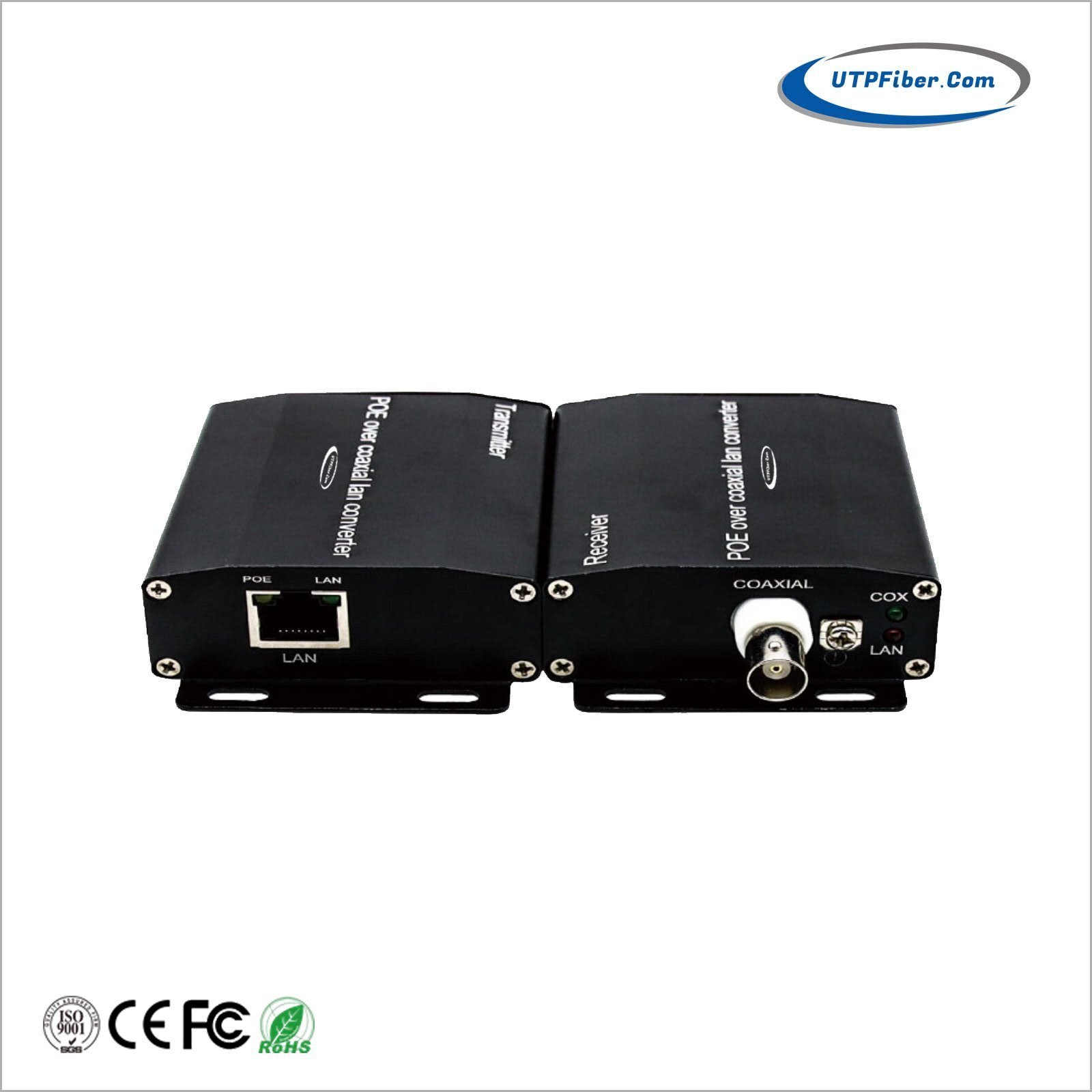

Ethernet over Coax Extender with PoE+
Model:UF-EC100P
► Transmit 10/100 Mbps Full Duplex Ethernet up to 500m (with PoE)
► Support Receiver (local end) to provide power to remote equipment (Transmitter and Powered Device), PoE maximum output 30W
► Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6

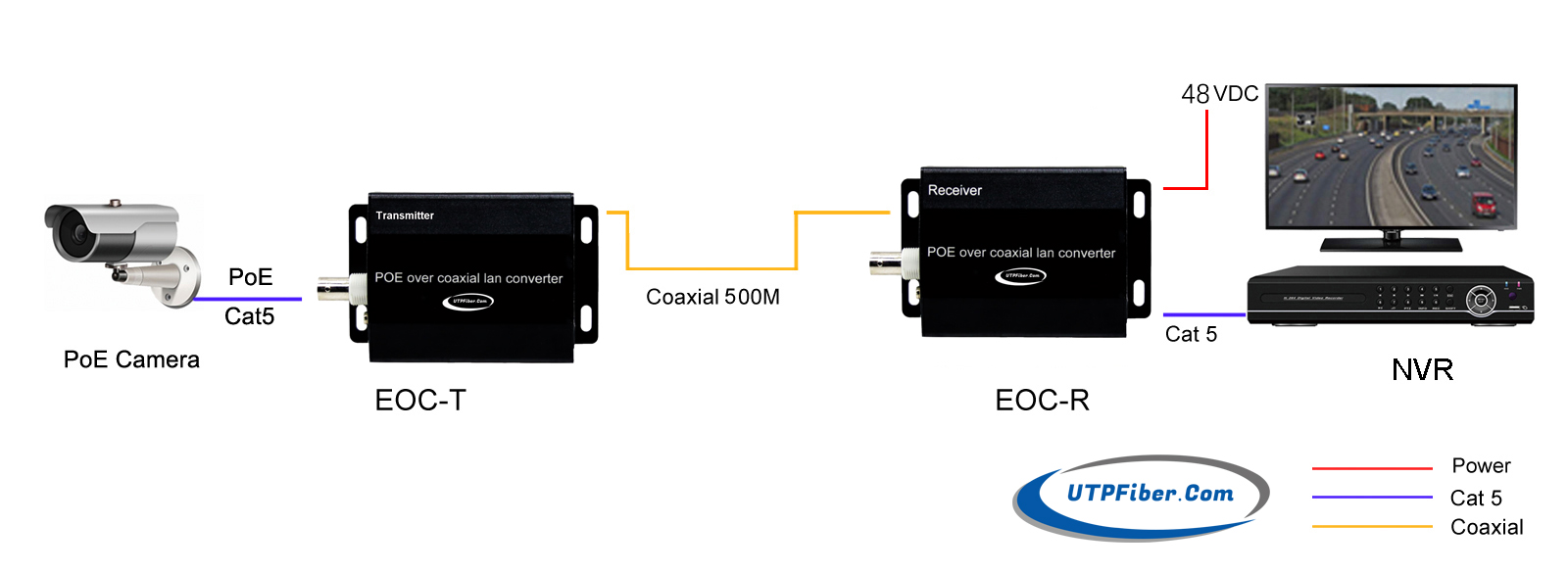

The UF-EC100P Ethernet Over Coax Extender with PoE+ is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is up to 500 meters. Network max baud-rate is up to 100Mbps. It has excellent lightning protection and Anti-interference. If any link is abnormal, it makes the device recover to link the communication automatically, ensure the network communication link data transmission stably. Really realize never loss network connection, never crash industry network transmission. Guarantee the security of surveillance zone. These series products are widely used in CCTV surveillance and remote network extension.
► Transmit 10/100 Mbps Full Duplex Ethernet up to 500m (with PoE)
► Support Receiver (local end) to provide power to remote equipment
(Transmitter and Powered Device), PoE maximum output 30W
► Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6
► Input Voltage: DC44V~57V
► Support Power over Coax & Power over Ethernet at same time
► Operation: Use the existing network, easy to install, Plug & Play.
Convenient and efficient
► Code Standard: abide by IEEE802.3 10/100 base-TX Ethernet standard
protocol
► Excellent Protection: Excellent lightning protection and strongly
Anti-interference, surge protection
|
Name |
Model / Type |
Specification |
|
Product |
Model No. |
LNK-EC100P |
|
Coaxial-line |
Standards |
Base on up-to-date advanced IEEE P1901 for ethernet over coax (EOC) Application with raw data rates up to 90Mbps |
|
Connector |
Coaxial on device and one 2 wire connector attached |
|
|
Line Rates |
Phy Rate |
Maximum Link Rates 90Mbps |
|
Distance |
Transmission |
500 Meters |
|
Ethernet Interface |
Standards |
SO / IEC 802.3 (ANSI / IEEE 802.3i)10BASE-T Ethernet |
|
IEEE 802.3u , 100BASE-TX, Fast Ethernet |
||
|
IEEE 802.3ab 100BASE-T |
||
|
PHY Connection |
KSZ8041, 10BASE-T, 100BASE-T, With Auto-detect Auto MDIX |
|
|
Connector |
RJ-45 Connector for 10BASE-T, 100BASE-TX Ethernet Interface |
|
|
LED Indicators |
RJ45-DATA |
Data Link / Green |
|
RJ45-PoE |
PoE On / Yellow |
|
|
POW |
44~57V DC Link / Red |
|
|
P_Link |
CS-Product link / Orange |
|
|
Master |
Master/Slaver |
Slaver / Master |
|
PoE |
Standards |
IEEE 802.3 at / af Both supports |
|
Maximum Power |
Up to 30W |
|
|
Mechanical |
Dimensions |
110×65×25 mm (LxWxH) |
|
Weight |
250g |
|
|
Environment conditions |
Operating Temperature range |
-20 ~ +70 °C |
|
Humidity Range |
10% ~ 90% |
|
|
Storage Temperature |
-40 ~ +80 °C |
- Download FileName：UF-EC100P Ethernet over Coax Extender with PoE+ Datasheet V1.0.pdf Size： 704KB
|
Model |
Description |
|
UF-EC100P |
Ethernet over Coaxial Converter with PoE+, 500m transmission distance, including Master and Slave |
