Interfaces

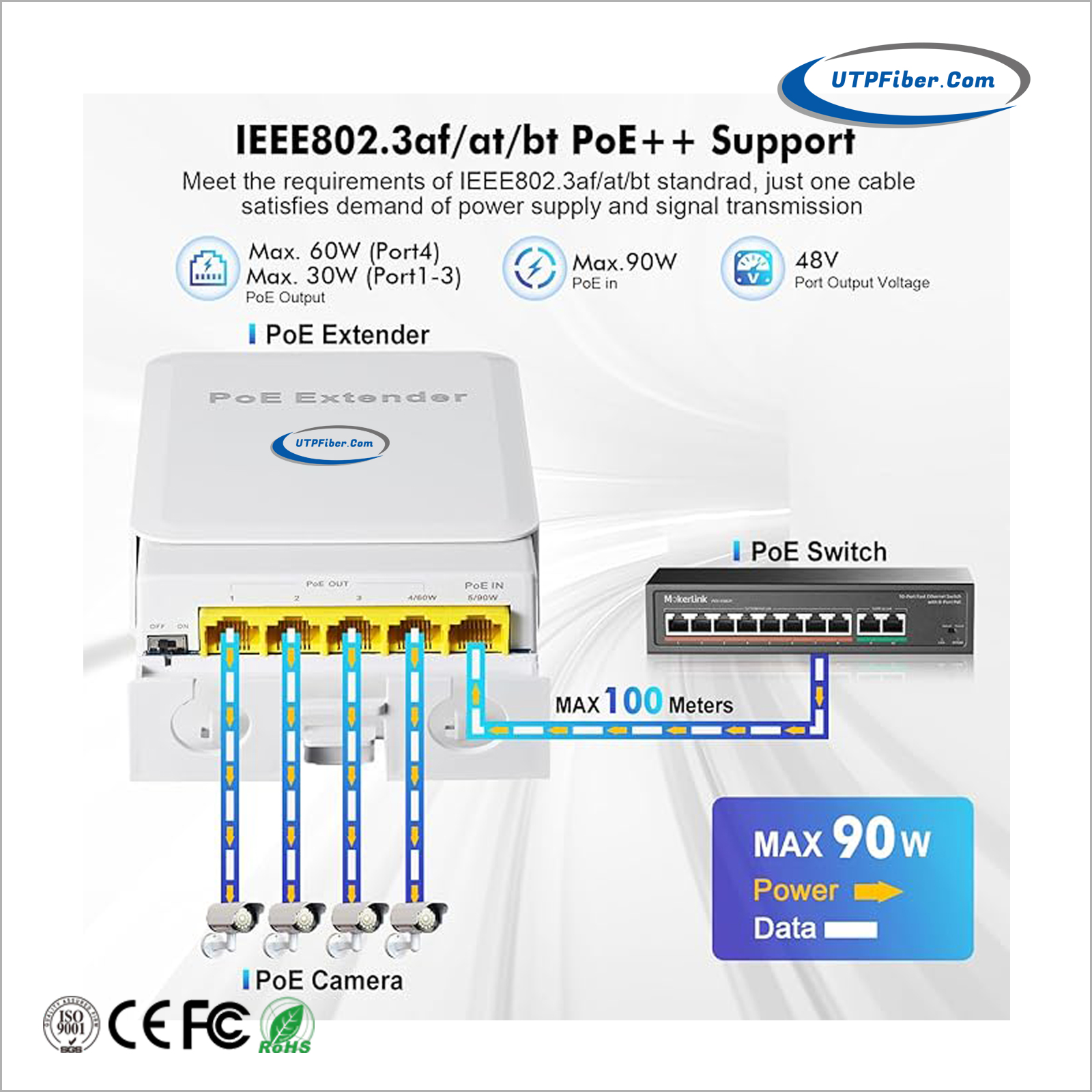

PoE Input Port

1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt 90W PoE++ “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector

PoE Output Port

1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt 60W PoE++ “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector

3 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/802.3at 30W PoE+ “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector

Cascade connection

Support 3 grade

Power over Ethernet

PoE Standard

PoE In Port
IEEE 802.3bt Power over Ethernet Plus Plus end-span and mid-span PD class 4 PD
Per PoE Out Port
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE

PoE Power

PoE In Port
44~57V DC, max. 90 watts input
Per PoE Out Port
44~57V DC, max. 85 watts output in total

PoE Pin Assignment

PoE In Port
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Per PoE Out Port
1/2 (+), 3/6 (-), end-span (Mode A)

Switch Property

Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3az Energy-Efficient Ethernet

IEEE 802.3x Flow Control

Data Rate

10/100/1000Mbps

Forwarding Modes

Store and forward

Transmission Distance

120m

MAC Address Table

2K

Switching Capacity

10Gbps

Switch Throughput

7.44Mpps @ 64 bytes

Jumbo Frame

9K

Port Function

Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

Environment

Operating Temperature

- 10~+55 degrees C

Storage Temperature

- 30~+70 degrees C

Operating Humidity

10~90% (non-condensing)

Physical Parameter

Dimensions (LxWxH)

148x98x34mm

Gross Weight

100g

Net Weight

80g

Material

ABS plastic case

LED Display

PoE working status, Ethernet

Certifications

Certifications

FCC Part 15B

RoHs Directive 2011/65/EU

Low Voltage Directive 2014/35/EU

Electromagnetic Compatibility Diective 2004/108/EC
