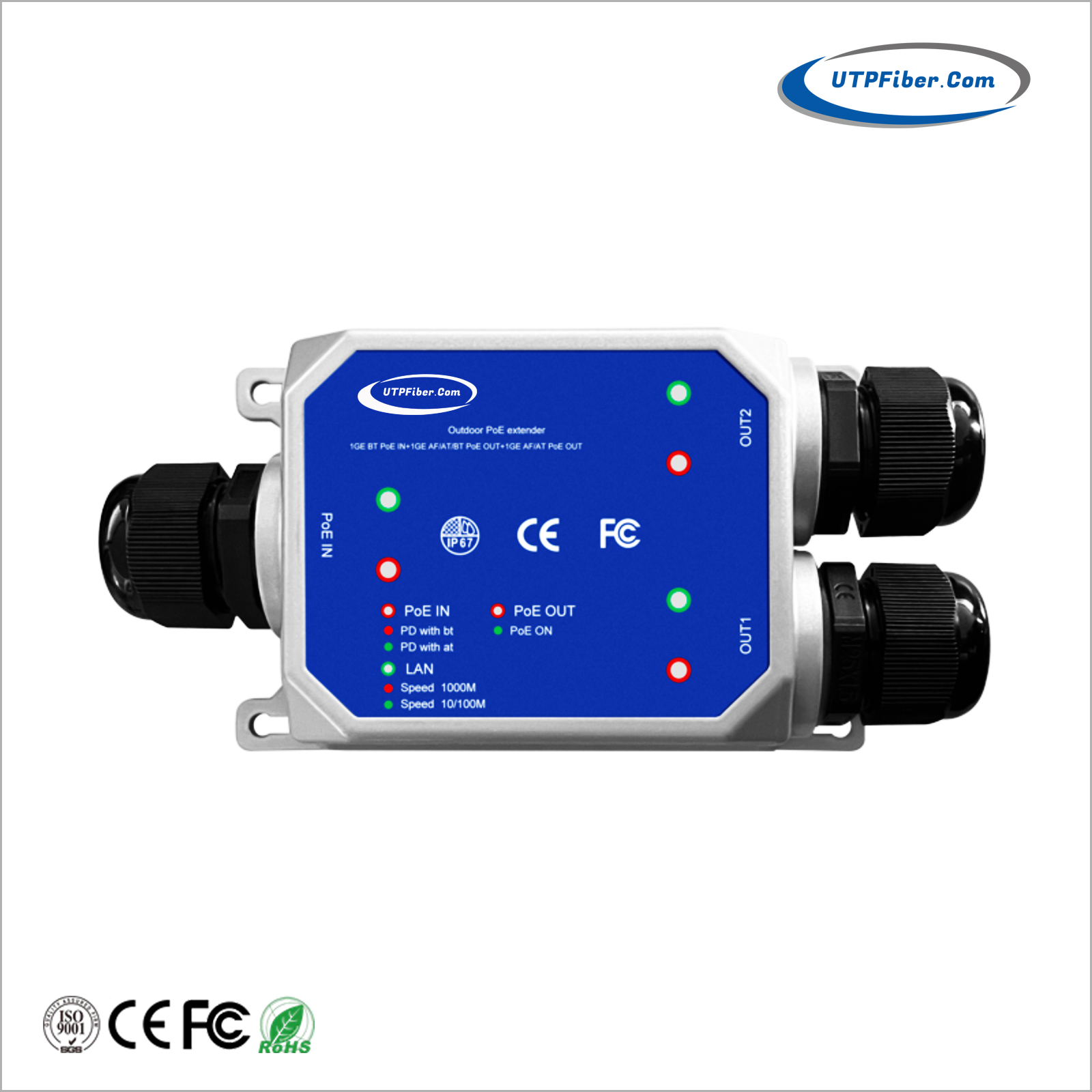

Industrial IP67 Waterproof 1-Port 120W 802.3bt PoE++ to 2-Port 802.3at/bt PoE++ Extender
Model:UF-WP102GP120

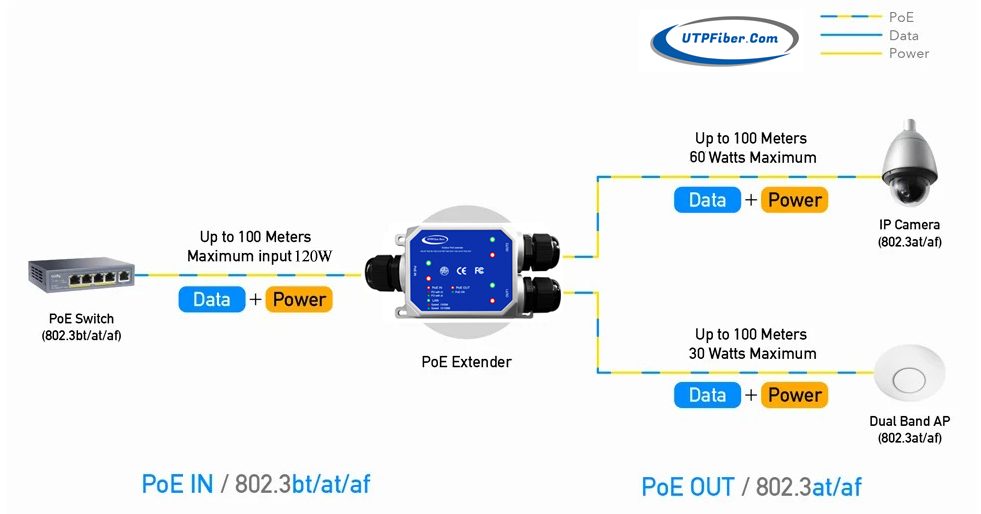

► Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
► Support 1-Port 802.3bt 120W PoE IN or Passive DC37-57V IN MAX 120W
► 1-Port Gigabit 802.3bt PoE OUT (max. 60W) + 1-Port Gigabit 802.3at PoE OUT (max. 30W)
► IP67-rated, dustproof and waterproof
► IK10-rated, vandal-proof
UF-WP102GP120 is an industrial IP67-rated 1-port 802.3bt PoE++ to 2-port 802.3bt/at Gigabit PoE Extender with supporting passive DC37-57V IN Max 120W PoE. The UF-WP102GP120 can obtain a maximum of 120-watt PoE power from 802.3bt PoE++ input port or 37-57VDC 120W passive PoE, and its output port can supply a maximum of 90-watt power, extending both the Gigabit Ethernet Data and 802.3bt Power over Ethernet over the UTP cable. The UF-WP102GP120 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter. The UF-WP102GP120 is equipped with 3-port 10/100/1000Base-T auto-negotiation RJ45 connectors and 3 waterproof cable glands for direct-attach applications. Assembled with waterproof cable gland, it can make the general RJ45 connector weather-proof and provides tight and strong connection, and ensures it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold. It offers a cost-effective and quick solution to double the standard range of PoE from 100 to 200 meters.
► Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
► Support 1-Port 802.3bt 120W PoE IN or Passive DC37-57V IN MAX 120W
► 1-Port Gigabit 802.3bt PoE OUT (max. 60W) + 1-Port Gigabit 802.3at PoE OUT (max. 30W)
► IP67-rated, dustproof and waterproof
► IK10-rated, vandal-proof
► Supports 10/100/1000M data rates
► Short-circuit, overload and high-voltage protection
► 8KV air discharge, 8KV ESD electrostatic protection, 6KV lighting protection
► Complies with IEEE 802.3bt PoE++ PSE standard
► One IEEE 802.3at/802.3bt PoE devices powered
► Mounting holes for wall mounting
► Earthing kit included
|
Hardware Specifications |
|
|
Network Connector |
PoE in Port |
|
1 x 10M/100M/1GBase-T Ethernet with 802.3bt PoE++ “Data + DC” in |
|
|
Auto MDI/MDI-X, auto-negotiation RJ45 connector |
|
|
PoE out Port |
|
|
2 x 10M/100M/1GBase-T Ethernet with IEEE 802.3at/bt PoE++ “Data + DC” out |
|
|
Auto MDI/MDI-X, auto-negotiation RJ45 connector |
|
|
LED Display |
PoE in: LED with bt or af/at POE out: on LED Port: LAN link on LED, LAN SPEED 1G LED PoE dog: on LED (inbox) |
|
Dimensions (W x D x H) |
155 x 77 x 43 mm (Product Size) |
|
160 x 85 x 47 mm (Packing Size) |
|
|
Weight |
270g |
|
310g(with three waterproof cable glands) |
|
|
Power Consumption |
100 watts / 341.21BTU (Full loading with PoE function) |
|
ESD Protection |
Air 8KV DC |
|
Contact 6KV DC |
|
|
Surge Protection |
6KV |
|
Enclosure |
IP67-rated and IK10 aluminum case |
|
Installation |
Wall-mount ear |
|
Switching Specifications |
|
|
Switch Architecture |
Store-and-Forward switch architecture |
|
Bandwidth |
4Gbps |
|
Packet Forwarding |
2.88Mpps |
|
MAC |
2K |
|
Buffer |
2.5M |
|
Flow Control |
IEEE 802.3x pause frame for full duplex |
|
Back pressure for half duplex |
|
|
Jumbo Frame |
9Kbytes |
|
Power over Ethernet |
|
|
PoE Standard |
PoE in Port |
|
IEEE 802.3bt PoE++ Type 4 standard PD |
|
|
IEEE 802.3bt PoE++ Type 3 standard PD |
|
|
IEEE 802.3at PoE+ end-span/mid-span PD |
|
|
Per PoE out Port |
|
|
IEEE 802.3bt PoE++ end-span/mid-span PSE |
|
|
PoE IN |
Supports IEEE802.3af/at/bt, max 120W PoE in Supports Passive DC37-57V in MAX 120W |
|
PoE IN Port Pin |
1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) |
|
PoE OUT |
OUT 1 supports IEEE802.3af/at/bt, max. 60W PoE out OUT 2 supports IEEE802.3af/at, max. 30W PoE out |
|
PoE OUT Port Pin |
1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) |
|
PoE Dog |
PoE auto execution, detection and resets fault device, when PoE is on |
|
POE in Transmission Distance |
10BASE-T: Cat3,4,5 UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (150 meter) 1000BASE-TX: Cat6 or later UTP (100 meter) |
|
POE out Transmission Distance |
10BASE-T: Cat3,4,5 UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (150 meter) 1000BASE-TX: Cat6 or later UTP (100 meter) |
|
Standards Conformance |
|
|
Regulatory Compliance |
FCC Part 15 Class A |
|
CE |
|
|
Stability Testing |
IEC 60068-2-32 (Free fall) |
|
IEC 60068-2-27 (Shock) |
|
|
IEC 60068-2-6 (Vibration) |
|
|
Standards Compliance |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Flow Control |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt Power over Ethernet Plus Plus |
|
|
Environment |
|
|
Operating |
Temperature: -40 ~ 80 degrees C |
|
Relative Humidity: 5 ~ 95% (non-condensing) |
|
|
Storage |
Temperature: -40 ~ 85 degrees C |
|
Relative Humidity: 5 ~ 95% (non-condensing) |
|
- Download FileName：UF-WP102GP120 Industrial Gigabit IP67 Waterproof 120W 1 IN 2 OUT PoE Extender Datasheet V1.0.pdf Size： 837KB
|
Model |
Description |
|
UF-WP102GP120 |
Industrial IP67 Waterproof 1-Port 120W 802.3bt PoE++ to 2-Port 802.3at/bt PoE++ Extender, support passive DC37-57V IN Max 120W PoE |
|
Mounting Options |
► Wall Mount or Desktop Installation |
|
Power Options |
►Requires no additional power supply; draws power directly from the PoE input |
