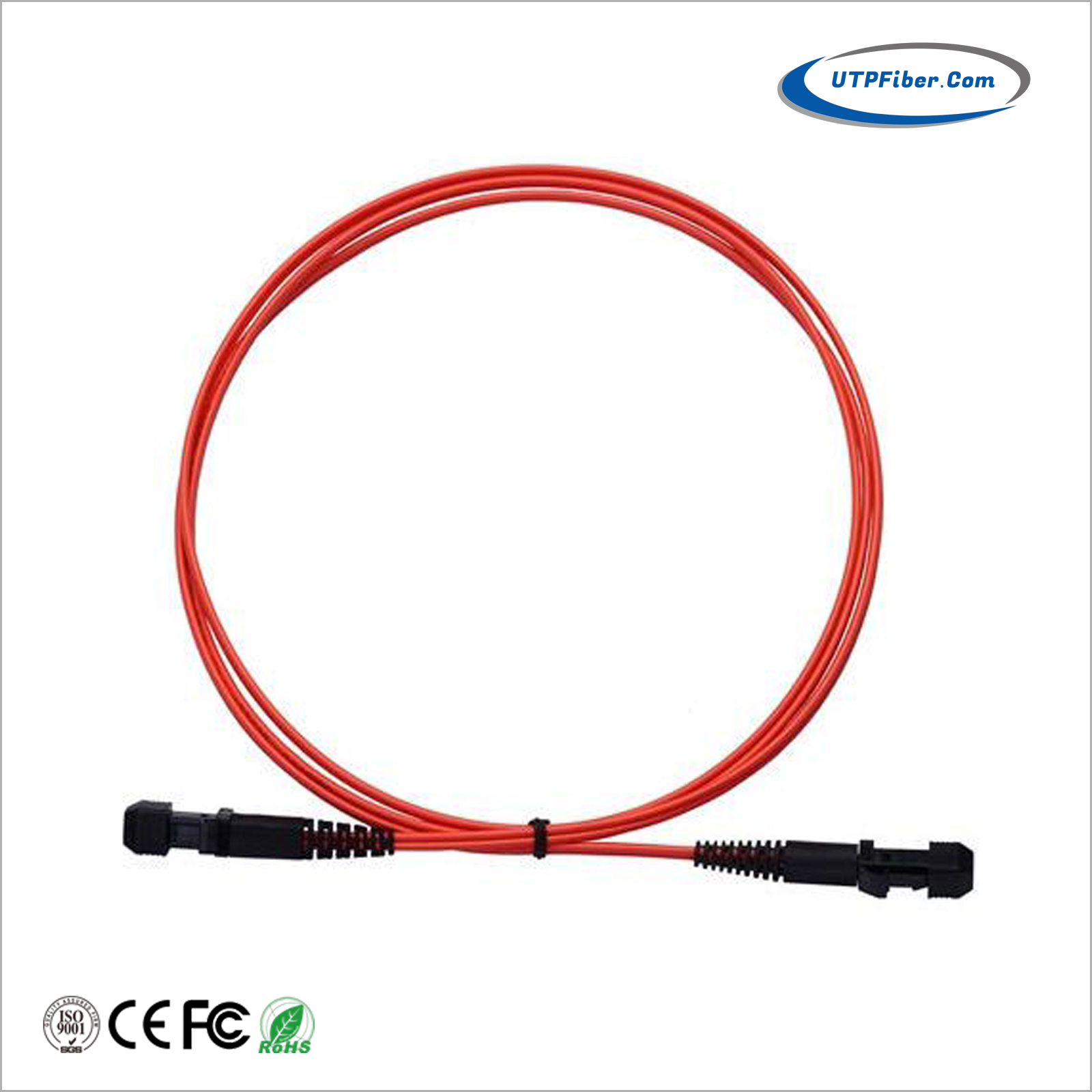

OM1 Fiber Optic Patch Cords
Model:UF-PC-OM1 Series
- Low Insertion Loss
- High back reflection loss
- ST, SC, FC, LC, MT-RJ connectors
- Duplex and simplex versions
- Uniform and hybrid cord versions
Shenzhen UTP Fiber Technology Co., Ltd. (hereinafter “UF”)’sMultimode optical fiber patch cords can be used as cross-connect jumpers, equipment and work area cords. All UF optical fiber patch cords are manufactured using riser-grade (OFNR) cable and are 100% factory tested for insertion and return loss to ensure transmission performance per ANSI/TIA-568-C.3 standard specifications. Patch cords terminated with ST, SC, LC and MT-RJ connectors (uniform and hybrid versions) are available in duplex and simplex designs.
Cordage used in multimode fiber cords is color-coded per ANSI/TIA-598-C–62.5-µm multimode cables are orange in color. Connectors with plastic bodies (SC and LC) are color-coded per ANSI/TIA-568-C.3 – 62.5-µm multimode connectors are beige in color. Marked clips, color rings, or colored connector boots identify each end of the duplex fiber cord to designate Position A and Position B.
- Low Insertion Loss
- High back reflection loss
- ST, SC, FC, LC, MT-RJ connectors
- Duplex and simplex versions
- Uniform and hybrid cord versions
- Fiber diameter(mm): Φ0.9, Φ2.0, Φ3.0 optional (Φ2.0 in default)
- 100% factory transmission tested per ANSI/TIA-568-C.3
- Cordage color coding per ANSI/TIA-598-C
- Plastic body color coding per ANSI/TIA-598-C.3
- Position A/Position B markings
- Slim-profile boots with durable flexible cable strain relief
- Optical fiber communication system
- Optical fiber access networks
- Optical fiber CATV
- Optical fiber test equipment
- Optical fiber data communication
- Premises Distribution
- Local Area Networks (LAN)
- Fiber-to-the-Home (FTTX)
- Device Terminations
|
TRANSMISSION PERFORMANCE |
|
|
ANSI/TIA/EIA-568-C.3: |
insertion and return loss (100% tested) |
|
TRANSMISSION MEDIA |
|
|
Optical fiber: |
62.5/125-μm multimode (OM1) optical fiber |
|
CONNECTOR TYPES |
|
|
Connector Type: |
ST/SC/LC/FC PC multimode |
|
FOCIS (ANSI/TIA/EIA-604) compliant |
|
|
CONSTRUCTION |
|
|
Construction: |
– simplex or duplex fiber cordage |
|
– thermoplastic outer jacket (OFNR-rated) |
|
|
– thermoplastic strain relief |
|
|
TRANSMISSION PERFORMANCE |
|
|
Bandwidth: |
850 nm: 200 MHz-km |
|
1300 nm: 500 MHz-km |
|
|
Return loss: |
UPC: ≤ -30 dB |
|
Insertion loss: |
ST, SC, LC: typical – 0.2 dB, max – 0.3 dB |
|
MT-RJ: typical – 0.3 dB, max – 0.5 dB |
|
|
MECHANICAL |
|
|
Connector ferrule: |
ceramic |
|
End-face radius of curvature: |
10 mm (0.39 in) < R < 30 mm (1.18 in) |
|
Apex offset: |
< 50 μm |
|
Cable material: |
PVC OFNR |
|
Cable jacket color: |
orange |
|
ENVIRONMENTAL |
|
|
Operating temperature: |
-20 °C to +70 °C (-4 °F to +158 °F) |
|
Storage temperature: |
-40 °C to +80 °C (-40 °F to +176 °F) |
|
Relative humidity: |
5% to 95% non-condensing |
|
COMPLIANCE |
|
|
Compliance: |
ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0 |
|
APPLICATIONS |
|
|
Applications: |
FDDI PMD ANSI X3.166 |
|
10BASE-SX |
|
|
100BASE-SX |
|
|
100BASE-FX |
|
|
WARRANTY |
|
|
Warranty: |
5-year limited component warranty |
- Download FileName：UF OM1 Fiber Patch Cord Datasheet V1.0.pdf Size： 389KB
PC(Patch Cord)-LC/APC-LC/UPC-SM-Ф2-LM-D
① ② ③ ④ ⑤ ⑥ ⑦ ⑧
|
① |
Connector Type 1 |
LC, SC, FC, ST, E2000, MU, MTRJ, DIN, etc. |
|
② |
End face 1 |
UPC / APC |
|
③ |
Connector Type 2 |
LC, SC, FC, ST, E2000, MU, MTRJ, DIN, etc. |
|
④ |
End face 2 |
PC / UPC / APC |
|
⑤ |
Fiber Type |
Single Mode (OS2) / Multi Mode (OM1, OM2, OM3) |
|
⑥ |
Cable Diameter |
Ф3 / Ф2 / Ф0.9 |
|
⑦ |
Cable Length |
L=1,2,3,4… meter |
|
⑧ |
Fiber Count |
S: Simplex / D: Duplex |
