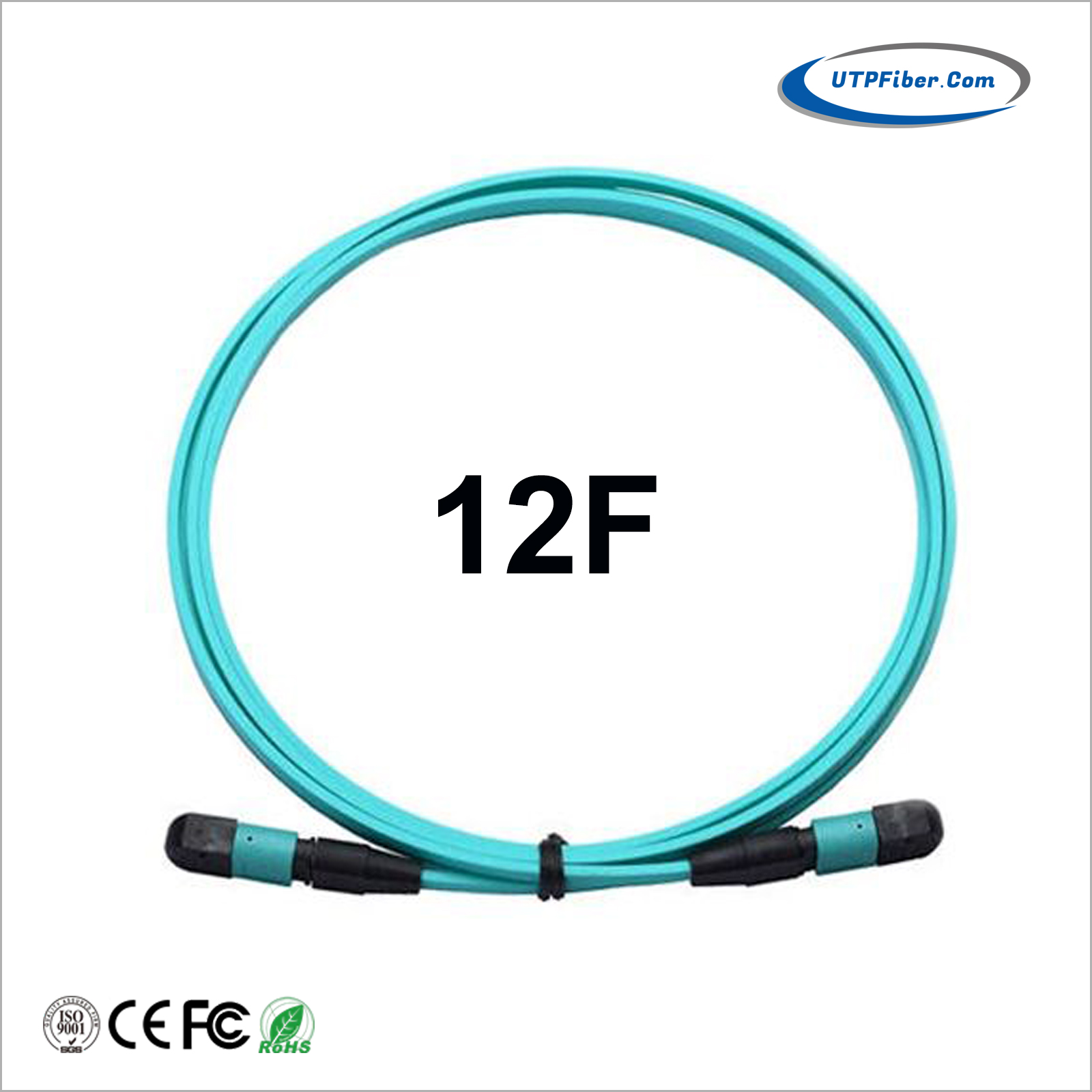

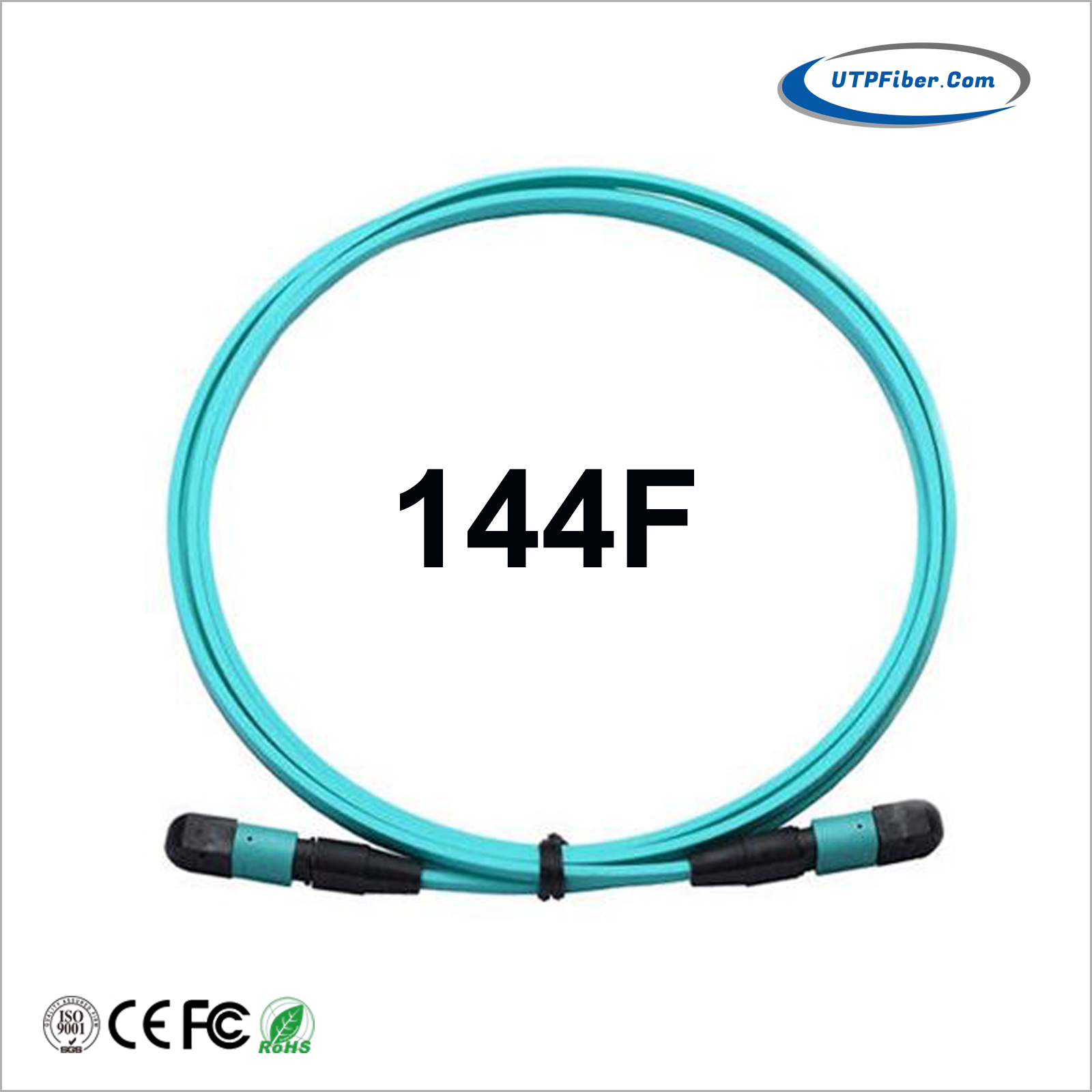

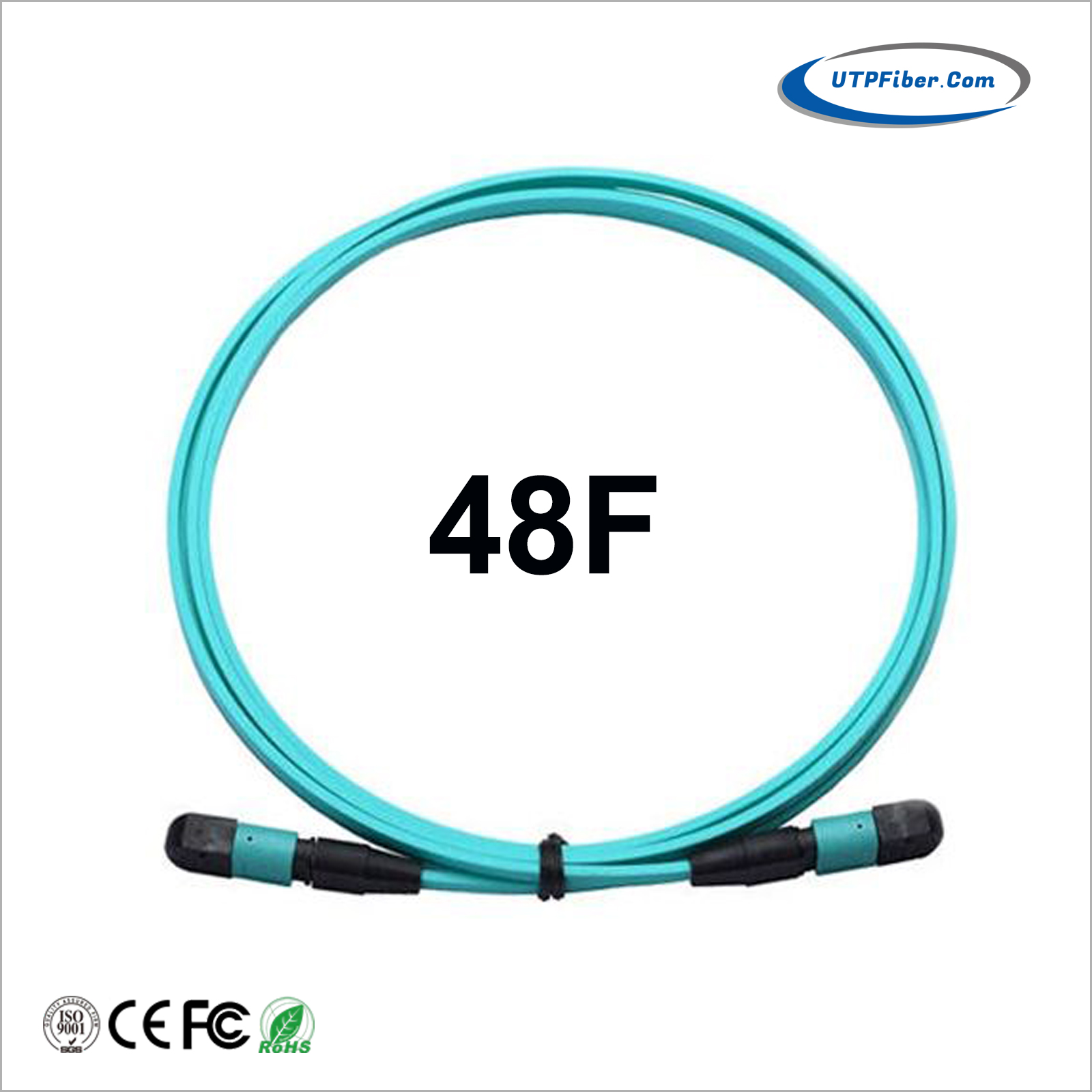

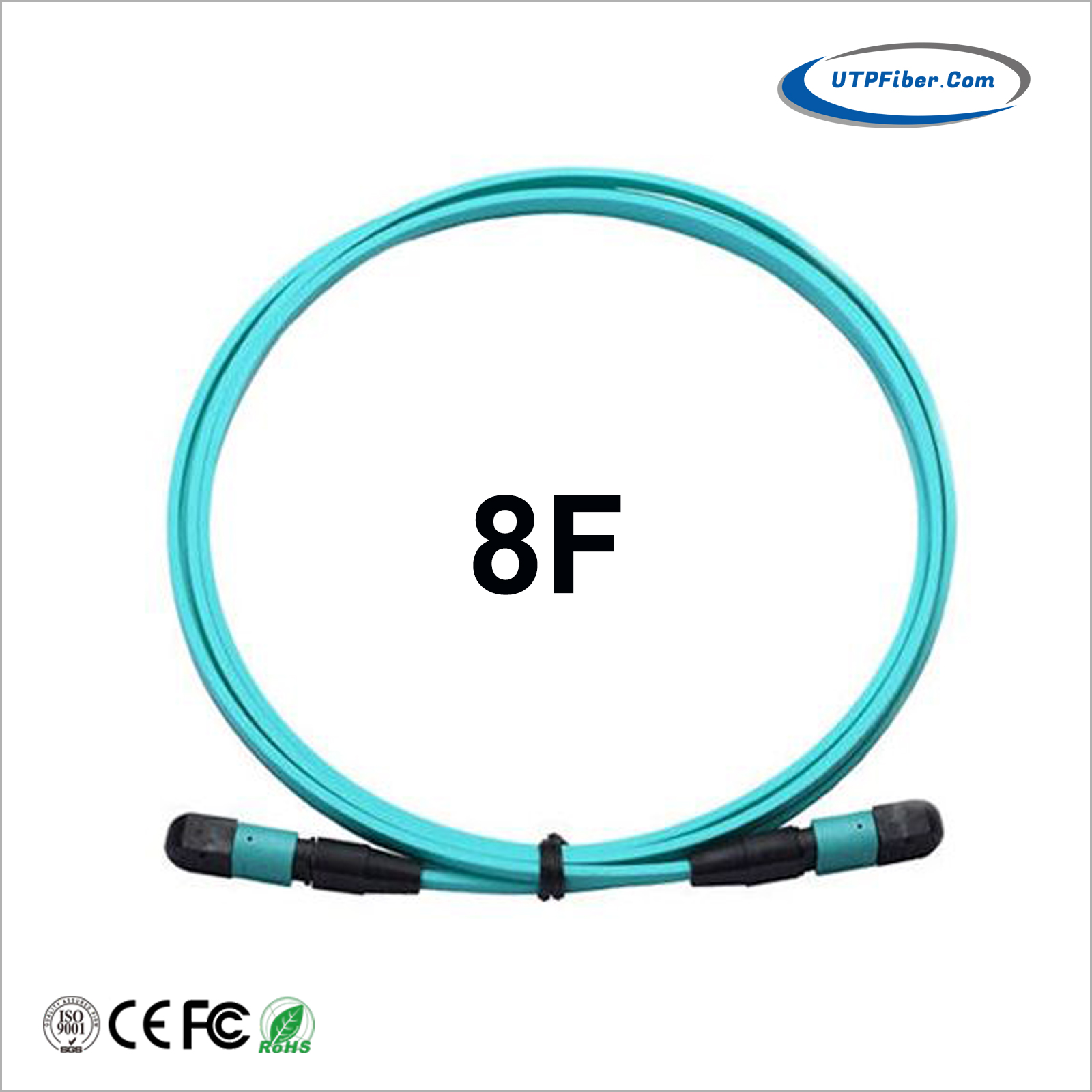

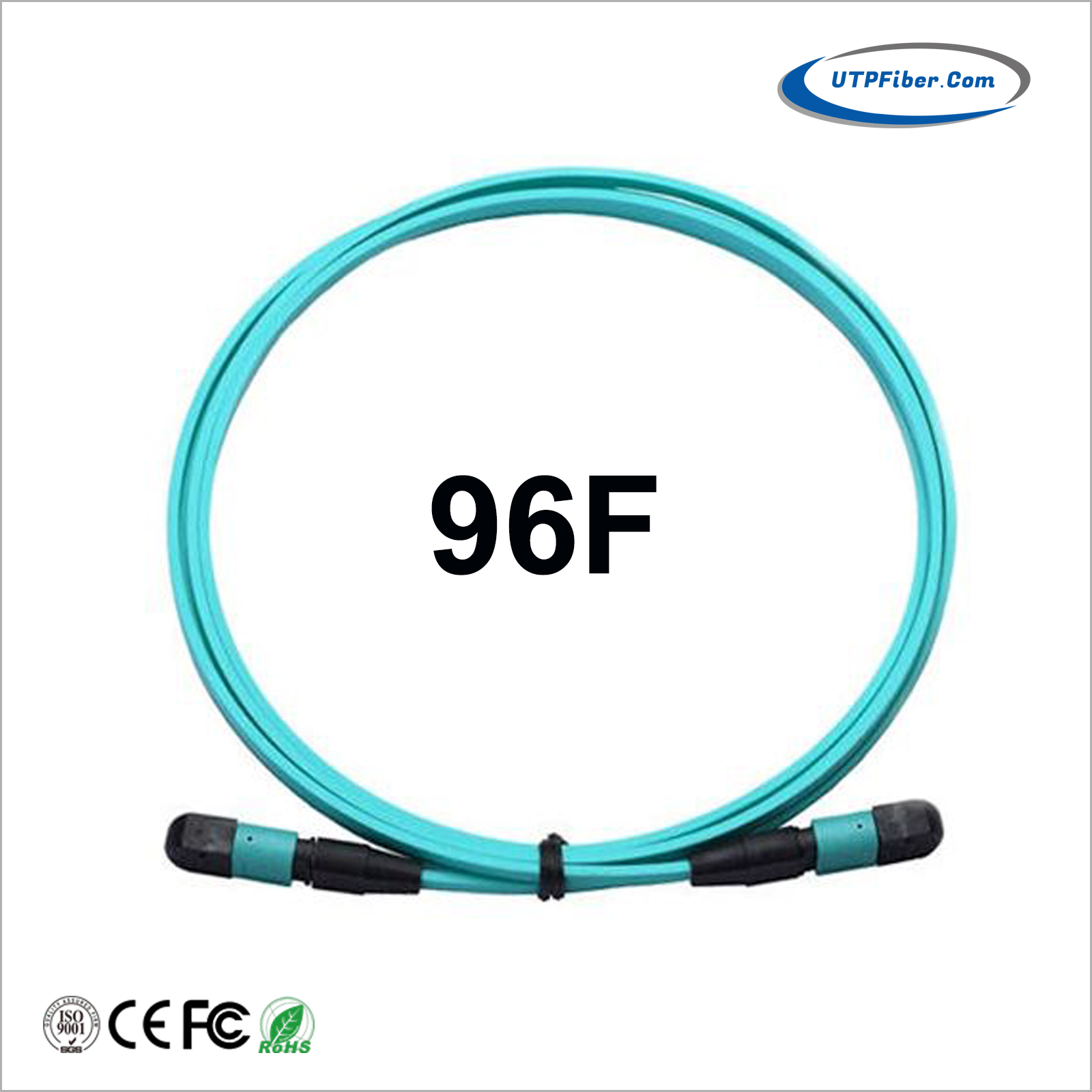

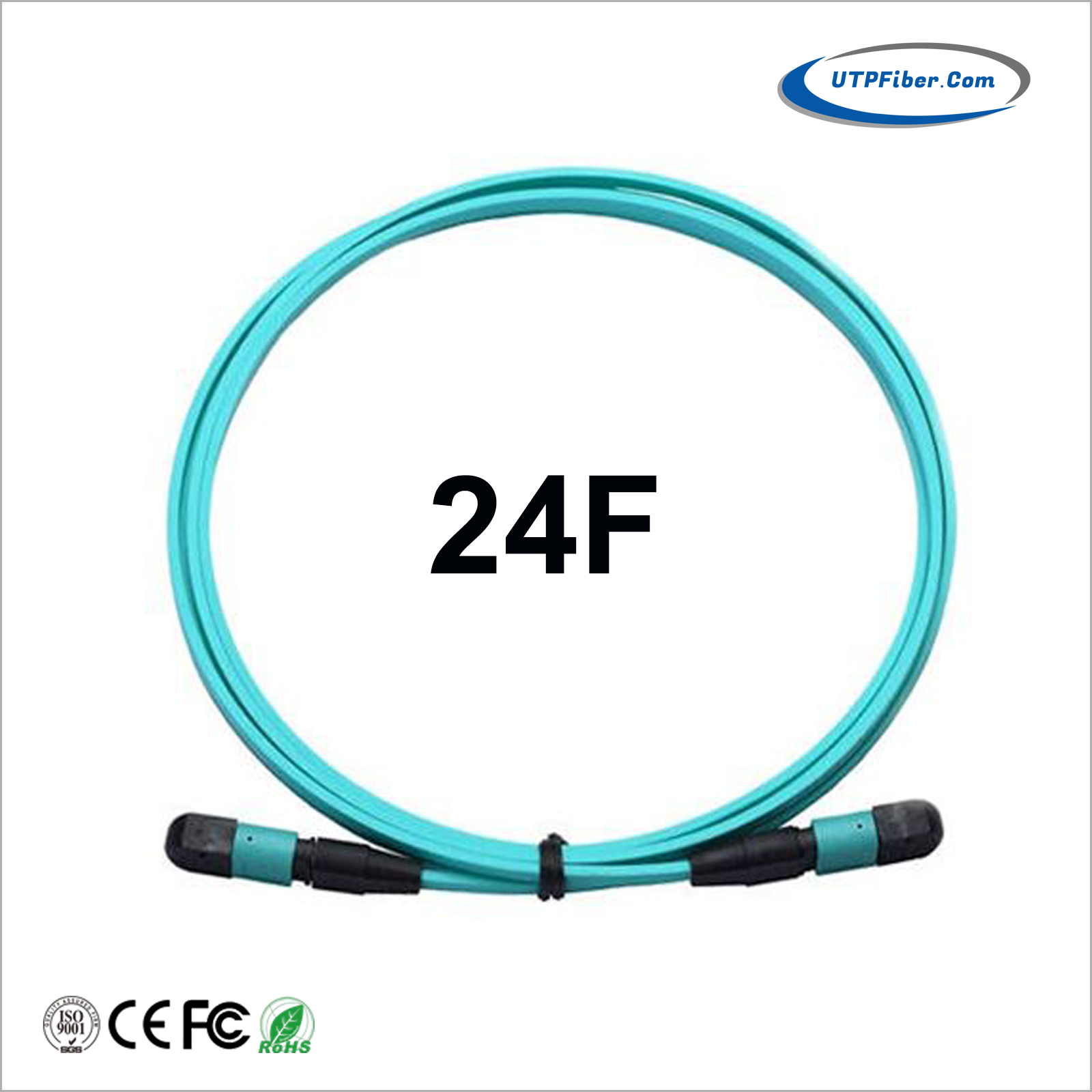

MPO/MTP Fiber Patch Cables
Model:UFMP Series
- MPO/MTP polarity: Type-A, Type-B, Type-C, Type-R
- Insertion loss type: Standard, Elite / Low Loss
- Fiber count: 8, 12, 24, 48
- MPO/MTP type: Male, Female, Male to Female
- Fiber type: SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
- Cable jacket type: OFNR, LSZH, OFNP
- Multi-fiber connector type: MPO/MTP (APC or PC)
- Cable length: 1m to 50m or customized
- MPO/MTP polarity: Type-A, Type-B, Type-C, Type-R
- Insertion loss type: Standard, Elite / Low Loss
- Fiber count: 8, 12, 24, 48
- MPO/MTP type: Male, Female, Male to Female
- Fiber type: SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
- Cable jacket type: OFNR, LSZH, OFNP
- Multi-fiber connector type: MPO/MTP (APC or PC)
- Cable length: 1m to 50m or customized
- Cable type: round, ribbon
- Improve and simplify fiber routing, decrease fiber management space
- Comply with IEC 61754-7, Telcordia GR-1435-CORE, RoHS
- Data Center Interconnect
- High-Density Cross Connect
- Backbone Installations
- Telecommunication Networks
- Broadband/CATV Networks
- Test Labs
- LAN/WAN Premises
MPO/MTP Termination
|
Type |
Single-Mode (APC Polish) |
Single-Mode (PC Polish) |
Multi-Mode (PC Polish) |
|
|
Insertion Loss |
Standard |
≤0.70dB, 0.5dB Typical |
≤0.70dB, 0.5dB Typical |
≤0.50dB, 0.35dB Typical |
|
Elite / Low |
≤0.35dB, 0.25dB Typical |
≤0.35dB, 0.25dB Typical |
≤0.35dB, 0.20dB Typical |
|
|
Return Loss |
≥55dB |
≥45dB |
≥20dB |
|
|
Durability |
≥200 times |
|||
|
Test Wavelength |
1310nm/1550nm |
850nm/1300nm |
||
Notes:
1. 48F MPO/MTP Multimode IL ≤1.0 dB, RL ≥20 dB
2. Test with Straight Polarity (Type-A). Cross Polarity (Type B) or Pair Flip polarity (Type C) is available.

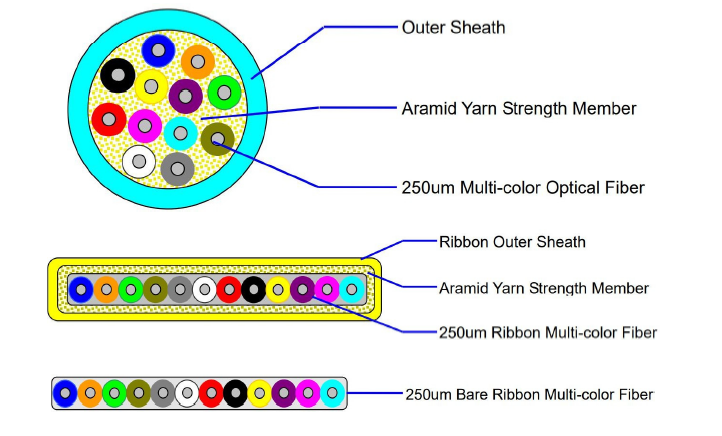

Cable Structure

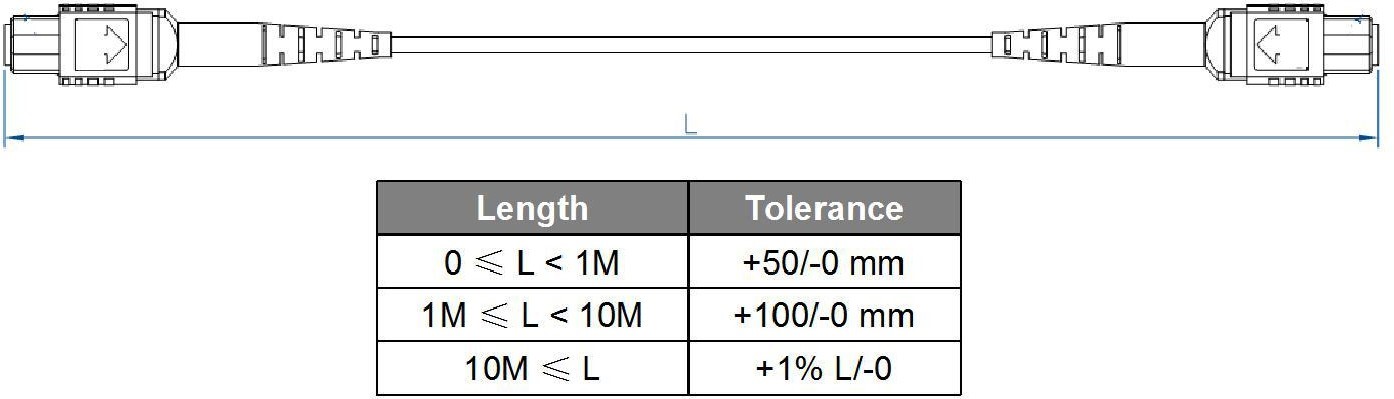

Assembly Drawing
Notes:
Above performance and structure refer to
UF standard grade performance, flexible specification is available to fit for
different installation needs.
- Download FileName：UF MPO MTP Fiber Patch Cable Datasheet V1.0.pdf Size： 538KB
|
UFMP |
x |
x |
x |
x |
x |
x |
x |
x |
x(x) |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Part Number: 1. UFMP=UF MPO/MTP Patch Cable 2. Polarity: A=Type-A (Straight), B=Type-B (Cross), C=Type-C (Pair Flip), R=Type-R (Corning Type) 3. Insertion Loss (IL) Type: S=Standard, L=Elite / Low Loss 4. Fiber Count: 1=8, 2=12, 3=24, 4=48 5. Connector Type: M=Male/Male, F=Female/Female, H=Hybrid (Male/Female) 6. Fiber Type: 1=G652D, 2=G657A1, 3=G657A2, 4=OM1, 5=OM2, 6=OM3, 7=OM4 7. Cable Jacket Type: R=Riser (OFNR), L=LSZH, P=Plenum (OFNP), N=No Jacket 8. A-end Connector: A=MTP/APC, B=MTP/PC, C=MPO/APC, D=MPO/PC 9. B-end Connector: A=MTP/APC, B=MTP/PC, C=MPO/APC, D=MPO/PC 10. Cable Length: 1=1m, 2=2m, ..., 50=50m |
|||||||||
|
Example: UFMPRL2F7LBB3 UF MPO Patch Cable Type-R Polarity Low Insertion Loss 12 Fibers Female/Female OM4 MMF LSZH Cable Jacket MTP/PC to MTP/PC 3m Cable Length |
|||||||||
