Interfaces

PoE Input Port

1 x 10/100/1000BASE-T Ethernet with 24V Passive 30W PoE “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector

PoE Output Port

1 x 10/100/1000BASE-T Ethernet with 24V Passive 30W PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector

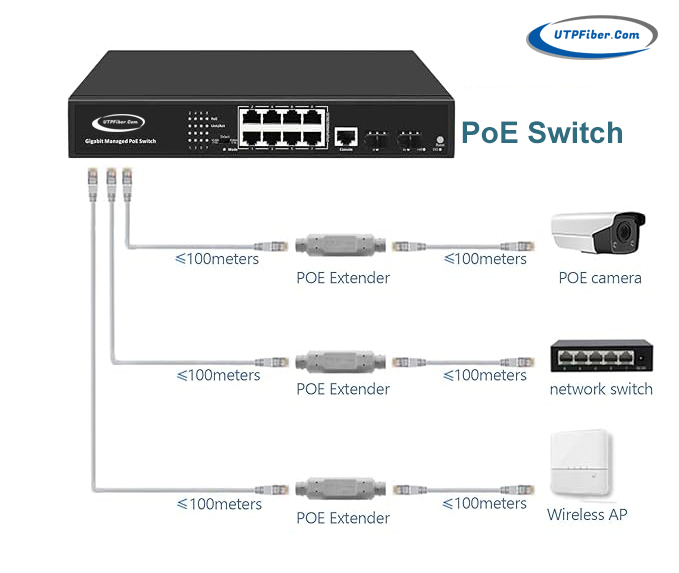

Cascade connection

Support 3 grade

Power over Ethernet

PoE Power

PoE In Port
24V DC, max. 30 watts input
Per PoE Out Port
24V DC, max. 30 watts output in total

PoE Pin Assignment

PoE In Port
4/5 (+), 7/8 (-)
Per PoE Out Port
4/5 (+), 7/8 (-)

Switch Property

Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3az Energy-Efficient Ethernet

IEEE 802.3x Flow Control

Data Rate

10/100/1000Mbps

Forwarding Modes

Store and forward

Transmission Distance

100m

MAC Address Table

2K

Switching Capacity

2Gbps

Switch Throughput

7.44Mpps @ 64 bytes

Jumbo Frame

9K

Port Function

Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

Environment

Operating Temperature

- 20~+80 degrees C

Storage Temperature

- 40~+85 degrees C

Operating Humidity

10~90% (non-condensing)

Physical Parameter

Dimensions (LxWxH)

100x25x22mm

Gross Weight

60g

Net Weight

50g

Material

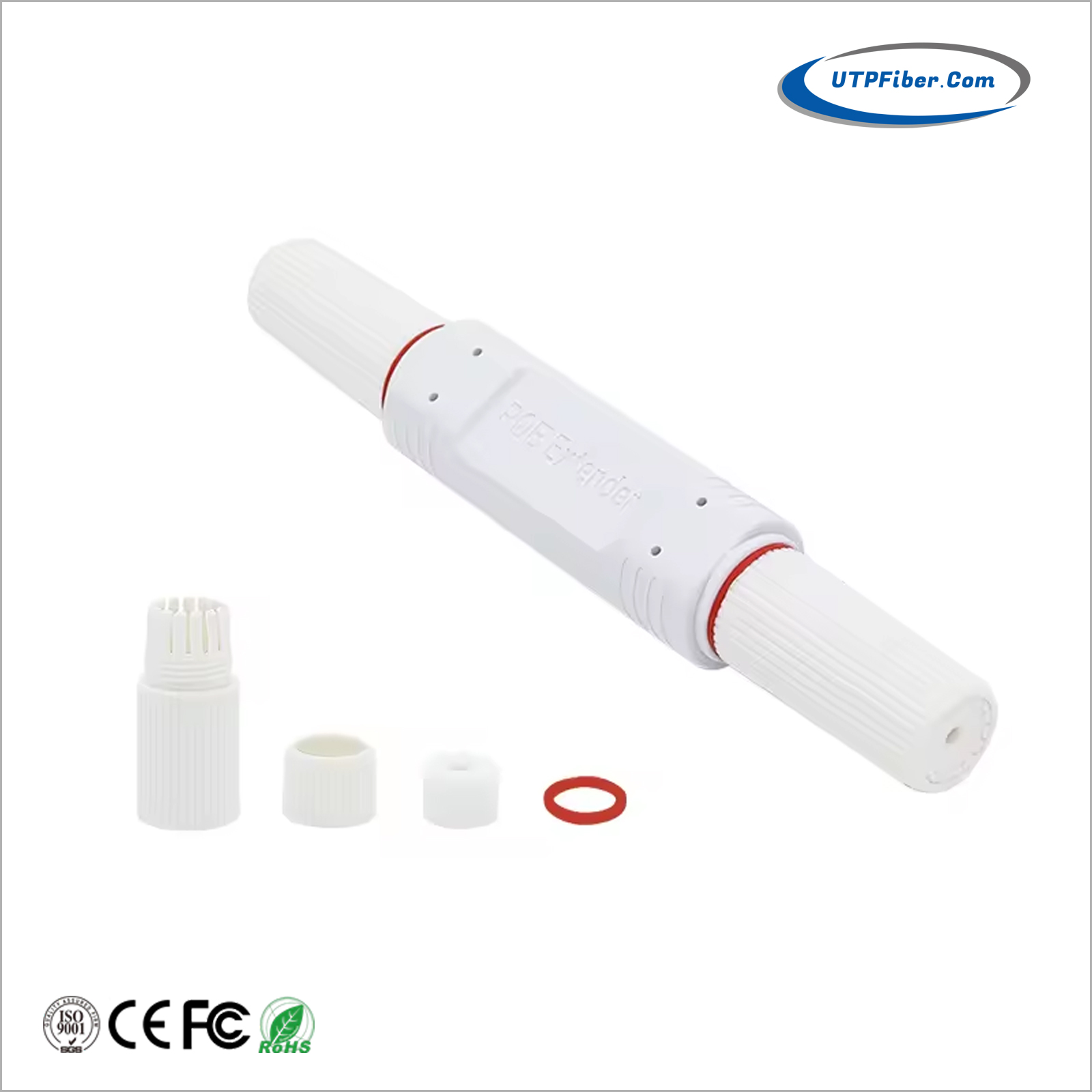

Plastic - Hermetic housing

LED Display

IN, OUT, PWR

Certifications

Certifications

FCC Part 15B

RoHs Directive 2011/65/EU

Low Voltage Directive 2014/35/EU

Electromagnetic Compatibility Diective 2004/108/EC
