Interfaces

PoE Input Port

1 x 10/100BASE-TX Ethernet with IEEE 802.3at 30W PoE “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector

PoE Output Port

2 x 10/100BASE-TX Ethernet with IEEE 802.3at 25.5W PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector

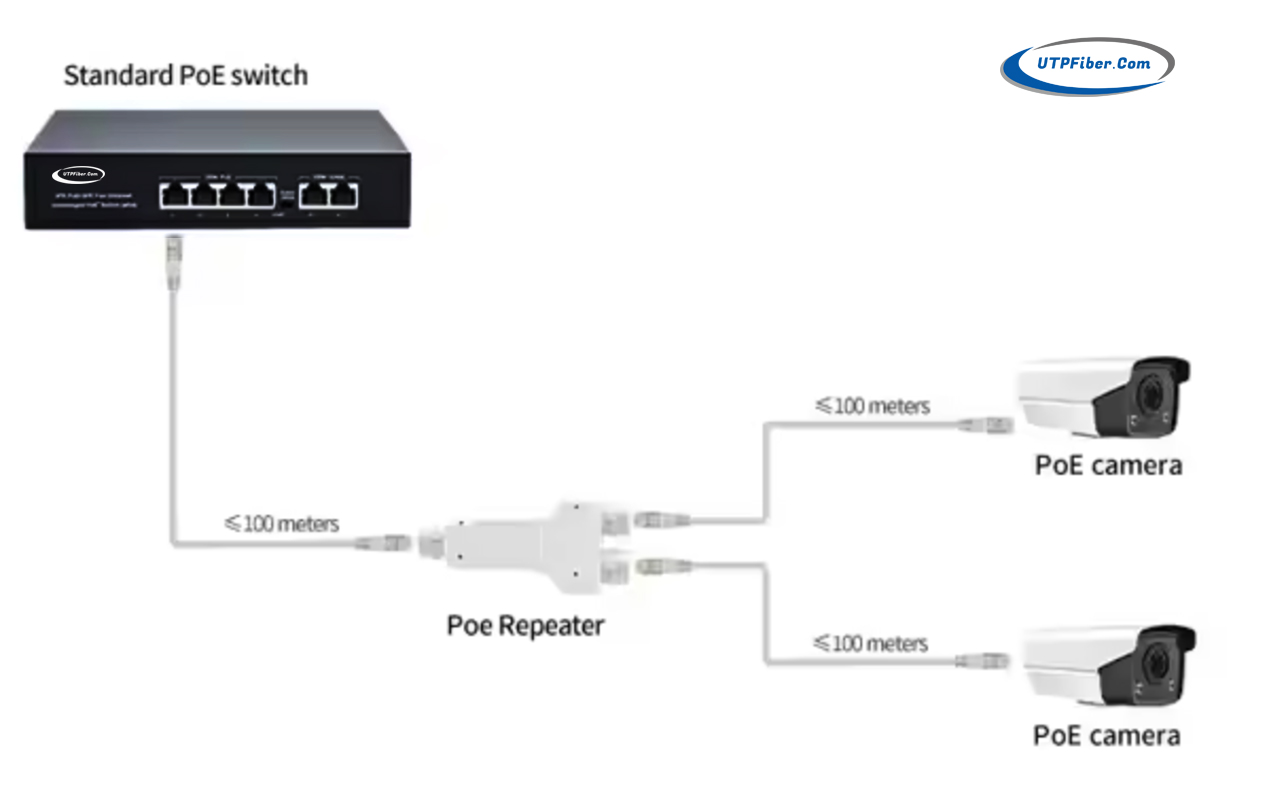

Cascade connection

Support 3 grade

Power over Ethernet

PoE Power

PoE In Port
IEEE 802.3at, max. 30 watts input
Per PoE Out Port
IEEE 802.3at, max. 25.5 watts output in total

PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

PoE Pin Assignment

PoE In Port
1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Per PoE Out Port
1/2(+), 3/6(-) or 4/5(+), 7/8(-)

Switch Property

Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3az Energy-Efficient Ethernet

IEEE 802.3x Flow Control

Data Rate

10/100Mbps

Forwarding Modes

Store and forward

Transmission Distance

100m

MAC Address Table

1K

Switching Capacity

0.6Gbps

Packet Forwarding Rate

0.298Mpps

Package Cache

768Kbits

Jumbo Frame

2048bytes

Port Function

Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

Environment

Operating Temperature

- 20~+80 degrees C

Storage Temperature

- 40~+85 degrees C

Operating Humidity

10~90% (non-condensing)

Physical Parameter

Dimensions (LxWxH)

92 x 46 x 22mm

Gross Weight

100g

Net Weight

90g

Color

White

Material

PVC Plastic - Hermetic housing

LED Display

IN, OUT, PWR

Certifications

Certifications

FCC Part 15B

RoHs Directive 2011/65/EU

Low Voltage Directive 2014/35/EU

Electromagnetic Compatibility Diective 2004/108/EC
