Mini Outdoor IP67 Waterproof 1-Port 802.3at PoE+ to 1-Port 802.3af/at Gigabit PoE Extender
Model:1
► Include 1 PoE In 1 PoE Out Gigabit Ports, 10/100/1000Mbps rate
► Powered by PoE network, no AC power supply required
► Input port IEEE802.3af/at compliant, support up to 30 watts PoE power input. Output PoE port 802.3af/at compliant, support to deliver up to 25 watts PoE power
► IP67 Outdoor Weatherproof
The UF-WP101GP 1 in 1 out IP67 outdoor Gigabit 802.3at PoE+ extender provides 1×10/100/1000Mbps PoE in port and 1×10/100/1000Mbps PoE out port for remote PoE device. The POE Extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100 m Network Cable from a POE Switch. It can extend the network and POE power supply for another 100m at full rate.

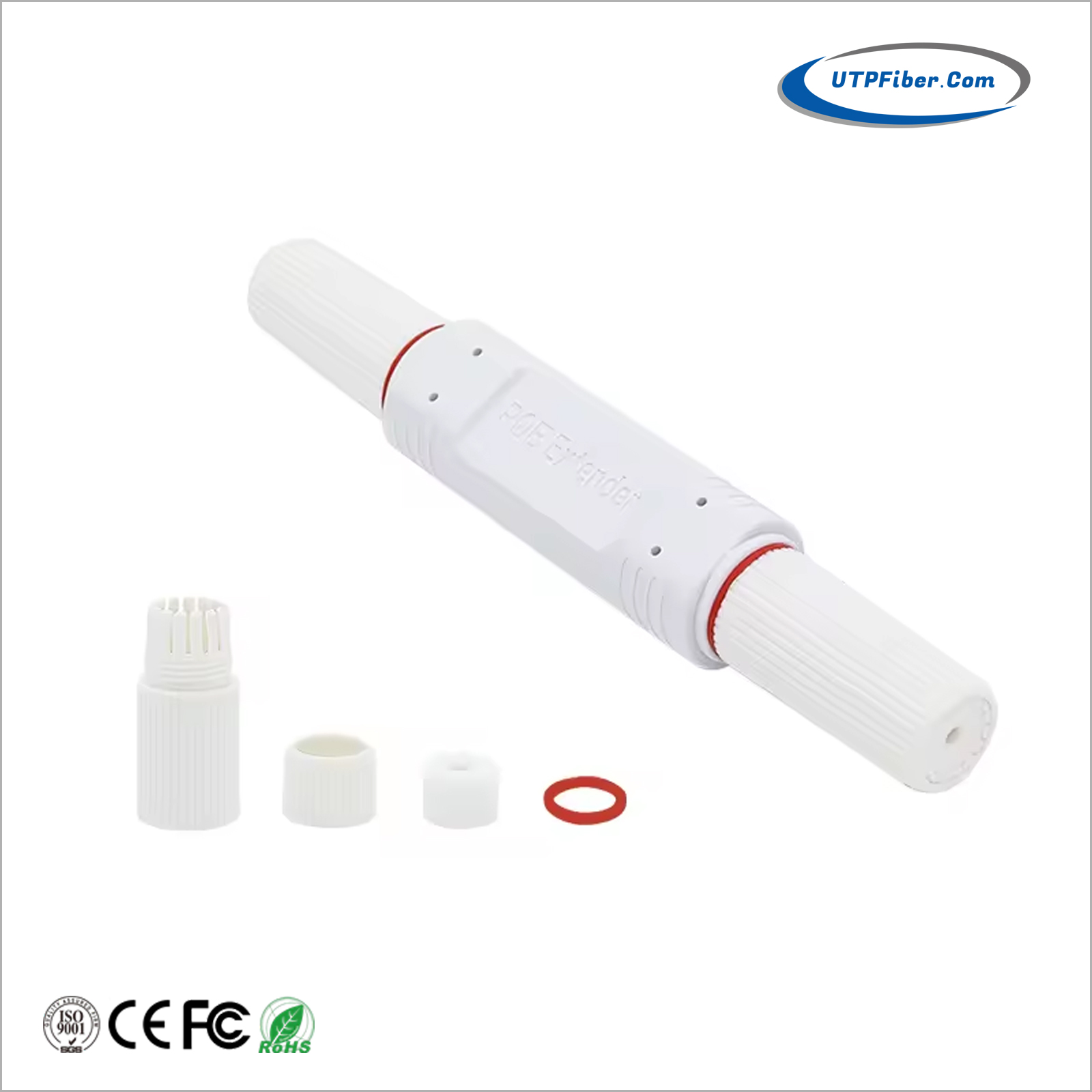

The PoE extender uses ABS+PC housing, Its weatherproof IP67 (waterproof and dustproof) rating. The transmission distance of a PoE out port can be up to 300m with cascade, meeting the requirement of wired transmission. As a POE power supply device, it can automatically detect and identify the compliant power receiving devices and supply power to them through network cables.
► Include 1 PoE In 1 PoE Out Gigabit Ports, 10/100/1000Mbps rate.
► Powered by PoE network, no AC power supply required
► Input port IEEE802.3af/at compliant, support up to 30 watts PoE power input. Output PoE port 802.3af/at compliant, support to deliver up to 25 watts PoE power
► IP67 Outdoor Weatherproof
► Plug and play, no configuration, easy to use and maintenance

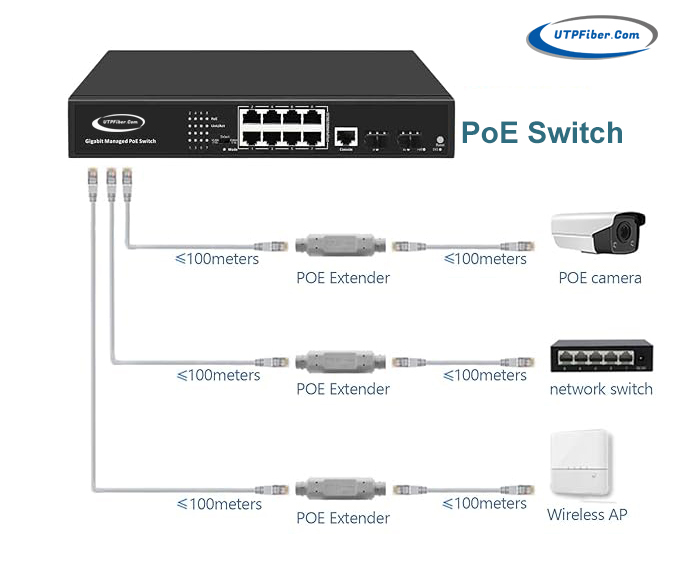

► Support 3-level cascading, can connect wireless AP, camera, phone and other POE devices, extender POE coverage at low cost
► Urtral small size: Approx.10x2.5x2.2cm/3.94x0.98x0.87in
|
Interfaces |
|
|
PoE Input Port |
1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at 30W PoE “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector |
|
PoE Output Port |
1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at 25.5W PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector |
|
Cascade connection |
Support 3 grade |
|
Power over Ethernet |
|
|
PoE Power |
PoE In Port |
|
PoE Standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
|
PoE Pin Assignment |
PoE In Port |
|
Switch Property |
|
Standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3az Energy-Efficient Ethernet IEEE 802.3x Flow Control |
|
Data Rate |
10/100/1000Mbps |
|
Forwarding Modes |
Store and forward |
|
Transmission Distance |
100m |
|
MAC Address Table |
2K |
|
Switching Capacity |
2Gbps |
|
Switch Throughput |
7.44Mpps @ 64 bytes |
|
Jumbo Frame |
9K |
|
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode |
|
Environment |
|
|
Operating Temperature |
- 20~+80 degrees C |
|
Storage Temperature |
- 40~+85 degrees C |
|
Operating Humidity |
10~90% (non-condensing) |
|
Physical Parameter |
|
|
Dimensions (LxWxH) |
100x25x22mm |
|
Gross Weight |
60g |
|
Net Weight |
50g |
|
Material |
Plastic - Hermetic housing |
|
LED Display |
IN, OUT, PWR |
|
Certifications |
|
Certifications |
FCC Part 15B RoHs Directive 2011/65/EU Low Voltage Directive 2014/35/EU Electromagnetic Compatibility Diective 2004/108/EC |
- Download FileName：UF-WP101GP Outdoor IP67 Waterproof Gigabit 802.3at PoE Extender Datasheet V1.0.pdf Size： 678KB
|
Model |
Description |
|
UF-WP101GP |
Outdoor IP67 Waterproof 1-Port 802.3at PoE+ to 1-Port 802.3af/at Gigabit PoE Extender |
|
Mounting Options |
► Desktop |
|
Power Options |
► Powered by PoE, no need external power adapter |
