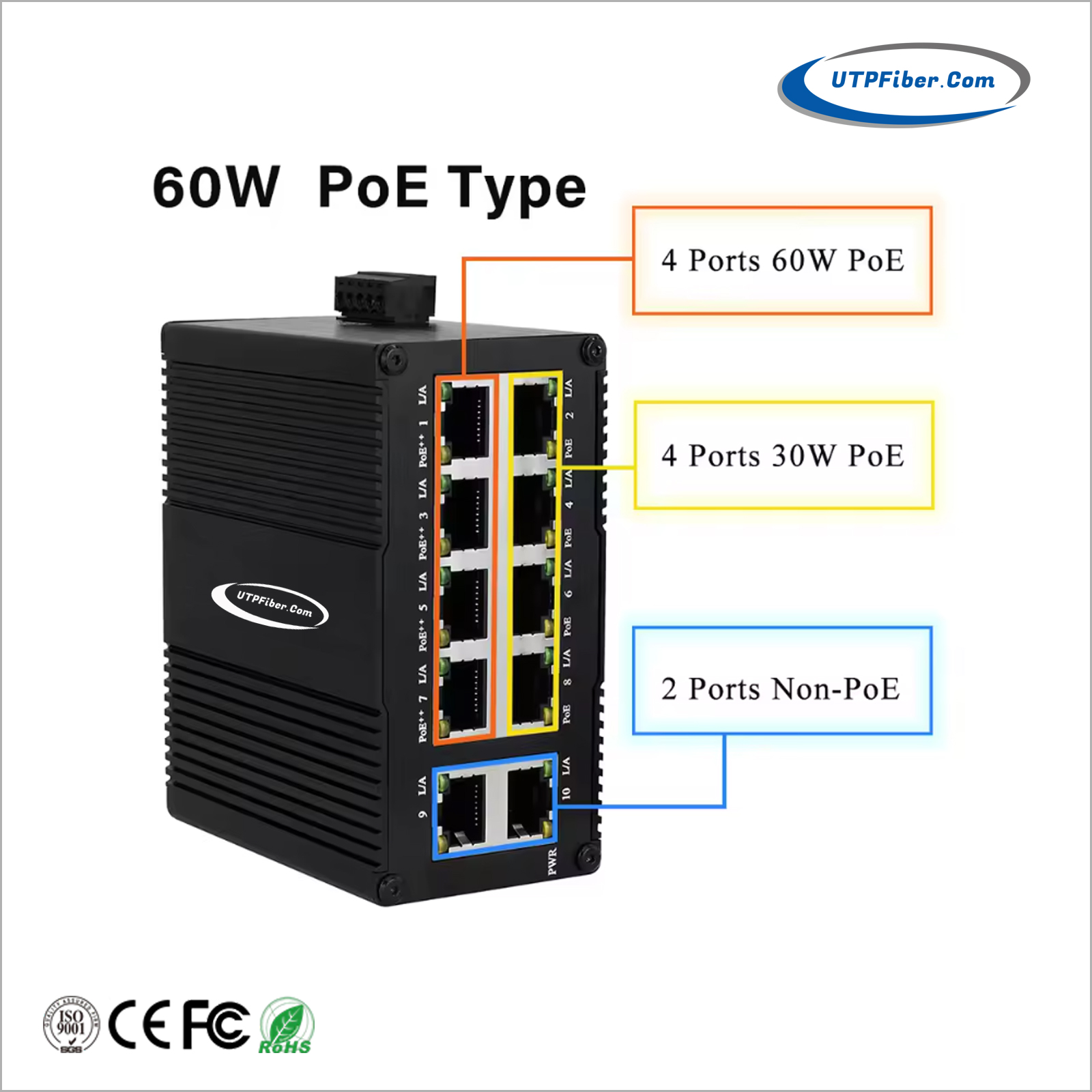

Mini Industrial 4-Port 1000T BT PoE 60W + 4-Port 1000T AT PoE 30W + 2-Port 1000T Ethernet Switch
Model:UF-IES010GP60
► 4-Port 10/100/1000T 802.3bt PoE 60W + 4-Port 10/100/1000T 802.3at PoE 30W + 2-Port 10/100/1000T
► Redundant 44-56VDC Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
The UF-IES010GP60 is a mini industrial-grade 8-Port PoE Switch specially designed to be installed in a narrow environment. The DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with ten 10/100/1000BASE-T ports featuring four IEEE 802.3bt PoE++ ports, four IEEE 802.3at PoE+ ports and two 10/100/1000BASE-T port for uplink connection. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations. To facilitate the 802.3bt PoE++ and 802.3at PoE+ usage with the commonly-used 44-56V DC power input for transportation and industrial-level applications.
With dual power input design, UF-IES010GP60 can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
► 4-Port 10/100/1000T 802.3bt PoE 60W + 4-Port 10/100/1000T 802.3at PoE 30W + 2-Port 10/100/1000T
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 9K bytes giant frame, compatible with various extension protocol
► Support 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant 44-56VDC Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10BASE-T |
|
IEEE 802.3u 100BASE-TX |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Flow Control and Back Pressure |
|
|
IEEE 802.3az Energy Efficient Ethernet |
|
|
IEEE 802.3bt Power over Ethernet Plus Plus |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Size: |
4M |
|
Switch Fabric: |
20Gbps |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Copper Ports: |
10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
PoE Injector Ports |
4 ports with 802.3bt PoE++ 60W injector function 4 ports with 802.3at PoE+ 30W injector function |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3bt Power over Ethernet Plus Plus type 4 PSE Backward compliant with 802.3at Power over Ethernet Plus PSE |
|
PoE Power Supply Type |
802.3bt, UPoE End-span/Mid-span |
|
Power Pin Assignment |
1/2(+), 3/6(-), 4/5(+), 7/8(-) |
|
PoE Power Output |
IEEE 802.3af Standard
IEEE 802.3bt Standard |
|
Power budget |
Max. PoE output power budget 60W for each PoE port |
|
Lightning protection |
The Industrial Switch provides contact discharge of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
907,476 hours @ Telcordia SR-332 Standard |
|
Heat Dissipation: |
34 BTU/h (non-PoE mode) |
|
Cooling: |
Passive Cooling, Fanless Design |
|
Noise Level: |
0 dBA |
|
Electrical and Mechanical |
|
|
Input Power: |
44~56VDC, Redundant Power (Terminal Block) |
|
Connector: |
1 removable 5-contact terminal blocks Pin 1/2 for Power 1, Pin 3 for ground, Pin 4/5 for Power 2 |
|
Protection: |
Overload Current Protection, Reverse Polarity Protection |
|
Power Consumption: |
370W Max. (PoE in use, 48VDC input) |
|
10W Max. (PoE not in use) |
|
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Dimensions (WxDxH): |
100 x 83.5 x 50 mm |
|
Weight: |
500g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
- Download FileName：UF-IES010GP60 Mini Industrial 8G+2TP 60W PoE Switch Datasheet V1.0.pdf Size： 690KB
|
Model |
Description |
|
UF-IES010GP60 |
Mini Industrial 4-Port 10/100/1000T 802.3bt PoE 60W + 4-Port 10/100/1000T 802.3at PoE 30W + 2-Port 10/100/1000T Ethernet Switch |
|
Mounting Options |
► DIN-Rail or Wall Mount Installation |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
