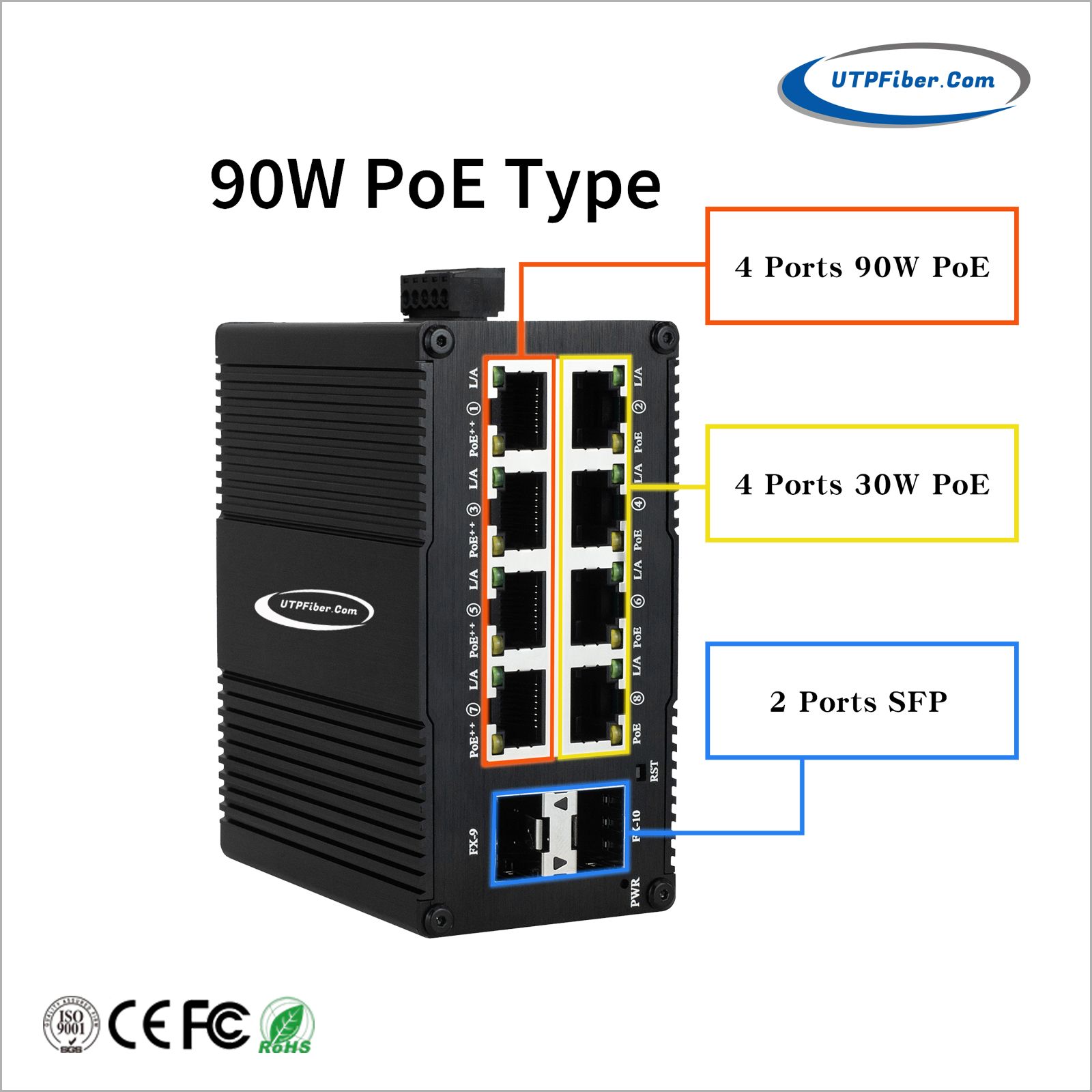

Mini Industrial 4-Port 1000T BT PoE 90W + 4-Port 1000T AT PoE 30W + 2-Port 1000X SFP Ethernet Switch
Model:UF-IS6208GP90-SFP
► 4-Port 10/100/1000T 802.3bt PoE 60W + 4-Port 10/100/1000T 802.3at PoE 90W + 2-Port 100/1000X SFP
► Support 9K bytes giant frame
► Redundant 44-56VDC Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
The UF-IS6208GP90-SFP is a
mini industrial-grade 8-Port PoE Switch specially designed to be installed in a
narrow environment. The DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch
with eight 10/100/1000BASE-T ports featuring four IEEE 802.3bt PoE++ ports,
four IEEE 802.3at PoE+ ports and two 100/1000BASE-X SFP fiber optic interfaces

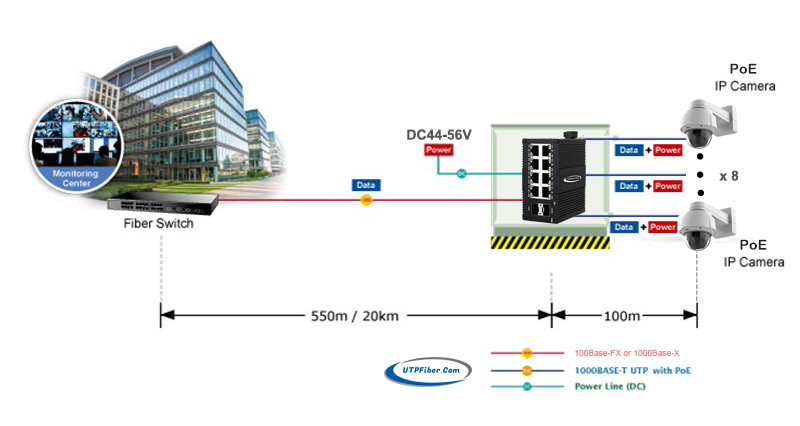

for uplink connection. With its reliable design and ease of use, the product is
a great choice for integrating networks consisting of network devices such as
IP cameras and wireless access points between remote locations. To facilitate
the 802.3bt PoE++ and 802.3at PoE+ usage with the commonly-used 44-56V DC power
input for transportation and industrial-level applications.
With dual power input
design, UF-IS6208GP90-SFP can offer redundant mechanisms for critical
applications that need always-on connections. It can also operate either at
standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or
wall mountable IP40 enclosures, these switches are perfect choices for harsh
environments, such as industrial networking, intelligent transportation systems
(ITS) and are also suitable for many military and utility market applications
where environmental conditions exceed commercial product specifications.
► 4-Port 10/100/1000T 802.3bt PoE 90W + 4-Port 10/100/1000T 802.3at PoE 30W + 2-Port 100/1000X SFP
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 9K bytes giant frame, compatible with various extension protocol
► Support 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant 44-56VDC Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10BASE-T |
|
IEEE 802.3u 100BASE-TX |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Flow Control and Back Pressure |
|
|
IEEE 802.3z Gigabit Ethernet over Fiber Optic |
|
|
IEEE 802.3az Energy Efficient Ethernet |
|
|
IEEE 802.3bt Power over Ethernet Plus Plus |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Size: |
4M |
|
Switch Fabric: |
20Gbps |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Copper Ports: |
8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
PoE Injector Ports |
4 ports with 802.3bt PoE++ 90W injector function 4 ports with 802.3at PoE+ 30W injector function |
|
SFP Ports: |
2 x 100/1000BASE-X SFP interfaces (auto detection) |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3bt Power over Ethernet Plus Plus type 4 PSE Backward compliant with 802.3at Power over Ethernet Plus PSE |
|
PoE Power Supply Type |
802.3bt, UPoE End-span/Mid-span |
|
Power Pin Assignment |
1/2(+), 3/6(-), 4/5(+), 7/8(-) |
|
PoE Power Output |
IEEE 802.3af Standard
IEEE 802.3bt Standard |
|
Power budget |
Max. PoE output power budget 90W for each PoE port |
|
Lightning protection |
The Industrial Switch provides contact discharge of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
907,476 hours @ Telcordia SR-332 Standard |
|
Heat Dissipation: |
34 BTU/h (non-PoE mode) |
|
Cooling: |
Passive Cooling, Fanless Design |
|
Noise Level: |
0 dBA |
|
Electrical and Mechanical |
|
|
Input Power: |
44~56VDC, Redundant Power (Terminal Block) |
|
Connector: |
1 removable 5-contact terminal blocks Pin 1/2 for Power 1, Pin 3 for ground, Pin 4/5 for Power 2 |
|
Protection: |
Overload Current Protection, Reverse Polarity Protection |
|
Power Consumption: |
490W Max. (PoE in use, 48VDC input) |
|
10W Max. (PoE not in use) |
|
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/ Act: connect-always; data exchange-twinkle |
|
Fiber: |
Link/Act: connect-always; data exchange-twinkle |
|
Dimensions (WxDxH): |
100 x 83.5 x 50 mm |
|
Weight: |
500g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
EMC/EMI/EMS |
FCC Part15 Class A CE-EMC/LVD RoHS EN61000-4-2 (ESD): LEVEL 4 IEC 6100-4-2 (EFT): LEVEL 4 IEC 6100-4-2 (Surge): LEVEL 4 IEC 6100-4-2 (CS)：LEVEL 3 IEC 61000-4-2(PFMP) : LEVEL 5 EN61000-4-3 (RS): LEVEL 4 |
|
Shock |
IEC60068-2-27 |
|
Freefall |
IEC60068-2-31 |
|
Vibration |
IEC60068-2-6 |
|
Safety |
EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1, UL 508 |
- Download FileName：UF-IS6208GP90-SFP Mini Industrial 8G+2SFP 90W PoE Switch Datasheet V1.0.pdf Size： 457KB
|
Model |
Description |
|
UF-IS6208GP90-SFP |
Mini Industrial 4-Port 10/100/1000T 802.3bt PoE 90W + 4-Port 10/100/1000T 802.3at PoE 30W + 2-Port 100/1000X SFP Ethernet Switch |
|
Mounting Options |
► DIN-Rail or Wall Mount Installation |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
