Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3az Energy Efficient Ethernet (EEE)

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Size:

1M

Switch Fabric:

12Gbps

Processing Type:

Store-and-Forward

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

2K MAC Addresses

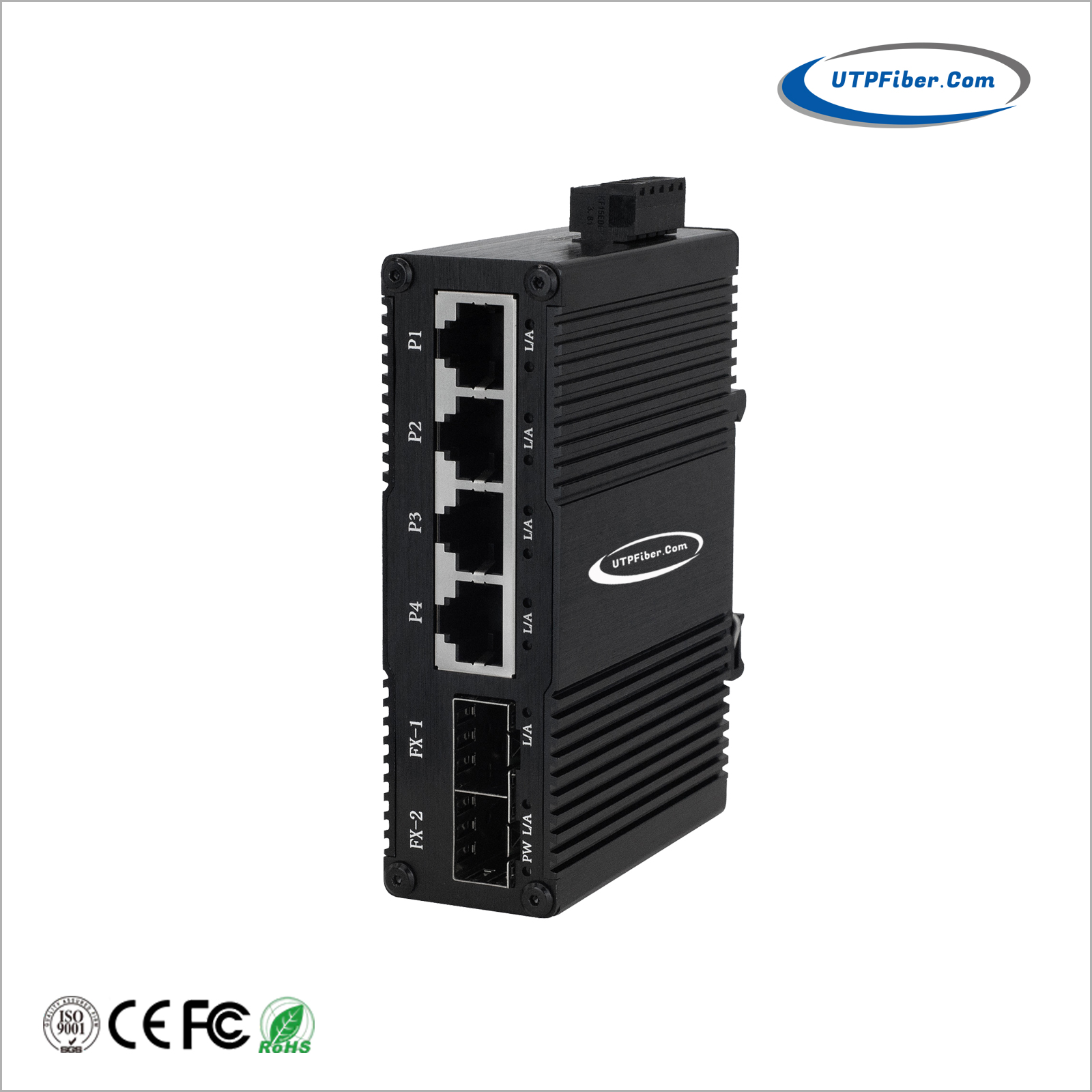

Interface

Copper Ports:

4 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

SFP Ports:

2 x 100/1000BASE-X SFP interfaces (auto detection)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

907,476 hours @ Telcordia SR-332 Standard

Heat Dissipation:

10 BTU/h

Cooling:

Passive Cooling, Fanless Design

Noise Level:

0 dBA

Electrical and Mechanical

Input Power:

9-56VDC, Redundant Power (Terminal Block)

Connector:

1 removable 5-contact terminal blocks

Protection:

Overload Current Protection, Reverse Polarity Protection

Power Consumption:

5W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

PWR:

Power Status

RJ45:

Link/Act: connect-always; data exchange-twinkle

Fiber:

Link/Act: connect-always; data exchange-twinkle

Dimensions (LxWxH):

100 x 70 x 30 mm

Weight:

250g

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

EMC/EMI/EMS

FCC Part15 Class A

CE-EMC/LVD

RoHS

EN61000-4-2 (ESD): LEVEL 4

IEC 6100-4-2 (EFT): LEVEL 4

IEC 6100-4-2 (Surge): LEVEL 4

IEC 6100-4-2 (CS)：LEVEL 3

IEC 61000-4-2(PFMP) : LEVEL 5

EN61000-4-3 (RS): LEVEL 4

Shock

IEC60068-2-27

Freefall

IEC60068-2-31

Vibration

IEC60068-2-6

Safety

EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1, UL 508
