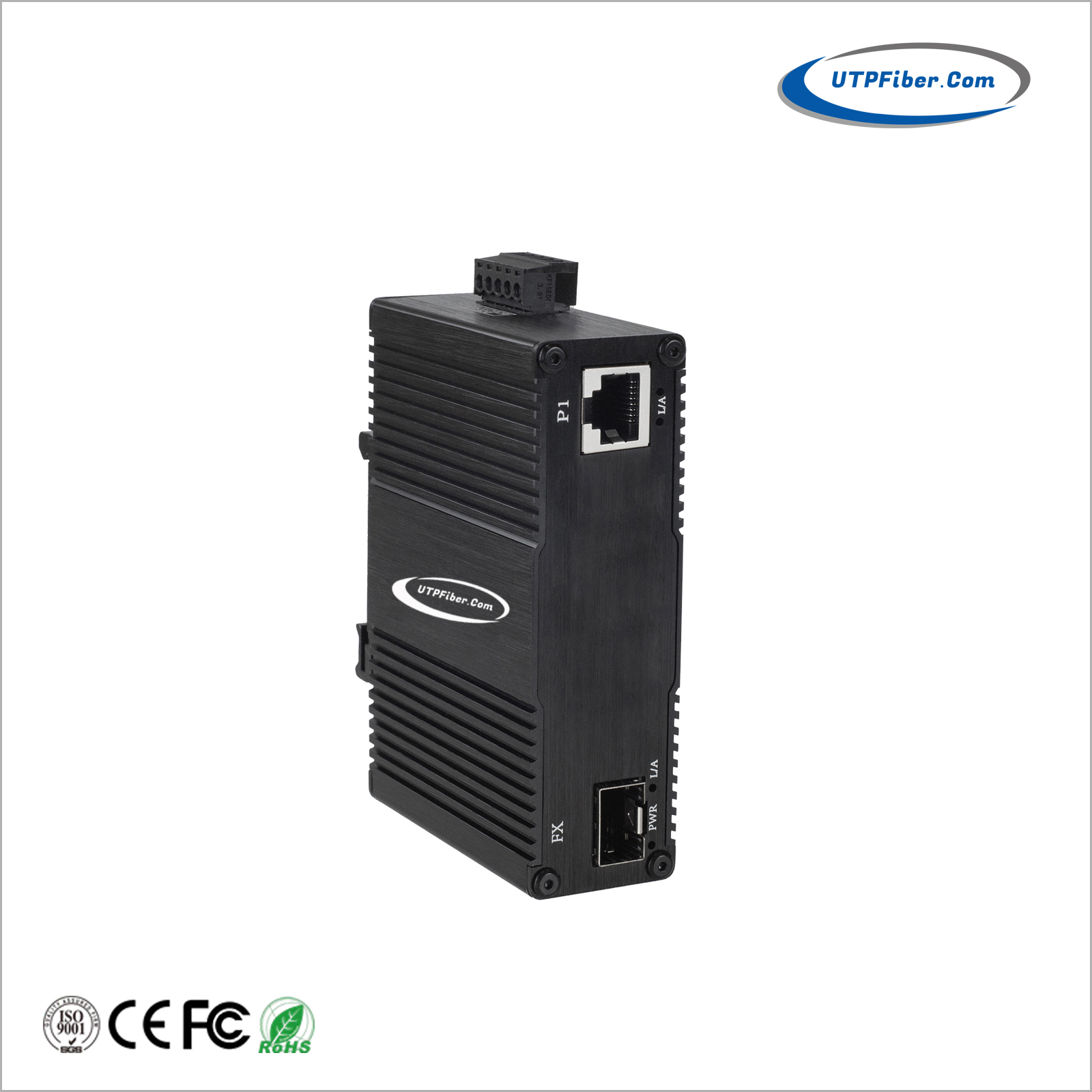

Mini Industrial 1-Port 100/1000X SFP to 1-Port 10/100/1000T Media Converter
Model:UF-IES1G-SFP
► 1x10/100/1000Base-TX RJ45 port, 1x100/1000Base-X SFP port
► 12~56VDC wide range power input
► 9K Bytes Jumbo Frame
► Installation method: DIN Rail or Wall mounting

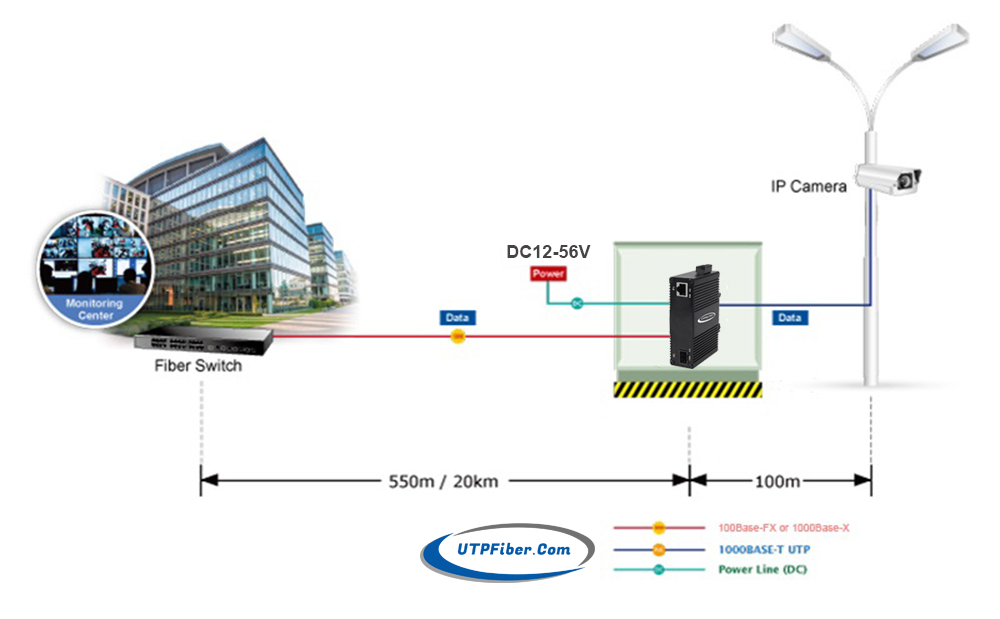

UF-IES1G-SFP with 1-Port 10/100/1000Base-TX and 1-Port 100/1000Base-X SFP that provides stable and reliable Ethernet transmission with dual power input design, offers redundant mechanisms for critical applications that need always-on connections. It also operates at standard operating temperature range from -40°C to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, this converter is a perfect choice for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and is also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
It is a new generation Ethernet Media converter, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial converter complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability.
► 1x10/100/1000Base-TX RJ45 port, 1x100/1000Base-X SFP port
► 12~56VDC wide range power input
► Support Auto-MDIX and full/half duplex self-negotiation mode
► 9K Bytes Jumbo Frame
► 4K MAC address table
► Support IEEE802.3az energy efficient Ethernet technology
► Support IPv6 Protocol
► Electric 6KV surge protection, easy to use in outdoor environment
► Complete status indicators, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
► Installation method: DIN Rail or Wall mounting
|
Physical Port |
|
|
RJ45 port and speed |
1 x 10/100/1000Base-TX |
|
Fiber port and speed |
1 x 100/1000Base-X SFP |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Packet buffer |
1Mbits |
|
Maximum packet length |
Up to 9K Bytes |
|
MAC address table |
4K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs Backplane bandwidth: 2Gbps Packet Forwarding rate: 2.976M |
|
LED Indicator |
|
|
Power |
Connect-always ON |
|
RJ45 |
Link/Act: connect-always; data exchange-blinking |
|
Fiber |
Link/Act: connect-always; data exchange-blinking |
|
Power Information |
|
|
Power access mode |
Phoenix terminal |
|
Redundant power input |
DC12-56V |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
5W Max. |
|
Physical Property |
|
|
Protection grade |
IP40 aluminum housing |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions (L x W x H) |
100mm x 70mm x 30mm |
|
Installation mode |
DIN Rail or Wall-Mount |
|
Weight |
250g |
|
Working Environment |
|
|
Operating Temperature |
-40℃ ~ +80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Standard Warranty |
5 years and lifetime technical support |
|
Certification Standard |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
- Download FileName：UF-IES1G-SFP Mini Industrial Gigabit SFP Media Converter Datasheet V1.0.pdf Size： 652KB
|
Model |
Description |
|
UF-IES1G-SFP |
Mini Industrial Gigabit Media Converter: 10/100/1000Base-T to 100/1000Base-X SFP, 12~56VDC power input, not including SFP module, standalone, Support DIN-Rail mounting and Wall mounting installation, not including power supply adapter |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 48VDC Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
