Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Size:

4M

Switch Fabric:

20Gbps

Processing Type:

Store-and-Forward

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

4K MAC Addresses

Interface

Copper Ports:

10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

907,476 hours @ Telcordia SR-332 Standard

Heat Dissipation:

34 BTU/h

Cooling:

Passive Cooling, Fanless Design

Noise Level:

0 dBA

Electrical and Mechanical

Input Power:

9~56VDC, Redundant Power (Terminal Block)

Connector:

1 removable 5-contact terminal blocks

Pin 1/2 for Power 1, Pin 3 for ground, Pin 4/5 for Power 2

Protection:

Overload Current Protection, Reverse Polarity Protection

Power Consumption:

10W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

Ethernet (Per Port):

Link/Activity

Dimensions (WxDxH):

100 x 83.5 x 50 mm

Weight:

500g

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

EMI

FCC Part15 Subpart B Class A, EN 55022 Class A

EMS

EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11

Collision

IEC60068-2-27

Drop

IEC60068-2-32

Vibration

IEC60068-2-6

Safety grade

EN60950-1

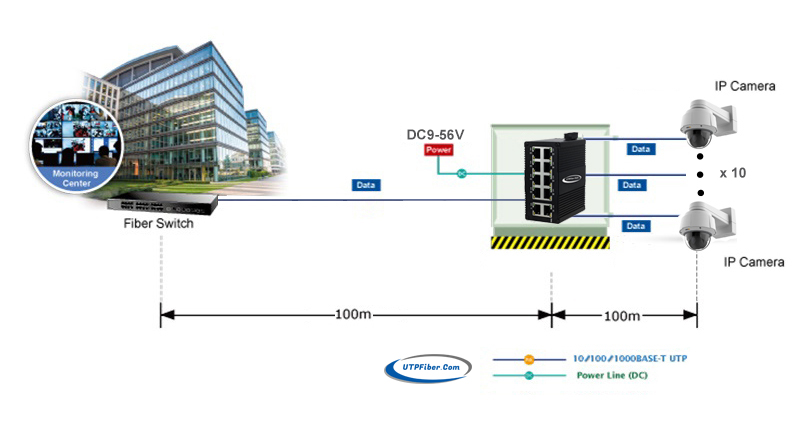

Model

Description

UF-IES010G

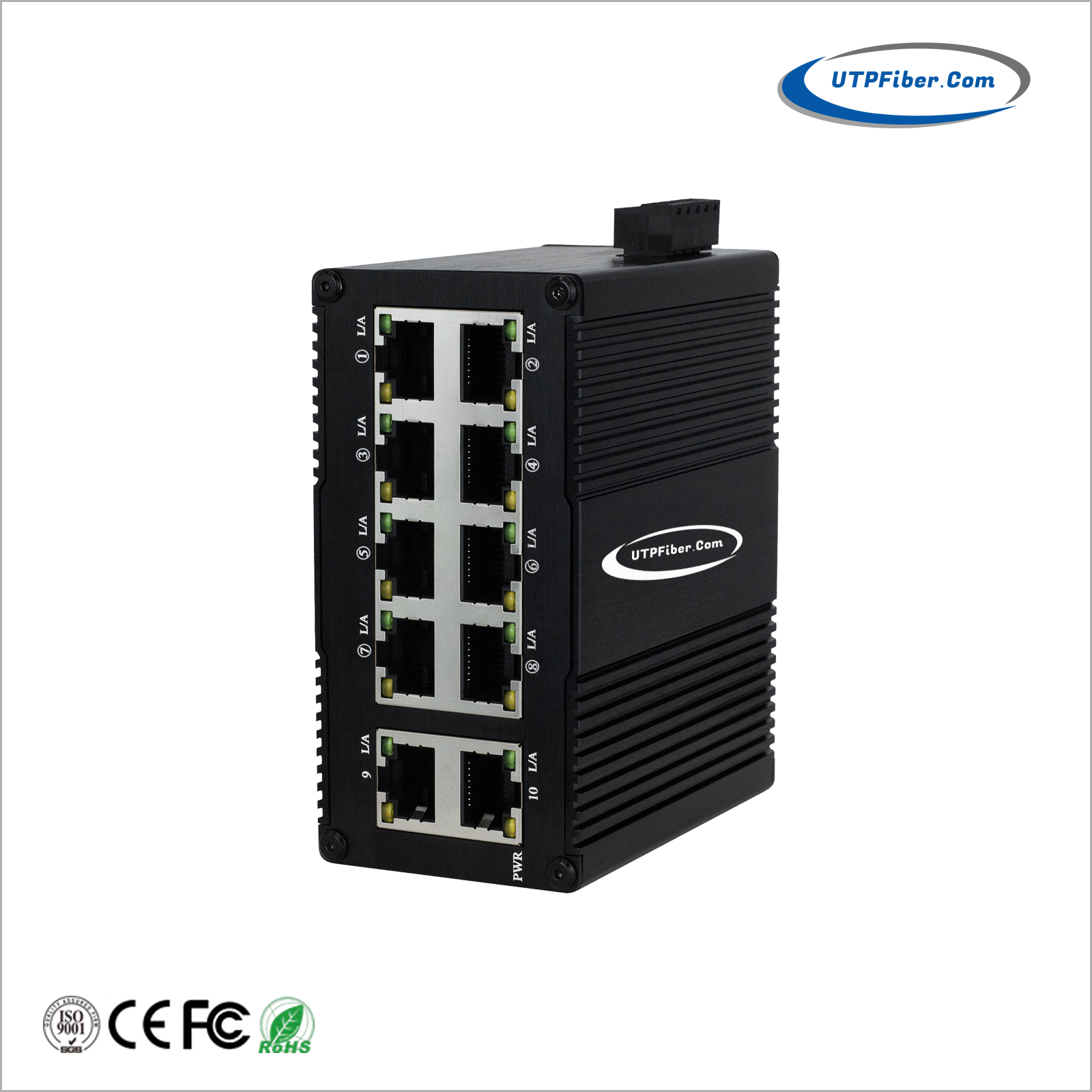

Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch

Mounting Options

► DIN-Rail or Wall Mount Installation

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
