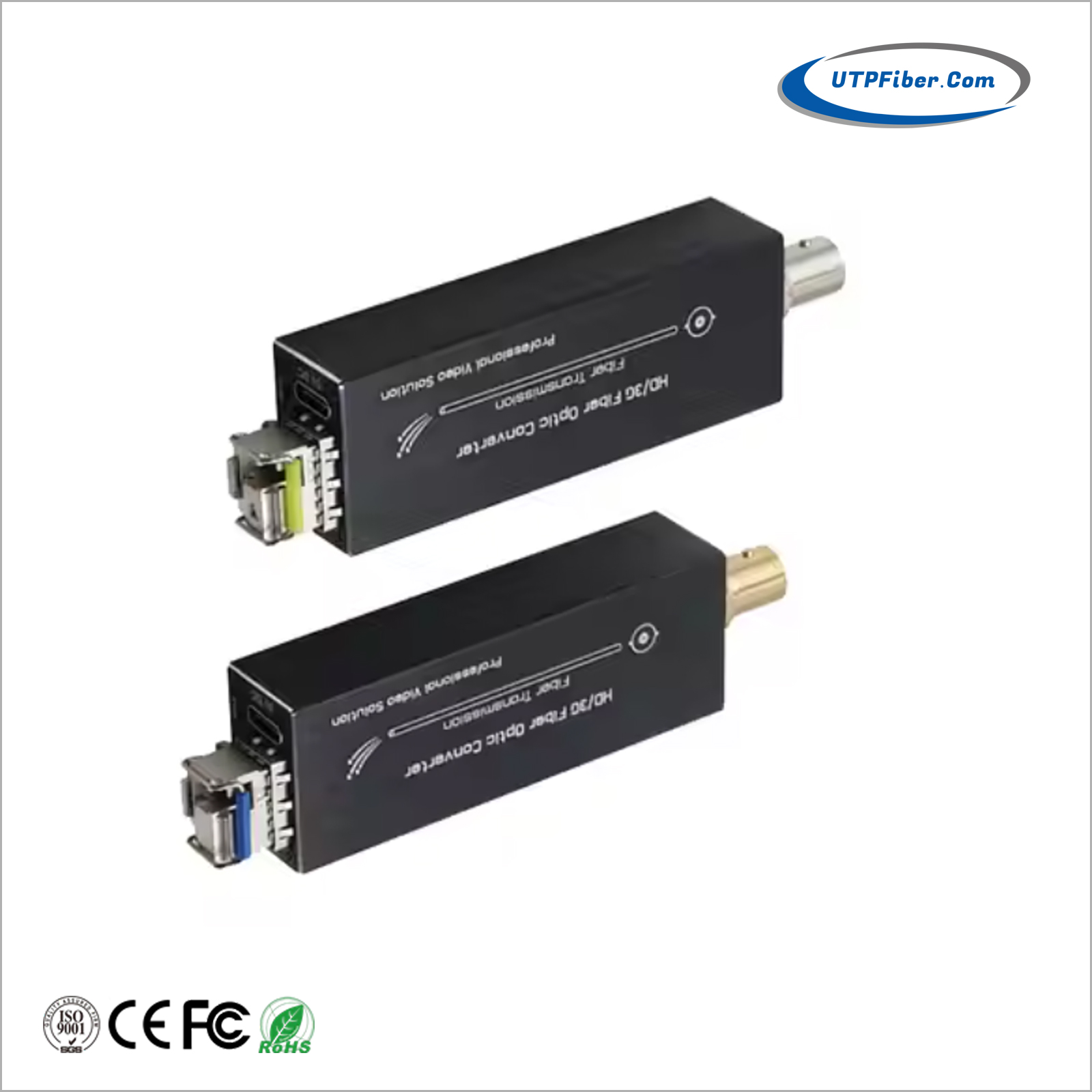

Mini HD-SDI Video Digital Optical Converter
Model:MN-HDSDI-1V Series
► Automatic reclocking 270Mbit/s - 1.48Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80km
► Full digital non-compression broadcast level transmission
► Fiber optic WDM/CWDM/DWDM technique

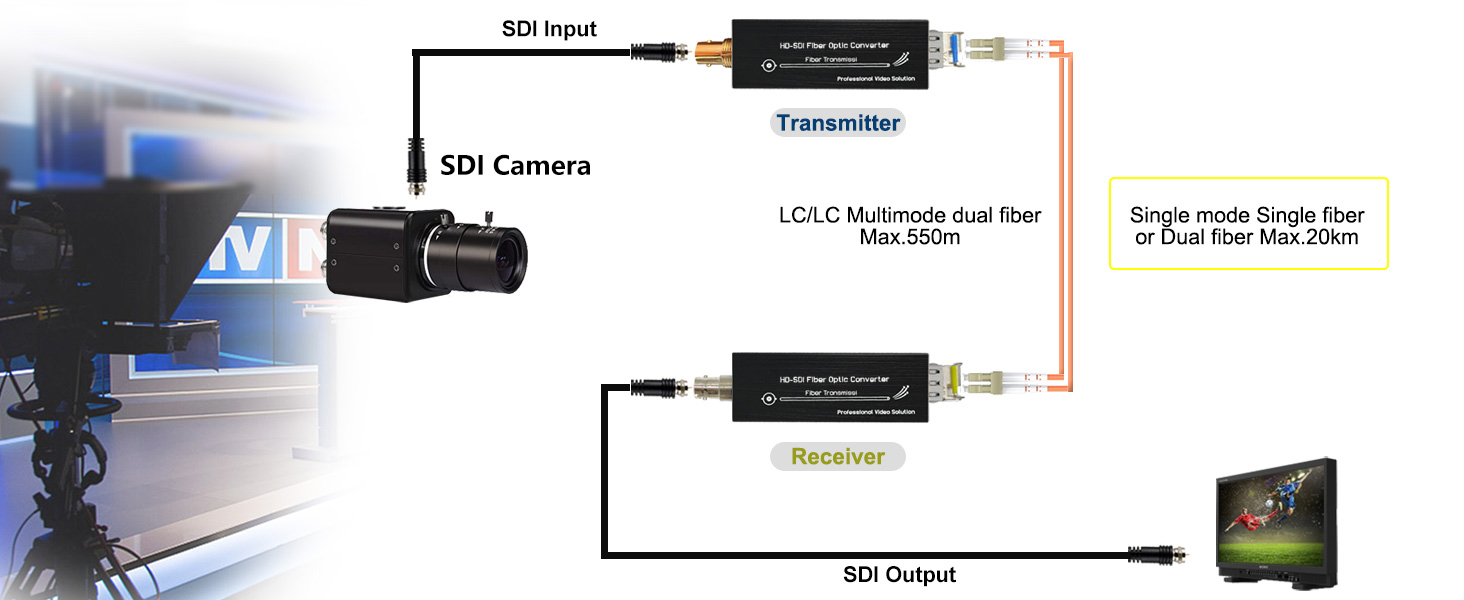

MN-HDSDI-1V series Mini HD-SDI Fiber Extender supports 1-channel HD-SDI Video (audio embedded) signal transmitted via fiber optical cable. UTP HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI signal. With compact size, it can easily integrate in other devices. It’s widely used in surveillance and broadcasting area.
The Mini HD-SDI video digital optical converter adopts international advanced all-digital gigabit optical fiber transmission technology, the HD-SDI video signal can be transmitted through one fiber with non- distortion, high-quality, long-distance transmission. This series of video to fiber converter has stable performance, clear picture quality, and high stability with LED status indication on the body of device. The working status of devices can be visually observed.
► Each channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80km
► Terminal block power input; Hot swap and hot plug
► Full digital non-compression broadcast level transmission
► Super optic dynamic range and free of adjustment
► Fiber optic WDM/CWDM/DWDM technique
► Industry level ultra-broad temperature range (-20℃~+70℃)
|
Fiber Optical interface |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
550m-20Km |
|
Wavelength |
1310nm/1550nm |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 1.48Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
Video SDI standard |
270Mbps (SD-SDI) |
|
1.485Gbps (HD-SDI) |
|
|
Electrical |
|
|
Power adaptor |
5V DC, Type-C Interface |
|
Power consumption |
<3W |
|
LED Indicator |
|
|
SDI |
SDI video |
|
P/T |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
78 x 28 x 18 mm |
|
Weight |
0.5 KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Operating humidity |
5%~90% non-condensing |
|
Storage humidity |
5% ~ 90% non-condensing |
|
MTBF |
≥100000 hours |
- Download FileName：MN-HDSDI-1V Mini HD-SDI Fiber Converter Datasheet V1.0.pdf Size： 502KB
|
Model |
Description |
|
MN-HDSDI-1V-MM |
Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
|
MN-HDSDI-1V-20 |
Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
|
Mounting Options |
► Desktop |
|
Power Options |
► DC5V 1A External Power Adapter |
