Micro Mini Gigabit PoE PD SFP Fiber Media Converter
Model:UF-C3011SFP-PD
► IEEE802.3af/at/bt PoE Powered – no power adapter is required
► 10/100 /1000Base-T to 100/1000Base-X SFP
► USB-powered for portability optional
► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost

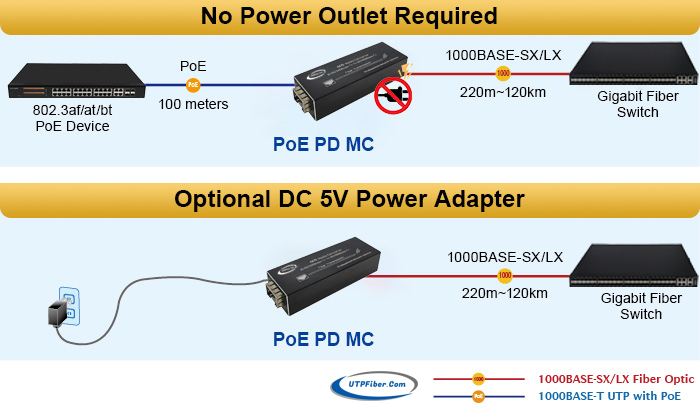

UF-C3011SFP-PD Micro Mini Gigabit PoE PD SFP Fiber Media Converter, converts 10/100/1000BASE-T copper Ethernet to 100/1000BASE-X Fiber SFP media and vice versa. The UF-C3011SFP-PD is conveniently powered via PoE switch or injector, no power adapter is required. It features one gigabit PoE input port for power and data, plus one SFP slot that supports both multimode (SX) or single-mode (LX) SFP modules. The SFP slot accommodates both Fast Ethernet and Gigabit SFP modules providing further installation flexibility. The UF-C3011SFP-PD features two kinds of power input system designs (IEEE 802.3af/at/bt 48V~54V DC in-line power and optional 5~15V DC input) incorporated into customer’s network to enhance system reliability and uptime.
► IEEE802.3af/at/bt PoE Powered – no power adapter is required
► 10/100 /1000Base-T to 100/1000Base-X SFP
► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
► USB-powered for portability, or use 5~15VDC wide range power input
► Ultra compact and weigh less than 2 ounces
► Support 9k jumbo frame
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
► Easy to install and use
|
Ethernet |
|
|
Standards: |
IEEE 802.3, 10BASE-T |
|
IEEE 802.3u, 100BASE-TX/100BASE-FX |
|
|
IEEE 802.3ab, 1000BASE-T |
|
|
IEEE 802.3z, 1000BASE-SX/LX |
|
|
IEEE 802.3x Full-duplex flow control |
|
|
Flow Control: |
Back pressure for half duplex |
|
IEEE 802.3x pause frame for full duplex |
|
|
Jumbo Frame: |
9K |
|
Network Cables: |
10/100/1000BASE-T : Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 1000BASE-SX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (varying on SFP module) 1000BASE-LX : 9/125μm single-mode fiber optic cable, up to 10/20/40/60/80/120 kilometers (varying on SFP module) 100BASE-FX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2 kilometers (varying on SFP module) 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (varying on SFP module) |
|
Connector: |
1 x 10/100/1000BASE-T RJ45 |
|
Optical Port: |
1x 100/1000Base-X SFP |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3af Power over Ethernet |
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 3) |
|
|
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 4) |
|
|
Port: |
RJ45 |
|
Electrical and Mechanical |
|
|
Input Power: |
IEEE 802.3af/at/bt PoE 48V-54V DC in-line power (optional DC 5~15V(Type-C) external power adapter) |
|
Power Consumption: |
< 3W |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-10°C to 70°C (14°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Storage Humidity: |
5% to 95% non-condensing |
|
LED Indicators |
|
|
PWR: |
Power Status |
|
FX Link/Act: |
Fiber Link Status |
|
TX Link/Act: |
Ethernet Link Status |
|
Dimensions (LxWxH): |
78 x 27 x 18mm |
|
Weight: |
46g (device only) |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
CE, RoHS, FCC |
|
- Download FileName：UF-C3011SFP-PD Micro Mini PoE PD SFP Media Converter Datasheet V1.0.pdf Size： 384KB
|
Model |
Description |
|
UF-C3011SFP-PD |
Micro Mini 802.3af/at PoE+ PD 10/100/1000T to 100/1000X SFP Media Converter |
|
SFP |
► SFP option. Please select your SFP on our SFP Options Page. |
|
► SFP module is to be purchased separately |
|
|
Mounting Options: |
► Desktop |
|
Power Options: |
► IEEE 802.3af/at/bt 48V~54V DC in-line power |
|
► Optional 5~15V DC input |
