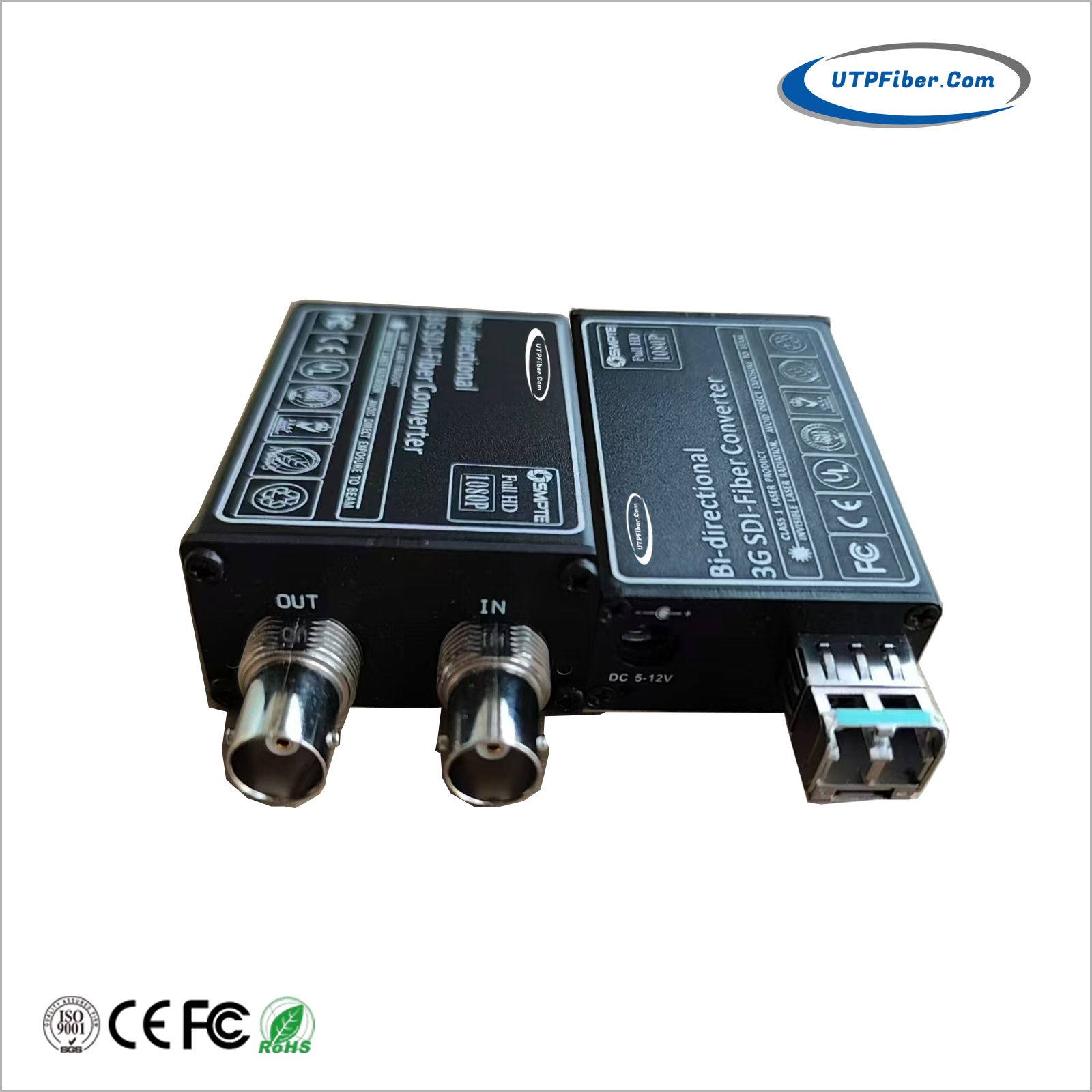

Mini Bi-Directional 3G-SDI over Fiber Optical Converter

Model:UF-M3G-1BV

►     Extend 1Ch BiDirectional (Forward + Backward) uncompressed 3G/HD-SDI video over fiber optic cable

►     Each channel includes 4-channel audio embedded

►     Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

►     Long transmission capability up to 20 km

►     Hot swap and hot plug

►     Handle all Pathological patterns, fully digital non-compression broadcast level transmission

►     LED Status Indication to monitor the working conditions

►     fiber optic WDM/CWDM/DWDM technique

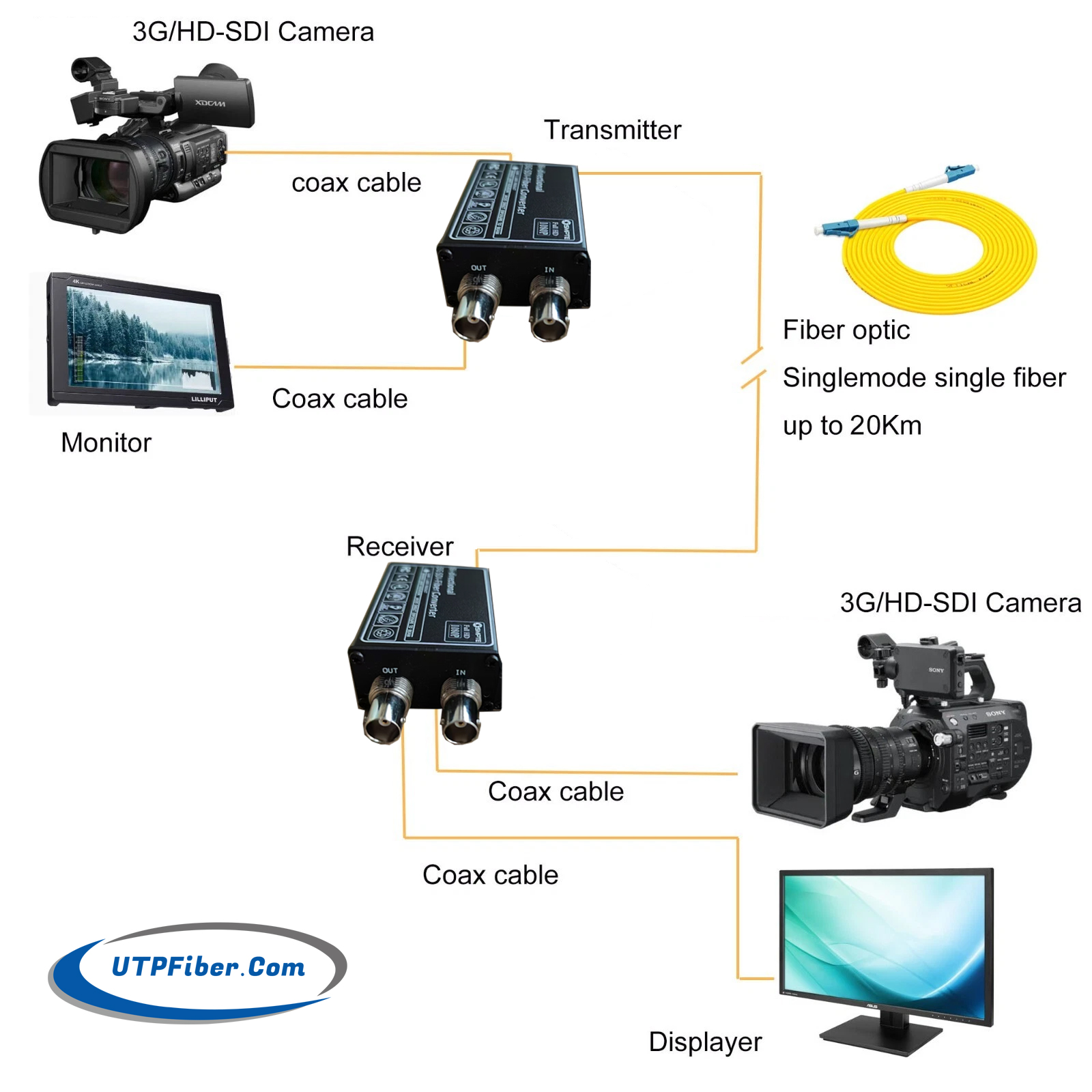

The UF-M3G-1BV series Mini Bi-Directional 3G-SDI over Fiber Optical Converter supports 1Ch Forward 3G-SDI Video and 1Ch Backward 3G-SDI Video transmitted via fiber optical cable. UTP 3G Video over Fiber Converters includes one transmitter and one receiver for 1080P,1080I, 720P. The 3G-SDI Fiber Converter supports transmission of up to 3Gbps of digital video within television broadcasting facilities and between professional video equipment.


The Mini Bi-Directional 3G-SDI over Fiber Optical Converter is equipped with serial clock recovery, signal equalization, and line drive. The input automatically detects signals 3G-SDI/HD-SDI/SDI/SDI/ASI, which complies with the SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, and SMPTE310M standards;


The Mini Bi-Directional 3G-SDI over Fiber Optical Converter supports plug-in SFP optical modules, which can be replaced according to on-site needs. The equipment has a power consumption of less than 2W and uses a 12V DC power supply. The internal circuit of the device adopts fully digital circuits, which ensure reliable and stable operation, low power consumption, high integration, small size, and easy installation and maintenance.

Mini Bi-Directional 3G-SDI over Fiber Optical Converter, BIDI 3G-SDI Fiber Optic Converter, Bidirectional SDI to Optical Fiber 3G Mini Converter, Bidirectional 3G-SDI Optical Fiber Converter, Bi-Directional 3G-SDI Fiber Extender, Fiber Optic 3G-SDI Video Converter, 3G-SDI Fiber Extender Broadcast Converter, 2K@60Hz 3G-SDI Fiber Extender, 3G-SDI Over Fiber Transmitter and Receiver, 3G/3G SDI Optical Transceiver Extender, 3G/HD/SD -SDI to Fiber

►     Extend 1Ch BiDirectional (Forward + Backward) uncompressed 3G/HD-SDI video over fiber optic cable

►     Each channel includes 4-channel audio embedded

►     Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A)

►     Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

►     Directly compatible with HD-SDI camera systems

►     Long transmission capability up to 20 km

►     Hot swap and hot plug

►     Handle all Pathological patterns, fully digital non-compression broadcast level transmission

►     LED Status Indication to monitor the working conditions

►     Super optic dynamic range and free of adjustment

►     fiber optic WDM/CWDM/DWDM technique

Video SDI standard

270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

SDI format support

625/25 PAL

525/29.97 NTSC, 525/23.98 NTSC

720p50, 720p59.94

1080i 23/24/30/50/59.94

1080P 23.98/24/30/50/60

Transmitter

1 x Forward 3G-SDI on BNC

1 x Backward 3G-SDI on BNC

Receiver

1 x Forward 3G-SDI on BNC

1 x Backward 3G-SDI on BNC

Optical Fiber

1 x LC optical fiber

Supported Resolution

1080P, 1080I, 720P

Resolution range

1080P@60Hz

Input cable specification

200m@3G SDI Belden 1694A

Output cable specification

200m@3G SDI Belden 1694A

Optical transmission bandwidth

270MHz3GHz

Power

12 VDC

Power Consumption

2 W (Max.)

Dimensions (LxWxH)

63 x 43 x 22 (mm)

Storage Temperature

-40℃~80

Operating Temperature

-4085

  • Download FileName:UF-M3G-1BV Mini BiDi 3G-SDI Fiber Converter Datasheet V1.0.pdf Size: 743KB

Model

Description

UF-M3G-1BV-20

Mini BiDi 3G-SDI Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
