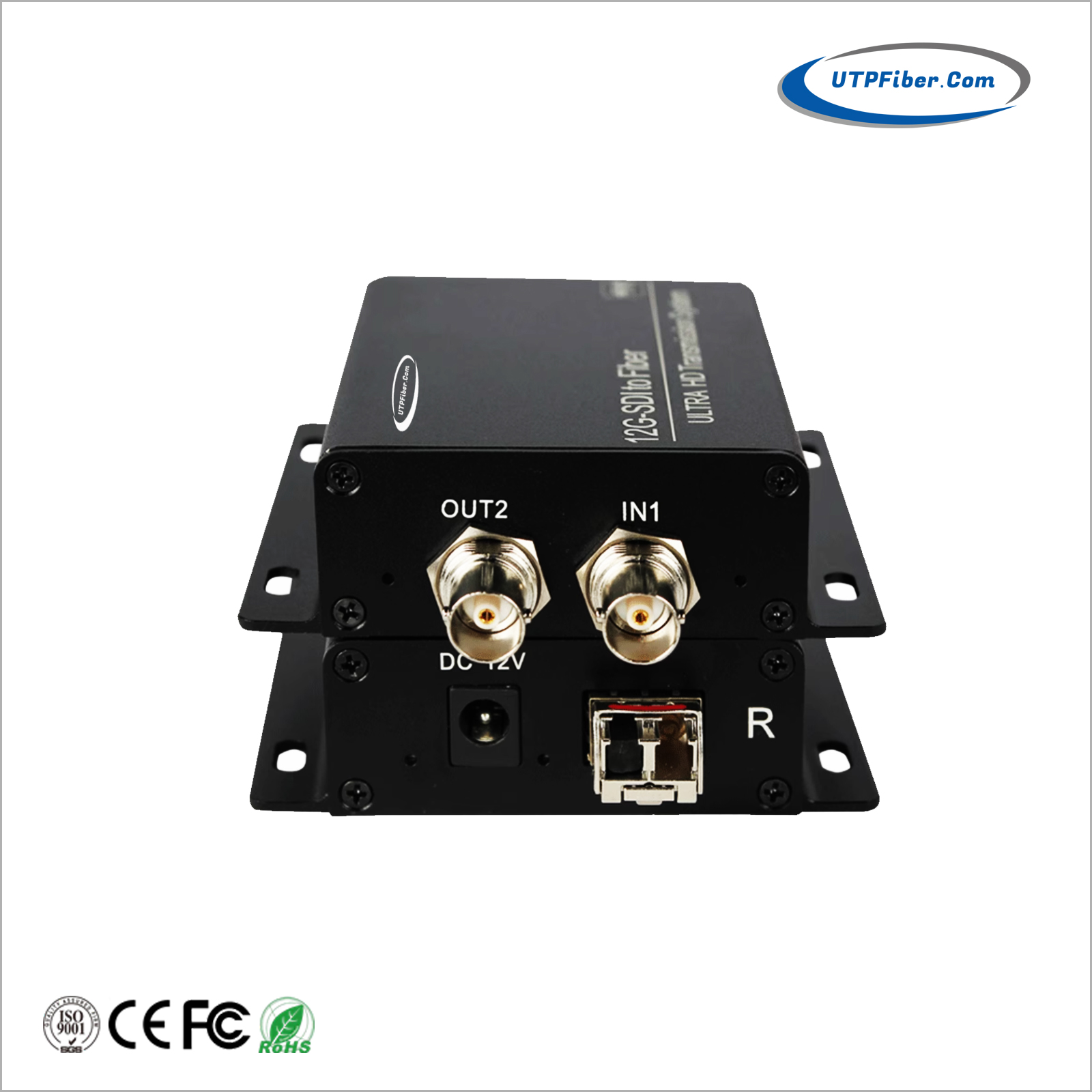

Mini Bi-Directional 12G-SDI over Fiber Optical Converter

Model:UF-12G-SDI-1BV

►     Extend 1Ch BiDirectional (Forward + Backward) uncompressed 12G/6G/3G/HD-SDI video over fiber optic cable

►     Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720

►     Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

►     Directly compatible with 12G/6G/3G-SDI camera systems

►     Long transmission capability up to 20 km

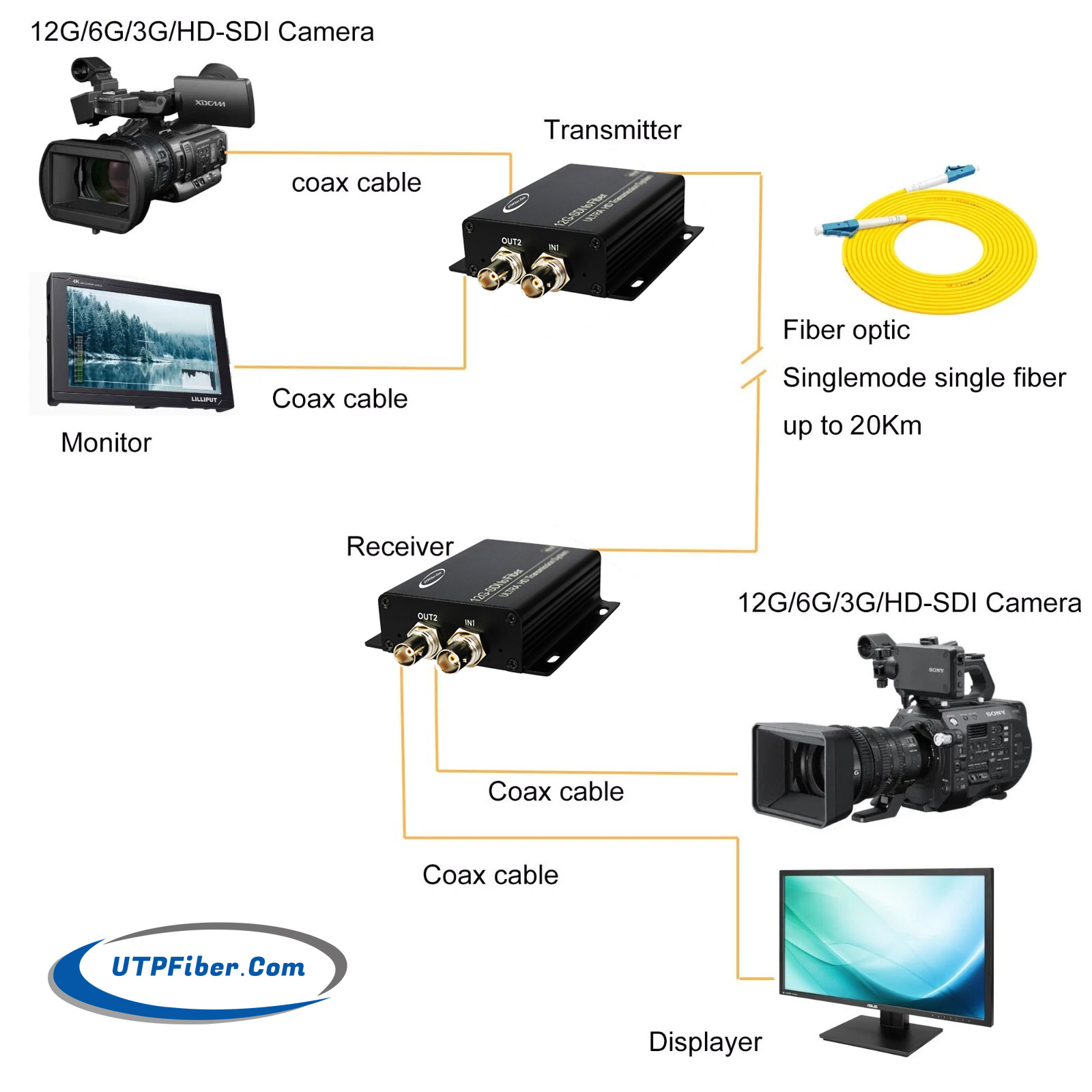

The UF-12G-SDI-1BV series Mini Bi-Directional 12G-SDI over Fiber Optical Converter supports 1Ch Forward 12G-SDI Video and 1Ch Backward 12G-SDI Video transmitted via fiber optical cable. UTP 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P. The 12G-SDI Fiber Converter supports transmission of up to 12 Gbps of digital video within television broadcasting facilities and between professional video equipment.


The Mini Bi-Directional 12G-SDI over Fiber Optical Converter is equipped with serial clock recovery, signal equalization, and line drive. The input automatically detects signals 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SDI/SDI/ASI, which complies with the SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD-SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, and SMPTE310M standards;


The Mini Bi-Directional 12G-SDI over Fiber Optical Converter supports plug-in SFP optical modules, which can be replaced according to on-site needs. The equipment has a power consumption of less than 2W and uses a 12V DC power supply. The internal circuit of the device adopts fully digital circuits, which ensure reliable and stable operation, low power consumption, high integration, small size, and easy installation and maintenance.

Mini Bi-Directional 12G-SDI over Fiber Optical Converter, BIDI 12G-SDI Fiber Optic Converter, Bidirectional SDI to Optical Fiber 12G Mini Converter, Bidirectional 12G-SDI Optical Fiber Converter, Bi-Directional 12G-SDI Fiber Extender, Fiber Optic 12g-SDI Video Converter, 12g-SDI Fiber Extender Broadcast Converter, 4K@60Hz 12g-SDI Fiber Extender, 12g-SDI Over Fiber Transmitter and Receiver, 12g/3G SDI Optical Transceiver Extender, 12g/6g/3G/HD/SD -SDI to Fiber

►     Extend 1Ch BiDirectional (Forward + Backward) uncompressed 12G/6G/3G/HD-SDI video over fiber optic cable

►     Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720

►     Automatic cable equalization to ensure signal integrity

►     Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

►     Integrated Clocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270Mbps

►     Directly compatible with 12G/6G/3G-SDI camera systems

►     Long transmission capability up to 20 km

►     Terminal block power input for industrial application

►     Supports hot swapping and hot plugging

►     Full digital non-compression broadcast level transmission

►     super optic dynamic range and free of adjustment

►     fiber optic WDM/CWDM/DWDM technique

Formats

Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)

Compatible

Compatible with D VB-ASI and AES10 (MADI)

Transmitter

1 x Forward 12G-SDI on BNC

1 x Backward 12G-SDI on BNC

Receiver

1 x Forward 12G-SDI on BNC

1 x Backward 12G-SDI on BNC

Optical Fiber

1 x LC optical fiber

Supported Resolution

HDTV 4K*2K, 1080P, 1080I, 720P

Resolution range

3840*2160@60Hz

Input cable specification

70m@12G SDI Belden 1694A

Output cable specification

70m@12G SDI Belden 1694A

Optical transmission bandwidth

270MHz12GHz

Power

12 VDC

Power Consumption

2 W (Max.)

Dimensions (LxWxH)

115 x 86 x 26 (mm)

Storage Temperature

-40℃~80

Operating Temperature

-4085

  • Download FileName:UF-12GSDI-1BV Mini BiDi 12G-SDI Fiber Converter Datasheet V1.0.pdf Size: 793KB

Model

Description

UF-12GSDI-1BV-20

Mini BiDi 12G-SDI Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
