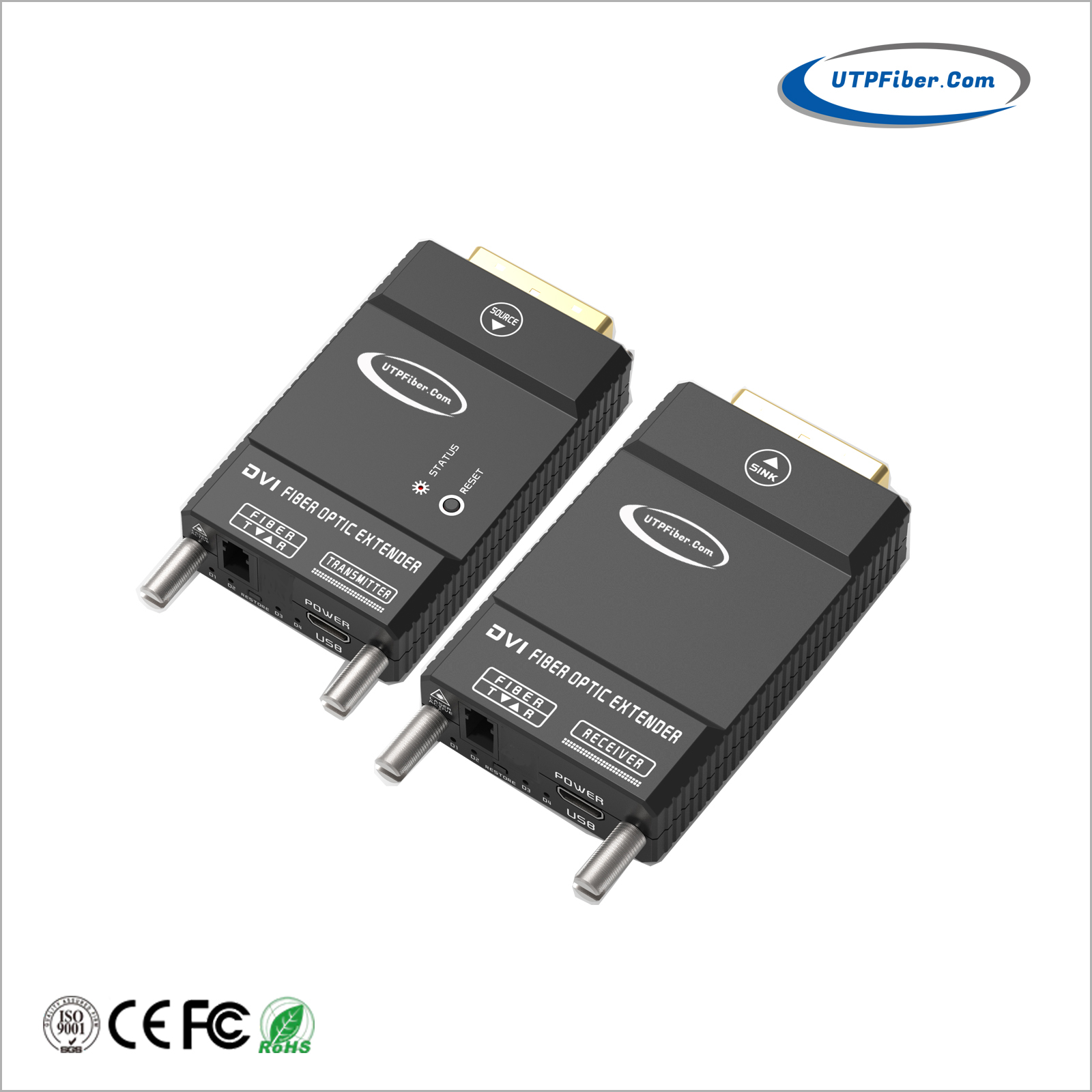

Mini 4K DVI Fiber Optical Extender
Model:UF-DVF100 Series
► Supports uncompressed HDMI v1.4, DVI 1.0, up to 3.4 Gbps/color, 10.2 Gbps total
► 1-Core fiber or 2-Core fiber optional
► Supports lossless 4K video up to 4K@30 4:4:4, 4K@60 4:2:0
UF DVI Fiber Extender is designed particularly for the rental & staging industry considering various parameters. The device can support resolution up to 4K@30 4:4:4 at 10.2 Gbps transmission rate and it can support DVI/HDMI 1.4 and HDMI audio. It uses 1-core or 2-core fiber technology and support distance up to 1.4km (1-core) or 300 meters (2-core). The device supports 40 dB input balancing at the TX to compensate for the loss generated by cable from the source to the TX. Built in EDID simulation and EDID learning support. The DVI Extender support accurate pixel time reconstruction and provides no delay and no compression during the transmission. The device is carefully designed with protective enclosure for fiber interface and it is dust proof. It has rear long screws to support portable installation, locking power supplies and improved electrostatic protection. The product is suitable for Rental and Live Events application.
► Supports uncompressed HDMI v1.4, DVI 1.0, up to 3.4 Gbps/color, 10.2 Gbps total
► 1-Core fiber or 2-Core fiber optional
► Supports lossless 4K video up to 4K@30 4:4:4, 4K@60 4:2:0
► Compatible with other VESA standard resolutions and user-defined
► Support 3840*2160/30P resolution with color depth up to 8 bits/pixel
► Support HDMI bit-rates up to 3.4 Gbps/color, 10.2 Gbps total
► 2-Core model support HDCP/EDID pass-through
► 1-Core model support EDID learning, transmitter includes EDID memory to cache the EDID from any display, Support 3D TV pass-through
► Support LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™
► Receiver built-in Re-time chip, jitter Cleaning for best compliance
► Supports transmission up 1.4km for 1-Core, 300m for 2-Core
► Low RFI / EMI profile for sensitive applications
► Plug-and-play, Hot-pluggable
► Recessed (slotted) thumbscrews installation
|
Video |
|
|
Standards: |
DVI 1.0 |
|
HDMI v1.4 |
|
|
Max. Pixel Clock |
340 MHz |
|
Max. Data Rate |
10.2 Gbps (3.4 Gbps Per Lane) |
|
Max. Resolution |
3840x2160/60P(YCbCr 420)，4096*2160/60P(YCbCr 420) 3840x2160/30P，4096x2160/24P, 1920x1200/60P，1920x1080/60P， Compatible with other VESA standard resolutions and user-defined resolutions |
|
Digital Audio Support |
7.1 channel LPCM, 192 kHz, 24-bit |
|
Connectors |
|
|
DVI Input / Output |
TX: 1 x DVI 18+1 Male RX:1 x DVI 18+1 Male |
|
Fiber |
1 x Simplex LC (1-Core Model) 1 x Duplex LC (2-Core Model) |
|
Fiber Optics |
|
|
Fiber Cable Type /Max. Length |
9/125 Single Mode Fiber: 1.4km (1-Core) 9/125 Single Mode Fiber: 300m (2-Core) |
|
50/125 OM3 Multimode Fiber: 300m |
|
|
DDC (Digital Display Channel) / HDCP |
|
|
EDID |
EDID Quick Copy, User-programmable EDID memory, eliminates the need for DDC connection |
|
HDCP |
1-Core Model: Not Support 2-Core Model: Support |
|
Environmental |
|
|
Operating Temperature: |
0°C to 50°C (32°F to 122°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Operating Humidity |
5% to 80% (non-condensing) |
|
Storage Humidity |
5% to 95% (non-condensing) |
|
Mechanical |
|
|
Housing |
Aluminum enclosure |
|
Dimensions |
39.6 x 62 x 15.2mm |
|
Net Weight |
Transmitter: 150g Receiver: 150g |
|
Mounting Options |
Recessed (slotted) thumbscrews installation |
|
Electrical |
|
|
Power Supply |
Micro USB Power adapter (100 to 240V AC, 50/60Hz) (5V DC, 1A) |
|
Power Consumption |
Transmitter: 5W Receiver: 5W |
|
LED Indicators |
|
|
D1: |
Source connected (TX), signal present (RX) |
|
D2: |
Optical signal (RX) |
|
D3: |
Reserved |
|
D3: |
Reserved |
|
Status: |
Power status |
|
Regulatory Approvals |
|
|
CE, RoHS, FCC, ISO9001:2015 |
|
|
Warranty |
|
|
2-Year |
|
- Download FileName：UF-DVF100 Mini DVI Fiber Optic Extender Datasheet V1.0.pdf Size： 623KB
|
Model |
Description |
|
UF-DVF101 |
Mini 4K DVI Fiber Optical Extender, 1-Core LC Fiber, up to 1.4KM via Single Mode Fiber, 300 Meters via OM3 Multimode Fiber, support EDID Auto Learning and EDID Copy functions |
|
UF-DVF102 |
Mini 4K DVI Fiber Optical Extender, 2-Core LC Fiber, up to 300 Meters via Single Mode Fiber or OM3 Multimode Fiber, support EDID/HDCP pass-through |
|
Mounting Options: |
► Recessed (slotted) thumbscrews installation |
|
Power Options: |
► DC 5V/1A, Micro USB Power adapter (included) |
