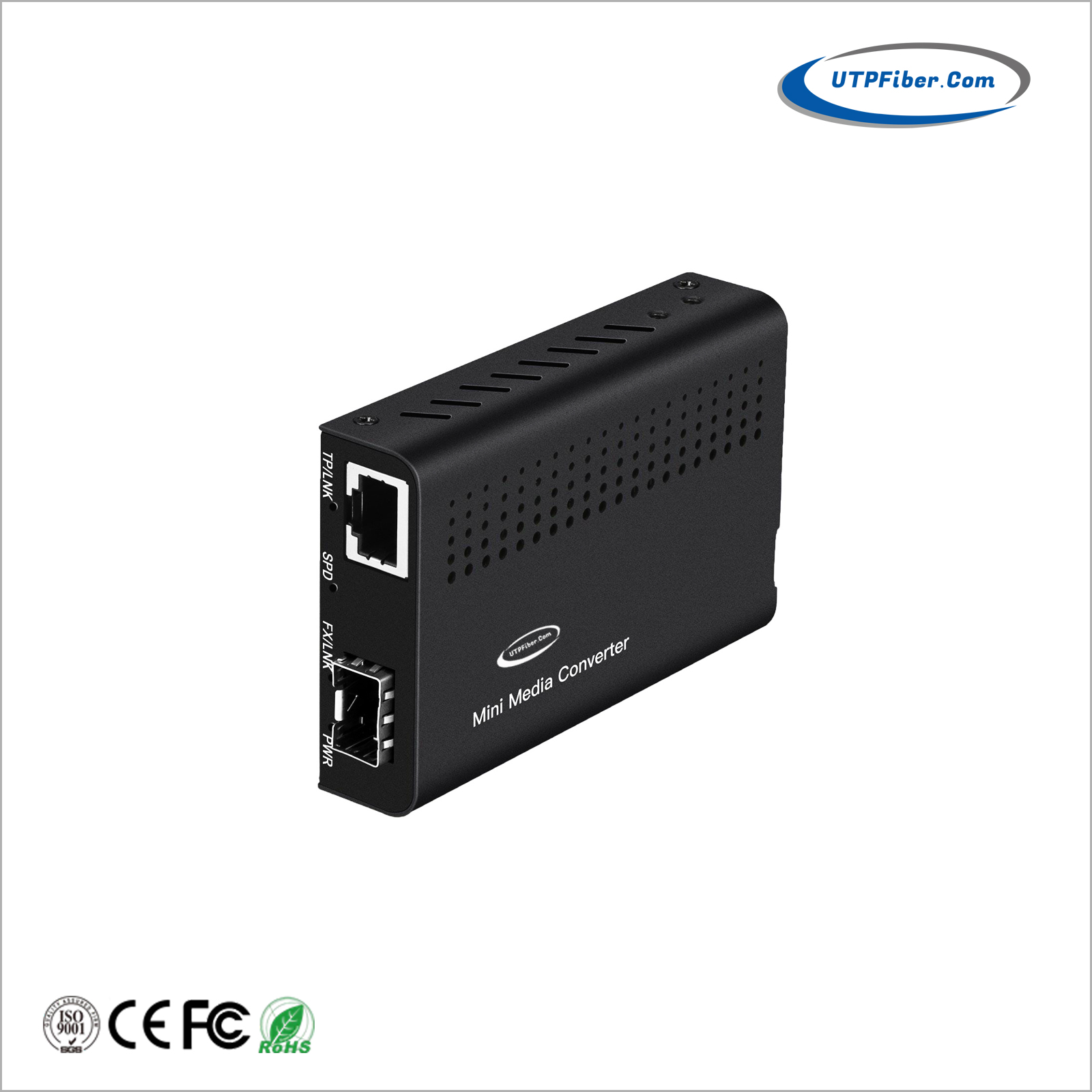

Mini 10/100/1000/10GBase-TX to 10GBase-FX Media Converter
Model:UF-CM10G
► Support Jumbo Frame
► Transparent Transport and very low delay
► 10/100/1000/10GBase-TX to 10GBase-FX
► DIP switch supports LFP function; ALS function; Working mode switching
► Support 1U Rack (12 channel) and standalone use
UF-CM10G is high-performance 10G SFP+ optical media converter,
Using Optical - Electrical conversion, realize the optical signal equilibrium
amplification, clock extraction and optical regeneration, and with WDM (DWDM /
CWDM) technology, can achieve optical signals transmit in a single fiber by
single or multiple way over a long distance. On the existing network
infrastructure, it can quickly improve the communication capacity, expand the
bandwidth, while using low cost and high cost-effective solutions to manage and
operate the system, easy operation and maintenance.
The UF-CM10G is a multi speed 100M/1G/2.5G/5G/10GBase-T
RJ45 port to 10GBase-X SFP/SFP+ slot un-managed fiber media converter. The SFP+
port can work with any 10G rated SFP+ such as SR, LR, ER, ZR, BiDi, CWDM or
DWDM type. RJ45 port works at multiple rates, set through DIP switches: 100M,
1G, 2.5G, 5G or 10GBase-T speed. LED indicators signal the power status of the
converter, UTP Link and FX port Link. Used with their compatible UF-R12 fiber
optic chassis they can be aggregated up to 12 units in a 19" wide and only
1RU of height space only. This is the highest density attainable for unmanaged
fiber media converters. The UF-CM10G 10G media converter is a very affordable
solution for 10G Ethernet media conversion.
► Support Jumbo Frame
► Transparent Transport and very low delay
► Support ITUT prescribed DWDM/CWDM wavelength
► DIP switch to set different configurations
► DIP switch supports LFP function; ALS function; Working mode switching
► Support hot plugging
► Support 1U Rack (12 channel) and standalone use
► Full State Led display
► Easy installation
► Plug and Play
|
Transmission Distance |
SFP+, Distance depend on plug-in Fiber Transceiver Fiber: MM 300m SM 20/40/60/80/120km |
|
Transmission Speed |
1.25G/2.5G/5G/10G |
|
Protocols |
IEEE802.3an (10Gbase-T) IEEE802.3ae (10Gbase-SR/LR/ER/ZR) |
|
Transmission Speed |
10M/100M/1.25G/2.5G/5G/10G |
|
Interface Type |
RJ45 To/From SFP+ |
|
DIP Switches |

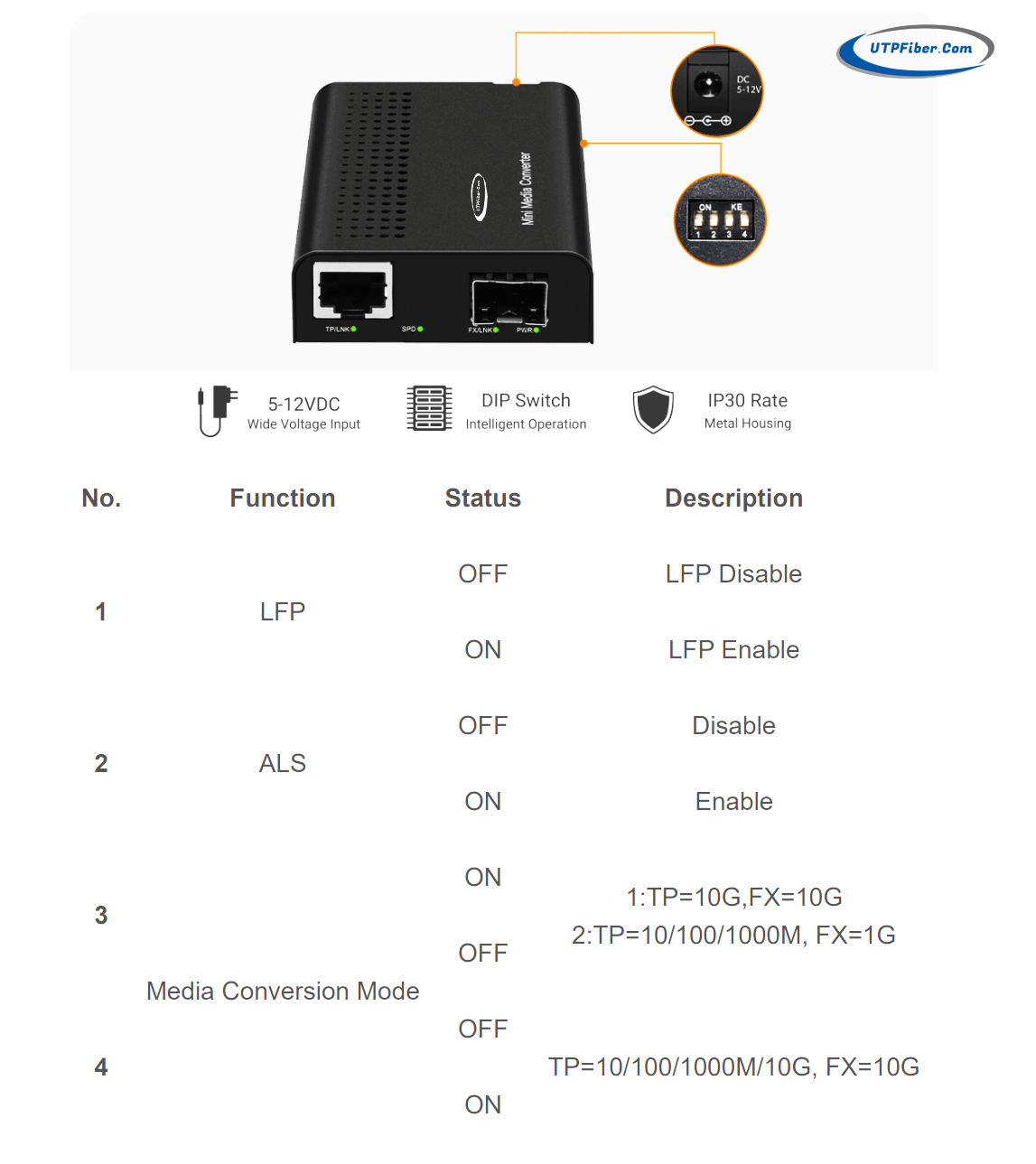

DIP 1: LFP function DIP 2: ALS function DIP 3: Working mode switching：rate following mode/Rate matching mode TP=10G, FX=10G. |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|
Environmental Requirement |
Operating Temperature: 0℃~50℃ Storage Temperature: -10℃~70℃ Relative Humidity: 5%~90% (non-condensation) MTBF: 50,000h Enclosure: Metal |
|
Power Supply Specifications and Dimensions |
DC:5V~12V Power Consumption: Full-load<7W |
|
Power consumption≤2W (without module) |
|
|
Mechanical Structure |
Dimensions: 90mm(D)×60mm(W)×20mm(H) Weight: 120g |
|
Warranty |
1 Year |
|
Emissions |
FCC Class A, CE Class A |
- Download FileName：UF-CM10G Mini 10G SFP+ Media Converter Datasheet V1.0.pdf Size： 412KB
|
Model |
Description |
|
UF-CM10G |
Mini 10/100/1000/10GBase-TX to 10GBase-FX Media Converter |
|
SFP |
10G SFP+ (to be purchased separately) Please select your SFP on our SFP Modules page for details. |
|
Mounting Options: |
► Desktop, wall mountable ►Media converter Chassis installation |
|
Power Options: |
► 5-12VDC Power Supply |
