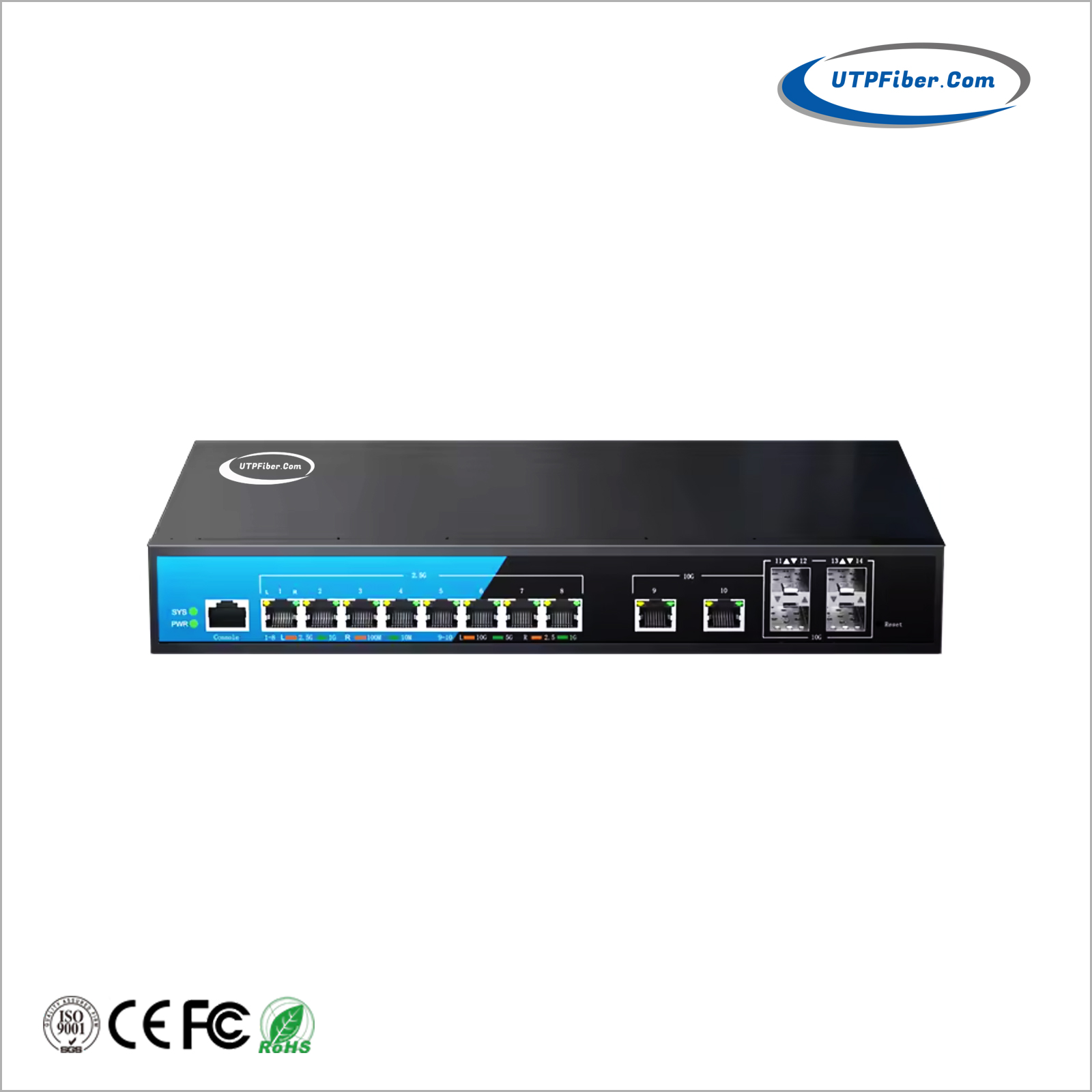

L3 Managed 8*2.5G PoE+2*10G RJ45+4*10G SFP+ Ethernet Switch
Model:UF-L3SW8GP2G4X
► 8x10/100/1000/2500Base-T 802.3at PoE + 2x1000/2500/5000/10000Base-T + 4x10G Base-X SFP+
► Compliant with IEEE 802.3af/at standards
► Support static routing, RIP, OSPF, satisfy the L3 transmission function.
► Support CLI, WEB, Cloud multiple management methods.
The UF-L3SW8GP2G4X 14-Port Ethernet L3 PoE+ Switch is equipped with 8 x 10/100/1000/2500Mbps adaptive RJ45, 2 x 1000/2500/5000/10000Mbps adaptive RJ45 and 4 x 10Gigabit Base-X. Each RJ45 port supports MDI/MDIX and wire speed forwarding functions. It adopts store and forward switching, combined with QoS technology, to ensure that bandwidth is effectively allocated to each port, providing stable and reliable power and data transmission.
Ideal for networks needing a compact design, high port density, and multi-gigabit Ethernet that can support for Wi-Fi 6, Layer 3, and a flexible network architecture for network expansion. It is a compact, high-density, advanced Gigabit and multi-Gigabit Ethernet (GigE) platform. It is designed for the most demanding of converged networks. Offering high-speed flexible uplinks, 160G bandwidth, industry leading 150W PoE, and high density 10G multi-gigabit ports ready for Wi-Fi 6, these Layer 3 switches are the right choice for the next generation of enterprise switching networks. Multiple management interfaces including CLI, WEB, and cloud-based management simplify operation and maintenance.
► 8x10/100/1000/2500Base-T 802.3at PoE + 2x1000/2500/5000/10000Base-T + 4x10G Base-X SFP+
► Compliant with IEEE 802.3af/at standards
► Support static routing, RIP, OSPF, satisfy the L3 transmission function.
► Strong networking security policies, abundant safe features to protect networking.
► Support CLI, WEB, Cloud multiple management methods.
► Low-power design, energy-saving and environmentally friendly.
► AC 100-240V 50/60Hz Power Input
► ESD：8KV-15KV
► Operating Temperature：-10℃ ~ +50℃
|
Provider Mode Ports |
||
|
Port type and quantity |
4x10G Base-X + 2x1000/2500/5000/10000 Base-T + 8x10/100/1000/2500 Base-T |
|
|
Management Port |
Support console |
|
|
Power Supply |
AC100-240V triangle interface |
|
|
LED Indicators |
PWR，SYS，Link/ACT LED |
|
|
|
||
|
Cable Type & Transmission Distance |
||
|
Twisted pair |
0-100m (CAT5e,CAT6) |
|
|
Singlemode optical fiber |
20/40/60/80/100KM |
|
|
Multimode optical fiber |
300 m |
|
|
|
||
|
Network Topology |
||
|
Ring topology |
Support |
|
|
Star topology |
Support |
|
|
Bus topology |
Support |
|
|
Tree topology |
Support |
|
|
Hybrid topology |
Support |
|
|
|
|
|
|
Electrical Specifications |
||
|
Input voltage |
AC 100-240V 50/60Hz |
|
|
Total Power consumption |
≤150W |
|
|
Main board power |
≤28W |
|
|
|
||
|
PoE Support |
||
|
PoE port |
1-8 |
|
|
PoE Protocol |
802.3af，802.3at |
|
|
Pin Assignment |
1,2+;3,6- |
|
|
PoE Management |
Support |
|
|
|
||
|
Layer 2 Switching |
||
|
Switching capacity |
160G |
|
|
Packet forwarding rate |
119.04Mpps |
|
|
MAC address table |
32K |
|
|
Buffer |
16M bit |
|
|
Forwarding delay |
<10us |
|
|
MDI/MDIX |
Support |
|
|
VLAN |
4000 |
|
|
GVRP |
Support |
|
|
Protocol VLAN |
Support |
|
|
Voice VLAN |
Support |
|
|
Surveillance VLAN |
Support |
|
|
MAC VLAN |
Support |
|
|
Ethernet channel/ 802 .3ad |
Support |
|
|
LACP |
Support |
|
|
Interface Speed |
Support |
|
|
Duplex Mode |
Support |
|
|
Flow Control |
Support |
|
|
Jumbo Frame |
Support |
|
|
DHCP Server |
Support |
|
|
DHCP Client |
Support |
|
|
DNS Client |
Support |
|
|
SNTP Client |
Support |
|
|
Port Statistics |
Support |
|
|
Protected Ports |
Support |
|
|
EEE |
Support |
|
|
Ethernet Ring Protection Switching |
Support |
|
|
LLDP |
Support |
|
|
LLDP 802.1 TLV |
Support |
|
|
MSTP / RSTP / STP |
Support |
|
|
STP BPDU Filter |
Support |
|
|
STP BPDU guard |
Support |
|
|
STP Port Fast |
Support |
|
|
IGMP Snooping |
Support |
|
|
MLD Snooping |
Support |
|
|
MVR |
Support |
|
|
DHCP Interface Priority IP Binding |
Support |
|
|
Device Scanning |
Support |
|
|
|
||
|
Layer 3 Route |
||
|
IPV4 management |
Support |
|
|
IPV6 management |
Support |
|
|
Dynamic Routes IPv4 |
OSFP、RIP |
|
|
Static Routes IPv6 |
Support |
|
|
VRRP |
Virtual Router Redundancy Protocol |
|
|
ARP |
Support |
|
|
Loopback Interface |
Support |
|
|
|
||
|
Convergence |
||
|
ACL |
Support MAC Standard/Extended ACL Support IPV4 Standard/Extended ACL Support IPV6 Standard/Extended ACL |
|
|
QoS |
Support QoS Remarking Support Port Trust Support Port Speed Limit Support Egress Queue Speed Limit Support SP，WRR Support COS，DSCP，IP Priority |
|
|
|
||
|
Management |
||
|
User Management |
Support |
|
|
System Log |
Support |
|
|
Upgrade Firmware |
Support |
|
|
Configuration File Download/Upload |
Support |
|
|
SNMP |
Support SNMP v1/v2c/v3 |
|
|
WEB Management |
Support |
|
|
Console |
Support |
|
|
CLI |
Support |
|
|
Telnet/SSH |
Support |
|
|
RMON |
Support |
|
|
|
||
|
Security |
||
|
Management channel configuration |
Support |
|
|
AAA |
Support |
|
|
802.1X |
Support |
|
|
MAC-Based |
Support |
|
|
WEB-Based |
Support |
|
|
DoS attack prevention |
Support |
|
|
Dynamic ARP Inspection |
Support |
|
|
DHCP Snooping |
Support |
|
|
IP Source Guard |
Support |
|
|
Port Security |
Support |
|
|
Protected Ports |
Support |
|
|
Storm Control |
Support |
|
|
|
||
|
Equipment Diagnosis |
||
|
Console Log |
Support |
|
|
RAM Log |
Support |
|
|
Flash Log |
Support |
|
|
Port Mirroring |
Support 1:1 or M:1 |
|
|
Ping |
Support |
|
|
Traceroute |
Support |
|
|
Optical module information |
Support |
|
|
UDLD Protocol |
Support |
|
|
|
||
|
Environment |
||
|
temperature |
Operate temperature: -10℃~+50℃ Storage temperature: -40℃~+75℃ |
|
|
Relative humidity |
Operate humidity: 10%~90% RH Storage humidity: 5%~90% RH |
|
|
Heat Dissipation Method |
Fan cooling |
|
|
MTBF |
100,000 hours |
|
|
|
||
|
Mechanical Dimensions |
||
|
Product size |
319*207*45mm |
|
|
Installation Method |
Desktop |
|
|
Weight |
2.0 kg |
|
|
|
||
|
EMC & INGRESS PROTECTION |
||
|
Surge protection for power |
Common mode 6KV, differential mode 2KV |
|
|
Surge protection for Ethernet port |
Common mode 4KV, differential mode 2KV |
|
|
ESD |
Contact 8KV, Air 15KV |
|
|
Free fall |
0.5m |
|
|
|
||
|
Accessories |
||
|
Accessories |
Device, Power cord, User manual, Inspection Certificate, Dust plug, Mounting ears, Screws M3x4 |
|
- Download FileName：UF-L3SW8GP2G4X L3 Managed 8-Port 2.5G PoE + 4-Port 10G SFP+ Ethernet Switch Datasheet V1.0.pdf Size： 789KB
|
Model |
Description |
|
UF-L3SW8GP2G4X |
L3 Managed 8-Port 10/100/1000/2500T 802.3at PoE + 2-Port 1000/2500/5000/10000T + 4-Port 10G SFP+ Ethernet Switch, AC100-240V Power Input, Total Power Consumption<150W |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page. |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Desktop. |
|
Power Options |
► AC100-240V. |
