Attributes

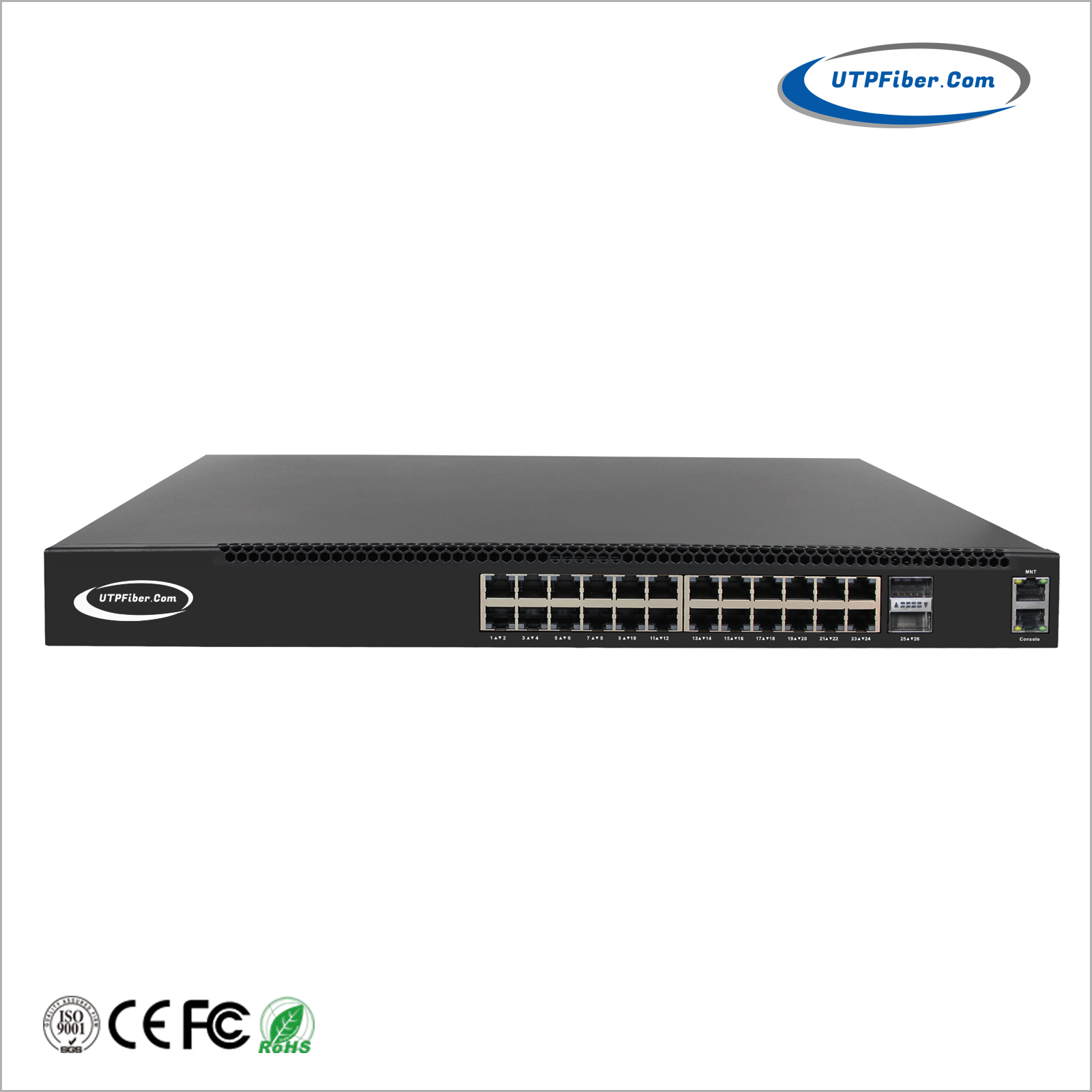

Networking Interfaces

24x10Gb RJ45

2x40Gb QSFP+

Management Interface

Console, Management port

LED Indicators

Power, System, Link/Act

Performance

Switching Capacity

640 Gbps

Forwarding Capacity

476 Mpps

Forwarding Mode

Store and Forward

Packet Buffer Memory

32 Mbit

RAM for CPU

8 Gbit

Flash Memory

512 Mbit

MAC Address Table

32K

Max. Jumbo Frame size

12K Byte

ACL Table

1K

VLAN Quantity

4K

VLAN Interface

512

Multicast groups

4K

Routing Host

16K

Routing Entries

16K

Port Queues

8

PoE Budget

1xPSU: 450W / 770W / 1050W / 1450W / 1850W,

2xPSU: 1050W / 1690W / 2250W / 3050W / 3850W

Physical

Dimensions

440 x 350 x 44 mm

Weight

2.5KG

Operating Temperature

0 to 40℃

Storage Temperature

-10 to 70℃

Operating Humidity

5 to 95% Noncondensing

Power Method

100-240VAC, 50/60Hz or 36-72VDC (Depend on PSU)

Max. Power Consumption

150W (no PoE load)

Reliability

1+1 Hot-swappable Power Supplies

Power over Ethernet

PoE Interfaces

Ports 1-24

PoE Standard

IEEE802.3af, IEEE802.3at, IEEE802.3bt (optional)

Max. PoE Wattage per Port

30W / 90W (optional)

PoE Voltage

54VDC

PoE Pin Assignment

V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6) for 802.3at

V- (RJ45 Pin1,2,7,8), V+ (RJ45 Pin 3,4,5,6) for 802.3bt (optional)

PoE Management

Port-base PoE status view and control

Port Configuration

Enable and Disable

Support control enable and disable

Auto-Negotiation

Support force port mode and speed

Flow Control

Support IEEE802.3x full-duplex

Support half-duplex backpressure

Storm Control

Support broadcast, multicast and DLF package rate limit

Port Mirroring

Support many to one mirroring

Rate Limit

Support Port input and output rate limit

Link Aggregation

Support manual Link Aggregation

Support LACP

Up to 8 maximum aggregation groups, each containing up to 8 ports

Aggregation Strategy

Source MAC / Destination MAC / Source Destination MAC

Source IP / Destination IP / Source Destination IP

Port Protection

Each port can be configured into isolated protected port from each other

MAC Configuration

MAC Address Table Management

Support

Transfer Mode

Support IVL transfer mode

Static MAC Address

Support

MAC Binding

Support

MAC Address Filter

Support

MAC Quantity Limitation

Support limit the number of MAC-addresses Learning per port

VLAN Configuration

VLAN Based on 802.1Q

Support

MAC-Based VLAN

Support

IP-Based VLAN

Support

Protocol-Based VLAN

Support

Guest VLAN

Support

Private VLAN

Support

Reliability Protocol

Spanning Tree

Support STP/RSTP/MSTP

BPDU Guard

Support

BPDU Filter

Support

Port Loop Detection

Support

EAPS Protocol

Support RFC3619

LLDP Protocol

Support LLDP and LLDP-MED

UDLD Protocol

Totally compatible with UDLD protocol of CISCO

L3 Routing

Static ARP & Dynamic ARP

Support

Static Routing

Support

Policy Routing

Support

RIP

Support RIP v1/v2

OSPF

Support OSPF v2

VRRP

Support

Multicast

Static Multicast MAC Address

Support

IGMP SNOOPING

Support

IGMP Querier

Support

IGMP Filter

Support

MVR

Support

GMRP

Support

Access Control List (ACL)

Based on Standard IP

Support

Based on Extend IP

Support

Based on MAC IP

Support

Based on MAC ARP

Support

Based on time

Support

Port Filtering

Support

Quality of Service (QOS)

Scheduling Mode

Support WRR, SP, WFQ

Sorting Based on Port

Support

Sorting Based on 802.1p

Support

Sorting Based on DSCP(DiffServ)

Support

DHCP

DHCP Client

Support

DHCP Relay

Support

DHCP Server

Support

DHCP option 82

Support

DHCP Snooping

Support

Security

Administrative Security

Support start and end TELNET, WEB and SNMP serve

Support TELNET, WEB and SNMP serve binding with Standard IP ACL

Support control the number of user for TELNET

CPU Protect

Switch self-security protect, forbid flow attack

IP-MAC Address Binding

Support binding between static configuration IP, MAC and Port

AAA

Support 802.1x protocol

Support RADIUS protocol

Support RADIUS server authentication authorization and bill

Support MAC-based 802.1X authentication.

Support 802.1x guest VLAN

DHCP SNOOPING

Support dynamic ARP binding to prevent ARP spoofing

Support dynamic IP, MAC port binding

Support stationary port connect to DHCP server, to prevent privately connect to DHCP sever

Prevent ARP Spoofing

Support manual configure ACL rule based on MAC ARP prevent ARP spoofing

Support DHCP SNOOPING function, switch dynamically binding ARP and port, when the DHCP get IP address , to prevent ARP spoofing

Management Feature

CLI Management

Support serial port management

Support TELNET management

Support SSH management

WEB Management

Support

SNMP Management

Support SNMP protocol

Support SNMP TRAP

Support standard and private MIB

User management

Support multi-user management

Show CPU Utilization

Support

Show RAM Utilization

Support

Log Management

Support

Configuration Download / Upload

Support

Upgrade Firmware

Support

Timer Management

Support local timer management

Support SNTP protocol get clock

Debugging Tools

PING

Support

TRACEROUTE

Support

TELNET Client

Support

Package List

Switch

1pcs

User Manual

1pcs

Power Cord

1pcs

DB9 to RJ45 Cable

1pcs

Rack Mount Kit

2pcs

Rubber Feet

4pcs
