Product introduction

Model No.

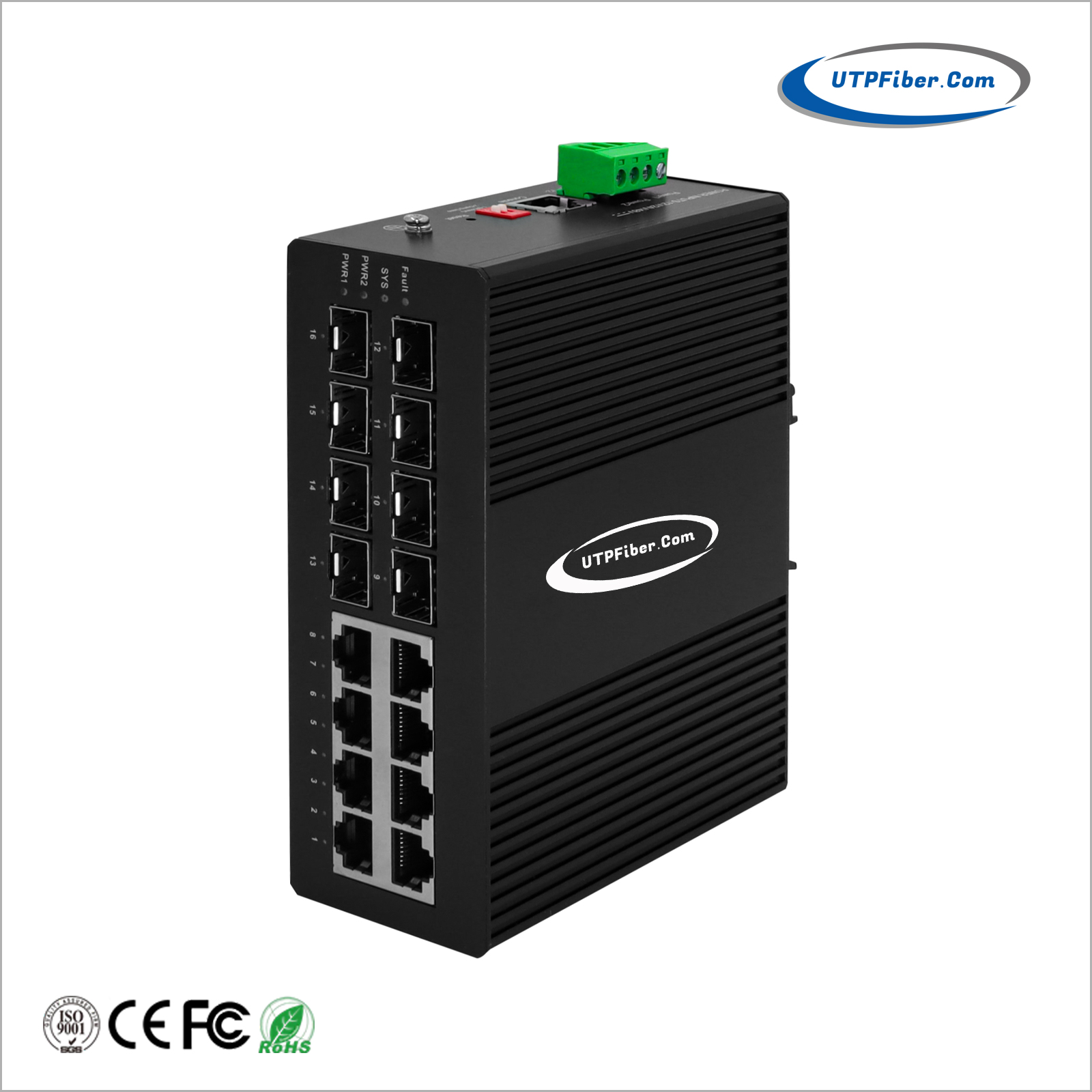

UF-MIS6808G-SFP

Product description

8*10/100/1000Base-T + 8*1G SFP Gigabit L2 Management Industrial Ethernet Switch

Ethernet interface

RJ45 Port

8-port 10/100/1000Base-T

Optical port

8-port 100/1000Base-X SFP

Port Description

8*10/100/1000Base-T

8*100/1000Base-X SFP

Power Parameters

Power

Connection: 1 removable 4-contact terminal block(s)

Input voltage: DC9 to 52V redundant power support reverse connection protection

LED Indicator

l  Power indicator light: Red P1, P2

l  Interface indicator light:

Right of the RJ45: Green (Data light)

l  Optical port green Ulink/act indicator light

Standards

Network Protocols

IEEE802.3-10BaseT

IEEE802.3u-100BaseTX/100Base-FX

IEEE802.3x-Flow Control

IEEE802.3z-1000BaseLX

IEEE802.3ab-1000BaseT

IEEE802.1ab

IEEE802.1D-Spanning Tree Protocol

IEEE802.1w-Rapid Spanning Tree Protocol, APS
IEEE802.1Q -VLAN Tagging

IEEE802.1p -Class of Service

IEEE802.1X-Port Based Network Access Control

L3 routing technology

l  Support IPv4/IPv6 static routing

l  Address Resolution Protocol (Static ARP)

l  Auto-configuration, static IPv6 address and prefix length, static IPv6 default gateway

l  IPv6 neighbor discovery (ND), IPv6 duplicate address detection, ICMPv6

l  HTTP/HTTPS, remote network, SSH, SNMP, TFTP

l  System log, PING, DHCPv6

Switch Properties

Packet forwarding rate

17.856Mpps

MAC Table Size

8K

Packet Buffer Size

4.1Mbit

Bandwidth

56G

Switching Delay

＜5μs

Power Consume

＜15W

Function

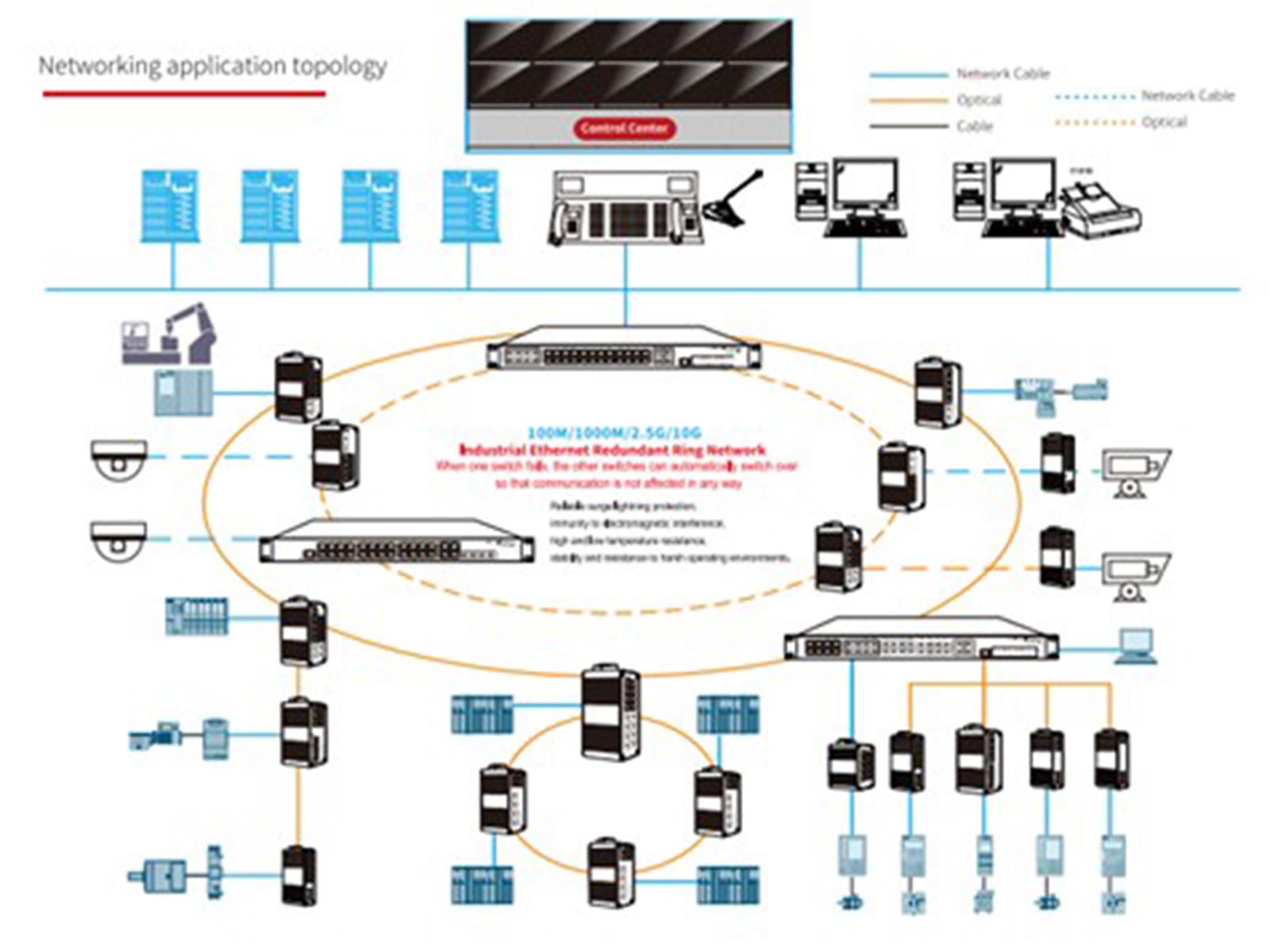

Redundant Protocol

l  Support ERPS ring network technology, self-healing time <20ms

l  Support STP/RSTP/MSTP

Switch Function

l  8K MAC address; static MAC address, filtered MAC address, dynamic MAC binding and other address table management functions;

l  MAC address automatic learning, automatic aging and aging time setting;

l  IEEE 802.1Q VLAN, users can flexibly divide VLAN according to needs;

l  QoS supports three priority modes based on port, 802.1P and DSCP and four queue scheduling algorithms: Equ, SP, WRR and SP+WRR;

l  ACL filters data packets by configuring matching rules, processing operations, and time permissions to provide flexible security access control strategies;

l  IGMP V1/V2 multicast protocol, IGMP Snooping, meets the needs of multi-terminal high-definition video surveillance and video conferencing access;

l  802.1X authentication, controlling the authorization status of the controlled port based on the authentication results;

l  Multicast VLAN; Voice VLAN;

l  Static convergence and dynamic convergence;

l  RMON, system logs, port traffic statistics;

l  Cable detection, Ping detection and Tracert detection operations;

l  LLDP;CPU monitoring, memory monitoring, Ping detection, Tracert detection, cable detection.

Manage and maintain

l  CLI console, remote login (RFC854), 3 sessions

l  Supports web interface HTTP, supports SNMP (V1/N2/V3) management protocol

l  File management - firmware upgrade/backup, dual images, configuration download/backup, multiple configurations

l  Upload/Download - TFTP (RFC783), HTTP, UART

l  Support local and SNTP time management

l  Port Management - Friendly Port Name (Port Description) - Error Disable Recovery

l  Line management - console, remote login (RFC854), SSH v1/v2.

l  Supports DHCP client, DNS client, software reset button, IEEE (802.3az)

l  Supports 32 entries/type RMON management

l  Supports one-click ring network and one-click VIAN

Safety technology

l  Support AAA authentication, 8 TACACS+, 8 radius

l  Support IEEE 802.1X authentication, MAC authentication, network authentication, guest VLAN, port-based, host-based

l  Support CLI SSH v1/v2

l  256 dynamic lock port security

l  Storm control-broadcast, unknown multicast, unknown unicast

l  BPDU guard spanning tree

l  Supports local authentication, multiple user accounts, multi-level security (manager/operator), password recovery program

l  Management VLAN, management ACL; SSLv2, SSLv3, TLSv1; web interface HTTPS

l  Supports protected ports (port isolation), blackhole MAC, CPU defense engine, DoS prevention

l  DHCP snooping (using option 82), dynamic ARP inspection

l  256 IP source protection, IP/MAC/Port Binding (IMPB), dynamic VLAN assignment

Physical Characteristics

Protection level

IP40

Enclosure

Wavy aluminum alloy

Installation

Push-in DIN rail

Weigh

0.7kg

Dimensions

150x114x53mm (length x width x height)

Environmental Limits

Working temperature

-40 to 80℃ (-40～176 °F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 62368-1(LVD)

EMI

FCC Part 15 Subpart B Class A，EN 55022 Class A

EMS

IEC(EN)61000-4-2(ESD):±8kV Contact discharge,±15kV Air discharge

IEC(EN)61000-4-3(RS):10V/m(80～1000MHz)

IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±4kV

IEC(EN)61000-4-5(Surge): power:±4kV CM/±2kV DM; data:±2kV

IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC(EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

300 000hrs

Warranty

Warranty Period

5 years

Package Contents

Device

1 x UF-MIS6808G-SFP switch

Documentation

1 x quick installation guide

1 x warranty card
