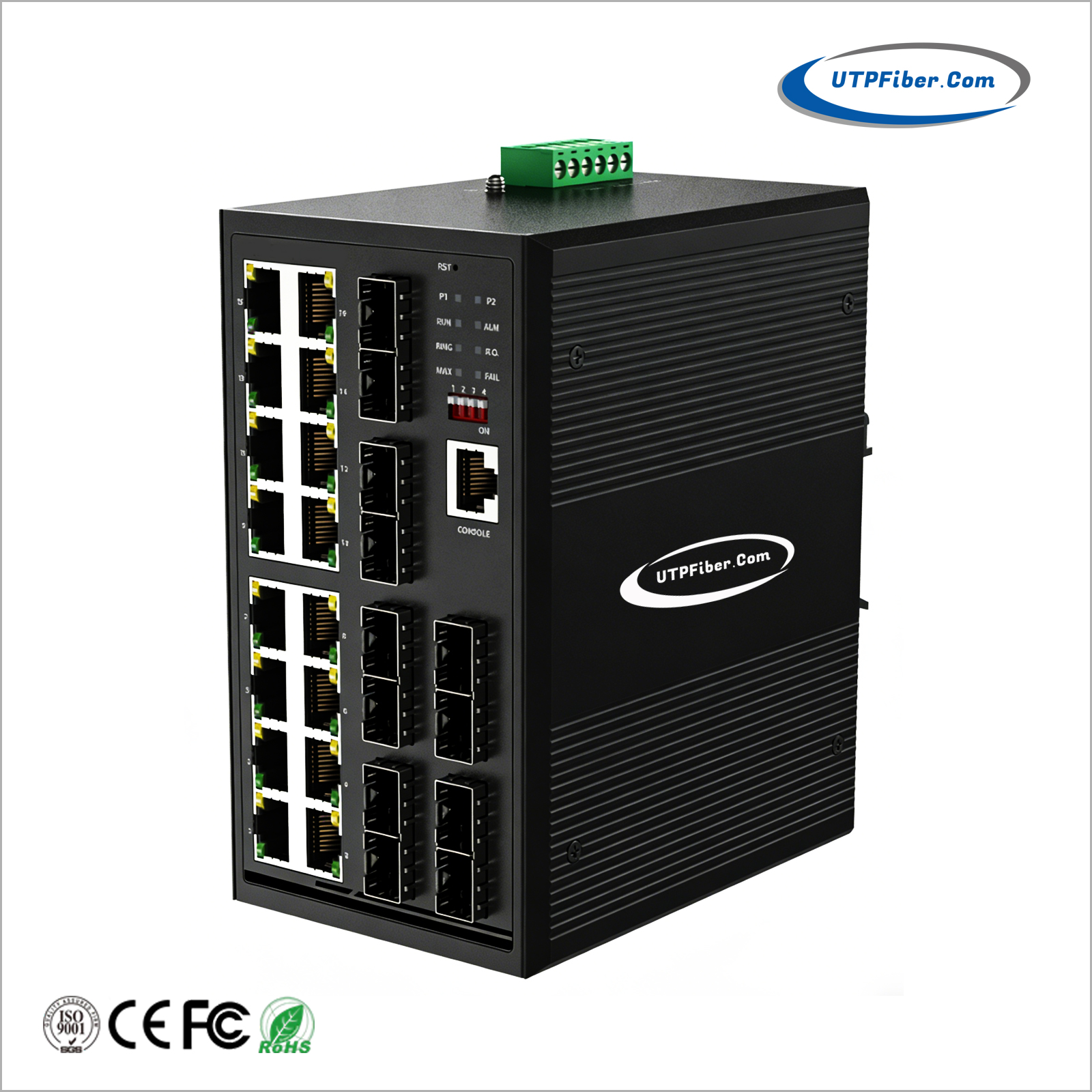

L2+ Industrial 16-Port 10/100/1000T + 12-Port 100/1000X SFP Managed Ethernet Switch
Model:UF-MIES1216G-SFP
► 16x10/100/1000BASE-T Gigabit Ethernet RJ45
► 12x100/1000BASE-X SFP Slots
► Full gigabit L2+ management, easy to manage the network by CLI/WebGUI/NMS.
UF-MIES1216G-SFP Series is an industrial Managed switch with 16-Port 10/100/1000BASE-T and 12-Port 100/1000Base-X SFP. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high stability, and easy to maintain. With dual power input design, UF-MIES1216G-SFP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
Experience unparalleled performance with the Layer 2+ Plus Managed Industrial Ethernet Switch, designed specifically for demanding industrial environments. Engineered for exceptional stability and reliability, this switch ensures seamless Ethernet transmission in factories, outdoor settings, and harsh conditions. Its robust construction withstands the rigors of industrial applications while delivering advanced management features that facilitate optimal network control. Elevate your operational efficiency and safeguard your critical data communications with a solution that has consistently proven its mettle across various sectors. Invest in enduring quality—choose the Layer 2+ Plus Managed Industrial Ethernet Switch for your networking needs.
► 16x10/100/1000BASE-T Gigabit Ethernet RJ45
► 12x100/1000BASE-X SFP Slots
► Full gigabit L2+ management, easy to manage the network by CLI/WebGUI/NMS.

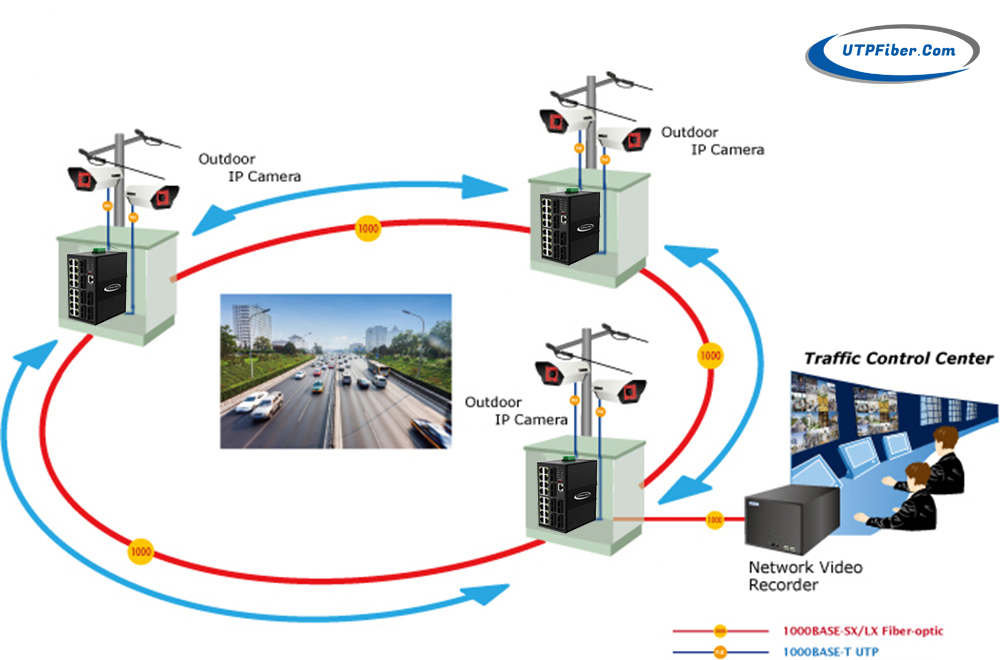

► Build up a redundant industrial network with STP/RSTP/MSTP/ERPSv2
► Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
► Traffic Classification Based on IEEE 802.1p, COS, WRR, and Strict Mode
► SNMPv1/v2c/v3 for different levels of network management
► Wide operating temperature range -40 to 80℃
► All-aluminum Case, Compact and Fanless Design
|
Physical Port |
|
|
RJ45 port and speed |
16 x 10/100/1000Base-T (Port 1-16) |
|
Fiber port and speed |
12 x 100/1000Base-X SFP (Port 17-28) |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3az Energy Efficient Ethernet IEEE 802.3ad port trunk with LACP IEEE 802.3ah Configuring Ethernet OAM IEEE 802.1D Spanning Tree Protocol IEEE 802.1x Port Authentication Network Control IEEE 802.1Q VLAN tagging IEEE 1588 |
|
Packet buffer size |
4Mbits |
|
Maximum packet length |
Up to 10K Bytes |
|
MAC address table |
8K entries, automatic source address learning and aging |
|
Transmission mode |
Store and Forward(full/half duplex mode) |
|
Exchange property |
Delay
time: < 7ps |
|
Power Information |
|
|
Power access mode |
Phoenix terminal, DC seat |
|
Redundant power input |
DC 9-56V |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
Full-load<15W |
|
Physical Property |
|
|
Protection grade |
IP40 aluminum case |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions |
155mm x 128mm x 88mm (L x W x H) |
|
Installation mode |
DIN Rail/Wall-mountable |
|
Weight |
1500g(Bare weight), 1800g(With package) |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃~85℃ |
|
Warranty |
|
|
MTBF |
907,476 hours @ Telcordia SR-332 Standard |
|
Defects Liability Period |
5 year warranty, lifetime technical support |
|
Certification Standard |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
- Download FileName：UF-MIES1216G Industrial 16G+12SFP Managed Ethernet Switch Datasheet V1.0.pdf Size： 595KB
|
Model |
Description |
|
UF-MIES1216G-SFP |
L2+ Industrial 16-Port 10/100/1000T + 12-Port 100/1000X SFP Managed Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
►DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
