L2+ Industrial Compact 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch
Model:UF-MT208G-SFP
► 8x10/100/1000Base-T ports, 2x100/1000Base-X SFP ports
► Support 1000BASE-X and 100BASE-FX SFP dual mode
► Support IEEE 802.3D/W/S standard and STP/RSTP protocol
► Packet buffer up to 2Mbit, Switch Fabric up to 20Gbps
► Installation method: DIN Rail /Wall mounting

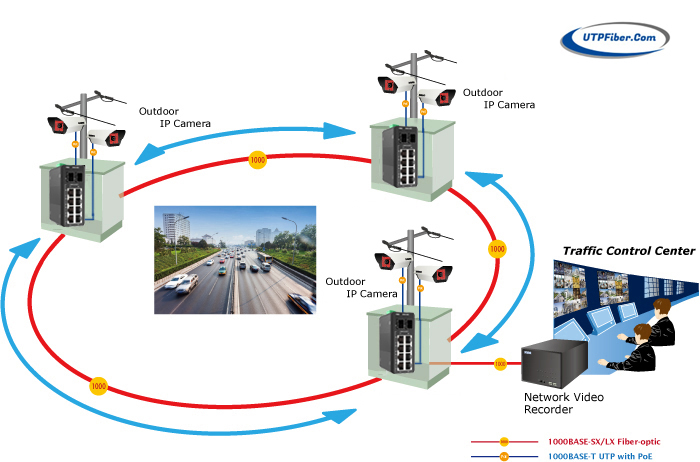

UF-MT208G-SFP Series is a compact industrial Managed switch with 8-Port 10/100/1000BASE-T and 2-Port 100/1000Base-X SFP. The industrial switch complies with IEEE 802.3D/W/S standard and STP/RSTP protocol. With dual power input design, UF-MT208G-SFP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
► 8x10/100/1000Base-T ports, 2x100/1000Base-X SFP ports
► Support 1000BASE-X and 100BASE-FX SFP dual mode
► Support IEEE 802.3D/W/S standard and STP/RSTP protocol
► Support 9K bytes giant frame, compatible with various extension protocol
► Packet buffer up to 2Mbit, Switch Fabric up to 20Gbps
► Support IEEE802.3az energy efficient Ethernet technology
► IPv6 Protocol, Electric 4KV surge protection
► Power input polarity protection design, no worry about wrong operation
► IP40 Aluminum case, no fan design
► Installation method: DIN Rail /Wall mounting
|
Physical Port |
|
|
RJ45 port and speed |
8x10/100/1000BASE-T |
|
Fiber port and speed |
2x100/1000BASE-X SFP |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE802.3ah Ethernet in the first mile (EFM) IEEE 802.1x Port Authentication Network Control |
|
Packet buffer |
2Mbits |
|
Packet length |
Up to 9K Bytes |
|
MAC address table |
4K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Switch Fabric |
20Gbps/non-blocking |
|
Exchange property |
Delay time: < 7ps
Backplane bandwidth: 20Gbps |
|
LED Indicator |
|
|
PWR |
Power LED: connect-always |
|
RJ45 |
Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
|
Fiber |
Link/Act: connect-always; data exchange-twinkle |
|
RUN |
Systems running LED |
|
Power Information |
|
|
Power access mode |
Phoenix terminal |
|
Redundant power input |
DC 9-56V |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
Full-load<10W |
|
Physical Property |
|
|
Protection grade |
IP40 aluminum case |
|
Cooling mode |
Natural cooling, no fan design |
|

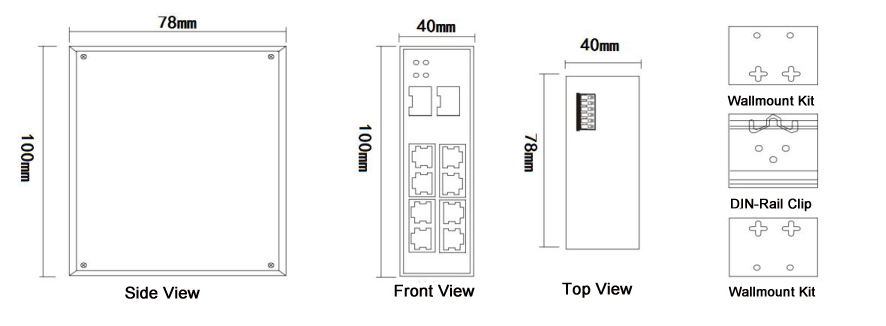

Dimensions |
100mm x 78mm x 40mm (L x W x H) |
|
Installation mode |
DIN-Rail/Wall-mounting |
|
Weight |
300g |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃~85℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Defects Liability Period |
5-year warranty, lifetime technical support |
|
Certification Standard |
|
|
EMI |
FCC Part15 Subpart B Class A, CE-EMC/LVD, ROHS |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
|
Software |
|
|
Software Features |
Redundant network: STP/RSTP |
|
Multicast: IGMP Snooping V1/V2/V3, Support GMRP |
|
|
VLAN: IEEE 802.1Q 4K VLAN |
|
|
QOS: Support COS, DSCP, 8 queues, support WRR, SP, WFQ scheduling mode, strategy QOS |
|
|
Management Function: WEB |
|
|
Diagnostic Maintenance: Port mirroring, etc. |
|
- Download FileName：UF-MT208G Industrial 8G+2SFP Managed Ethernet Switch Datasheet V1.0.pdf Size： 747KB
|
Model |
Description |
|
UF-MT208G-SFP |
L2+ Industrial Compact 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
