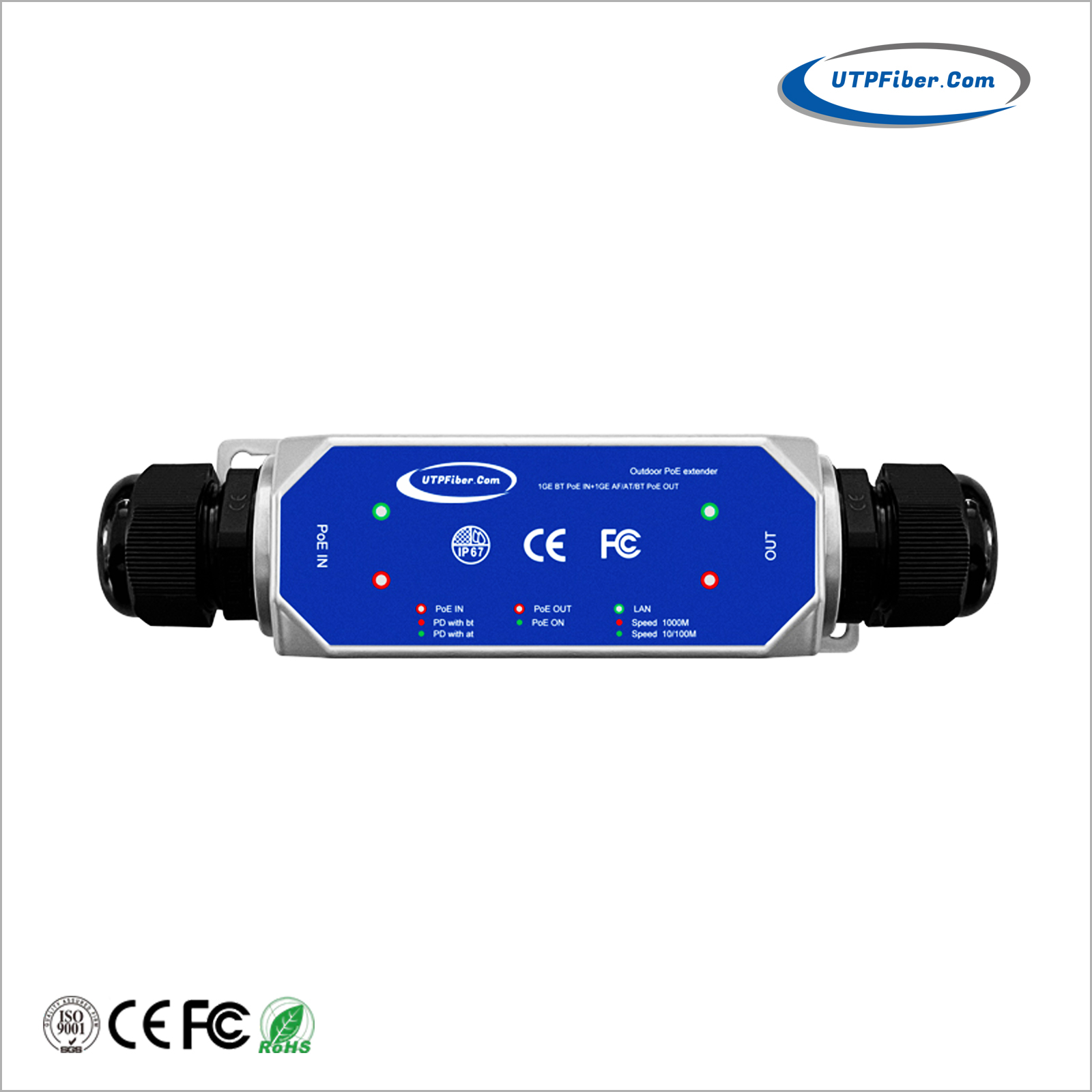

IP67 Waterproof Industrial 1-Port 10/100TX 802.3bt PoE + 1-Port UTP Long Reach PoE Kit
Model:UF-EX101F-LD
► Power and Ethernet data transmission of 500m@100Mbps, 800m@10Mbps over UTP/STP cabling
► Support 802.3bt 120W PoE IN or Passive DC37-57V IN MAX 120W
► PoE OUT supports IEEE802.3af/at/bt, max 90W PoE out
► IP67-rated, dustproof and waterproof
► IK10-rated, vandal-proof
► Supports 10/100M data rates
The UF-EX101F-LD is a Single-port PoE over UTP Extender Kit featuring long range data and power transmission for distance up to 800m (2,624ft.) over UTP/STP cable, and another Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3at/bt PoE. The UF-EX101F-LD provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -40 to 80 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.

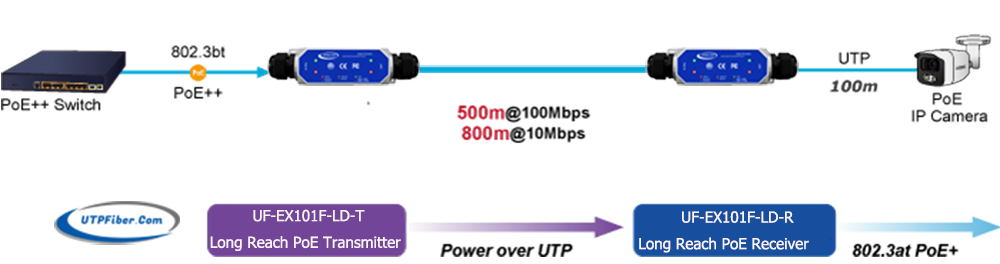

The UF-EX101F-LD consists of a Transmitter (UF-EX101F-LD-T) and a Receiver (UF-EX101F-LD-R) set which can work in pair anywhere on your network infrastructure. The UF-EX101F-LD-T transmits data and power over UTP/STP cable to the UF-EX101F-LD-R, which can be located as far as 800m away. A normal UTP cable can only be extended up to 100 meters, but the UF-EX101F-LD can extend PoE networking up to 800 meters (2,624ft.), enabling stable, high-quality video transmission. Assembled with waterproof cable gland, it can make the general RJ45 connector weather-proof and provides tight and strong connection, and ensures it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.
► Power and Ethernet data transmission of 500m@100Mbps, 800m@10Mbps over UTP/STP cabling
► Support 802.3bt 120W PoE IN or Passive DC37-57V IN MAX 120W
► PoE OUT supports IEEE802.3af/at/bt, max 90W PoE out
► IP67-rated, dustproof and waterproof
► IK10-rated, vandal-proof
► Supports 10/100M data rates
► Short-circuit, overload and high-voltage protection
► Port surge protection up to 6 kV
► Complies with IEEE 802.3bt PoE++ PSE standard
► One IEEE 802.3at/802.3bt PoE devices powered
► Switch fabric of 1 Gbps
► Packet forwarding rate up to 0.75Mpps
► Mounting holes for wall mounting
► Earthing kit included
|
Model |
UF-EX101F-LD |
|
Product name |
IP67 Waterproof Industrial 1-Port 10/100TX 802.3bt PoE + 1-Port UTP Long Reach PoE Kit |
|
Material |
Aluminum die-casting body Nylon waterproof joint |
|
Waterproof grade |
IP67 |
|
Wire diameter |
Support network cables with a Φ of 4-8mm |
|
Fixed Port |
1*LD*10/100Base-TX in 1*10/100Base-TX out |
|
PoE in |
Supports IEEE802.3af/at/bt, max 120W PoE in Supports Passive DC37-57V in MAX 120W |
|
PoE in Pin |
12+ 45+ 36- 78- |
|
PoE OUT |
Supports IEEE802.3af/at/bt, max 90W PoE out |
|
PoE OUT Pin |
12+ 45+ 36- 78- |
|
Bandwidth |
1Gbps |
|
Packet Forwarding |
0.75Mpps |
|
MAC |
1K |
|
Buffer |
768K |
|
POE in Transmission Distance |
10BASE-T：Cat3,4,5 UTP (≤250 meter) 100BASE-TX： Cat5 or later UTP (150 meter) LD type: (LD type transmitter required) 10BASE-T： Cat5 or later (≤800 meter) 100BASE-TX： Cat6 or later UTP (≤500 meter) |
|
POE out Transmission Distance |
10BASE-T：Cat3,4,5 UTP (≤250 meter) 100BASE-TX：Cat5 or later UTP (150 meter) |
|
LED Indicator |
PoE in: LED witch bt or af/at POE out: on LED Port in: LAN link on LED、LAN SPEED 1G LED Port out: LAN link on LED PoE dog: on led(inbox) |
|
Operating Temperature/Humidity |
-40～+80°C；5%～90% RH Non coagulation |
|
Storage Temperature/Humidity |
-40～+90°C；5%～95% RH Non coagulation |
|
Product /Packing size（L*W*H） |
160*43*43mm 170*49*48mm |
|
N.W/G.W（kg） |
0.19kg/0.22kg |
|
Lightning Protection level |
6KV 8/20us； |
|
Installation |
Desktop、wall installation |
|
Certificate |
CE-EMC EN55032；CE-LVD EN62368； |
|
Warranty |
Whole device for 1 year (Accessories not included) |
- Download FileName：UF-EX101F-LD IP67 Waterproof Industrial Long Reach 1-Port 100M 802.3bt PoE++ Extender Kit Datasheet Size： 812KB
|
Model |
Description |
|
UF-EX101F-LD |
IP67 Waterproof Industrial 1-Port 10/100TX 802.3bt PoE + 1-Port UTP Long Reach PoE Kit, 500m@100Mbps, 800m@10Mbps, including Transmitter & Receiver, used by pairs |
|
Mounting Options |
► Wall Mount or Desktop Installation |
|
Power Options |
►Requires no additional power supply; draws power directly from the PoE input |
