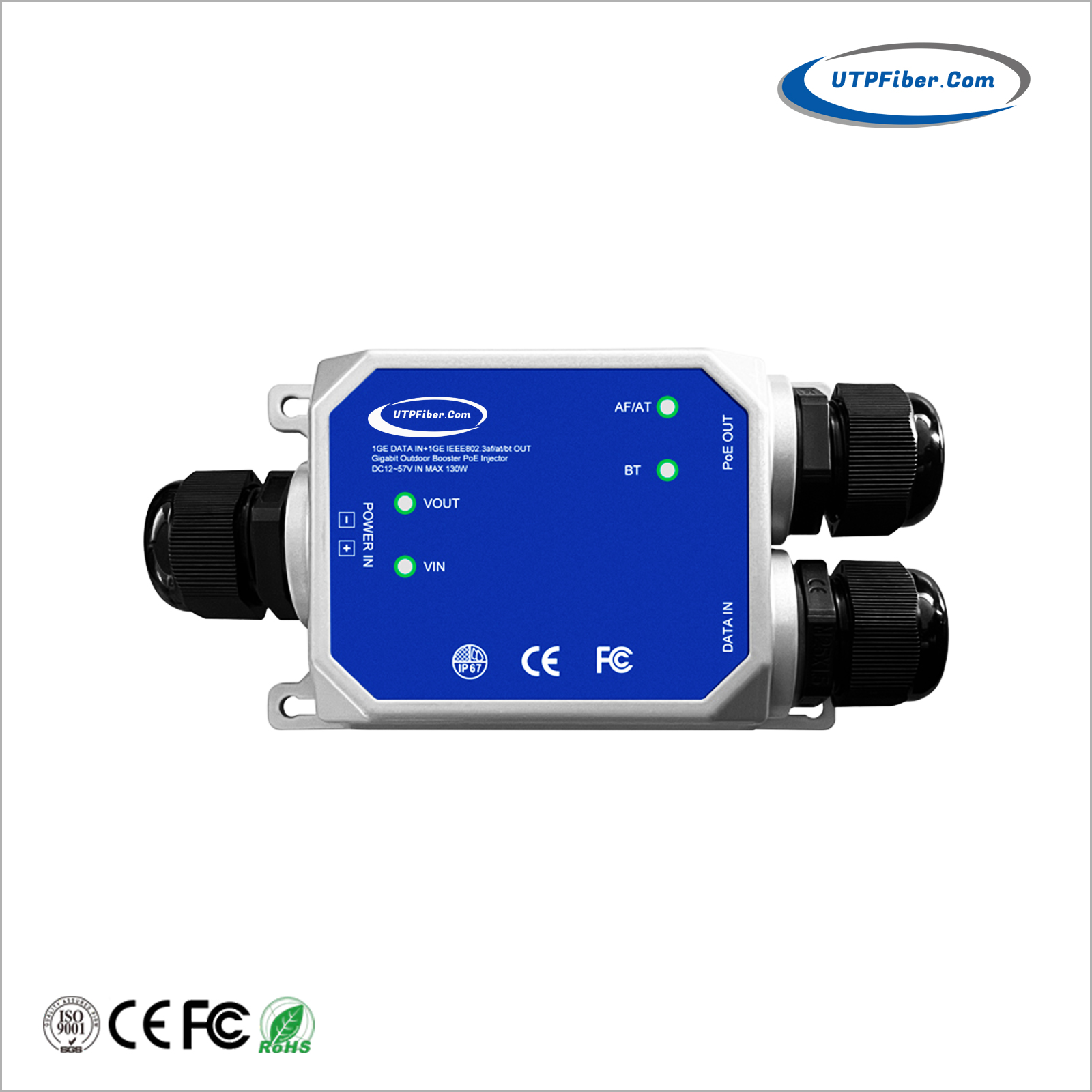

Industrial IP67 Waterproof 2.5G 802.3bt 90W PoE++ Injector with 12-57VDC Power Input
Model:UF-WPI2G-90W
► Outdoor IEEE 802.3bt PoE Plus Power over Ethernet Injector, 56VDC, 90W max (backward compatible with IEEE 802.3af/at)
► Two 100/1000/2500Mbps RJ45 port for Data+ Power output and Data input
► One 2-pin terminal block for power input DC12-57V
► Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► IP67-rated, dustproof and waterproof
► IK10-rated, vandal-proof
UF-WPI2G-90W is an industrial-grade 2.5G 802.3bt 90W PoE++ Injector built for rugged environments with IP67-level protection. This injector complies with IEEE 802.3af/at/bt standard, enabling seamless integration with various PoE compliant devices like APs, IP Cameras, and IP Phones. UF-WPI2G-90W supports 2.5G transmission rates, delivering increased power over 4 pairs of wires. With a remarkable 100-meter range for remote power and data feeding, Its robust metal shell design, short-circuit protection, and plug-and-play convenience make it a durable and user-friendly solution. UF-WPI2G-90W offers exceptional power and data delivery, making it a versatile solution for various applications. Its rugged build and IP67-industrial level protection ensure robust performance even in harsh conditions. With intelligent power management and a IK10 vandal-proof design, this injector is your reliable, hassle-free choice for expanding network connectivity.
► Outdoor IEEE 802.3bt PoE Plus Power over Ethernet Injector, 56VDC, 90W max (backward compatible with IEEE 802.3af/at)
► Two 100/1000/2500Mbps RJ45 port for Data+ Power output and Data input
► One 2-pin terminal block for power input DC12-57V
► Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Complies with IEEE802.3af/at/bt Standard
► Auto detect power device

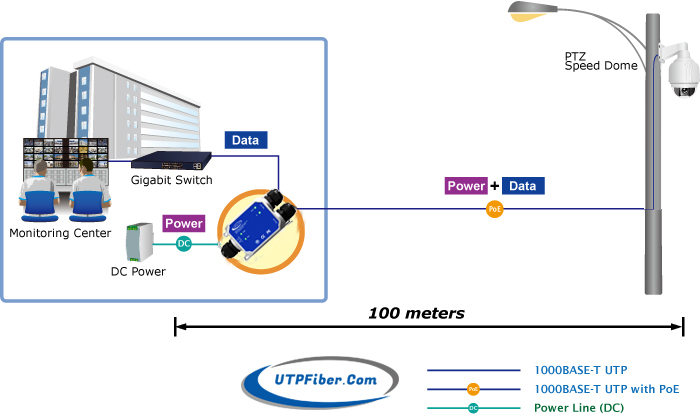

► Remote power and Data feeding up to 100m
► Plug-and-play, requires no configuration
► Intelligent protection and Short Circuit Protection
► Wall-mount design with Mounting holes and Earthing kit included
► IP67-rated, dustproof and waterproof
► IK10-rated, vandal-proof
|
Hardware Specifications |
|||
|
Interface |
Input Port |
||
|
1 x 10/100/1000/2500BASE-T “Data” in RJ45 port |
|||
|
Output Port |
|||
|
1 x 10/100/1000/2500BASE-T Ethernet with IEEE 802.3bt PoE++ |
|||
|
“Data + DC” out RJ45 port |
|||
|
Input Power Terminal Block |
|||
|
1 x 2-pin terminal block |
|||
|
- Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) |
|||
|
Data Rate |
10/100/1000/2500Mbps |
||
|
Waterproofing Grade |
IP67 |
||
|
Wire Diameter |
4 mm ≤ ODØ ≤ 8 mm |
||
|
Material |
Die-cast aluminum casing with Nylon waterproof joint |
||
|
LED Indicator |
Power: Power in LED, Boost voltage normal LED |
||
|
POE out: on off af/at LED, on off bt LED |
|||
|
Input Voltage |
12-57V DC |
||
|
Power Consumption |
Voltage |
PoE Budget |
Full Load (Max.) |
|
DC 12V |
60W |
65W |
|
|
DC 24V |
90W |
95W |
|
|
DC 48V |
90W |
95W |
|
|
ESD Protection |
Air 8KV DC |
||
|
Contact 6KV DC |
|||
|
Surge Protection |
6KV |
||
|
Enclosure |
IP67-rated and IK10 aluminum metal case |
||
|
Installation |
Wall-mount ear |
||
|
Dimensions (L x W x H) |
122 x 77 x 35 mm (without cable gland) |
||
|
155 x 84 x 35 mm (with cable gland) |
|||
|
Net Weight |
280g |
||
|
Gross Weight |
320g |
||
|
MTBF |
>100,000 hours |
||
|
Network Cable |
10BASE-T: UTP category 3, 5 cable (≤250m) |
||
|
100BASE-TX: UTP category 5,5e cable (≤150m) |
|||
|
1000BASE-T: UTP category 5e,6 cable(≤100m) |
|||
|
2500BASE-T: UTP category 6, 6A cable(≤100m) |
|||
|
Power over Ethernet |
|||
|
PoE Standard |
IEEE 802.3bt PoE++ types 3 PSE |
||
|
Backward compatible with IEEE 802.3at PoE+ |
|||
|
PoE Power Output |
802.3bt End-span/Mid-span |
||
|
PoE Power Supply Type |
55V DC Max. 90 watts to 802.3bt PoE++ PD Max. 30 watts to 802.3at PoE+ PD |
||
|
Power Pin Assignment |
802.3bt: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) End-span: 1/2 (+), 3/6 (-) Mid-span: 4/5 (+), 7/8 (-) |
||
|
Standards Conformance |
|||
|
Regulatory Compliance |
FCC Part 15 Class A |
||
|
CE |
|||
|
Stability Testing |
IEC 60068-2-32 (Free fall) |
||
|
IEC 60068-2-27 (Shock) |
|||
|
IEC 60068-2-6 (Vibration) |
|||
|
Standards Conformances |
IEEE 802.3 10BASE-T Ethernet |
||
|
IEEE 802.3u 100BASE-TX Fast Ethernet |
|||
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|||
|
IEEE 802.3af Power over Ethernet |
|||
|
IEEE 802.3at Power over Ethernet Plus |
|||
|
IEEE 802.3bt Power over Ethernet Plus Plus |
|||
|
Environment |
|||
|
Operating Temperature |
-40 ~ 80 degrees C |
||
|
Storage Temperature |
-40 ~ 85 degrees C |
||
|
Humidity |
5 ~ 95% (non-condensing) |
||
