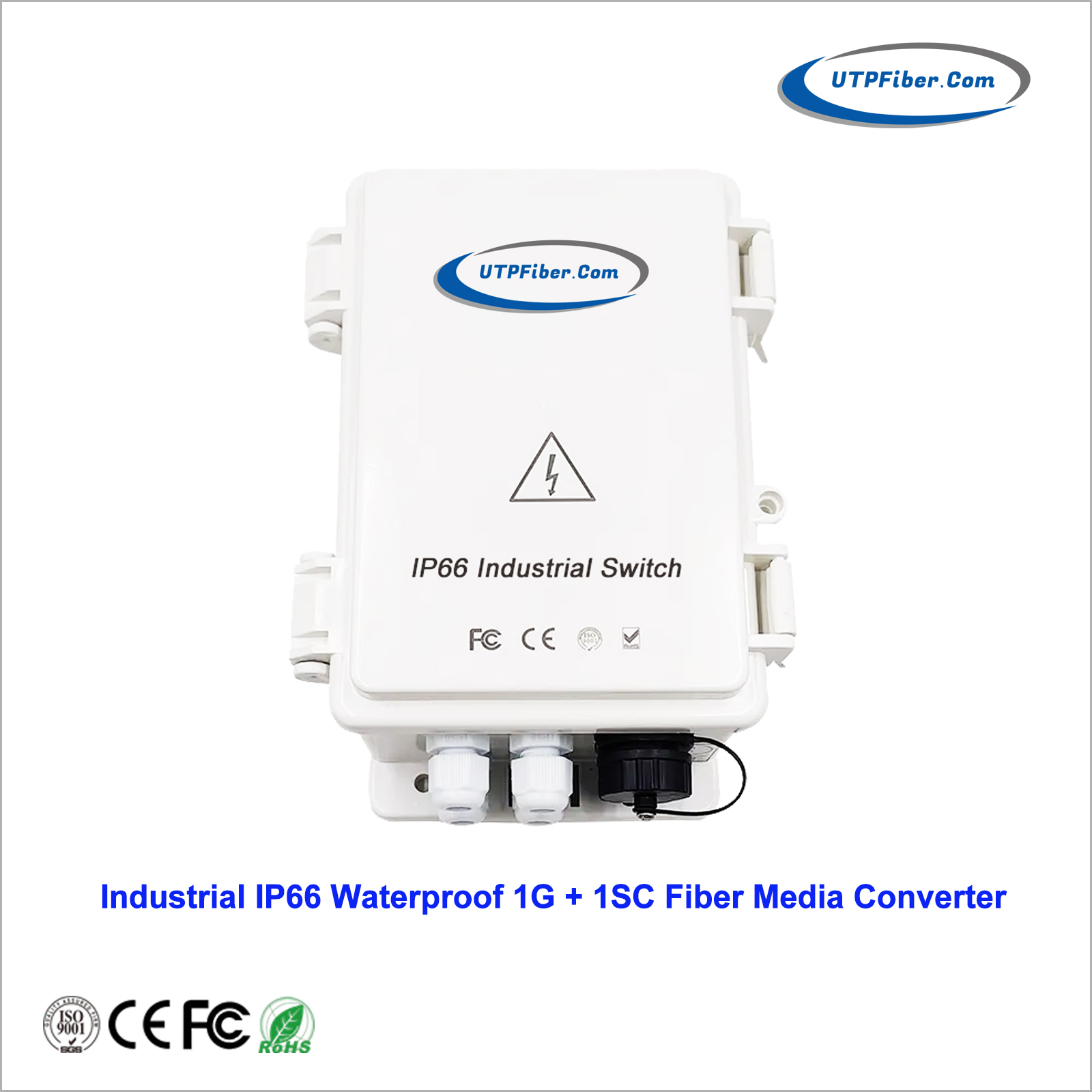

Industrial IP66 Waterproof 1-Port 1000BASE-X SC to 1-Port 10/100/1000T Ethernet Media Converter
Model:UF-WP101G-SC-A/B
► One 10/100/1000BASE-T
► One 1000BASE-X SC interface
► 9~48VDC wide range power input
► IP66 protection level, ABS + aluminum chassis cooling surface design, no fan, no cooling holes
► Wall-mount design
► -20 to +85 degrees C operating temperature

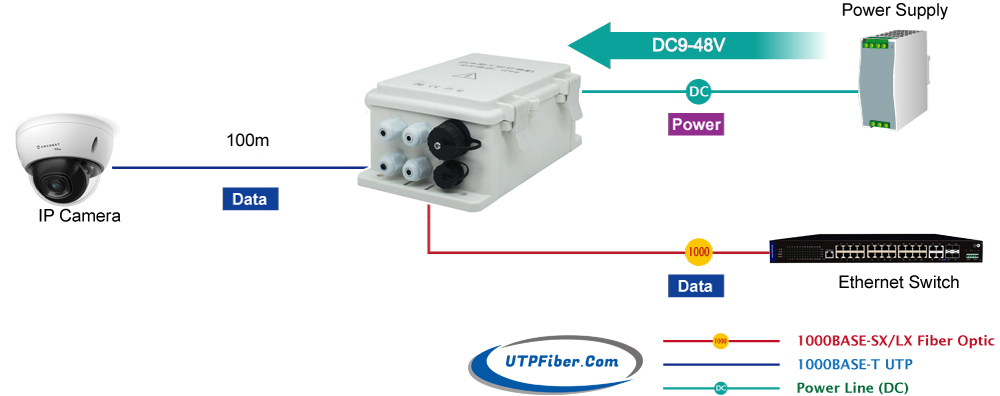

UF-WP101G Series Waterproof Fiber Media Converter is a crucial tool allowing enterprises to utilize fiber optic link and supply Ethernet over long distance even at outdoors. UF-WP101G is the industrial-grade Gigabit Fiber Media Converter, featuring one 1000BASE-X SC fiber port and one 10/100/1000BASE-T copper port in an IP66 rugged but compact-size case. Being able to operate under the temperature ranging from -20 to +85 degrees C, the UF-WP101G provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration. Adding this device, you are able to setup IP devices over kilometers with fiber optic cable without concerns about bad weathers and tough operation conditions due to its IP66 waterproof and harden grade design.
The device adopts wall-mounted ABS + aluminum profile heat dissipation chassis, DC power input, IP66 protection level, -20 ~ +85 ℃ wide operating temperature, to ensure long-term stability, reliability and safe use in a variety of harsh environments (such as high temperature, low temperature, dust, electromagnetic interference, etc.
► One 10/100/1000BASE-T
► One 1000BASE-X SC interface
► 9~48VDC wide range power input
► Support full-duplex and half-duplex auto-negotiation
► IP66 protection level, ABS + aluminum chassis cooling surface design, no fan, no cooling holes
► Wall-mount design
► Supports 6KV DC Ethernet ESD protection
► -20 to +85 degrees C operating temperature
► Plug and Play installation
|
Hardware Specifications |
|
|
Input Port (SC Slot) |
1 x 1000BASE-X “Data” in SC port |
|
Output Port |
1 x 10/100/1000BASE-T Ethernet |
|
“Data + DC” out RJ45 port |
|
|
- Auto MDI/MDI-X, auto-negotiation RJ45 connector |
|
|
Input Power Terminal Block |
1 x Waterproof power interface |
|
Protocols and Standards Compliance |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3z Gigabit Ethernet over Fiber Optic |
|
|
IEEE 802.3x Flow Control |
|
|
Cables |
10BASE-T: UTP category 3, 5 cable (≤100m) |
|
100BASE-TX: UTP category 5,5e cable (≤100m) |
|
|
1000BASE-T: UTP category 5e,6 cable(≤100m) |
|
|
1000BASE-SX/LX: |
|
|
- Multi-mode: 50/125μm or 62.5/125μm optical fiber |
|
|
- Single-mode: 9/125μm optical fiber |
|
|
Switching Characteristics |
|
|
Transmission mode |
Storage and forwarding (full-line speed) |
|
Backboard bandwidth |
10Gbps |
|
Package forwarding rate |
7.5Mpps |
|
Mac address list |
4K, automatic learning |
|
Power Features |
|
|
Input Voltage |
9~48V DC |
|
Power Consumption |
Max. 5W |
|
Wiring Method |
Waterproof power interface |
|
Overload protection |
Support |
|
Anti-connection protection |
Support |
|
Supporting power supply |
No, the adapter should be purchased separately |
|
Mechanical Properties |
|
|
Enclosure |
ABS + aluminum alloy radiator case (fanless design) |
|
Levels of protection |
IP66 |
|
Installation |
Wall-mount |
|
Dimensions (L x W x H) |
195 x 110 x 175 mm |
|
Weight |
455g |
|
MTBF |
>100000 hours |
|
Standards Conformance |
|
|
Regulatory Compliance |
CE; FCC; RoHS ISO9001; ISO45001; ISO14001 |
|
EMI |
FCC CFR47 Part 15, EN55022/CISPR22, Class A |
|
EMS |
EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 |
|
Under attack |
GB/T2423.5-1995 |
|
Free-fall |
GB/T2423.5-1995 |
|
Strongly affect |
GB/T21563-2008/IEC61373：1999 |
|
Environment |
|
|
Temperature |
Operating: -20~+85 degrees C |
|
Storage: -40~+85 degrees C |
|
|
Humidity |
Operating: 5~90% (non-condensing) |
|
Storage: 5~90% (non-condensing) |
|
- Download FileName：UF-WP101G Series Waterproof Industrial Gigabit Media Converter Datasheet V1.0.pdf Size： 753KB
|
Model |
Description |
|
UF-WP101G-SC-A |
Industrial IP66 Waterproof 1-Port 1000BASE-X SC to 1-Port 10/100/1000T Ethernet Media Converter, 1310nm TX/1550nm RX, Single Mode, Single Fiber SC 20KM |
|
UF-WP101G-SC-B |
Industrial IP66 Waterproof 1-Port 1000BASE-X SC to 1-Port 10/100/1000T Ethernet Media Converter, 1550nm TX/1310nm RX, Single Mode, Single Fiber SC 20KM |
|
Mounting Options |
► Wall Mount Installation |
|
Power Options |
►9~48VDC Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
