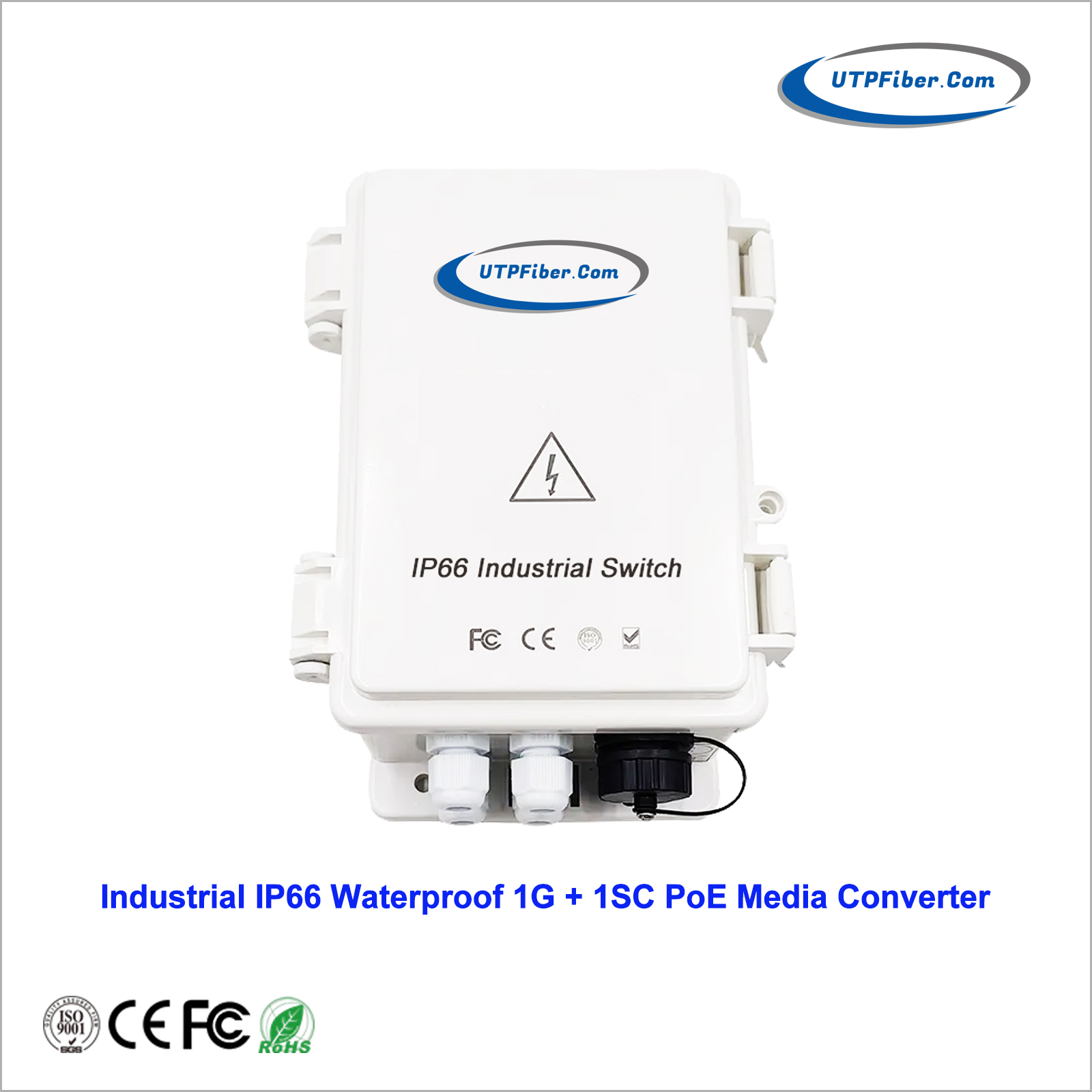

Industrial IP66 Waterproof 1-Port 1000BASE-X SC to 1-Port 10/100/1000T 802.3at PoE+ Media Converter
Model:UF-WP101GP-SC-A/B
► One 10/100/1000BASE-T with IEEE 802.3at PoE+ Gigabit RJ45 port
► One 1000BASE-X SC interface
► 48~57VDC wide range power input
► IP66 protection level, ABS + aluminum chassis cooling surface design, no fan, no cooling holes
► Wall-mount design
► -20 to +85 degrees C operating temperature

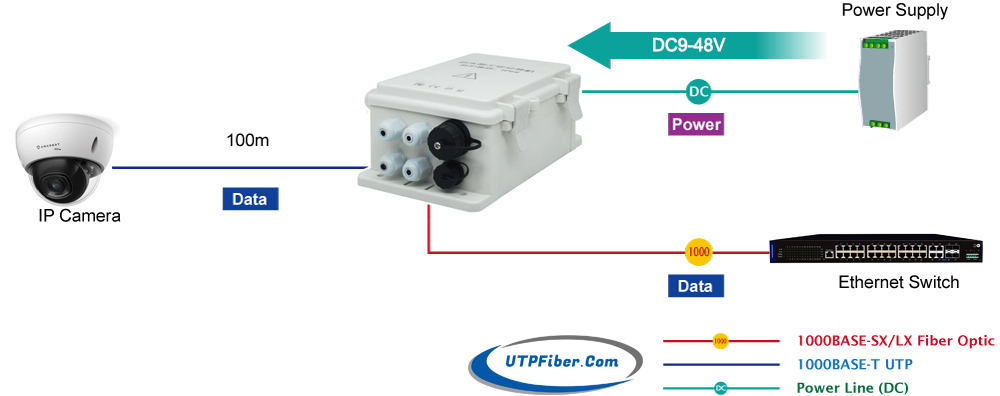

UF-WP101GP Series Waterproof Fiber PoE Media Converter is a crucial tool allowing enterprises to utilize fiber optic link and supply PoE over long distance even at outdoors. UF-WP101GP is the industrial-grade Gigabit PoE+ Media Converter, featuring one 1000BASE-X SC fiber port and one 10/100/1000BASE-T 802.3at PoE+ copper port in an IP66 rugged but compact-size case. Being able to operate under the temperature ranging from -20 to +85 degrees C, the UF-WP101GP provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration. Adding this device, you are able to setup IP devices over kilometers with fiber optic cable without concerns about bad weathers and tough operation conditions due to its IP66 waterproof and harden grade design.
The device adopts wall-mounted ABS + aluminum profile heat dissipation chassis, DC power input, IP66 protection level, -20 ~ +85 ℃ wide operating temperature, to ensure long-term stability, reliability and safe use in a variety of harsh environments (such as high temperature, low temperature, dust, electromagnetic interference, etc.
► One 10/100/1000BASE-T with IEEE 802.3at PoE+ Gigabit RJ45 port
► One 1000BASE-X SC interface
► 48~57VDC wide range power input
► Complies with IEEE 802.3at Power over Ethernet plus PSE
► IP66 protection level, ABS + aluminum chassis cooling surface design, no fan, no cooling holes
► Wall-mount design
► Supports 6KV DC Ethernet ESD protection
► -20 to +85 degrees C operating temperature
► Plug and Play installation
|
Hardware Specifications |
|
|
Input Port (SC Slot) |
1 x 1000BASE-X “Data” in SC port |
|
Output Port |
1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE+ |
|
“Data + DC” out RJ45 port |
|
|
- Auto MDI/MDI-X, auto-negotiation RJ45 connector |
|
|
Input Power Terminal Block |
1 x Waterproof power interface |
|
Protocols and Standards Compliance |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3z Gigabit Ethernet over Fiber Optic |
|
|
IEEE 802.3x Flow Control |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
Cables |
10BASE-T: UTP category 3, 5 cable (≤100m) |
|
100BASE-TX: UTP category 5,5e cable (≤100m) |
|
|
1000BASE-T: UTP category 5e,6 cable(≤100m) |
|
|
1000BASE-SX/LX: |
|
|
- Multi-mode: 50/125μm or 62.5/125μm optical fiber |
|
|
- Single-mode: 9/125μm optical fiber |
|
|
Switching Characteristics |
|
|
Transmission mode |
Storage and forwarding (full-line speed) |
|
Backboard bandwidth |
10Gbps |
|
Package forwarding rate |
7.5Mpps |
|
Mac address list |
4K, automatic learning |
|
Power Features |
|
|
Input Voltage |
48~57V DC |
|
Power Consumption |
Max. 5W (without PoE); Max. 35W (with PoE) |
|
Wiring Method |
Waterproof power interface |
|
Overload protection |
Support |
|
Anti-connection protection |
Support |
|
Supporting power supply |
No, the adapter should be purchased separately |
|
Mechanical Properties |
|
|
Enclosure |
ABS + aluminum alloy radiator case (fanless design) |
|
Levels of protection |
IP66 |
|
Installation |
Wall-mount |
|
Dimensions (L x W x H) |
195 x 110 x 175 mm |
|
Weight |
455g |
|
MTBF |
>100000 hours |
|
Power Over Ethernet |
|
|
PoE Standard |
IEEE 802.3at Power over Ethernet Plus / End-span PSE |
|
Backward compatible with IEEE 802.3af Power over Ethernet |
|
|
PoE Power Output |
55V DC, max. 30 watts |
|
PoE Power Supply Type |
End-span |
|
Power Pin Assignment |
1/2(+), 3/6(-) |
|
PoE Power Budget |
30 watts (max.) @ IEEE 802.3at PoE+ input |
|
Standards Conformance |
|
|
Regulatory Compliance |
CE; FCC; RoHS ISO9001; ISO45001; ISO14001 |
|
EMI |
FCC CFR47 Part 15, EN55022/CISPR22, Class A |
|
EMS |
EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 |
|
Under attack |
GB/T2423.5-1995 |
|
Free-fall |
GB/T2423.5-1995 |
|
Strongly affect |
GB/T21563-2008/IEC61373：1999 |
|
Environment |
|
|
Temperature |
Operating: -20~+85 degrees C |
|
Storage: -40~+85 degrees C |
|
|
Humidity |
Operating: 5~90% (non-condensing) |
|
Storage: 5~90% (non-condensing) |
|
- Download FileName：UF-WP101GP Series Waterproof Industrial Gigabit PoE Media Converter Datasheet V1.0.pdf Size： 764KB
|
Model |
Description |
|
UF-WP101GP-SC-A |
Industrial IP66 Waterproof 1-Port 1000BASE-X SC to 1-Port 10/100/1000T 802.3at PoE+ Media Converter, 1310nm TX/1550nm RX, Single Mode, Single Fiber SC 20KM |
|
UF-WP101GP-SC-B |
Industrial IP66 Waterproof 1-Port 1000BASE-X SC to 1-Port 10/100/1000T 802.3at PoE+ Media Converter, 1550nm TX/1310nm RX, Single Mode, Single Fiber SC 20KM |
|
Mounting Options |
► Wall Mount Installation |
|
Power Options |
►48~57VDC Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
