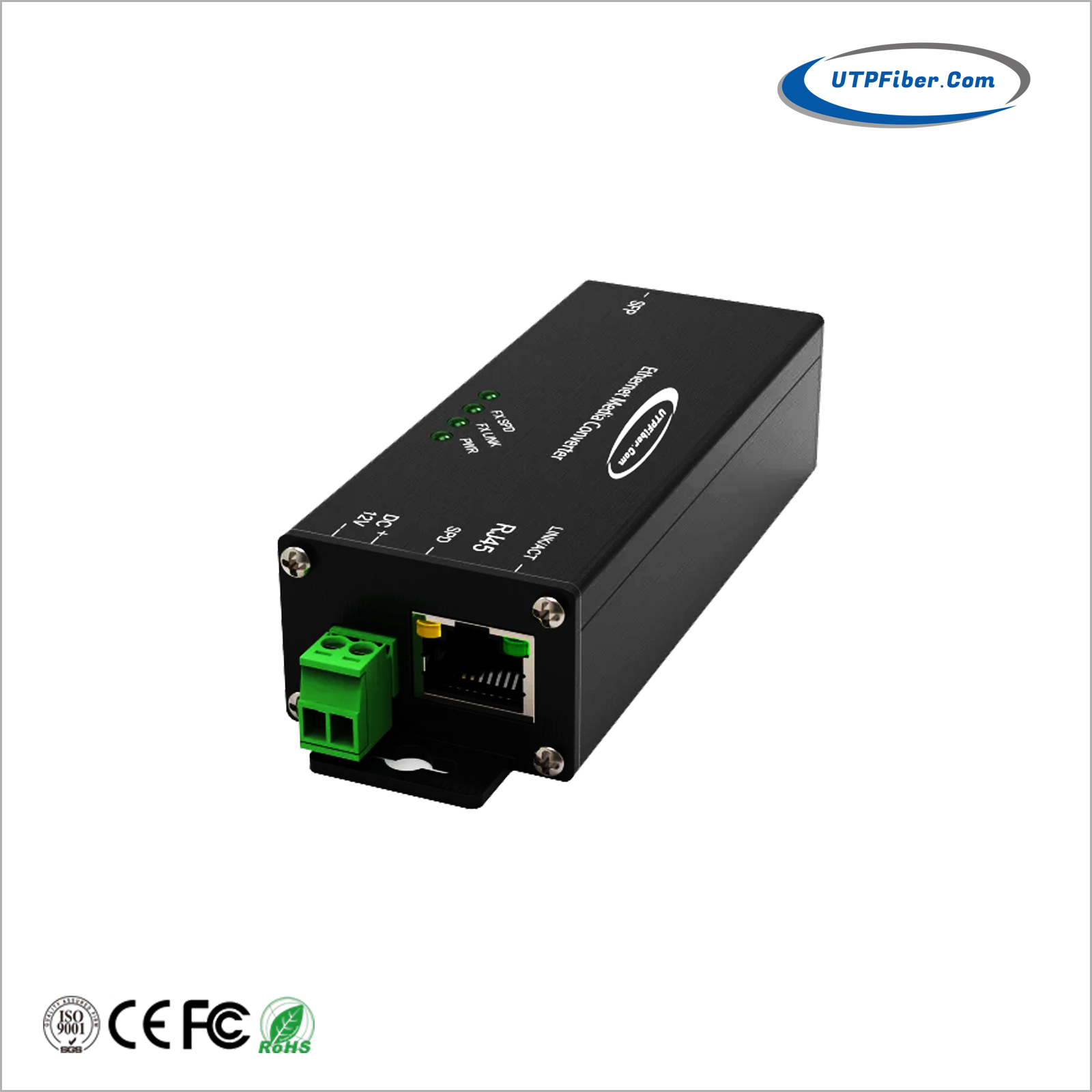

Micro Mini Industrial 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Model:UF-CIES3011-SFP
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port SFP, 100Base-FX or 1000Base-X dual mode
► Dip Switch: LFP, ALS(SFP), FX Reset, FX Speed
► Ultra-compact size metal housing with an IP40 rating
The UF-CIES3011-SFP Micro Mini Industrial SFP Media Converter features one 100/1000BASE-X SFP fibre port and one 10/100/1000BASE-T copper port in an IP40-rated rugged, ultra-compact size housing. Operating in harsh environments, especially extreme low and high temperatures (-40 to 80 degrees C). Applications such as city surveillance systems, smart manufacturing, etc. The Micro Mini Industrial SFP Media Converter provides reliable, stable and continuous long-reach data transmission and can be installed in any harsh environment without considering space. UF-CIES3011-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port SFP, 100Base-FX or 1000Base-X dual mode
► Dip Switch: LFP, ALS(SFP), FX Reset, FX Speed
► Ultra-compact size metal housing with an IP40 rating
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
► Support IEEE 802.3x Flow Control
► Both Desktop and Wall Mounting installation
► Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature
|
Ethernet Interface |
|
|
Ports |
1 × 10/100/1000Base-TX RJ45 port |
|
Pors Mode(Tx) |
Auto Negotiation Speed |
|
Full/Half Duplex Mode |
|
|
Auto MDI/MDI-X Connection |
|
|
Standards |
IEEE 802.3 for 10Base-T |
|
IEEE 802.3u for 100Base-T(X) and 100Base-FX |
|
|
IEEE 802.3ab for 1000Base-T |
|
|
IEEE 802.3z for 1000Base-SX/LX/LHX/ZX |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3x for flow control |
|
|
Maximum Packet Length |
Up to 10K |
|
Forward Filter Rate |
14,880pps(10Mbps) |
|
148,800pps(100Mbps) |
|
|
1,488,000pps(1000Mbps) |
|
|
Transmission Mode |
Store and Forward (full/half duplex mode) |
|
Transmission Distance |
|
|
SFP Port |
Depends on optical module(0-160km) |
|
RJ45 Port Transmission Distance |
100m（using standard CAT5/CAT5e cable） |
|
Power Information |
|
|
Input Power |
12VDC |
|
Power Consumption |
2.4W Max. 0.2A@12VDC |
|
Physical Characteristics |
|
|
Housing |
Aluminum case |
|
IP Rating |
IP40 |
|
Dimensions |
38.5 × 117 × 24.5 mm; (with screw 42 x 117 x 24.5 mm) |
|
Installation Mode |
Wall Mounting or Desktop |
|
Weight |
0.15Kg |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ (-40 to 176 ℉) |
|
Operating Humidity |
5%~90% (non-condensing) |
|
Storage Temperature |
-40℃~85℃ (-40 to 185 ℉) |
|
DIP Switch |
|
|
#1 |
LFP(Link Fault Pass Through) ON/OFF |
|
#2 |
ALS(Only for SFP) ON/OFF |
|
#3 |
FX Rest ON/OFF |
|
#4 |
FX Speed Setting |
|
LED Indicator |
|
|
Power |
Connect-always |
|
RJ45 |
Link/Act: connect-always; data exchange-twinkle |
|
Fiber |
Link/Act: connect-always; data exchange-twinkle |
|
Certification Standard |
|
|
EMC/EMI/EMS |
FCC Part15 Class A |
|
Shock |
IEC60068-2-27 |
|
Vibration |
IEC60068-2-6 |
|
Freefall |
IEC60068-2-31 |
|
Safety |
EN 60950-1 |
|
Package Contents |
|
|
Device |
1 x Industrial Media Converter |
|
Installation Kit |
1 x Caps, plastic, for SFP Slots |
|
Documentation |
1 x Quick installation guide |
|
Warranty |
|
|
MTBF |
＞ 300,000 hours |
|
Defects Liability Period |
5 years warranty, lifetime technical support |
- Download FileName：UF-CIES3011-SFP Micro Mini Industrial SFP Media Converter Datasheet V1.0.pdf Size： 756KB
|
Model |
Description |
|
UF-CIES3011-SFP |
Micro Mini Industrial 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter, including 12V 1A external power adapter |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Wall Mount Bracket is included. |
|
Power Options |
►12W/1A 12VDC Power Supply. Open Wire for Terminal Block. |
|
► 12V 1A external power adapter is included. |
