Physical Port

RJ45 port and speed

8x10/100/1000BASE-T 802.3at PoE

Fiber port and speed

2x100/1000BASE-X SFP (Dual Mode, Auto Detection)

Console

1 x RJ45-to-RS232 serial port (115200, 8, N, 1)

Parameters

Ethernet standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ab Gigabit 1000T

IEEE 802.3x flow control and back pressure

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3ad port trunk with LACP

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree Protocol

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN tagging

IEEE 802.1ad Q-in-Q VLAN stacking

IEEE 802.1x Port Authentication Network Control

IEEE 802.1ab LLDP

ITU G.8032 ERPS Ring

RFC 768 UDP

RFC 793 TFTP

RFC 791 IP

RFC 792 ICMP

RFC 2068 HTTP

RFC 1112 IGMP v1

RFC 2236 IGMP v2

Packet buffer

4Mbits

Packet length

Up to 10K Bytes

MAC address table

8K

Transmission mode

Store and Forward (full/half duplex mode)

Switch Fabric

24Gbps/non-blocking

Exchange property

Delay time: < 7ps

Backplane bandwidth: 20Gbps

Packet forwarding rate: 14.88Mpps

PoE

PoE Standard

8 x IEEE 802.3af /IEEE 802.3at PoE

Power budget

Max. PoE output power budget 30W

Power Pin Assignment

Only support 1/2(+), 3/6(-)

PoE Output Power

Output PoE power for singe port≤30W

Up to 240-watt PoE budget (48VDC), 120-watt PoE budget (12VDC), 80-watt PoE budget (12VDC)

LED Indicator

PWR (Green)

Power indicator

1-8(Link/Act)/ (Orange)

Network indicator

9-10(Link/Act)/ (Green)

Fiber indicator

PoE (Green)

POE indicator

Power Information

Power access mode

Phoenix terminal

Redundant power input

DC 12-48V

Overload protection

Yes

Power reverse

Support

Power consumption

Full-load<15W (Not use PoE)

Physical Property

Protection grade

IP40 aluminum case

Cooling mode

Natural cooling, no fan design

Dimensions

165mm x 120mm x 52mm (L x W x H)

Installation mode

DIN trail/wall-mountable

Weight

800g

Working Environment

Operating Temperature

-40℃~80℃

Operating Humidity

5%~90% non-condensing

Storage Temperature

-40℃~80℃

Warranty

MTBF

500,000 hours

Defects Liability Period

5-year warranty, lifetime technical support

Certification Standard

EMI

FCC Part15 Subpart B Class A,

EN 55022 Class A

EMS

EN61000-4-2(ESD),

EN61000-4-3(RS),

EN61000-4-4(EFT),

EN61000-4-5(Surge),

EN61000-4-6(CS),

EN61000-4-8,

EN61000-4-11

Collision

IEC60068-2-27

Drop

IEC60068-2-32

Vibration

IEC60068-2-6

Safety grade

EN60950-1

Software

Port

Support IEEE802.3x flow control (full duplex

Support for broadcast storm suppression based on port rate

Support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps

Support port temperature protection settings

Support port EEE green Ethernet energy saving configuration

PoE Management

Support total power limit configuration for POE power supply

Support PoE output power allocation per port, close / start af/at

Support PoE output priority configuration per port

Support PoE work status per port display

Support power delay start

Support PoE work and time scheduling

Layer 3 Function

L2+ network management function

Support IPV4/IPV6 management

Support layer 3 soft routing (weak three tier) forwarding

Support different network segments, communication between different VLAN

Support static routing / default routing 128, 1024 ARP software forwarding

VLAN

Support port based VLAN (4K), IEEE802.1q

Support protocol based VLAN

Support Voice VLAN

Support for MAC address-based VLANs

Support Access, Trunk, Hybrid three types of port configuration

Support QinQ configuration

Port Aggregation

Support LACP

Support static polymerization

Support the largest 8 aggregation groups, each aggregation group supports 8 ports

Spanning Tree

Support STP (IEEE802.1d)

Support STPRSTP (IEEE802.1w)

Support STP MSTP (IEEE802.1s)

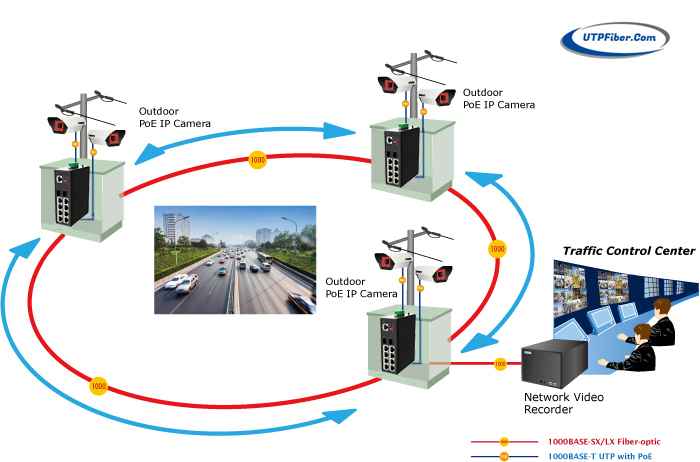

Industrial Ring Network Protocol

Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. The self-healing time of the ring network is less than 20ms

Multicast

Support IGMP Snooping V1/V2 and support 1024 multicast groups at most

Support the user's quick departure mechanism

Support MLD Snooping V1/V2

Support multicast VLAN

Mirror

Bi-directional traffic mirroring supporting the basic port

QoS

Support Diff-Serv QoS

Each port supports 8 output queues

Support 802.1p/DSCP priority mapping

Support queue scheduling mechanism (SP, WRR, SP+WRR)

Support priority tag Mark/Remark

Support stream-based packet filtering

Support for stream-based redirection

Support flow-based speed limit

ACL

Support L2 to L4 packet filtering function, can match the first 80 bytes of the message, provide based on the source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL.

Support ACL based on port and VLAN

Safety Characteristics

Support user grading management and password protection

Support IEEE802.1X authentication / centralized MAC address authentication

Support AAA&RADIUS authentication

Support the number of MAC address learning restrictions

Support MAC address black hole

Support SSH 2.0 to provide secure passwords for user login

Support SSL to ensure data transmission security

Support port isolation

Support the speed limit function of ARP message

Support IP source address protection

Support ARP intrusion detection function

Support against DoS attacks

Support port broadcast message suppression

Support host data backup mechanism

Binding capabilities of IP+MAC+VLAN+ ports

DHCP

Support DHCP Client

Support DHCP Snooping

Support DHCP Serve

Support DHCP Relay

Management and Maintenance

Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration

Support WEB network management (HTTPS)

Support FTP, TFTP, Xmodem, SFTP file download management

Support SNMP V1/V2C/V3

Support one bond reduction

Support NTP clock

Support system work log

Support Ping detection

Support cable state detection

Support CPU instant utilization status view

Support link layer discovery protocol LLDP

Support NMS intelligent management cente

System Requirements

Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later

Cat5e or later Ethernet cable

TCP/ IP, network adapter and network operating system (Microsoft Windows, Linux or Mac OS X) installed on every computer in the network

Model

Description

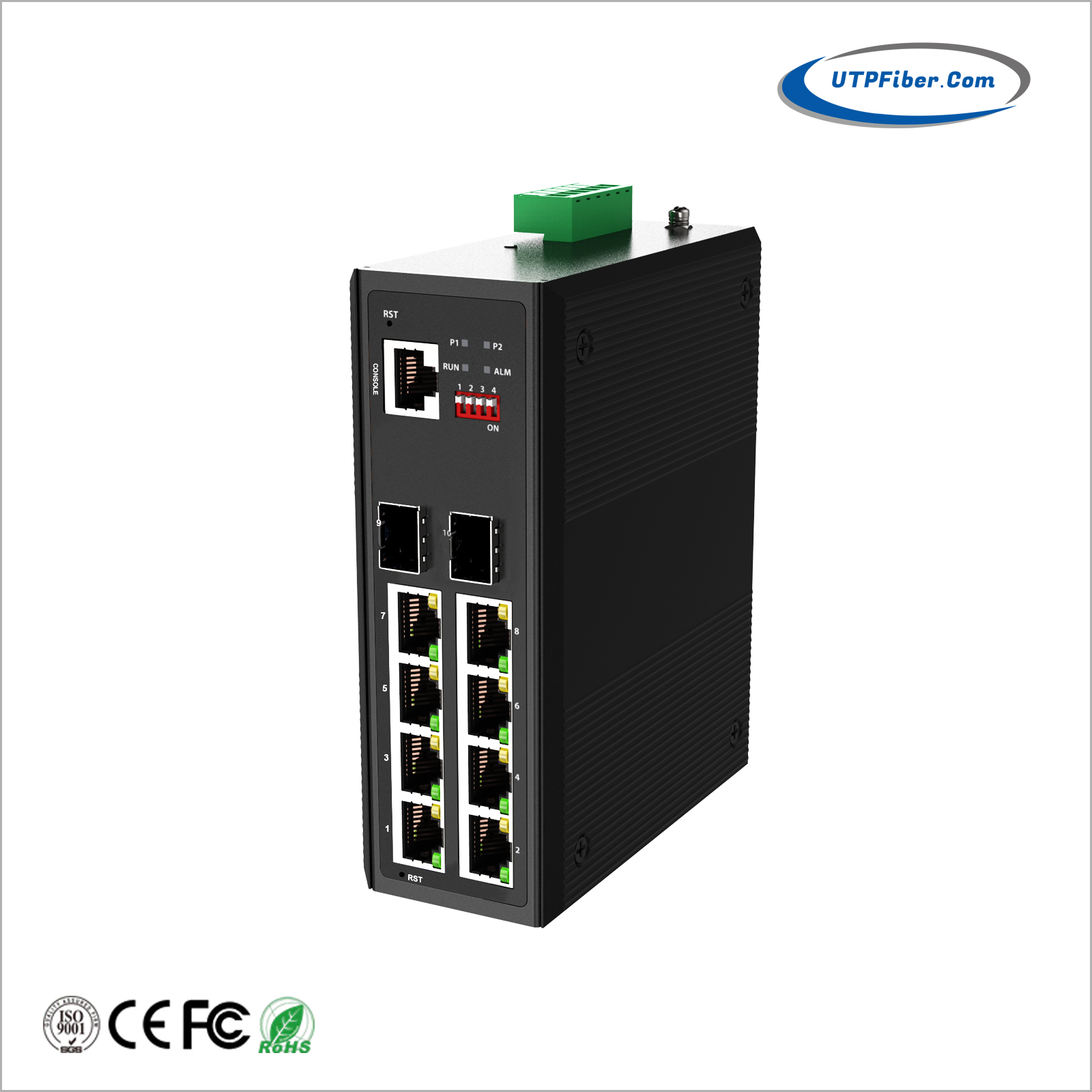

UF-MIES208GP-12

L2+ Managed Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Solar Power PoE Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

►12~48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
