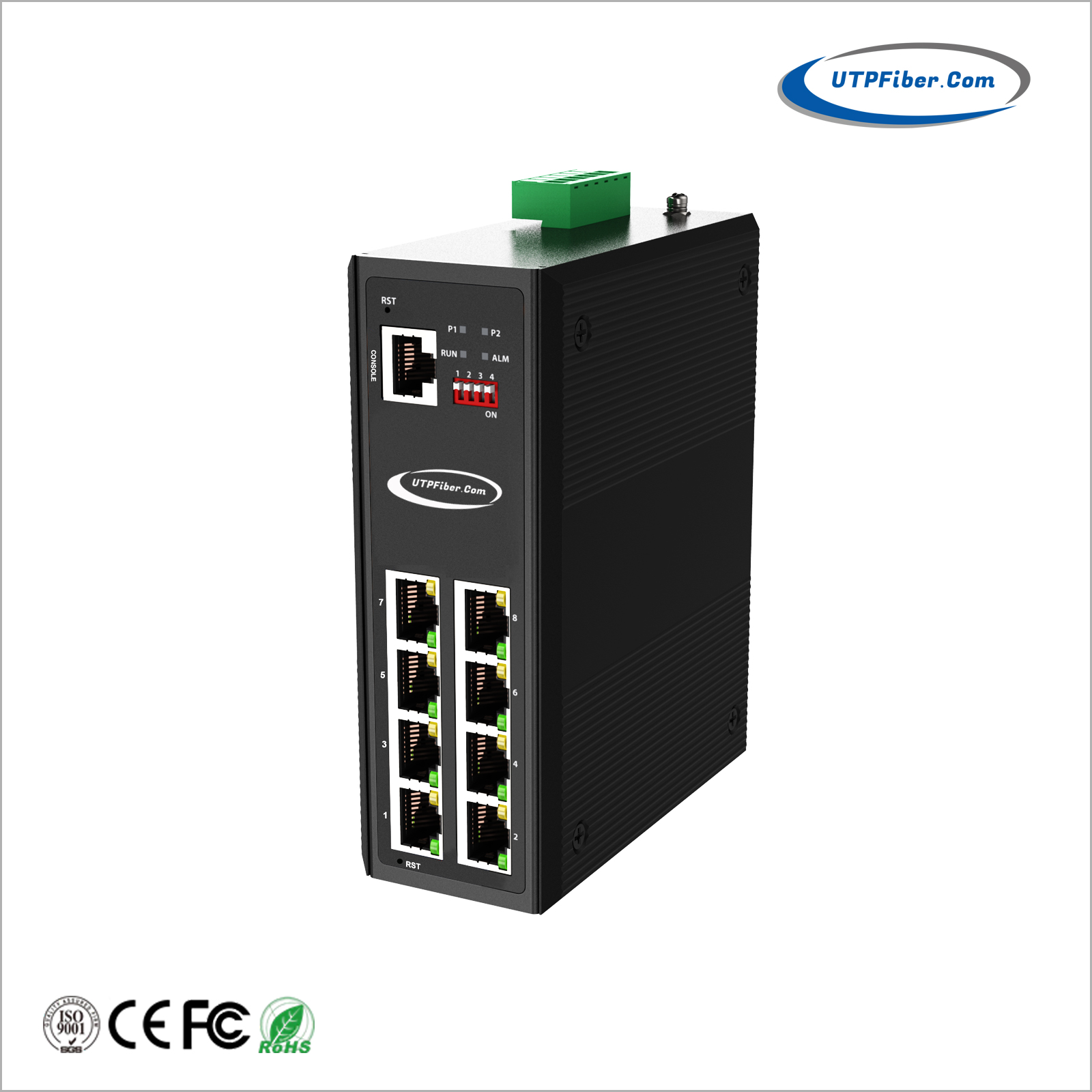

Industrial L2+ 8-Port 10/100/1000T 802.3at PoE Managed Ethernet Switch
Model:UF-MIES08GP
► 8-Port 10/100/1000T 802.3at PoE+
► Full Gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS
► Build up a redundant network with STP/RSTP/ERPSv2
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.

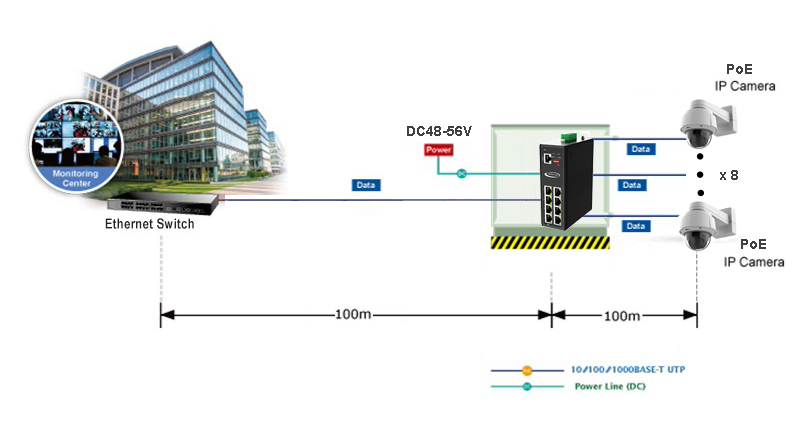

UF-MIES08GP is an industrial L2+ Managed switch with 8-Port 10/100/1000T 802.3at PoE. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain. With dual power input design, UF-MIES08GP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
UF-MIES08GP provides robust Layer 2+ Gigabit network connectivity, including but not limited to Static route, LAN network security, ACL/QoS policy… Moreover, By configuring ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power systems in industrial automation networks to enhance system reliability and uptime in harsh environments. As can be seen, the Managed Industrial Switch is easy to manage and maintain.
The Managed Industrial Ethernet Switch allows various network management methods, such as the WebGUI, CLI and NMS. The notion of easy to use, particularly with no additional hardware investment and installation. Industrial Network Switch can deploy centralized management, Layer 2 to Layer 4 QoS, Bandwidth allocation, real-time monitoring, etc.
Both SSH2.0 and HTTPS/TLS protocols are utilized to provide powerful protection against network threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, user hierarchical management, SNMPv3 authentication, and so on to complement it as an all-security solution. The Industrial Network Switch administrator can now construct highly secure corporate networks with considerably less time and effort than before.
► 8-Port 10/100/1000T 802.3at PoE+
► Full Gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS
► Build up a redundant network with STP/RSTP/ERPSv2
► RADIUS, SNMPv3, IEEE 802.1x, HTTPs, SSHv2 and sticky MAC address to enhance network security
► EherNet/IP and Modbus TCP protocols are supported for device management and monitoring
► QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including SP, WRR&SP+WRR
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
|
Physical Port |
|
|
RJ45 port and speed |
8 x 10/100/1000BASE-T 802.3at PoE |
|
Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP ITU G.8032 ERPS Ring RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
|
Packet buffer |
4Mbits |
|
Packet length |
Up to 10K Bytes |
|
MAC address table |
8K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Switch Fabric |
24Gbps/non-blocking |
|
Exchange property |
Delay time: < 7ps Backplane bandwidth: 20Gbps Packet forwarding rate: 14.88Mpps |
|
IGMP Groups |
2048 |
|
Max. No. of VLAN |
64 |
|
VLAN ID Range |
VID 1 to 4094 |
|
PoE |
|
|
PoE Standard |
8 x IEEE 802.3af /IEEE 802.3at PoE |
|
Power budget |
Max. PoE output power budget 30W |
|
Power Pin Assignment |
1/2(+), 3/6(-) |
|
PoE Power Output |
IEEE 802.3af Standard |
|
PoE Power Budget |
240W maximum @54V DC |
|
DIP Switch |
|
|
#1 |
ON: RSTP Disabled OFF: RSTP Enable (Default) |
|
#2 |
ON: Port VLAN Enable OFF: Port VLAN Disable (Default) |
|
#3 |
N/A |
|
#4 |
N/A |
|
Note: 2. VLAN switches to the ON position, indicating VLAN is enabled. 3. To take effect the DIP Switch function while the ethernet switch is in operation, there is a need to reboot the Ethernet switch after tuning the DIP switch. |
|
|
LED Indicator |
|
|
Power |
Connect-always |
|
RJ45 |
Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
|
Power Information |
|
|
Input Power: |
48~56VDC, Redundant Power (Terminal Block) |
|
Connector: |
1 removable 6-contact terminal blocks Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
|
Protection: |
Overload Current Protection, Reverse Polarity Protection |
|
Power Consumption: |
240W Max. (PoE in use, 48VDC input) |
|
10W Max. (PoE not in use) |
|
|
Physical Property |
|
|
Protection grade |
IP40 aluminum case |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions (L x W x H) |
138mm x 108mm x 49mm |
|
Installation mode |
DIN-Rail/wall-mountable |
|
Weight |
680g |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃~80℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Defects Liability Period |
5-year warranty, lifetime technical support |
|
Certification Standard |
|
|
Safety |
IEC/EN 62368-1 |
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8 (PFMF), EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Environmental |
RoHS |
|
Software Features |
|
|
Redundancy Protocols |
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation |
|
Multicast Support |
Support IGMP Snooping V1/V2/V3, support GMRP, GVMP,802.1Q |
|
VLAN |
Support IEEE 802.1Q 4K VLAN, support QINQ, Double VLAN, |
|
Time Management |
SNTP |
|
QOS |
Flow-based redirection
Flow-based rate limiting |
|
ACL |
Port-based Issuing ACL
ACL based on port and VLAN |
|
Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
|
Management Function |
Support CLI, WEB, SNMPv1/v2/v3,Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT |
|
Alarm Management |
Support 1 way relay alarm output, RMON, TRAP |
|
Security |
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82，802.1X security access, Support user hierarchical management, ACL access control list, Support DDOS, port-based MAC filtering /binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit |
|
Advanced Layer 2+ Features |
IPv4/IPv6 Management Static Route |
- Download FileName：UF-MIES08GP L2+ Managed Industrial 8-Port Gigabit PoE Switch Datasheet V1.0.pdf Size： 453KB
|
Model |
Description |
|
UF-MIES08GP |
L2+ Managed Industrial 8-Port 10/100/1000T 802.3at PoE Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
►DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
