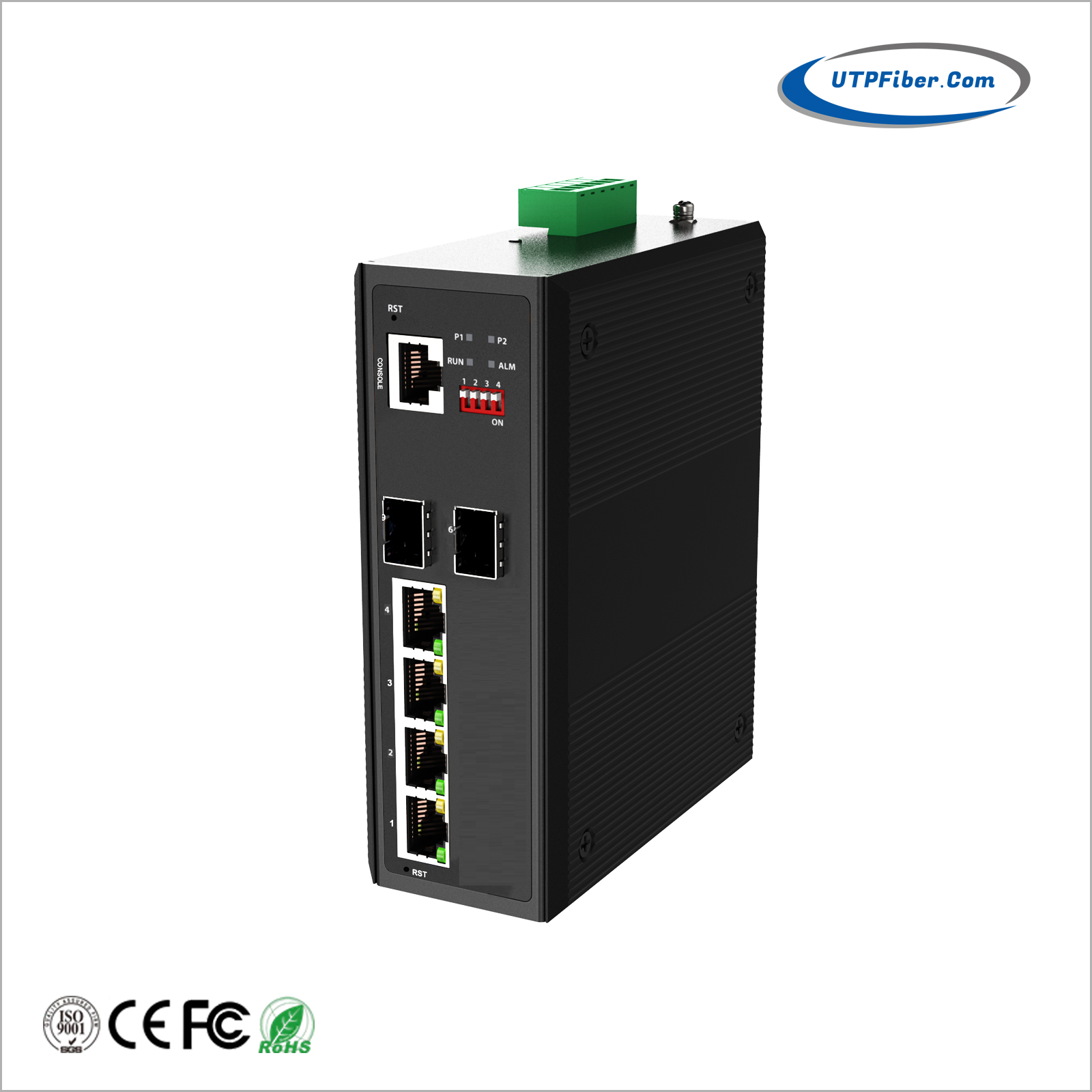

L2+ Managed Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Solar Power PoE Switch
Model:UF-MIES204GP-SFP-12V
► 4-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP
► 12~48VDC wide range power input with power booster function
► Supports IEEE 802.3at PoE+ (Max 30W PoE at one port), Up to 120W PoE budget (48VDC), 120W PoE budget (24VDC), 60W PoE budget (12VDC)
► Support L2+ full network management, PoE network management and configuration
UF-MIES204GP-SFP-12V is a
L2+ Managed Industrial 4-Port 10/100/1000T 802.3at Solar Power PoE Switch w/
12~48V Booster. The DIN-rail type managed Gigabit Ethernet PoE+ Switch with four
10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two 1000BASE-X fiber
optic interfaces for uplink connection. It supports 12VDC or 24VDC power input
with power booster function. With its reliable design and ease of use, the
product is a great choice for integrating networks consisting of network
devices such as IP cameras and wireless access points between remote locations.
To facilitate the 802.3at
PoE+ usage with the commonly-used 12~48V DC power input for transportation and
industrial-level applications, the UF-MIES204GP-SFP-12V adopts 12~48V DC to 48V
DC power boost technology to solve power source issue but does not require
special power supplies. Its wide-ranging voltages design is suitable for
worldwide operability with high availability applications requiring dual or
backup power inputs. It supports 120W PoE budget (48VDC), 120W PoE budget
(24VDC), 60W PoE budget (12VDC).
With dual power input design, UF-MIES204GP-SFP-12V can offer redundant
mechanisms for critical applications that need always-on connections. It can
also operate either at standard operating temperature range -40 to 80°C. Housed
in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect
choices for harsh environments, such as industrial networking, intelligent
transportation systems (ITS) and are also suitable for many military and
utility market applications where environmental conditions exceed commercial
product specifications.
► 4-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP
► 12~48VDC wide range power input with power booster function
► Supports IEEE 802.3at PoE+ (Max 30W PoE at one port), Up to 120W PoE budget (48VDC), 120W PoE budget (24VDC), 60W PoE budget (12VDC)
► Support L2+ full network management, PoE network management and configuration
► Support 9K bytes giant frame, compatible with various extension protocol
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
|
Physical Port |
|
|
RJ45 port and speed |
4 x 10/100/1000BASE-T 802.3at PoE |
|
Fiber port and speed |
2 x 100/1000BASE-X SFP (Dual Mode, Auto Detection) |
|
Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP ITU G.8032 ERPS Ring RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
|
Packet buffer |
4Mbits |
|
Packet length |
Up to 10K Bytes |
|
MAC address table |
8K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Switch Fabric |
24Gbps/non-blocking |
|
Exchange property |
Delay time: < 7ps Backplane bandwidth: 20Gbps Packet forwarding rate: 14.88Mpps |
|
PoE |
|
|
PoE Standard |
4 x IEEE 802.3af /IEEE 802.3at PoE |
|
Power budget |
Max. PoE output power budget 30W |
|
Power Pin Assignment |
1/2(+), 3/6(-) |
|
PoE Power Output |
IEEE 802.3af Standard |
|
PoE Power Budget |
120W maximum @54V DC 120W maximum@24V DC 60W maximum@12V DC |
|
LED Indicator |
|
|
Power |
Connect-always |
|
RJ45 |
Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
|
Fiber |
Link/Act: connect-always; data exchange-twinkle |
|
Power Information |
|
|
Input Power: |
12~48VDC, Redundant Power (Terminal Block) |
|
Connector: |
1 removable 6-contact terminal blocks Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
|
Protection: |
Overload Current Protection, Reverse Polarity Protection |
|
Power Consumption: |
120W Max. (PoE in use, 48VDC input) |
|
15W Max. (PoE not in use) |
|
|
Physical Property |
|
|
Protection grade |
IP40 aluminum case |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions (L x W x H) |
138mm x 108mm x 49mm |
|
Installation mode |
DIN-Rail/wall-mountable |
|
Weight |
650g |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃~80℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Defects Liability Period |
5-year warranty, lifetime technical support |
|
Certification Standard |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
|
Software |
|
|
Software Features |
Redundant network: STP, RSTP, MSTP, IT-T G.8032 Ethernet Ring Protection Switching (ERPS)for redundant cabling ERPS/ Ring for Redundant Cabling, recovery time<20ms in 250 devices |
|
Multicast: IGMP Snooping V1/V2/V3 |
|
|
VLAN: IEEE 802.1Q4K VLAN, GVRP, GMRP, QINQ |
|
|
Link Aggregation: Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation |
|
|
QOS: COS, DSCP, 8 queues, WRR/SP/WFQ scheduling, QOS Policy |
|
|
Management Function: CLI, Web based management, SNMP v1/v2c/v3, Telnet/SSH server for management |
|
|
Diagnostic Maintenance: Port mirroring, Ping |
|
|
Alarm management: 1 way relay alarm output, RMON, SNMP Trap |
|
|
RMON, MIBII, Port mirroring, Event syslog, DNS, SNTP, IEEE 802.1ab LLDP |
|
|
Security: DHCP Server/Client/Relay option 82/Snooping User hierarchical management |
|
|
Flexibility security: Port based and MAC based IEEE 802.1X, ACL, HTTP/HTTPS, SSL/SSH v2 |
|
|
Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control. |
|
|
Broadcast storm suppression, Un known-Multicast suppression and Unknown-Unicast suppression |
|
|
Software upgrade via HTTP, redundant firmware to avoid upgrade failure |
|
- Download FileName：UF-MIES204GP-SFP-12V Managed Industrial 4G+2SFP Solar Power PoE Switch Datasheet V1.0.pdf Size： 526KB
|
Model |
Description |
|
UF-MIES204GP-SFP-12V |
L2+ Managed Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Solar Power PoE Switch w/ 12~48V Booster |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
►DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
