Interface Characteristics

Fixed Port

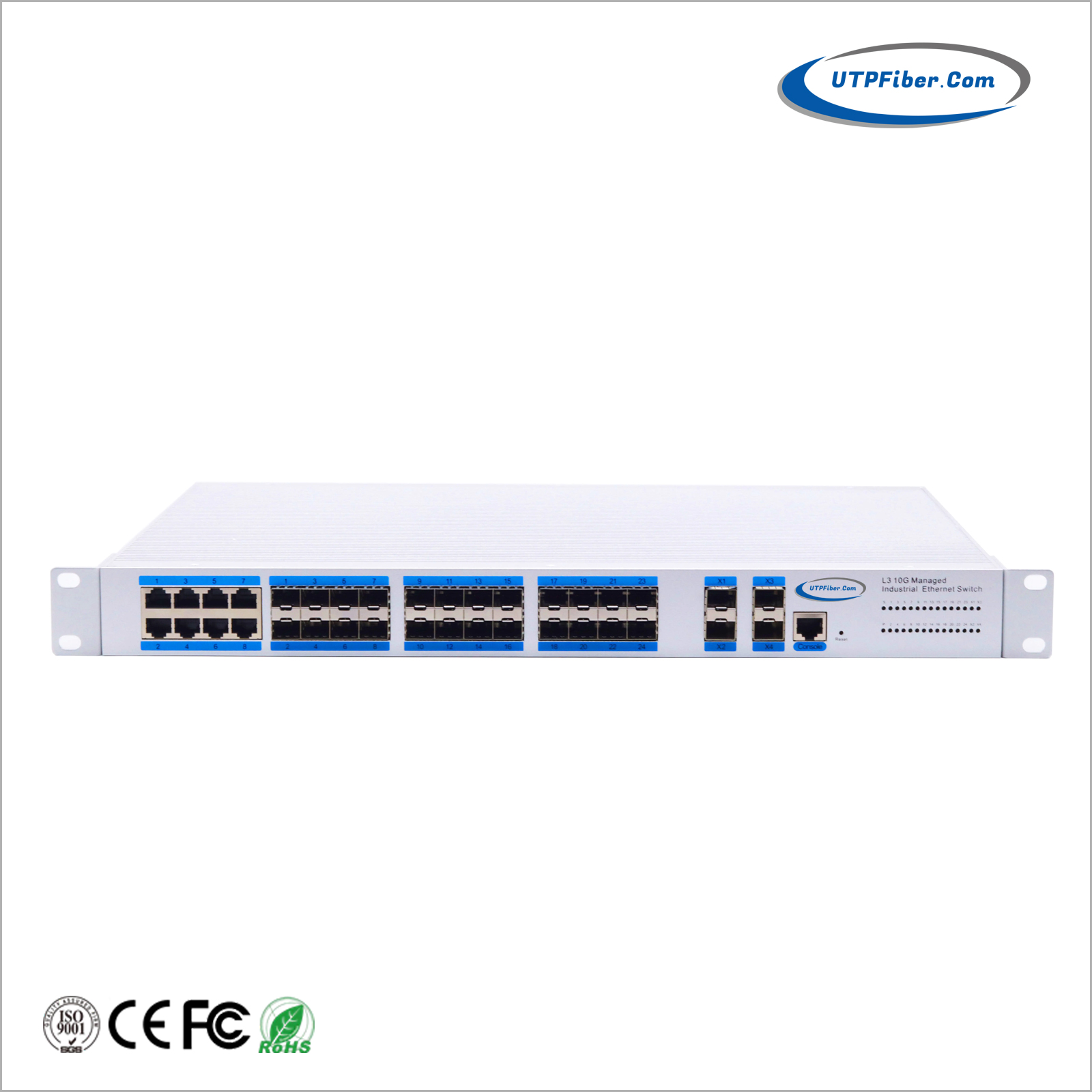

4* 1/ 10G uplink SFP+ ports
24* 100/ 1000Base-X SFP ports
8* 10/ 100/ 1000Base-T RJ45 combo ports
1*Console port

Ethernet Port

Port 1-24 support 10/ 100/ 1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meters)

100BASE-TX: Cat5 or later UTP (≤100 meters)

1000BASE-T: Cat5e or later UTP (≤100 meters)

Optical Fiber Port

1/10G SFP+ optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Optical Fiber Port Expansion

Support Turbo overclocking 2.5G optical module expansion and ring network

Optical Cable/ Distance

Multi-mode:850nm /0~300M(10G) ,850nm /0~500M (1.25G);

Single-mode:1310nm/ 0~40KM,1550nm/ 0~120KM.

Chip Parameter

Network Management Type

L3

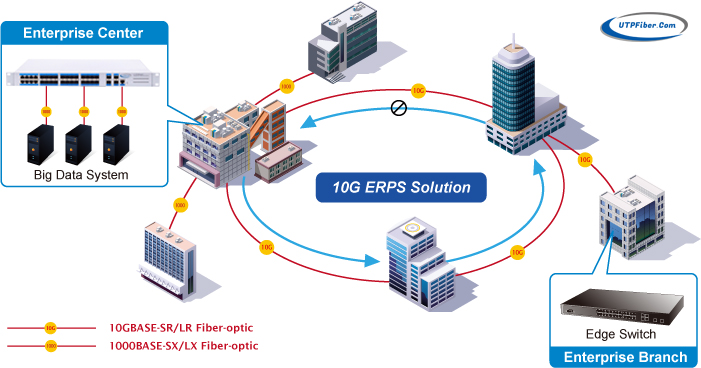

Ring network

Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms

Network Protocol

IEEE802.3 10BASE-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3ae10GBase-LR/SR
IEEE802.3x

Forwarding Mode

Store and Forward (Full Wire Speed)

Switching Capacity

128Gbps

Buffer Memory

96Mpps

MAC

32K

LED Indicator

Power Indicator Light P: 1 Green

Fiber Indicator Light F: 1 Green (Link, SDFED)

On the RJ45 seat
Yellow: Indicate PoE
Green: Indicates network working status

Reset Switch

Yes, Press and hold the reset switch for 5s and release it to restore the factory settings

Power

Working Voltage

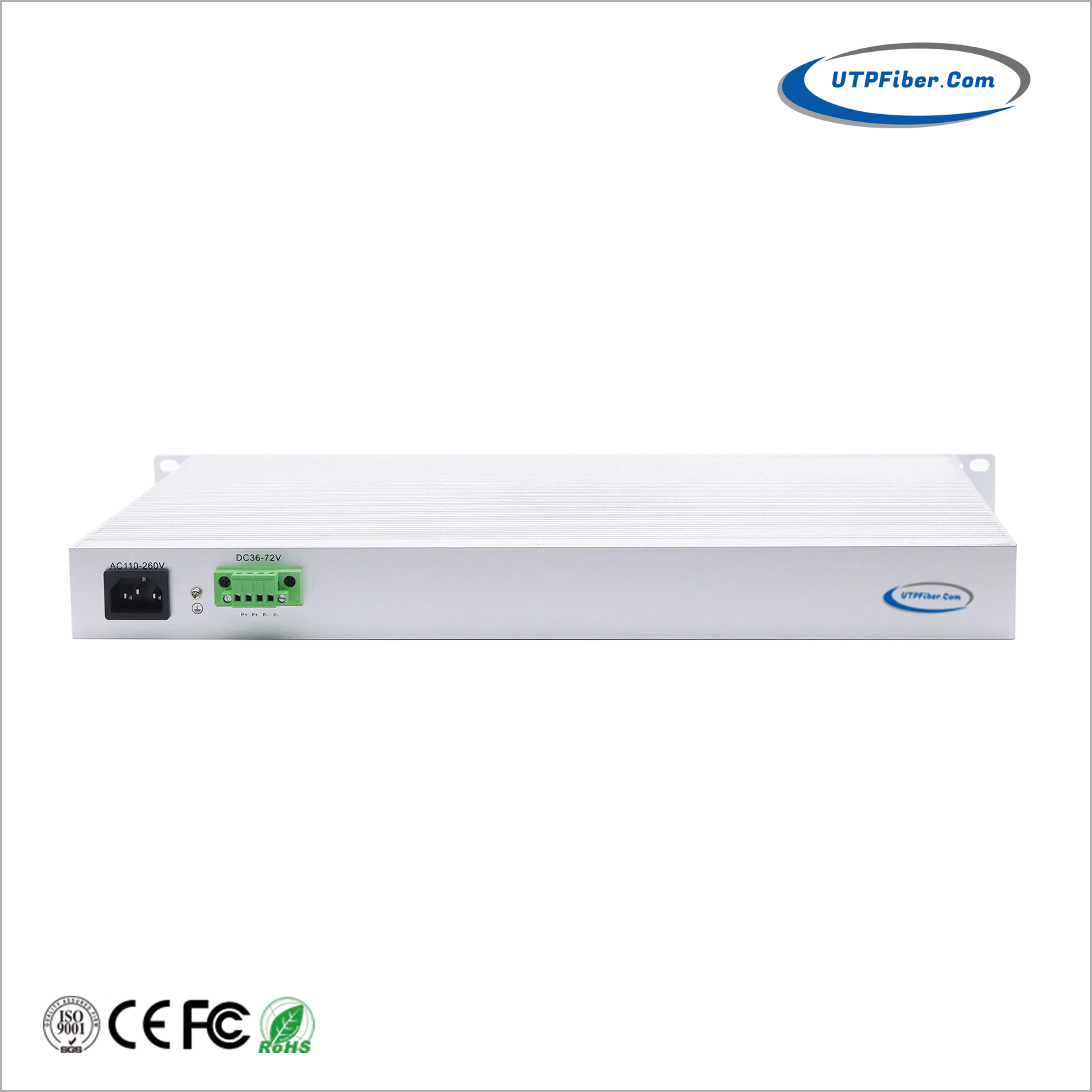

DC36-72V, 4 Pin industrial phoenix terminal, support anti-reverse protection

Power Consumption

Standby<35W, Full load<450W

Power Supply

AC100-240V 50/60Hz  industrial power supply

Certification & Warranty

Lightning Protection

Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~ 1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V( 150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m , 1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4- 10(damped oscillation):30A/m  1MHz
IEC61000-4- 12/ 18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4- 16(common-mode transmission):30V; 300V, 1s
FCC Part 15/CISPR22(EN55022):Class B
IEC61000-6-2(Common Industrial Standard)

Mechanical Properties

IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)

Certification

CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B, RoHS

Physical Parameter

Operation TEMP /Humidity

 -40~+80°C, 5%~90% RH Non condensing

Storage TEMP /Humidity

-40~+85°C, 5%~95% RH Non condensing

Dimension (L*W*H)

440mm* 300mm*44mm

Installation

Desktop, 19 inch 1U cabinet installation

Network Management Features

Port configuration

Auto-negotiation
Flow Control
Port Mirror: TX/RX/BOTH; Many-to-1 monitor
Traffic statistics

Link Aggregation

Static link aggregation
LACP
Algorithm based on Source/Destination MAC Algorithm based on Source/Destination IP

MAC Table

Aging Time
Static MAC address
Dynamic MAC address management

VLAN

4094 Active VLANs
4094 VID
802.1Q Tag VLAN
Port VLAN
Protocol VLAN
MAC VLAN
Voice VLAN
802.1ad Q-in-Q tunneling Private
VLAN (Protected port) GARP/GVRP

ACL

256ACLs
L2, L3 e L4
Time-based ACL

Spanning tree

802.1D Spanning Tree Protocol (STP)
802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple
Spanning Tree Protocol (MSTP) Loop Guard
Root Guard
TC-BPDU Guard
BPDU Guard BPDU
Filter

 Ring Protection

<20ms G.8032 ERPS Ring

Multicast

256 groups
IGMP v1/v2/v3 Snooping, Fast Leave MLD
Snooping
Multicast VLAN

QOS

port-based
CoS 802.1p-based CoS
DSCP-based
Scheduling algorithms SP, WRR, SP+WRR
Storm Control (Broadcast, Multicast, Unknown Unicast) Bandwidth control per port

DHCP

SNMP v1/v2c/v3 with Full Private MIBs RMON 4
groups
WEB (HTTP/HTTPS)
CLI (Telnet, Console, SSHv1/v2) Firmware
upgrade via console/web/TFTP Configuration
Backup/Reload
Dual Firmware
LLDP

Security Features

Port Security MAC
address filter
ARP Association (Manual, ARP scanning, DHCP snooping) ARP
Protection
DoS (Denial of Service)
Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type;
802.1x Authentication (port-based e MAC-based)
TACACS/TACACS+ Authentication
RADIUS Authentication
DHCP Filter
Guest VLAN
SSLv2/SSLv3/TLSv1
SSHv1/SSHv2
Restriction of WEB access based on: IP Address, And. MAC and Port; Port Isolation Loopback detection

Other Features

DNS Client DHCP
Relay DHCP Client
DHCP Snooping
DHCP Option 82
SNTP Client
UDLD

Maintenance

Cable Diagnostics
Ping
SFP DDM(Digital Diagnostics Monitoring) Thermal
protection
System log (Local and Remote)
Memory and CPU Monitoring

L3 functions

IPV4 Equal Cost Routing
NG protocol, maximum 1000 entries
ARP protocol, maximum 1000 entries
Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6
IPV4/IPV6 VRRP, the maximum group is 255
IPV4/IPV6 VLANIF interface supports up to 128
IPV4/IPV6 static route/default route supports up to 128 entries
L3 network management function, IPV4/IPV6 dual-stack management
IPV4 dynamic routing, RIPv1/v2, OSPFv2
Layer 3 routing and forwarding, support communication between different network segments and different VLANs
