Product Introduction

Model No.

UF-IES005P-M12-67

Product Name

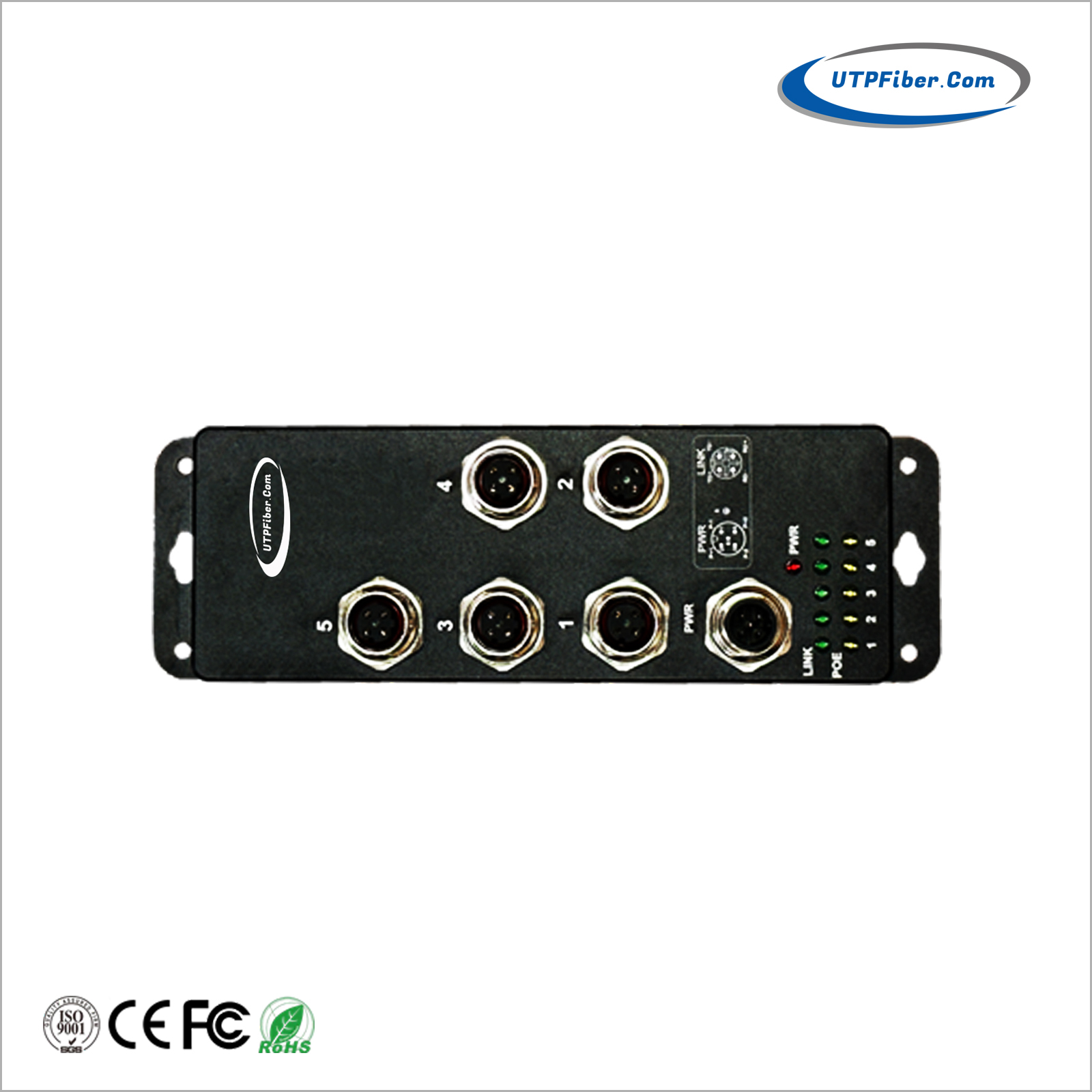

Industrial M12 IP67 Waterproof 4-Port 10/100TX 802.3at PoE + 1-Port 10/100TX Ethernet Switch, M12 Connector (D-Coded); -40° to 80°C

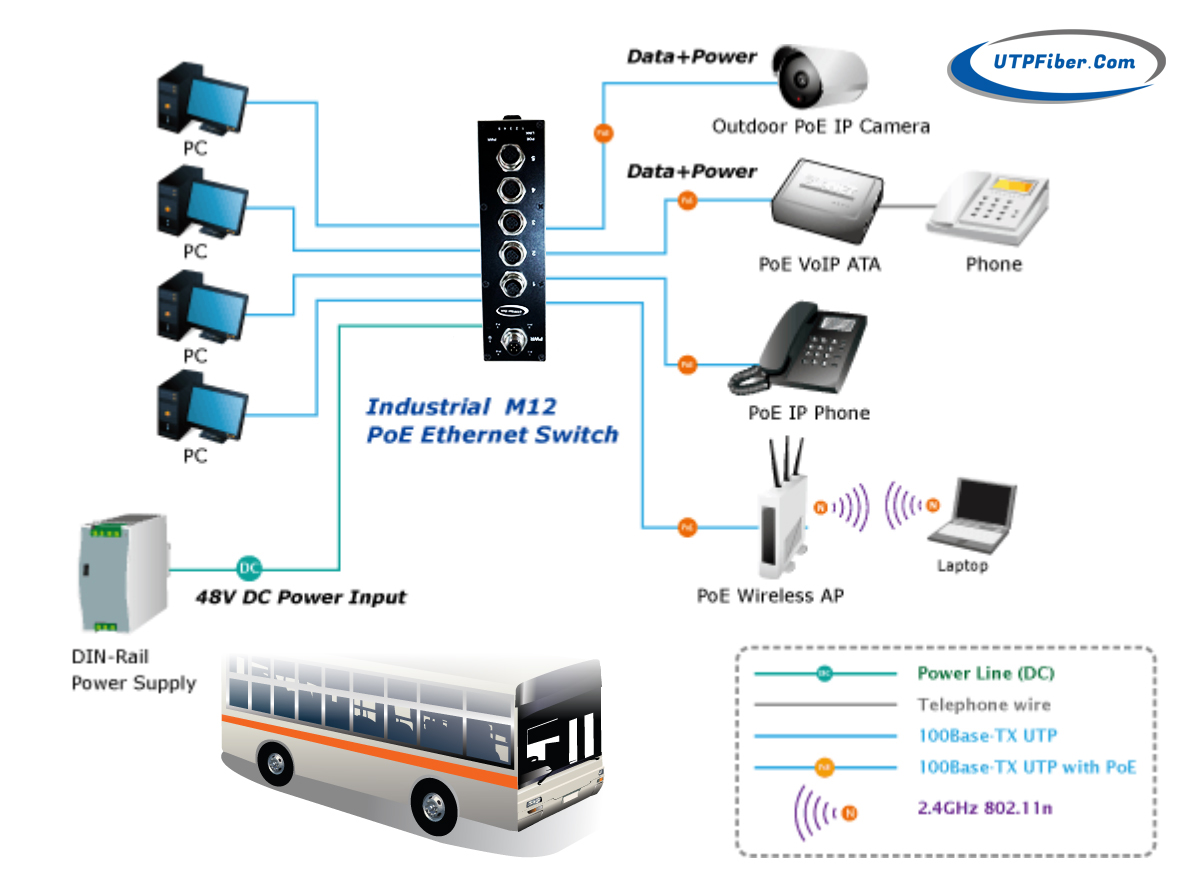

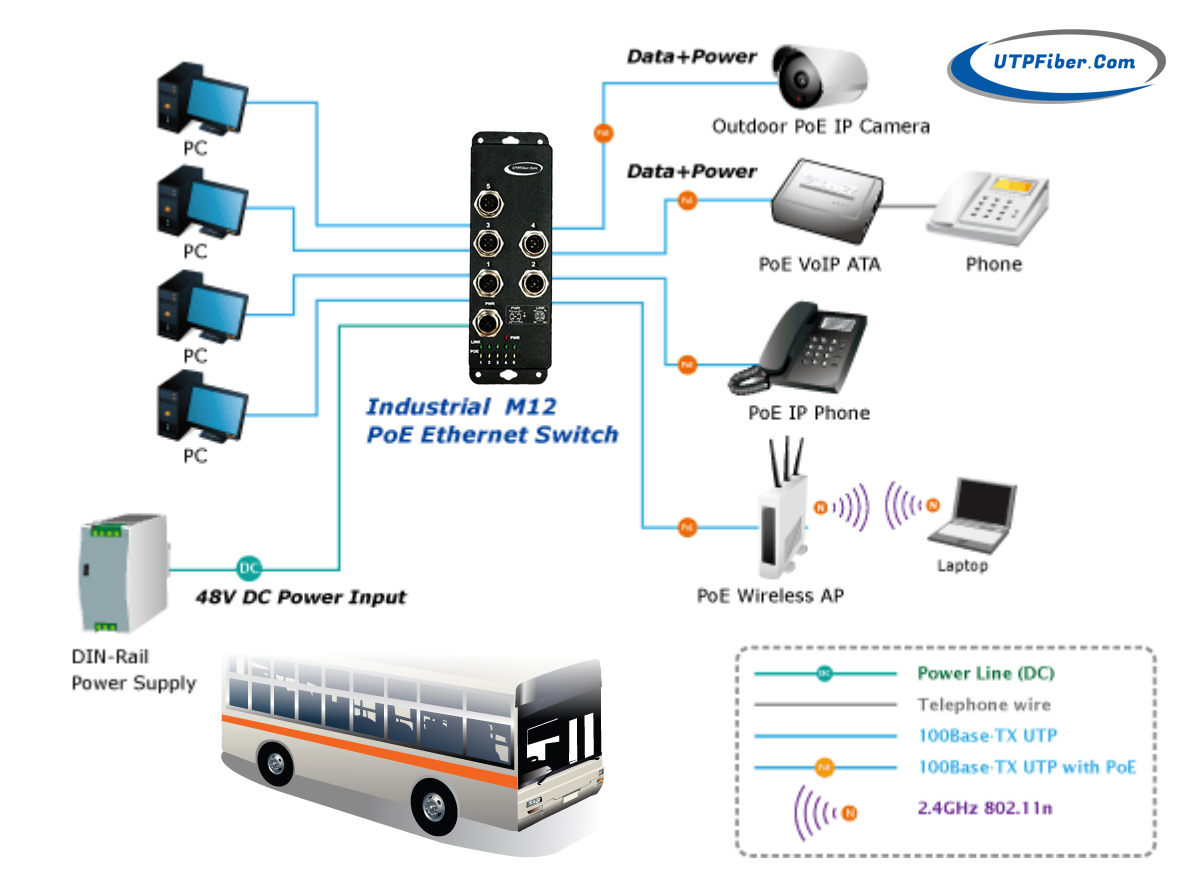

Product Description

1-Port 10/100Base TX Uplink + 4-Port 10/100Base Tx Downlink

Port Description

5-Port M12 D-coded 4-pin Female Plug connection ports

Ethernet Interface

RJ-45 Port Connector Type

10/100BaseT(X) automatic detection, full/half duplex MDI/MDI-X adaptive

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet/PSE

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type

End-span

PoE Power Output

Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)

Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)

Power Pin Assignment

1/2(+), 3/6(-)

PoE Budget

120 watts @48-57V DC input

Power Parameters

Power

l  Access terminal: M12 A-coded 5-core male terminal block

l  Power Input (DC): DC48~57V (Dual power), support reverse connection protection

LED Indicator

l  Power Indicator：Red

l  Interface indicator: Link (Green)

Standards

Network Protocols

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3x full-duplex flow control

Twisted Pair

l  10BASE-T: Cat3,4,5 UTP (≤100 meter)

l  100BASE-TX: Cat5 or later UTP (≤100 meter)

M12 Connector sequence

D-

1——TD+, 2——TD-，3——RD+，4——RD-A-coded 5-core male connector

1——P-1 (Power supply -1)，

2——P+1 (Power supply +1),

3——P-2 (Power supply -2)，

4——P+2 (Power supply +2),

5——Ground

Switch Properties

Transmission Method

Store and Forward

MAC Table Size

2K

Packet Buffer Size

1Mbit

Bandwidth

1.6G

Switching Delay

＜10μs

Power Consume

＜3W

Physical Characteristics

IP Rating

 IP67

Enclosure

Aviation standard aluminum alloy

Installation

Wall-mounted rail

Weight

0.55kg

Dimensions

(L x H x D)

203 x 48 x 50mm

Environmental Limits

Working temperature

-40 to 80℃ (-40 to 176°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 62368-1(LVD), EN50155

EMI

FCC Part 15 Subpart B Class A，EN 55032 Class A

EMS

IEC(EN)61000-4-2(ESD): ±8kVContact, ±8kV Indirect, ±15kVAir discharge

IEC(EN)61000-4-3(RS):10V/m(80～1000MHz)

IEC(EN)61000-4-4(EFT): Power: ±4kV; Data: ±2kV

IEC(EN)61000-4-5(Surge): Power: ±4kV CM/±2kV DM; Data: ±4kV/±2kV DM;

IEC(EN)61000-4-6(RF conduction): 3V(10kHz～150kHz), 10V(150kHz～80MHz)

IEC(EN)61000-4-16(Common mode conduction): 30V cont. 300V, 1s

IEC(EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

300 000hrs

Warranty

Warranty Period

5 years

Package Contents

Device

1 x UF-IES005P-M12-67 switch

Documentation

1 x quick installation guide

1 x warranty card
