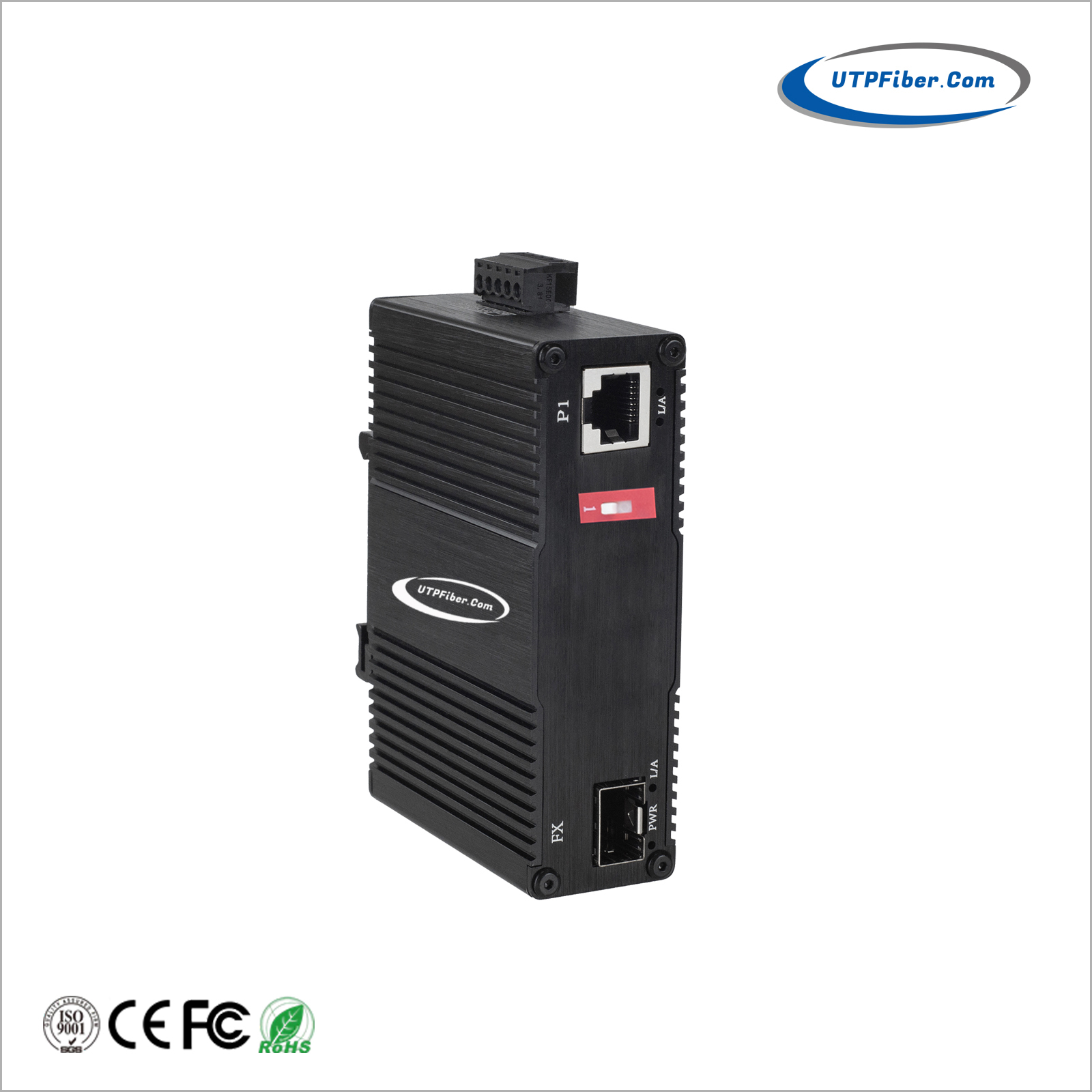

Mini Industrial 100/1000X SFP to 10/100/1000T 802.3bt PoE++ Media Converter w/ 12-56VDC Power Input
Model:UF-IES1GP90-LFP-12V
► 1x10/100/1000Base-TX RJ45 PoE 90W port1x100/1000Base-X SFP port
► Provides DIP switch for Link-Fault-Pass-Through (LFP) function (Disable/Enable) setting
► 12-56VDC wide range power input with power booster function
► Up to 90-watt PoE budget (24-56VDC), 60-watt PoE budget (12VDC)
► Installation method: DIN Rail or Wall mounting
UF-IES1GP90-LFP-12V with 1-Port 10/100/1000Base-TX and 1-Port 100/1000Base-X SFP that provides stable and reliable Ethernet transmission with dual power input design, offers redundant mechanisms for critical applications that need always-on connections. It also operates at standard operating temperature range from -40°C to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, this converter is a perfect choice for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and is also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

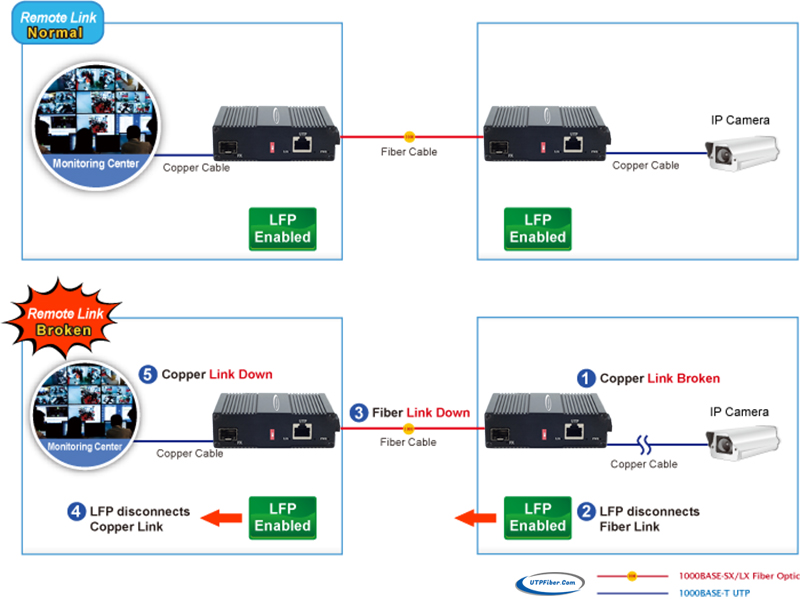

The UF-IES1GP90-LFP-12V series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Passthrough function (LFP), it can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the network.
To facilitate the 802.3bt power PoE++ usage with the commonly-used 12-48V DC power input for transportation and industrial-level applications, the UF-IES1GP90-LFP adopts the 12-48V DC to 54V power boost technology to solve power source issue but does not require special power supplies. It can be up to 90-watt PoE budget (24-56VDC), 60-watt PoE budget (12VDC). Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.
► 1x10/100/1000Base-TX RJ45 PoE 90W port1x100/1000Base-X SFP port
► Provides DIP switch for Link-Fault-Pass-Through (LFP) function (Disable/Enable) setting
► 12-56VDC wide range power input with power booster function
► Up to 90-watt PoE budget (24-56VDC), 60-watt PoE budget (12VDC)
► Support IEEE802.3az energy efficient Ethernet technology
► Support IPv6 Protocol
► Electric 6KV surge protection, easy to use in outdoor environment
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
► Installation method: DIN Rail or Wall mounting
|
Physical Port |
|
|
RJ45 port and speed |
1 x 10/100/1000Base-TX |
|
Fiber port and speed |
1 x 100/1000Base-X SFP |
|
DIP Switch |
LFP function (Disable / Enable) setting |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Packet buffer |
1Mbits |
|
Maximum packet length |
Up to 9K Bytes |
|
MAC address table |
4K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs Backplane bandwidth: 2Gbps Packet Forwarding rate: 2.976M |
|
PoE |
|
|
PoE standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
|
POE Power Voltage |
90-watt PoE budget (24-56VDC), 60-watt PoE budget (12VDC) |
|
POE RJ45 Pins |
Positive: 1,2,4,5(+) and Negative: 3,6,7,8(-) |
|
LED Indicator |
|
|
Power |
Connect-always ON |
|
PoE |
PD Plug ON status |
|
RJ45 |
Link/Act: connect-always; data exchange-blinking |
|
Fiber |
Link/Act: connect-always; data exchange-blinking |
|
Power Information |
|
|
Power access mode |
Phoenix terminal |
|
Redundant power input |
DC12-56V |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
5W Max. (PoE not activated） |
|
Physical Property |
|
|
Protection grade |
IP40 aluminum housing |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions (L x W x H) |
100mm x 70mm x 30mm |
|
Installation mode |
DIN Rail or Wall-Mount |
|
Weight |
250g |
|
Working Environment |
|
|
Operating Temperature |
-40℃ ~ +80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Standard Warranty |
5 years and lifetime technical support |
|
Certification Standard |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
- Download FileName：UF-IES1GP90-LFP-12V Mini Industrial Gigabit SFP 90W PoE Media Converter Datasheet V1.0.pdf Size： 764KB
|
Model |
Description |
|
UF-IES1GP90-LFP-12V |
Mini Industrial PoE Media Converter w/ LFP: 10/100/1000Base-T to 1000Base-X SFP, IEEE802.3bt, 12~56VDC power input, Up to 90-watt PoE budget (24-56VDC), 60-watt PoE budget (12VDC), not including SFP module, standalone, Support DIN-Rail mounting and Wall mounting installation, not including power supply adapter |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► DIN-Rail Industrial Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
