Ethernet

Standards:

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

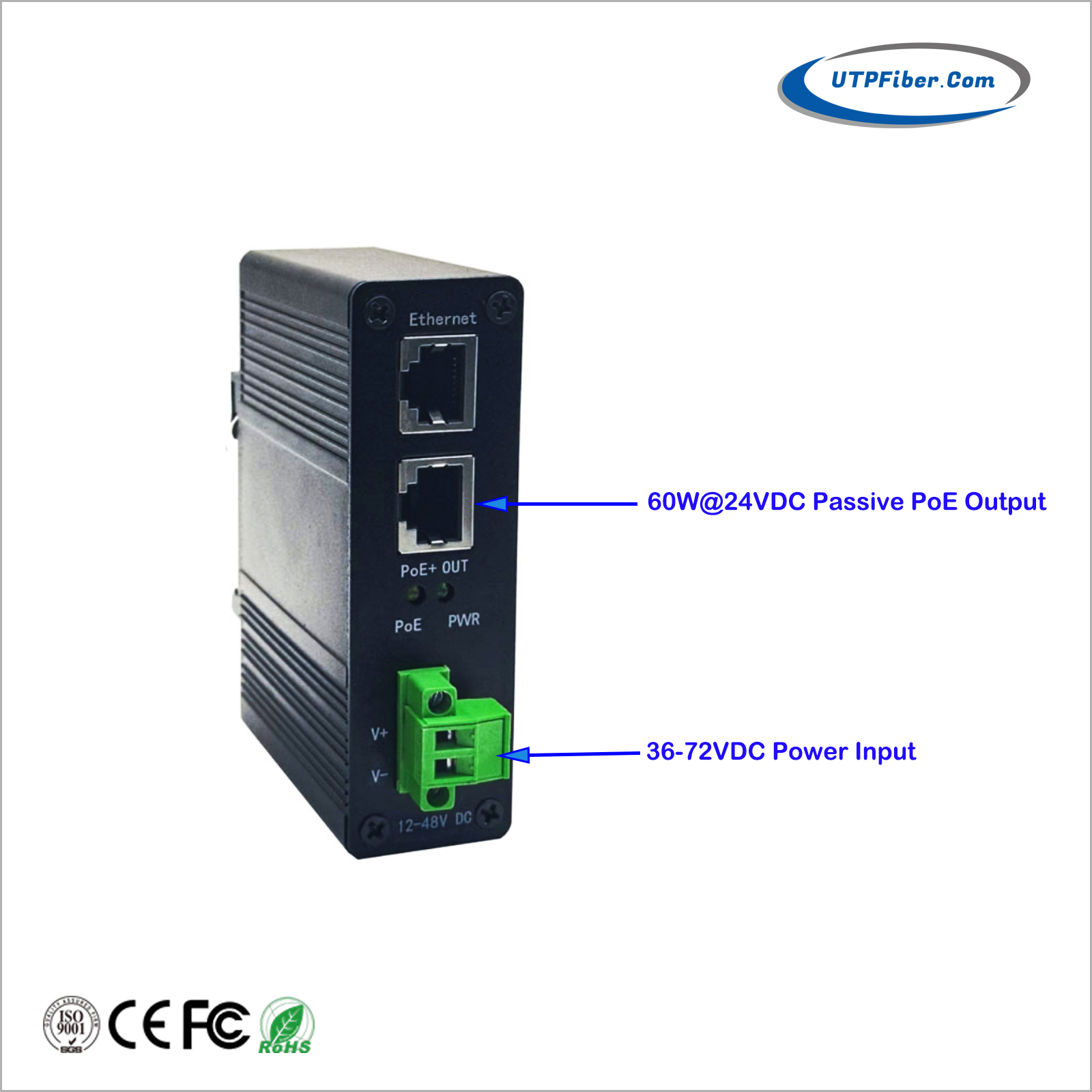

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

36-72VDC (Terminal Block)

Power Consumption:

65W Max.

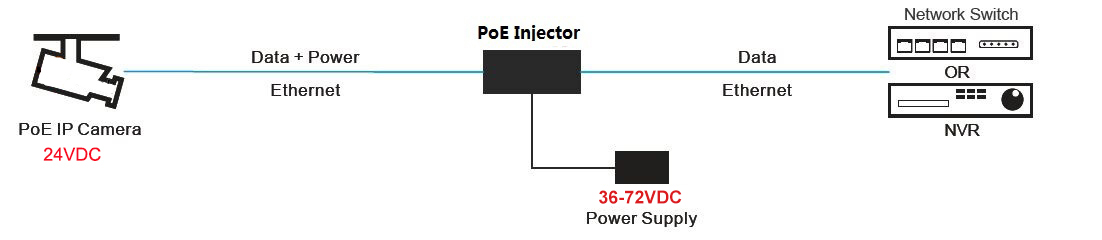

PoE (Power over Ethernet)

Output Voltage:

24VDC

Pin Assignment

+VDC on pins: 1, 2, 4 , 5 ;  ‐VDC on pins: 3, 6, 7, 8 (Default)

Data on Pins: full duplex;

Port:

RJ45

Max. Output Current:

2.5A

Max. PoE Power:

60W

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

90 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500V

ESD: 4KV/8KV
