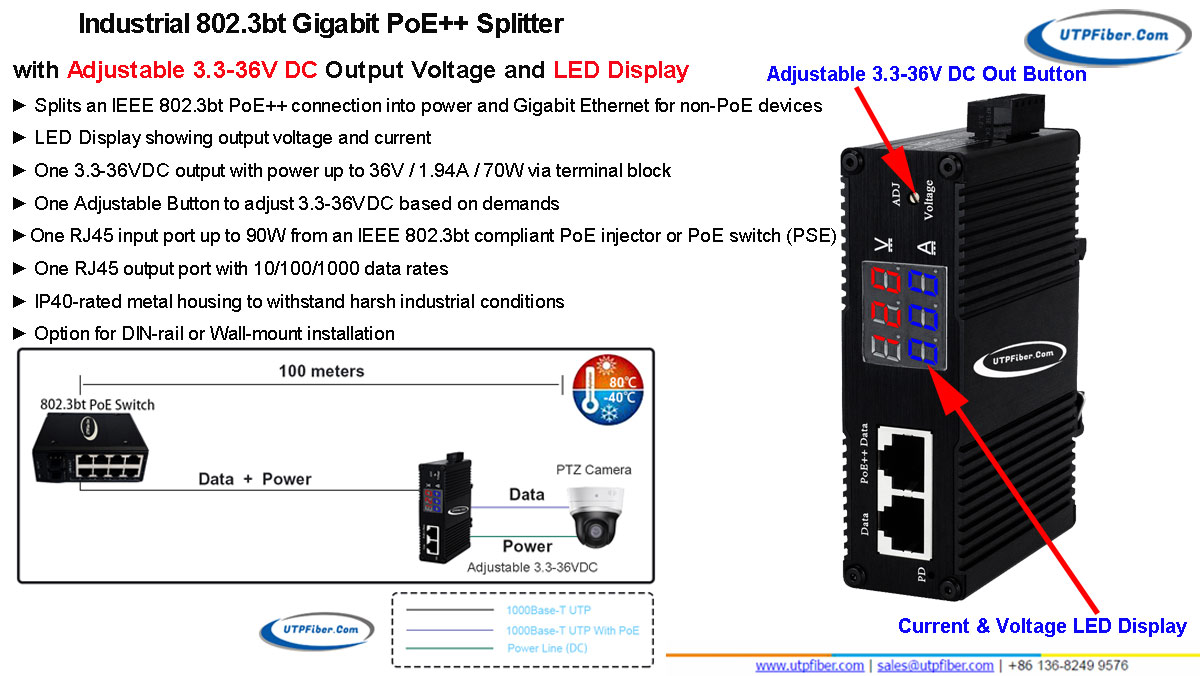

UTP UF-ISBT-336A is an Industrial High Power PoE++ Splitter that can split the 48~56V DC over the existing Ethernet cable into the 3.3-36VDC adjustable power output via an adjustable button. With LED display on the front panel, it can show the output voltage and current in real time. It supports passive 10/100/1000Mbps Ethernet connection ability and complies with IEEE 802.3bt High Power over Ethernet standard that supports up to 70-watt output power to powered device. To fulfill the growing industrial applications, the UF-ISBT-336A is designed to work under the operating temperature range from -40 to 80 degrees C (-40 to 176 degrees F). The UF-ISBT-336A is an ideal solution to transferring power to traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.

The data transmission, up to Gigabit speeds, with power output voltages of 3.3-36VDC, run simultaneously up to the Ethernet limit of 100 meters. With a simple Ethernet cable connected to your PoE+ Switch or injector, this Splitter can give up to 70W (36VDC) to a non-PoE device in tough or industrial environments via your choice of output — a terminal block — and still provide a gigabit network connection. It’s a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it’s cheaper in both time and money than hiring an electrician.

►     Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices

►     LED Display showing output voltage and current

►     One 3-36DC output with power up to 36V / 1.94A / 70W via terminal block

►     One Adjustable Button to adjust 3.3-36VDC based on demands

►     One RJ45 input port up to 90W from an IEEE 802.3bt compliant PoE injector or PoE switch (PSE)

►     One RJ45 output port with 10/100/1000 data rates

►     IP40-rated metal housing to withstand harsh industrial conditions

►     Suitable for extreme operating temperatures of -40 to 80ºC

►     Option for DIN-rail or Wall-mount installation

►     Short-circuit, overload and high-voltage protection

►     ESD protection up to 8 kV (air) and 6 kV (contact)

►     Port surge protection up to 2 kV

• Download FileName：UF-ISBT-336A Industrial 802.3bt Gigabit PoE Splitter with Adjustable Output Voltage 3-36VDC and LED Size： 797KB
