UTP UF-IPSAT-9V is an Industrial High Power PoE Splitter that can split the 48~56V DC over the existing Ethernet cable into the 9VDC power output. It supports passive 10/100/1000Mbps Ethernet connection ability and complies with IEEE 802.3at High Power over Ethernet standard that supports up to 25-watt output power to powered device. To fulfill the growing industrial applications, the UF-IPSAT-9V is designed to work under the operating temperature range from -40 to 80 degrees C (-40 to 176 degrees F). The UF-IPSAT-9V is an ideal solution to transferring power to traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.

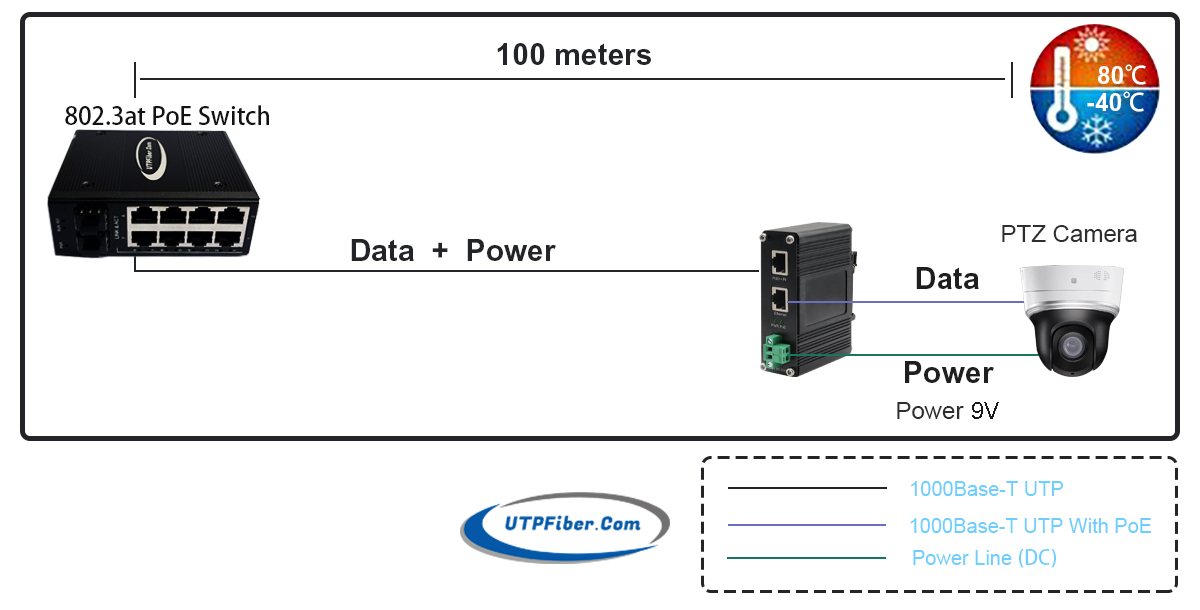

The data transmission, up to Gigabit speeds, with power output voltages of 9VDC, run simultaneously up to the Ethernet limit of 100 meters. With a simple Ethernet cable connected to your PoE+ Switch or injector, this Splitter can give up to 25W to a non-PoE device in tough or industrial environments via your choice of output — a 2-pin terminal block — and still provide a gigabit network connection. It’s a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it’s cheaper in both time and money than hiring an electrician.

►     Splits an IEEE 802.3at PoE+ connection into power and Gigabit Ethernet for non-PoE devices

►     One DC output with power up to 9V / 2.8A / 25W via 2-pin terminal block

►     One RJ45 input port up to 30W from an IEEE 802.3at/af-compliant PoE injector or PoE switch (PSE)

►     One RJ45 output port with 10/100/1000 data rates

►     IP40-rated metal housing to withstand harsh industrial conditions

►     Suitable for extreme operating temperatures of -40 to 80ºC (-40 to 176ºF)

►     Option for DIN-rail installation

►     Distance support: up to 100 m (328 ft.)

►     Short-circuit, overload and high-voltage protection

►     ESD protection up to 8 kV (air) and 6 kV (contact)

►     Port surge protection up to 2 kV

• Download FileName：UF-IPSAT-9V Industrial 802.3at Gigabit PoE Splitter-9V Datasheet V1.0.pdf Size： 816KB
