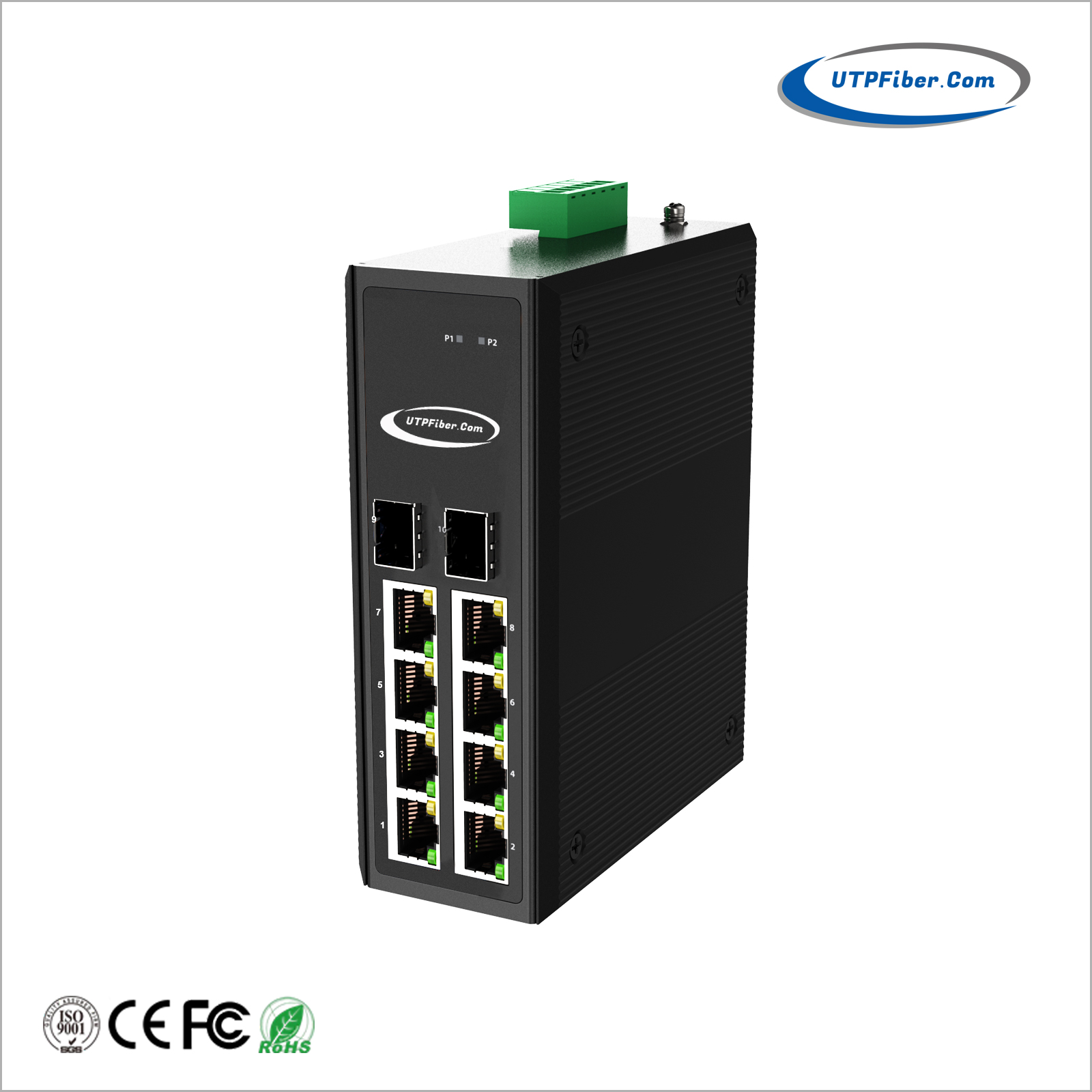

Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Ethernet Switch w/ 12~48V Booster
Model:UF-IES208GP-SFP-12V
► 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP
► 12~48VDC wide range power input with power booster function
► Supports IEEE 802.3at PoE+ (Max 30W PoE at one port), Up to 240W PoE budget (48VDC), 120W PoE budget (24VDC), 60W PoE budget (12VDC)
UF-IES208GP-SFP-12V is an Industrial 8-Port 10/100/1000T 802.3at Solar Power PoE Switch w/ 12~48V Booster. The DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with eight 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two 1000BASE-X fiber optic interfaces for uplink connection. It supports 12VDC or 24VDC power input with power booster function. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

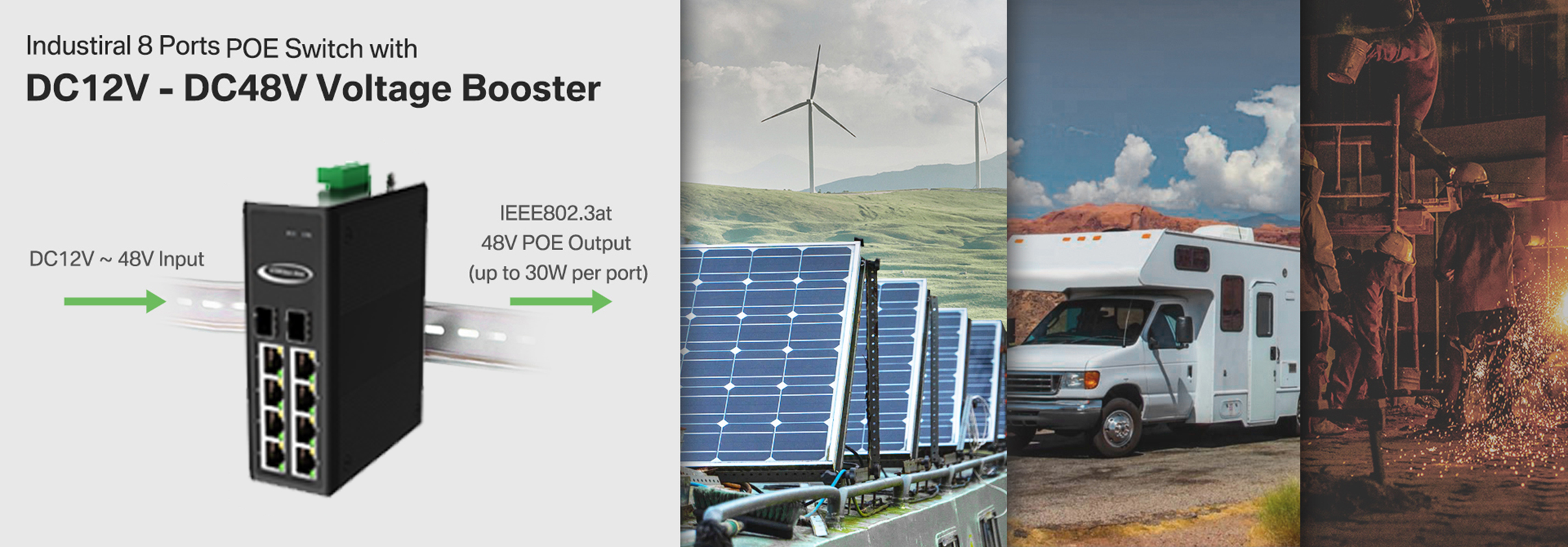

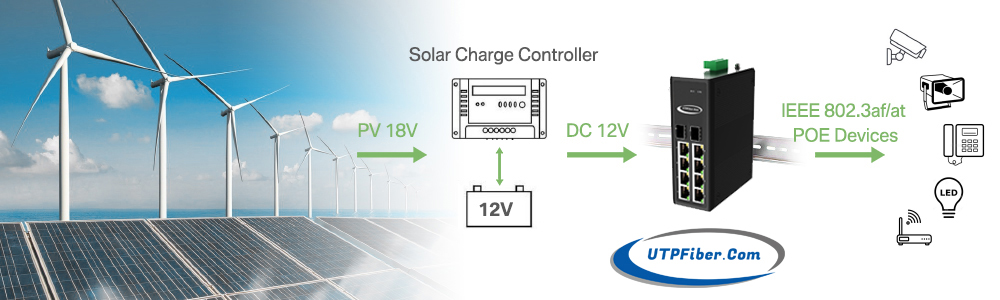

To facilitate the 802.3at PoE+ usage with the commonly-used 12~48V DC power input for transportation and industrial-level applications, the UF-IES208GP-SFP-12V adopts 12~48V DC to 48V DC power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs. It supports 240W PoE budget (48VDC), 120W PoE budget (24VDC), 60W PoE budget (12VDC).
With dual power input design, UF-IES208GP-SFP-12V can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
► 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP
► 12~48VDC wide range power input with power booster function
► Supports IEEE 802.3at PoE+ (Max 30W PoE at one port), Up to 240W PoE budget (48VDC), 120W PoE budget (24VDC), 60W PoE budget (12VDC)
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 9K bytes giant frame, compatible with various extension protocol
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
|
Ethernet |
|
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3z Gigabit Ethernet over Fiber Optic |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3af Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Size: |
2M |
|
Switch Fabric: |
20Gbps |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Copper Ports: |
8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
PoE Injector Ports |
8 ports with 802.3at PoE+ injector function (Ports 1 to 8) |
|
SFP Ports: |
2 x 1000BASE-SX/LX/BX SFP interfaces (Ports 9 to 10) |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
|
PoE Power Supply Type |
End-span |
|
Power Pin Assignment |
1/2(+), 3/6(-) |
|
PoE Power Output |
IEEE 802.3af Standard |
|
PoE Power Budget |
240W maximum @54V DC 120W maximum@24V DC 60W maximum@12V DC |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
907,476 hours @ Telcordia SR-332 Standard |
|
Heat Dissipation: |
34 BTU/h (non-PoE mode) 853 BTU/h (with 240W PoE load) |
|
Cooling: |
Passive Cooling, Fanless Design |
|
Noise Level: |
0 dBA |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, Redundant Power (Terminal Block) |
|
Connector: |
1 removable 6-contact terminal blocks Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
|
Protection: |
Overload Current Protection, Reverse Polarity Protection |
|
Power Consumption: |
240W Max. (PoE in use, 48VDC input) |
|
15W Max. (PoE not in use) |
|
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
RJ45: |
Link/Act: connect-always; data exchange-twinkle Speed light: 1000Mbps-always; 10/100Mbps-off |
|
Fiber: |
Link/Act: connect-always; data exchange-twinkle |
|
Dimensions (LxWxH): |
138 x 108 x 49 mm |
|
Weight: |
680g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
- Download FileName：UF-IES208GP-SFP-12V Unmanaged Industrial 8G+2SFP Solar Power PoE Switch Datasheet V1.0.pdf Size： 465KB
|
Model |
Description |
|
UF-IES208GP-SFP-12V |
Industrial 8-port 10/100/1000BASE-T 802.3at PoE+2-port 100/1000X SFP Ethernet Switch w/ 12~48V Booster, PoE Power budget: 60W@12VDC, 120W@24VDC, 240W@48VDC |
|
Mounting Options |
► DIN-Rail or Wall Mount Installation |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
