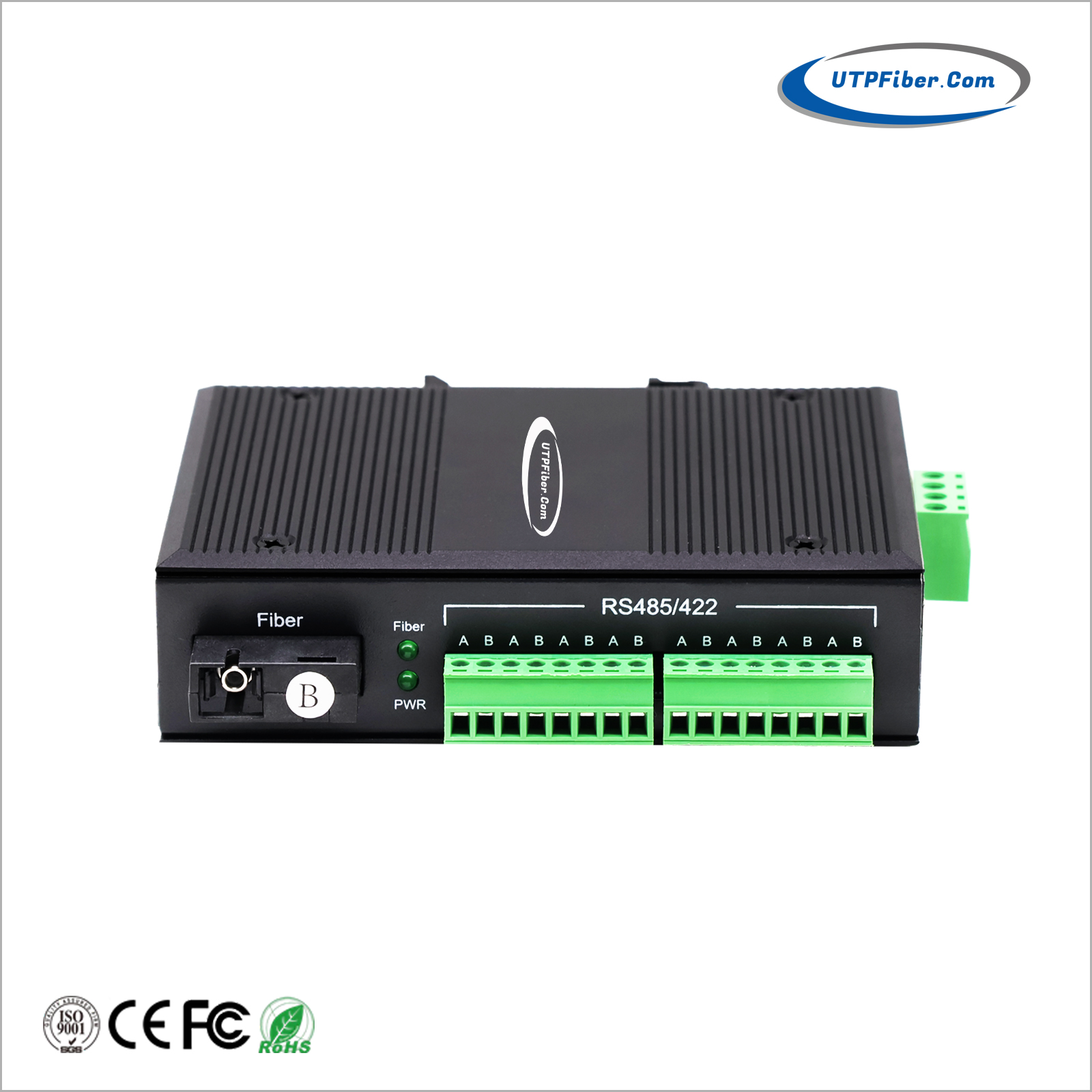

DIN-Rail Industrial 8-Channel Duplex RS485 Serial Data over Fiber Converter
Model:UF-DF485-08
► Supports up to 8-channel RS-485 data (or 4-channel RS-422)
► Built-in Duplex RS485 (Terminal Block) Serial Port

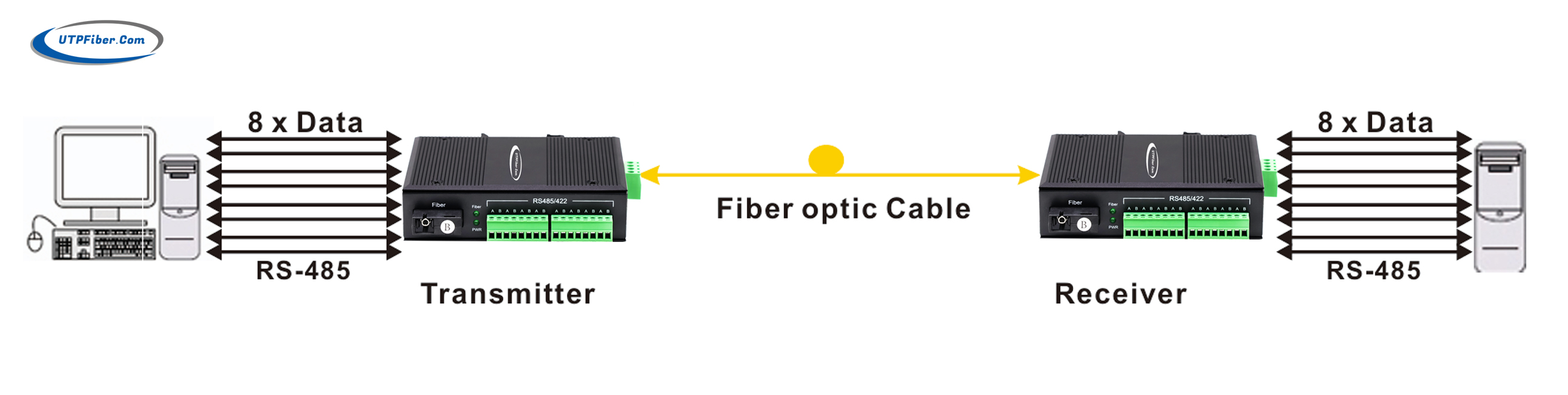

► Support Point-to-Point connection
► Support DIN-Rail mount installation
The UF-DF485 series DIN-Rail Industrial 8-Channel Duplex RS485 Serial Data over Fiber Converter provides a high-performance solution for extending serial communications over long distances. It supports simultaneous transmission for up to 8-channel RS-485 or 4-channel RS-422 data, featuring zero-latency automatic forwarding and hardware-based data flow control. With auto-baud rate detection up to 115.2 Kbps, it ensures seamless, transparent communication for point-to-point polling networks.
Built for mission-critical reliability, the device is equipped with 1500W surge protection and 15KV ESD protection to withstand harsh electrical environments. It operates on a flexible 6–55V DC power input and features a rugged design optimized for DIN-Rail installation, making it ideal for industrial automation, access control, and smart parking systems.
The unit offers exceptional optical versatility, supporting transmission distances up to 2km over multi-mode and 120km over single-mode fiber. It provides a scalable and robust backbone for interconnecting remote serial devices across expansive industrial sites.
► Supports up to 8-channel RS-485 data (or 4-channel RS-422)
► Built-in Duplex RS485 (Terminal Block) Serial Port
► Zero-latency automatic forwarding
► Support Point-to-Point connection
► Automatic baud rate detection with hardware-based data flow direction control
► Maximum data rate: 0–115.2 Kbps
► 6–55V DC input
► SC Fiber Connector in default (FC/ST optional)
► Operating wavelengths: 1310nm / 1550nm
► 1500W surge protection and 15KV ESD protection
► Transmission distance: up to 2km via multi-mode fiber; 20–120km via single-mode fiber
► Supports RS-485 polling for 32 nodes (customizable up to 128 nodes)
► Support DIN-Rail mount installation
|
Fiber Optical Interface |
|
|
Fiber interface |
SC (FC or ST Optional) |
|
Cable requirement |
Multi-Mode: 50/125um, 62.5/125um Single-Mode: 9/125um |
|
Fiber port |
1 Fiber Port |
|
Transmission distance |
Multi-Mode: 2km Single-Mode: 20-120km |
|
Wavelength |
1310nm/1550nm |
|
RS485 Serial Interface |
|
|
Standard |
Compliant with EIA RS-485 / RS-422 |
|
Physical interface |
16-pin terminal block |
|
Data type |
Up to 8Ch Duplex RS485 |
|
RS-485 signals |
A+,B-, A+,B- |
|
Baud rate |
0–115.2 Kbps; auto-baud rate detection |
|
Operating mode |
Point-to-Point |
|
Maximum number RS-485 nodes |
32 |
|
Maximum RS-485 distance |
1000 meters |
|
Protection |
600W surge protection and 15KV ESD protection |
|
Direction control |
Automatic Data Direction Control (ADDC) technology; automatically senses and controls data flow direction |
|
RS-485 network connection method |
Supports bidirectional full-duplex |
|
Power Requirements |
|
|
Power input |
DC6-57V |
|
Power consumption |
<10W |
|
Power connector |
Terminal block |
|
Power protection |
Reverse polarity protection |
|
LED Indicator |
|
|
PWR |
Power Supply |
|
Fiber |
Fiber Link Status |
|
Mechanical |
|
|
Dimensions (LxWxH) |
135 x 90 x 30mm |
|
Weight |
1KG |
|
Casing |
Aluminum |
|
Mounting Options |
DIN-Rail Mount |
|
Environmental |
|
|
Working Temperature |
-30°C to +75°C (-22°F to 167°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to 185°F) |
|
Working Humidity |
5%~95% (Non-Condensing) |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
EMI |
FCC Part15, CISPR (EN55022) Class A |
|
EMS |
EN61000-4-2 (ESD) Level 4, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (EFT) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A |
|
Shock / Freefall / Vibration |
Shock: MIL-STD-810F Method 516.5 Free Fall: MIL-STD-810F Method 516.5 Vibration: MIL-STD-810F Method 514.5 C-1 & C-2 |
|
Green |
RoHS Compliant |
|
Certifications: |
FCC, CE |
- Download FileName：UF-DF485-08 Series DIN-Rail Industrial 8Ch Duplex RS485 Fiber Converter Datasheet V1.0.pdf Size： 462KB
|
Model |
Description |
|
UF-DF485-08 |
DIN-Rail Industrial 8Ch RS485 (2-way) to Fiber Media Converter, Multimode, 1310nm, Dual Fiber, SC 2KM, DC6-57V Power Input, not including power adapter |
|
UF-DF485-08-20 |
DIN-Rail Industrial 8Ch RS485 (2-way) to Fiber Media Converter, Single Mode, 1310nm, Dual Fiber SC 20KM, DC6-57V Power Input, not including power adapter |
|
UF-DF485-08-20A |
DIN-Rail Industrial 8Ch RS485 (2-way) to Fiber Media Converter, Single Mode, 1310nm TX/1550nm RX, Single Fiber SC 20KM, DC6-57V Power Input, not including power adapter |
|
UF-DF485-08-20B |
DIN-Rail Industrial 8Ch RS485 (2-way) to Fiber Media Converter, Multimode, 1310nm, Dual Fiber, SC 2KM, DC6-57V Power Input, not including power adapter |
|
Power Options |
► DC6-57V Industrial DIN-Rail Power Supply. Open Wire for Terminal Block |
|
► Power Supply needs to be purchased separately |
|
|
Mounting Options |
► DIN-Rail Installation, Default DIN-Rail Bracket installed |
