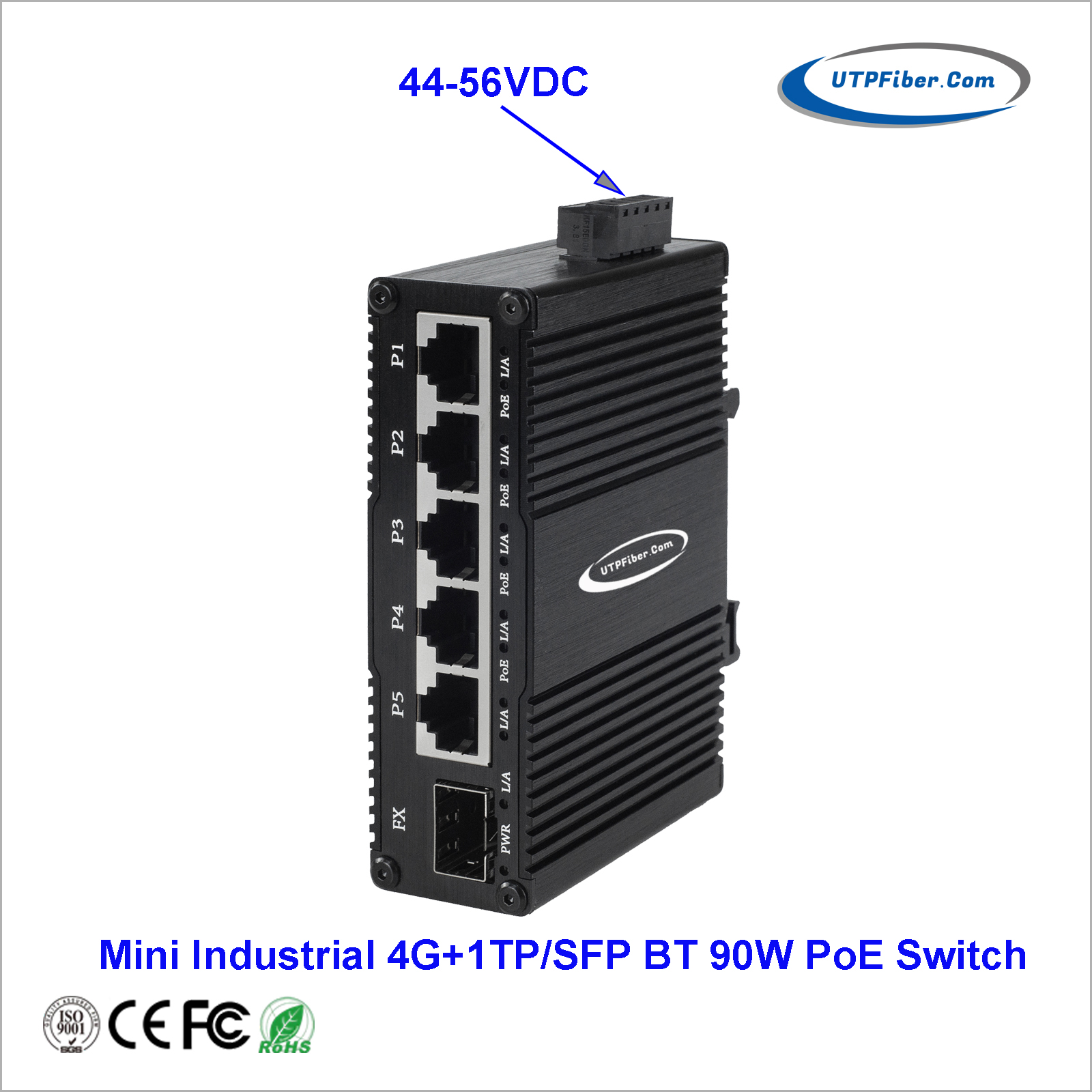

Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3bt Power over Ethernet Plus Plus

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Size:

1M

Switch Fabric:

12Gbps

Processing Type:

Store-and-Forward

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

2K MAC Addresses

Interface

Copper Ports:

5 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

PoE Injector Ports

4 ports with 802.3bt 90W PoE++ injector function (Ports 1 to 4)

SFP Ports:

1 x 100/1000BASE-X SFP interfaces (auto detection)

Power over Ethernet

PoE Standard

IEEE 802.3bt Power over Ethernet Plus Plus type 4 PSE

Backward compliant with 802.3at Power over Ethernet Plus PSE

PoE Power Supply Type

802.3bt, UPoE

End-span/Mid-span

Power Pin Assignment

1/2(+), 3/6(-), 4/5(+), 7/8(-)

PoE Power Output

IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~54V DC (depending on the power supply), max. 30 watts

IEEE 802.3bt Standard
- Per port 52V~56V DC (depending on the power supply), max. 90 watts

Power budget

Max. PoE output power budget 90W for each PoE port
Total PoE Power Budget up to 360 watts maximum

Lightning protection

The Industrial Switch provides contact discharge of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

907,476 hours @ Telcordia SR-332 Standard

Heat Dissipation:

10 BTU/h (Non-PoE)

420 BTU/h (30W PoE)

Cooling:

Passive Cooling, Fanless Design

Noise Level:

0 dBA

Electrical and Mechanical

Input Power:

44-56VDC, Redundant Power (Terminal Block)

Connector:

1 removable 5-contact terminal blocks

Protection:

Overload Current Protection, Reverse Polarity Protection

Power Consumption:

365W Max. (PoE in use)

5W Max. (PoE not in use)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

PWR:

Power Status

RJ45:

Link/Act: connect-always; data exchange-twinkle

Fiber:

Link/Act: connect-always; data exchange-twinkle

Dimensions (LxWxH):

100 x 70 x 30 mm

Weight:

250g

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

EMC/EMI/EMS

FCC Part15 Class A

CE-EMC/LVD

RoHS

EN61000-4-2 (ESD): LEVEL 4

IEC 6100-4-2 (EFT): LEVEL 4

IEC 6100-4-2 (Surge): LEVEL 4

IEC 6100-4-2 (CS)：LEVEL 3

IEC 61000-4-2(PFMP) : LEVEL 5

EN61000-4-3 (RS): LEVEL 4

Shock

IEC60068-2-27

Freefall

IEC60068-2-31

Vibration

IEC60068-2-6

Safety

EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1, UL 508
