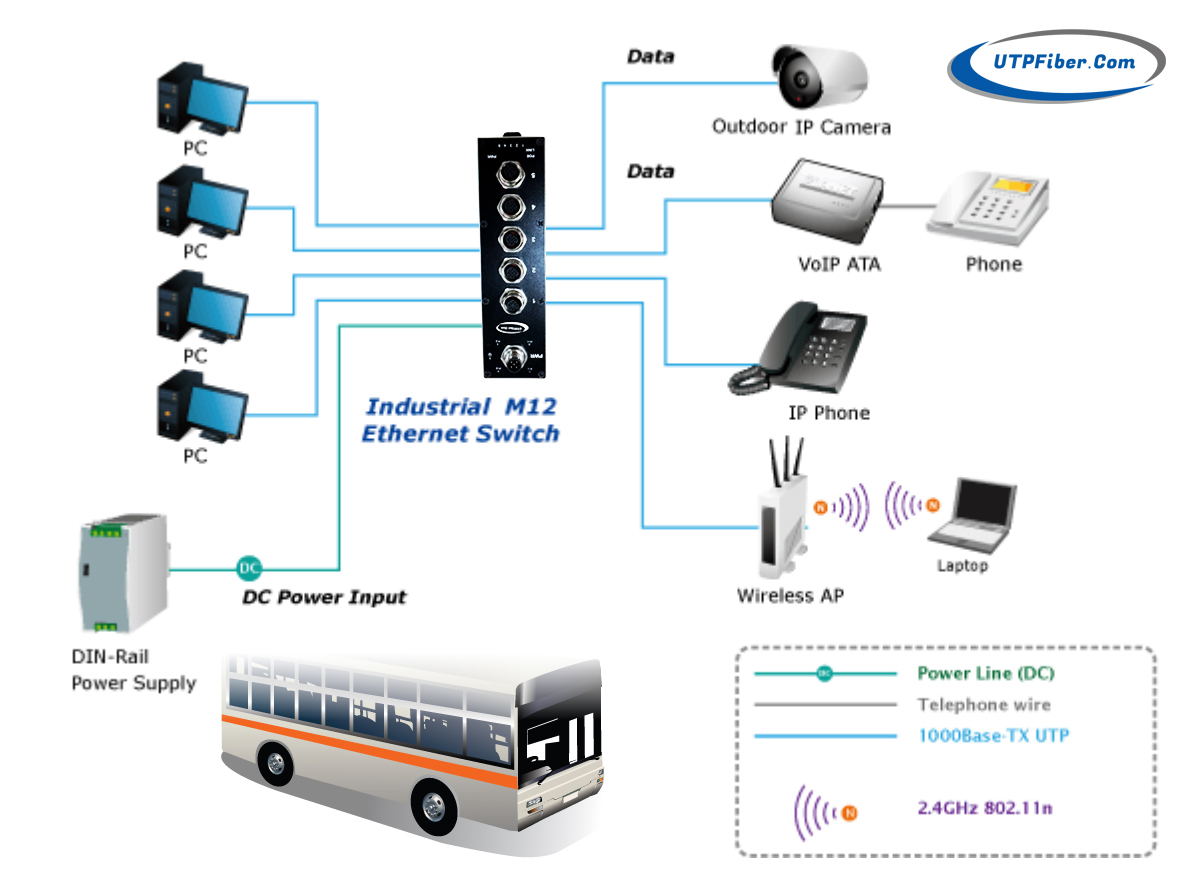

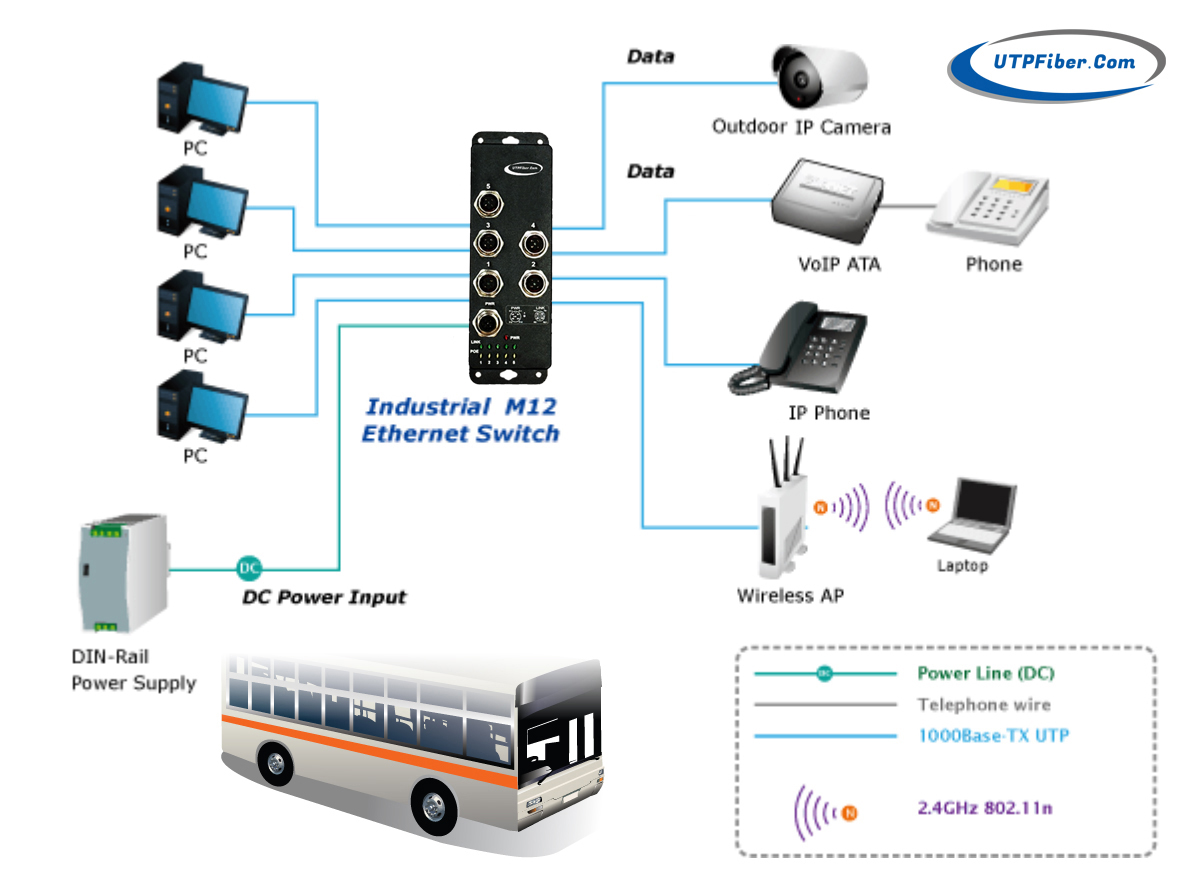

Product Introduction

Model No.

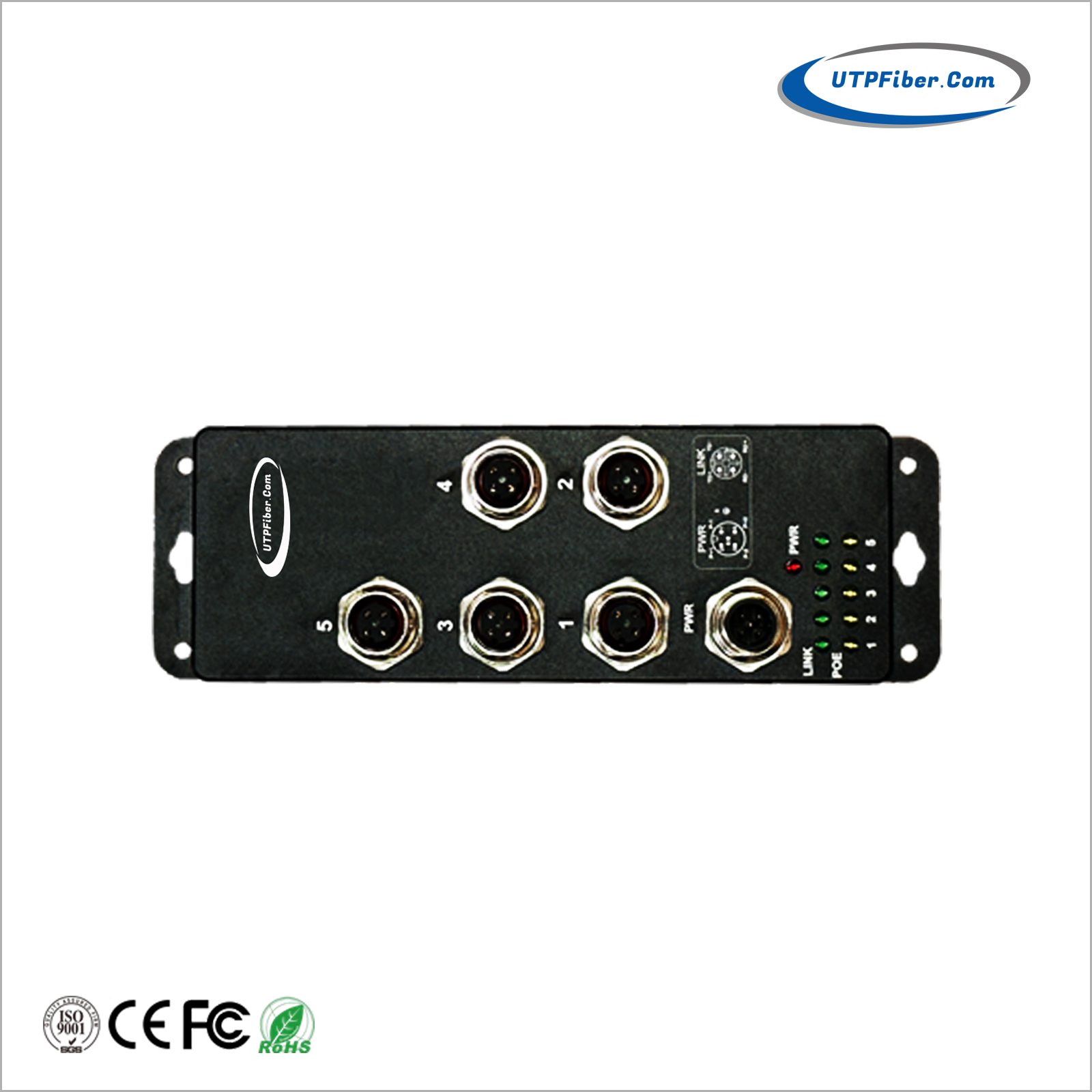

UF-IES005G-M12-67

Product Name

5-Port M12 Industrial IP67 Waterproof Ethernet Switch, w/5*10/100/1000T with M12-connector, 9~52VDC Power Input

Product Description

1-Port 10/100/100Base-T Uplink + 4-Port 10/100/1000Base-T Downlink

Port Description

5-Port M12A-coded 8-pin Female Plug connection ports

Ethernet Interface

RJ-45 Port Connector Type

10/100/1000Base-T automatic detection, full/half duplex MDI/MDI-X adaptive

Power Parameters

Power

l  Access terminal: M12 A-coded 5-core male terminal block

l  Power Input (DC): DC9~52V (Dual power), support reverse connection protection

LED Indicator

l  Power Indicator：Red

l  Interface indicator: Link (Green)

Standards

Network Protocols

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3az Energy-Efficient Ethernet

IEEE 802.3x Flow Control

  Twisted Pair

l  10BASE-T: Cat3,4,5 UTP (≤100 meter)

l  100BASE-TX: Cat5 or later UTP (≤100 meter)

l  1000BASE-T: Cat6 or later UTP (≤100 meter)

M12 Connector

A-coded 8-pin female connector

1——MDIC- (white and blue), 2——MDID+(white and brown), 3——MDID-(brown), 4——MDIA-(orange)

A-coded 5-pin male connector

1——P-1 (power supply -1),

2——P+1 (power supply +1),

3——P-2 (power supply -2),

4——P+2 (power supply +2),

5——ground

Switch Properties

Transmission Method

Store and Forward

MAC Table Size

2K

Packet Buffer Size

2Mbit

Bandwidth

10G

Switching Delay

＜10μs

Power Consume

＜5W

Physical Characteristics

IP Rating

IP67

Enclosure

Aviation standard aluminum alloy

Installation

Wall-mounted rail

Weight

0.8kg

Dimensions

(L x H x D)

203 x 48 x 50mm

Environmental Limits

Working temperature

-40 to 80℃ (-40 to 176°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 62368-1(LVD), EN50155

EMI

FCC Part 15 Subpart B Class A，EN 55032 Class A

EMS

IEC(EN)61000-4-2(ESD): ±8kVContact, ±8kV Indirect, ±15kVAir discharge

IEC(EN)61000-4-3(RS):10V/m(80～1000MHz)

IEC(EN)61000-4-4(EFT): Power: ±4kV; Data: ±2kV

IEC(EN)61000-4-5(Surge): Power: ±4kV CM/±2kV DM; Data: ±4kV/±2kV DM;

IEC(EN)61000-4-6(RF conduction): 3V(10kHz～150kHz), 10V(150kHz～80MHz)

IEC(EN)61000-4-16(Common mode conduction): 30V cont. 300V, 1s

IEC(EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

300 000hrs

Warranty

Warranty Period

5 years

Package Contents

Device

1 x UF-IES005G-M12-67 switch

Documentation

1 x quick installation guide

1 x warranty card
