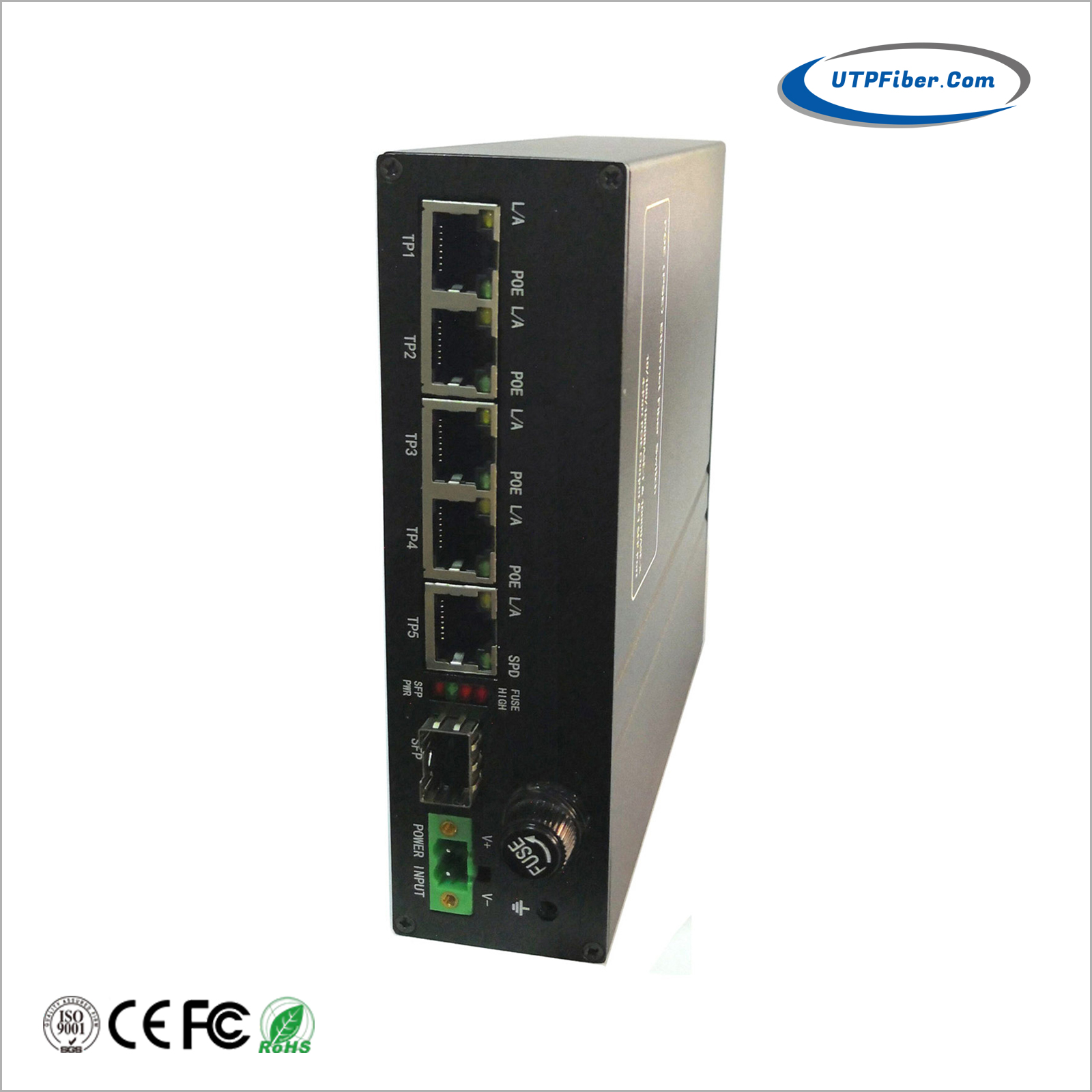

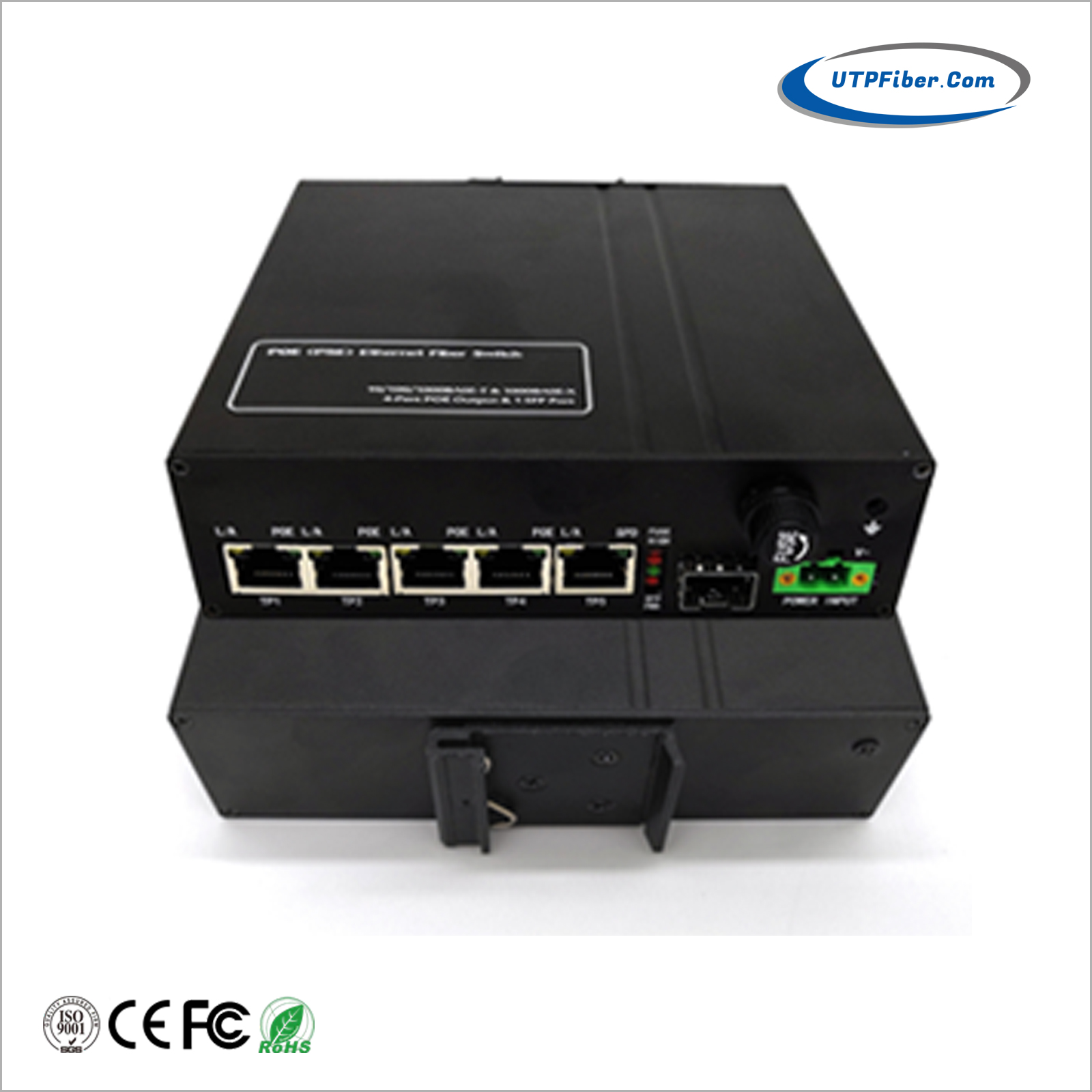

Industrial 4-Port 10/100/1000T 802.3bt PoE + 1-Port TP/SFP Solar Power PoE Switch w/ 12V Booster
Model:UF-IES105GP-12V
► 4-Port 10/100/1000T 802.3at PoE + 1-Port TP/SFP
► Support 12~48VDC Power Input
► Up to 30W on each PoE port
► Output power budget: 100W max

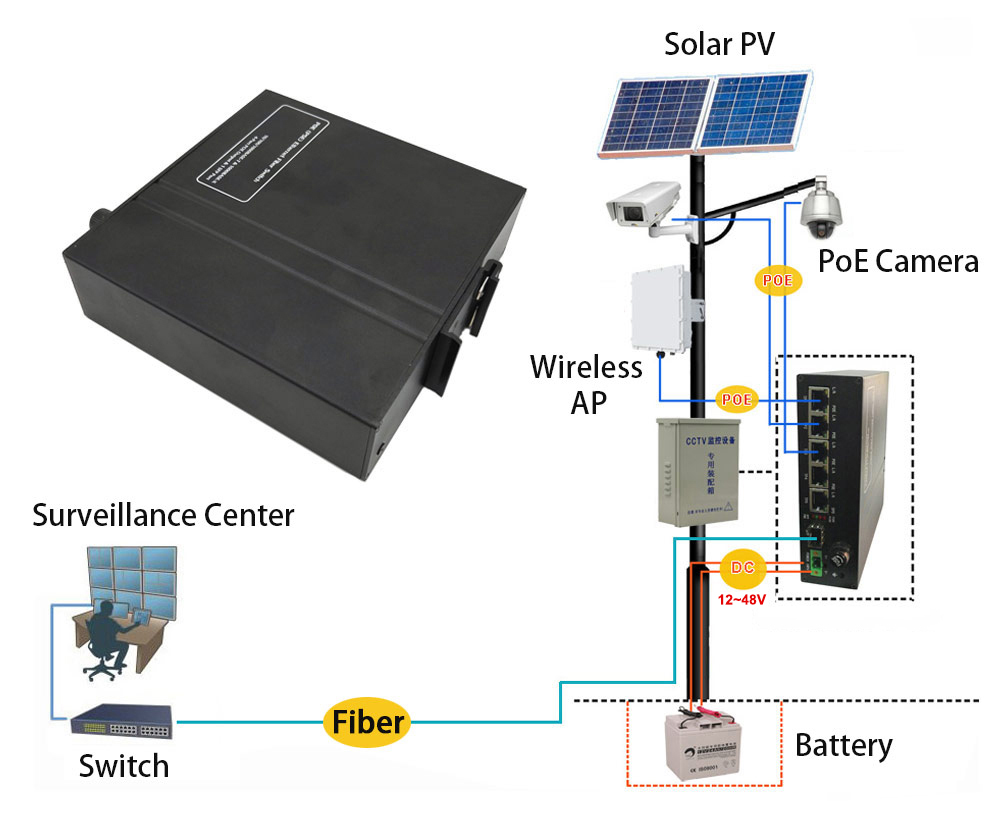

UF-IES105GP-12V is a 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T + 1-Port 1000X SFP Industrial Solar Power PoE Switch with 12~48VDC power input. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. SFP ports to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can choose different types of SFPs (1000M only). The Switch supports 1 or 2 core Single-mode or Multimode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
► 4-Port 10/100/1000T 802.3at PoE + 1-Port TP/SFP
► Support 12~48VDC Power Input
► Up to 30W on each PoE port
► Output power budget: 100W max
► Support IEEE802.3az energy efficient Ethernet technology
► Terminal Block Power Input for Industrial Application.
► To protect the external battery set
► Super lightening protection, IP40 protection
► Excellent heat elimination without cooling fan
► DIN-Rail/ Wall-mounting and Desktop Installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1M bits |
|
Processing Type: |
Store-and-Forward |
|
MAC Table Size: |
8K |
|
Interface |
|
|
Connector: |
5 x RJ45 |
|
Optical Port: |
1 x SFP 1000Base-X |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
PoE: |
|
|
Input Power: |
12~48V DC |
|
Power/Distance 54V: |
Distance: 100m |
|
PoE Power Output: 26W |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 Port 1 ~ Port 4 |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
Output Power Budget |
100W Max. |
|
Protection: |
|
|
Overload Current: |
Present |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/Activity |
|
SFP: |
Link/Activity |
|
Dimensions (WxDxH): |
40 x 145 x 145 mm |
|
Weight: |
0.8Kg |
|
Casing: |
Metal Case |
|
Mounting Options: |
DIN-Rail / Wall-mount/Desktop |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
- Download FileName：UF-IES105GP-12V Industrial 5G+1SFP Solar Power PoE Switch Datasheet V1.0.pdf Size： 849KB
|
Model |
Description |
|
UF-IES105GP-12V |
Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T + 1-Port 1000X SFP Solar Power PoE Switch with 12~48VDC power input |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 12~48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
