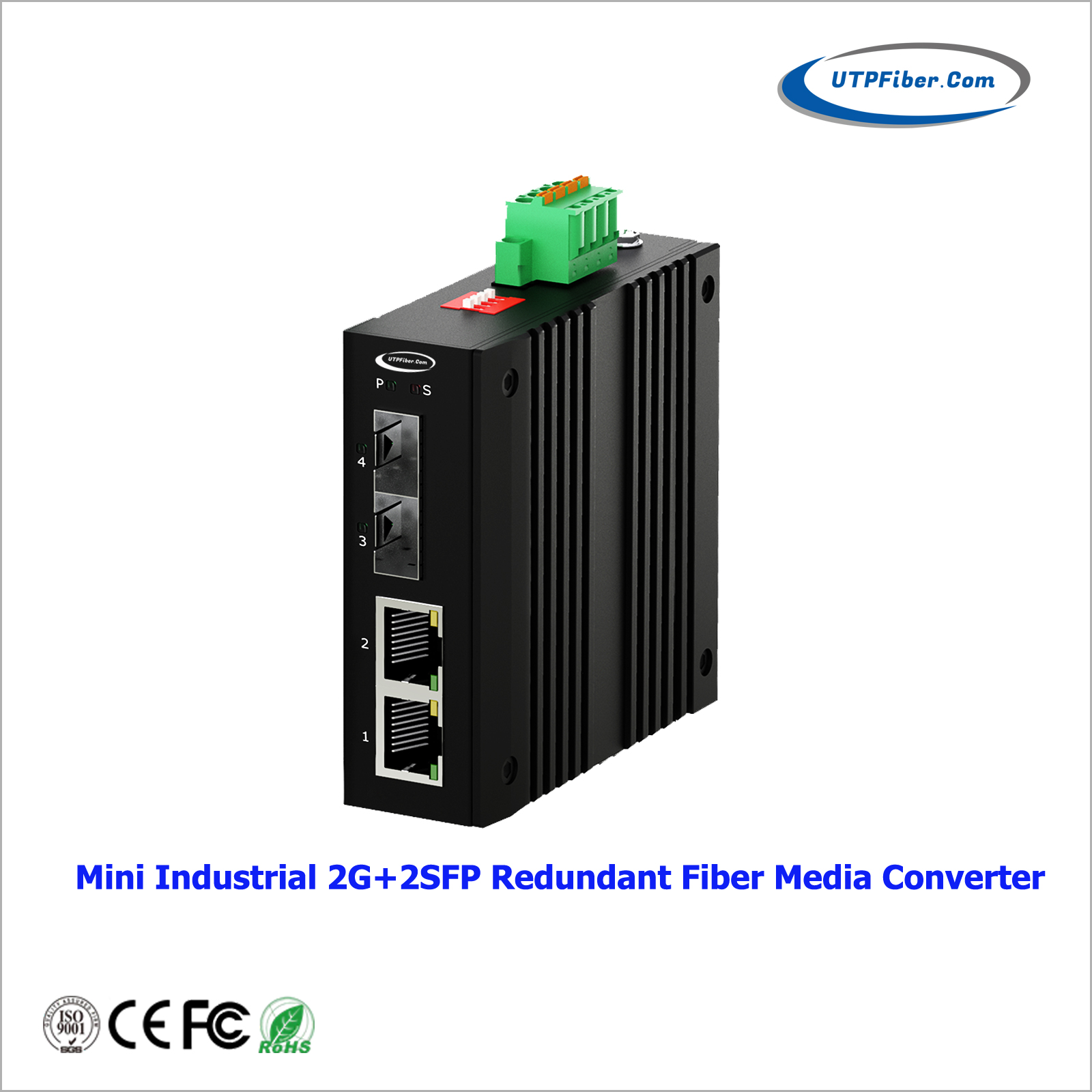

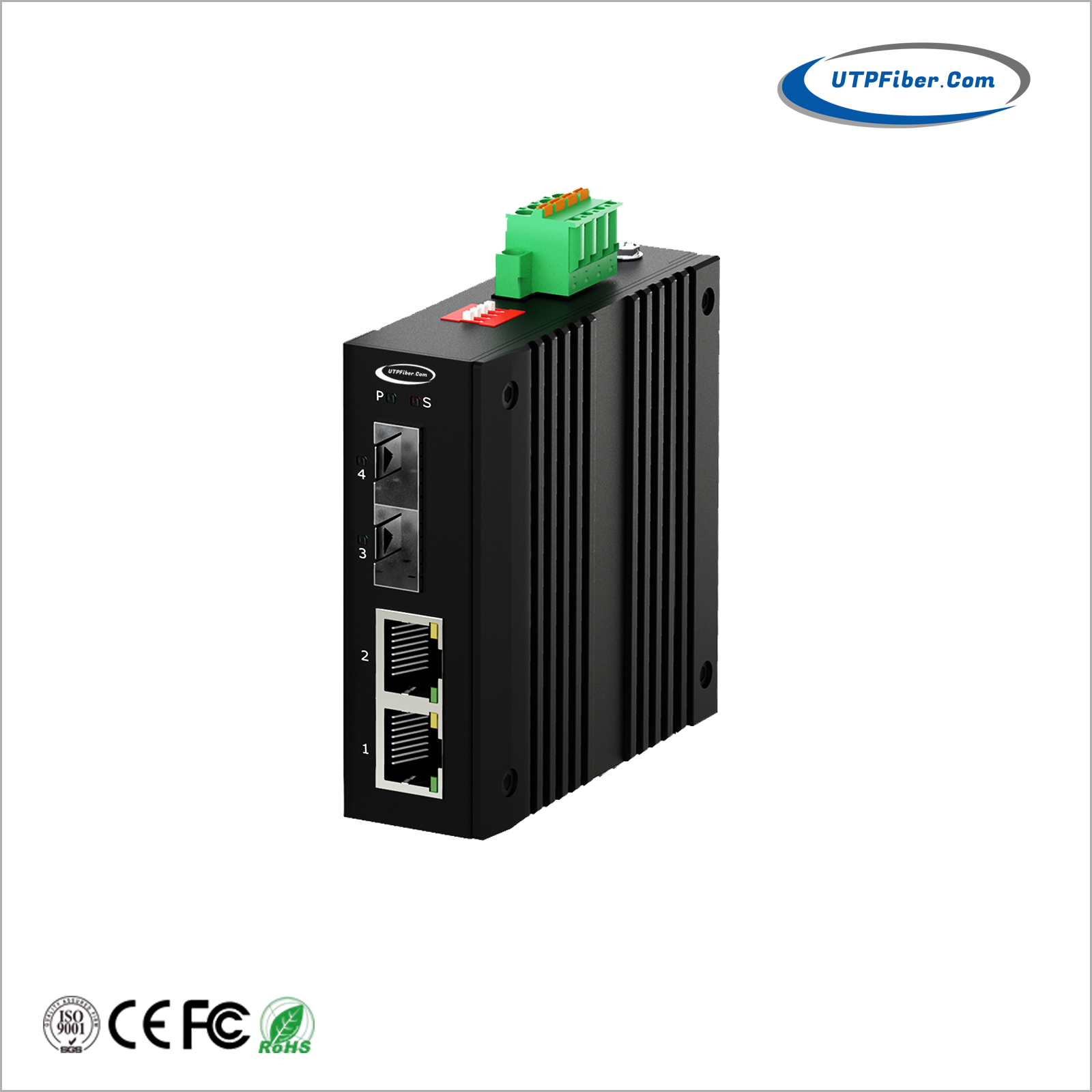

Mini Industrial 2-port 10/100/1000T + 2-port 100/1000X SFP Redundant Fiber Media Converter
Model:UF-IS6212G
► 2*10/100/1000Base-T RJ45 ports, 2*100/1000Base-X SFP ports
► Powerful DIP switch function: 1. Fiber redundant; 2. Flow control; 3. Broadcast storm restrain; 4. Fiber ports 100/1000M selection;
► Support 10K Bytes Jumbo frame and 1M large buffer
► IP40 fan-less and Din-rail hardware design with compact size (30*85*85mm)
The UTP UF-IS6212G is the unmanaged industrial grade media converter with 2-port 10/100/1000-T RJ45 and 2-port 100/1000Base-X fiber optical interfaces. It is featuring with fiber redundant, flow control, broadcast storm restrain and fiber ports 100/1000M selection function, which all can be configured by the Dip switch on the top panel.
UF-IS6212G is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less compact housing with Din-rail installation, wide operation temperature from -40°C to 80°C as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications

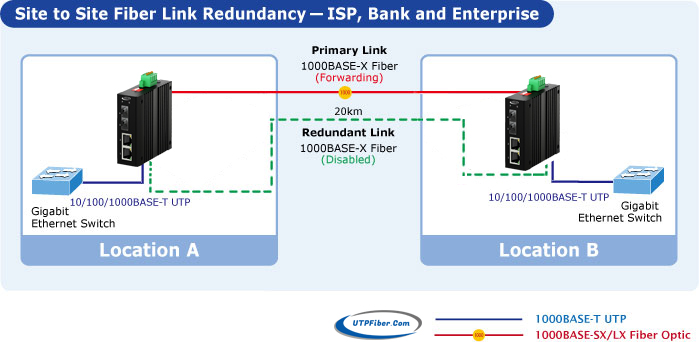

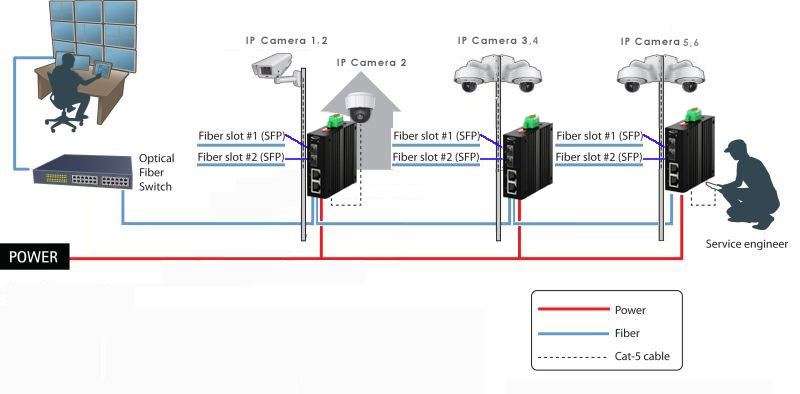

UF-IS6212G can realize the optical line 1 + 1 redundancy protection in point-to-point mode via the DIP switch, it can provide Optical Port automatic protection switching. Via the DIP switch, the UF-IS6212G can be configured as 2-port redundant media converter. When in the 2-port redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.
► 2*10/100/1000Base-T RJ45 ports, 2*100/1000Base-X SFP ports
► DC 12~58V input, redundant power supply with polarity reverse/over-voltage protection
► Powerful DIP switch function: 1. Fiber redundant; 2. Flow control; 3. Broadcast storm restrain; 4. Fiber ports 100/1000M selection;
► Support 10K Bytes Jumbo frame and 1M large buffer
► Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
► IP40 fan-less and Din-rail hardware design with compact size (30*85*85mm)
► Operation temperature: -40 ℃ ~+80℃
|
Model No. |
UF-IS6212G |
|||
|
Interface |
Fiber ports |
Copper RJ45 ports |
||
|
2 |
2 |
|||
|
Ethernet |
2*10/100/1000Base-T RJ45 2*100/1000Base-X SFP |
|||
|
Standard |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
|||
|
Dip Switch |
1. Fiber redundant 2. Flow control 3. Broadcast storm restrain 4. Fiber ports 100/1000M selection |
|||
|
LED Indicators |
P(Power indicator) Green |
Off: the device is power off or failed |
||
|
On: the device power on is normal |
||||
|
S(System indicator) Red |
Off: the chip is normal |
|||
|
On: the chip read/write is unnormal |
||||
|
1-2 (Copper ports) |
Green indicators |
Yellow indicators |
||
|
Off: ports link down |
Off: port speed is 10/100M |
|||
|
On: ports link up |
On: port speed is 1000M |
|||
|
Blinking: data on TX/RX |
||||
|
3-4 ( Fiber ports) Green |
Off: ports link down |
|||
|
On: ports link up |
||||
|
Blinking: data on TX/RX |
||||
|
Power parameters |
||||
|
Input voltage |
12-58VDC, redundant power input |
|||
|
Input current |
0.3A Max |
|||
|
Total power consumption |
Full loading ≤3W |
|||
|
Connector |
Removable 4-pin terminal block |
|||
|
Over-voltage protection |
Support |
|||
|
Switching features |
||||
|
Switching capacity |
8G |
|||
|
Packet forwarding rate |
11.9Mpps |
|||
|
MAC address table |
8K |
|||
|
VLAN |
4K |
|||
|
Buffer |
1M |
|||
|
Forwarding delay |
<5us |
|||
|
Jumbo Frame |
Support 10Kbytes |
|||
|
MDX/MIDX |
Support |
|||
|
Watchdog |
Support |
|||
|
Network Topology |
||||
|
Star topology |
Support |
|||
|
Bus topology |
Support |
|||
|
Tree Topology |
Support |
|||
|
Mechanical structure |
||||
|
Case protection |
IP40 |
|||
|
Installation method |
Din-rail |
|||
|
Dimension(W*D*H)mm |
30*85*85mm |
|||
|
Weight |
0.22 kg |
|||
|
Operating environment |
||||
|
Operating temperature |
-40℃~+80℃ |
|||
|
Storage/transportation temperature |
-40℃~+85℃ |
|||
|
Relative humidity |
5%~95%（non-condensing） |
|||
|
Industrial Standard |
Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us) |
|||
|
Surge protection of Ethernet ports: IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us) |
||||
|
DIP: IEC 61000-4-11 Level 3（10V） |
||||
|
ESD: IEC 61000-4-2 Level 4（8K/15K） |
||||
|
Shock：IEC 60068-2-27 |
||||
|
Free fall：IEC 60068-2-32 |
||||
|
Vibration：IEC 60068-2-6 |
||||
|
Certification |
CCC/CE/FCC/RoHS |
|||
|
Warranty |
5 years |
|||
- Download FileName：UF-IS6212G Mini Industrial 2G+2SFP Redundant Fiber Media Converter Datasheet V1.0.pdf Size： 799KB
|
Model |
Description |
|
UF-IS6212G |
Unmanaged Mini Industrial Redundant Fiber Media Converter with 2*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP slots, DC12-58V input, redundant dual power supply, Din-rail installation. Fiber port transmission distance depending on the SFP module; Operation temperature: -40℃～+80℃ |
|
Mounting Options |
► DIN-Rail |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
