Product Introduction

Model No.

UF-IMG-2T2S

Product description

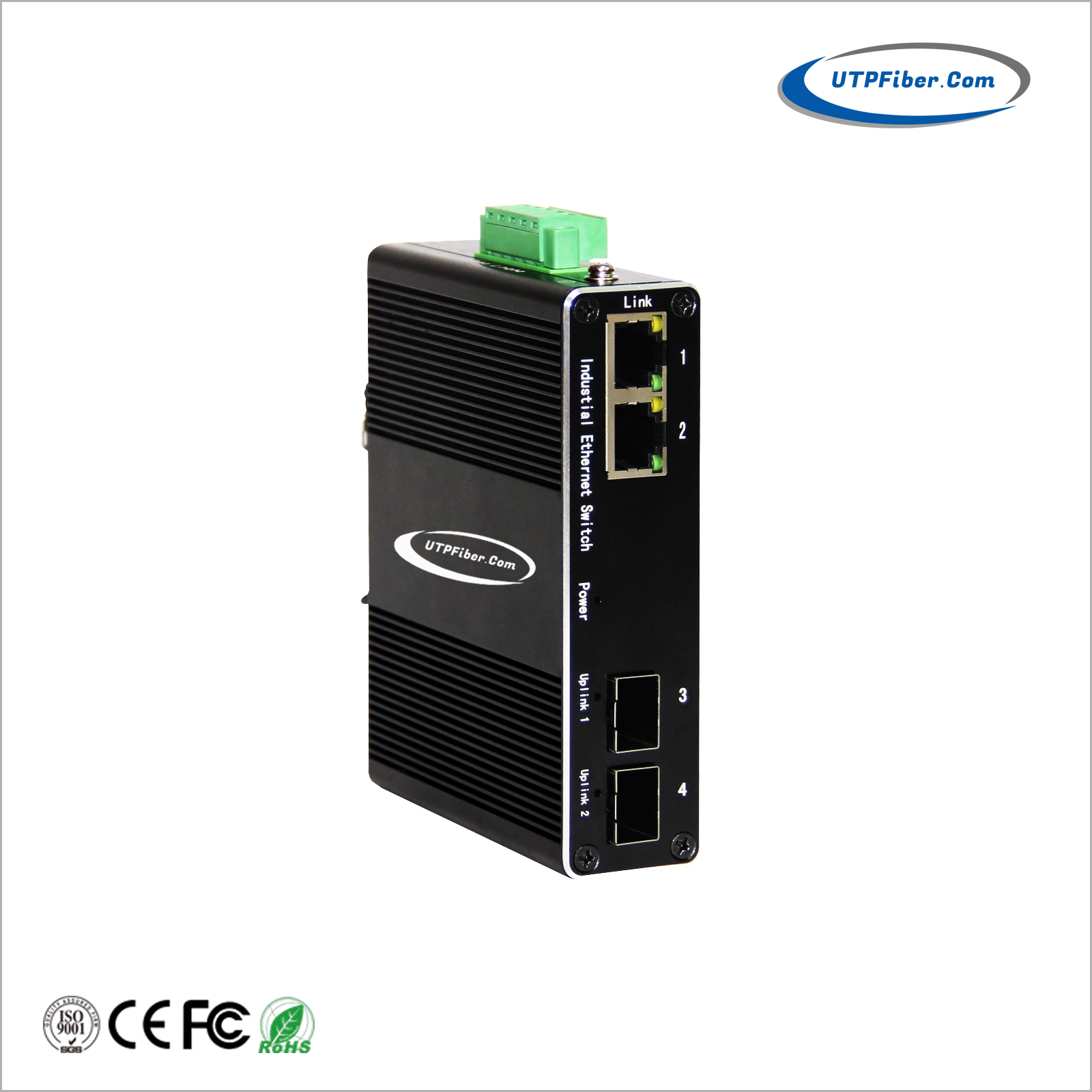

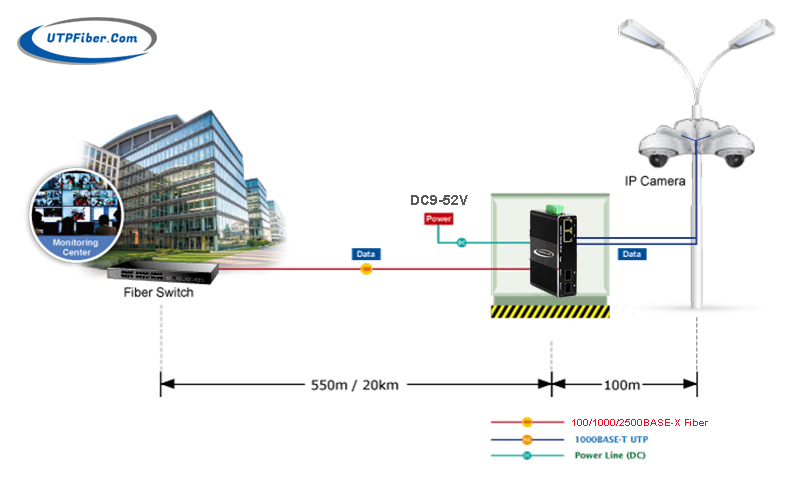

Industrial 2-Port 10/100/1000T to 2-Port 100/1000/2500X SFP Media Converter

Port description

2-Port RJ45 + 2-Port SFP

Ethernet interface

RJ45 Port

2 x 10/100/1000BASE-T

Optical port

2 x 100/1G/2.5GBASE-X SFP

Port Description

 RJ45 port: 10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Optical port: 100M/1G/2.5GBase-X SFP port

Power Parameters

Power

Connection: 1 removable 5-contact terminal block(s)

Input voltage: DC 9-52V redundant dual inputs support reverse connection protection

LED Indicator

Uplink: Green

Interface indicator:

Left of RJ45: Orange (N/A)

Right of RJ45: Green (Data light)

Standards

Network Protocols

IEEE802.3 10BASE-T

IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX/FX;

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X, 2500Base-X

IEEE 802.3x Full-Duplex Flow Control

Twisted Pair

10BASE-T: Cat3,4,5 UTP (≤100 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-TX: Cat6 or later UTP (≤100 meter)

Switch Properties

Processing Type:

Store and Forward

MAC Table Size

4K

Packet Buffer Size

2Mbit

Bandwidth

20G

Switching Delay

＜10μs

Power Consume

＜5W

Physical Characteristics

Protection level

IP40

Enclosure

Wavy aluminum alloy

Installation

DIN-rail

Weigh

0.40kg

Dimensions (LxWxH)

115 x 86 x 30mm

Environmental Limits

Working temperature

-40～80℃ (-40～176 °F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 62368-1(LVD)

EMI

FCC Part 15 Subpart B Class A，EN 55022 Class A

EMS

IEC(EN)61000-4-2(ESD): ±4kV Contact discharge, ±8kV Air discharge

IEC(EN)61000-4-3(RS):10V/m(80～1000MHz)

IEC(EN)61000-4-4(EFT): power line: ±2kV; data line: ±2kV

IEC(EN)61000-4-5(Surge): power: ±2kV CM/±1kV DM; data: ±1kV

IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC (EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

300 000hrs

Warranty

Warranty Period

5 years

Package Contents

Device

1 x UF-IMG-2T2S Media Converter

Documentation

1 x Quick Installation Guide

1 x Warranty Card
