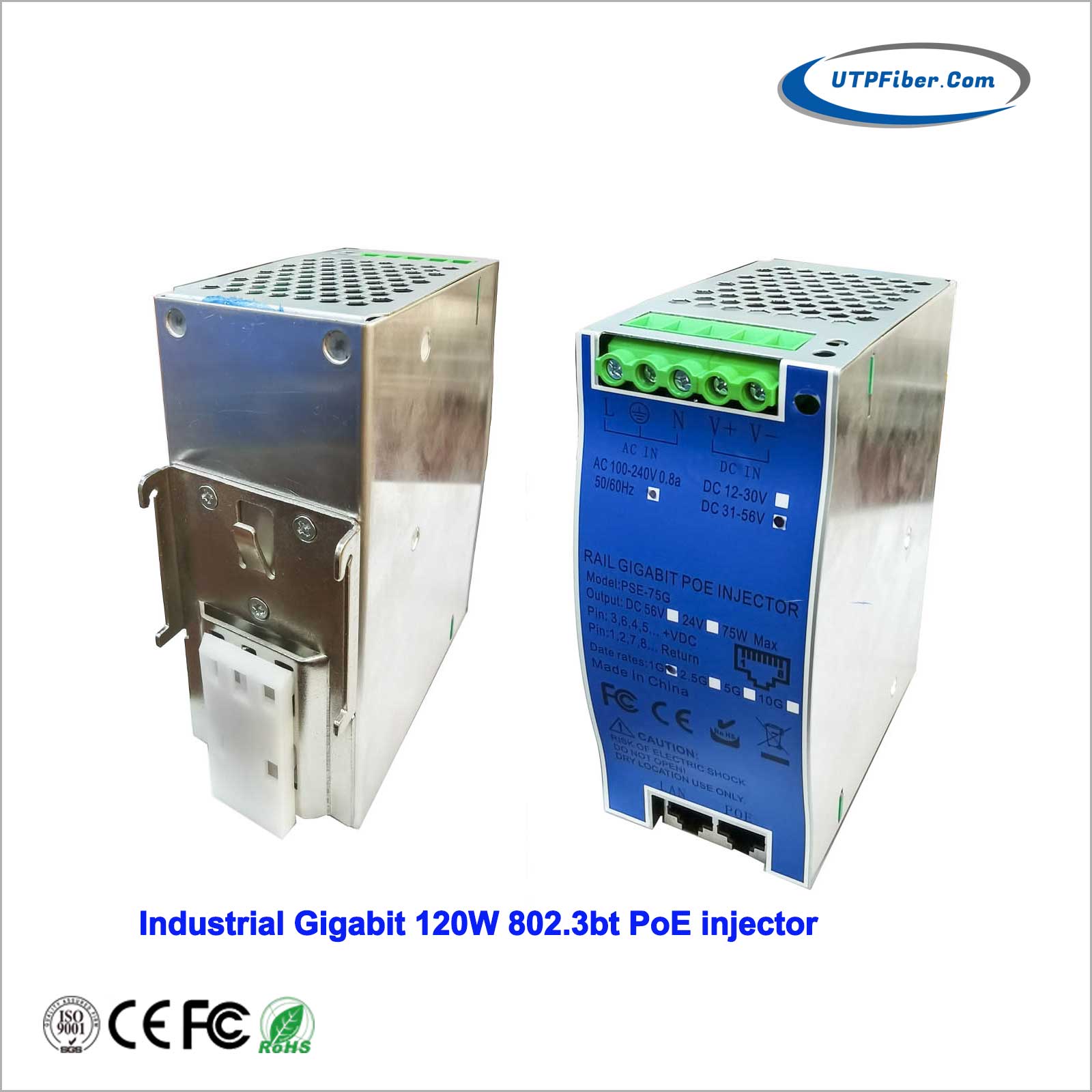

Ethernet

Standards:

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3bt 4-pair Power over Ethernet Plus Plus

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Data Rate:

10/100/1000Mbps

Cabling:

Twisted-pair cable up to 100 meters (328ft)

10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A

100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A

1G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7

Connector:

2 x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power (Optional):

1*AC 100-240VAC @50/60Hz terminal block

1*DC 48-57VDC terminal block

Power Consumption:

125W Max.

PoE (Power over Ethernet)

Standard:

IEEE 802.3bt 4-pair Power over Ethernet Plus Plus

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

Pair 1 End-span: 1/2 (+), 3/6 (-)

Pair 2 Mid-span: 4/5 (+), 7/8 (-)

Max. Power per Port:

120W Max per port

PoE Power Output:

54-56V DC 2.15A

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (LxWxH):

125 x 100 x 56 mm

Weight:

0.46Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail

Regulatory Approvals

EMC

CE (EN55032, EN55035)

EMI

FCC Part 15 Subpart B

EMS

EN61000-4-2 (ESD) EN61000-4-3 (RS)

EN61000-4-4 (EFT) EN61000-4-5 (Surge)

EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11

Safety

CE (EN60950-1)

Surge Protection

AC port: 4kV

RJ45 port: 2kV

ESD

4KV/8KV

Shock

IEC60068-2-27

Freefall

IEC60068-2-32

Vibration

IEC60068-2-6
